FCC ID: 2AJGM-UV5R
▸ Upgraded version of UV-5R with Tri-Power 8W / 4W / 1W.
▸ Optimal Modulation of TX/RX Power transistor, True 8W Output Power, Longer Effective Talking Range.
▸ Upgrade the frame material. Metallic, more durable and more fashionable. With full high two colors LCD definition display, the screen exquisite clarity.
▸ 3 key BFB upgrade to BFB 301.
CLICK HERE to download software, manual or programming tips.
The transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.
1. Frequency Range: 65-108MHz (FM Receive only); 144-148MHz, 420-450MHz (TX) | 144-148, 136-174MHz, 400-480MHz (RX)
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 8/ 4 /1Watts Triple Power
4. 128 Channels 50 CTCSS and 104 DCS
5. Built-in VOX Function
6. 1750Hz Brust Tone
7. FM Radio (65.0MHz-108.0MHz)
8. LED Flashlight
9. Large LCD Display

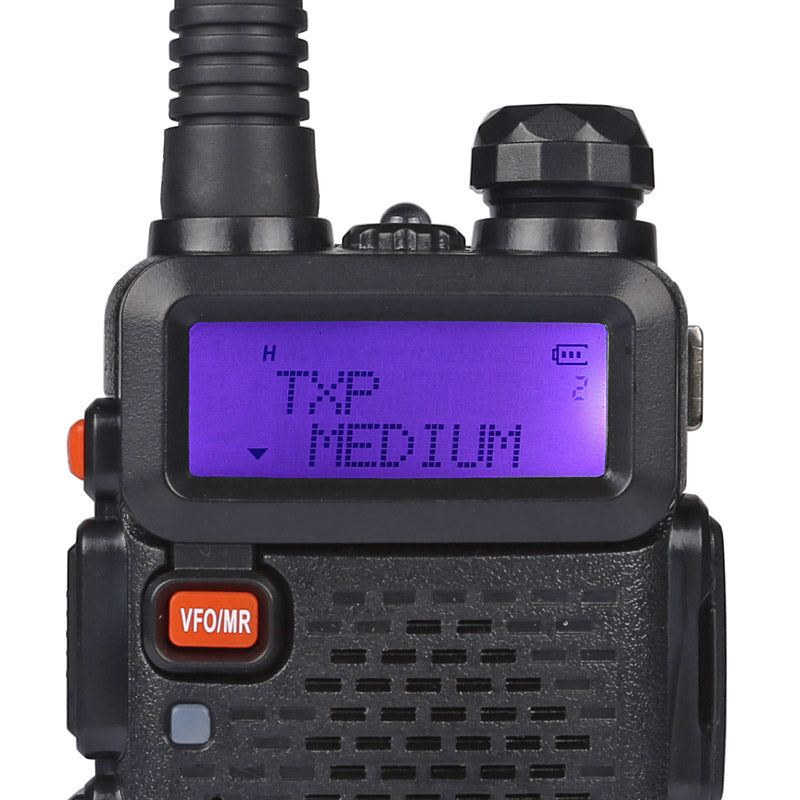

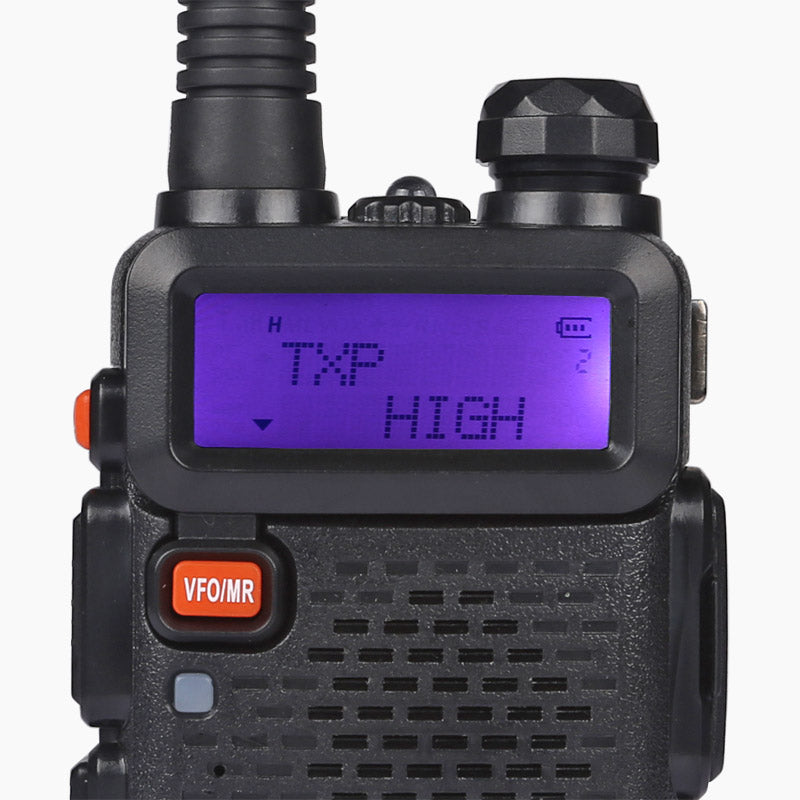

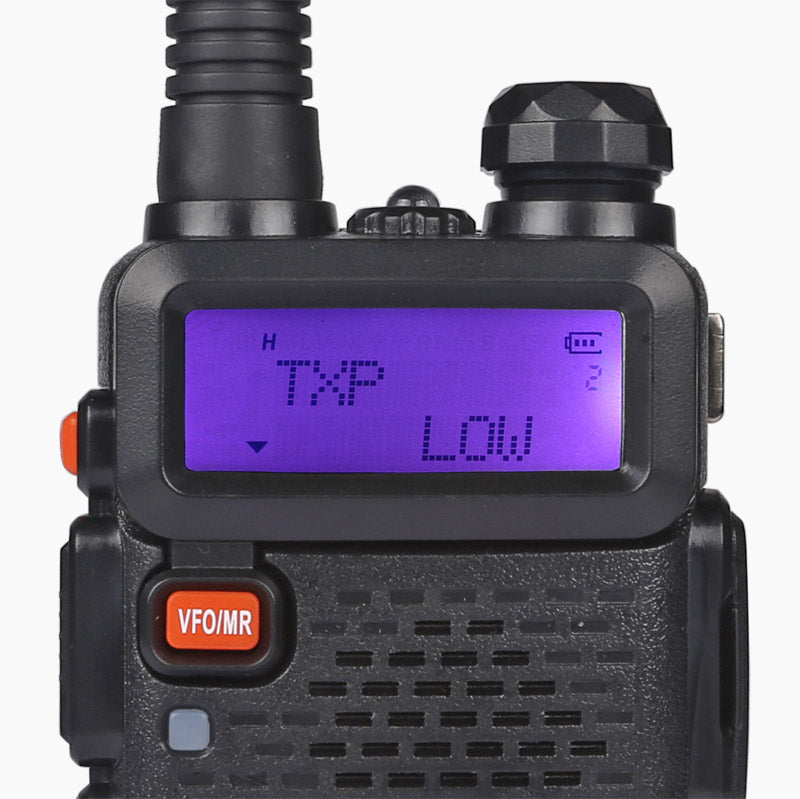

10. Hight / Med / Low RF Power Switchable
11. 25KHz/12.5KHz Switchable
12. Emergency Alert
13. Low Battery Alert
14. Battery Saver
15. Time-out Timer
16. Keypad Lock
17. Monitor Channel
18. Channel Step: 2.5/5/6.25/10/12.5/25KHz
19. ROGER SET
Frequency Range: 65-108MHz (FM Receive only); 144-148MHz, 420-450MHz (TX) | 144-148, 136-174MHz, 400-480MHz (RX)
Channel No.: 128
Frequency Stability: ±2.5ppm
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Output power: 8W / 4W / 1W (Max 8W)
Dimension（W x H x D）: 100 x 52 x 32 mm
Weight: 250g （including battery, antenna）

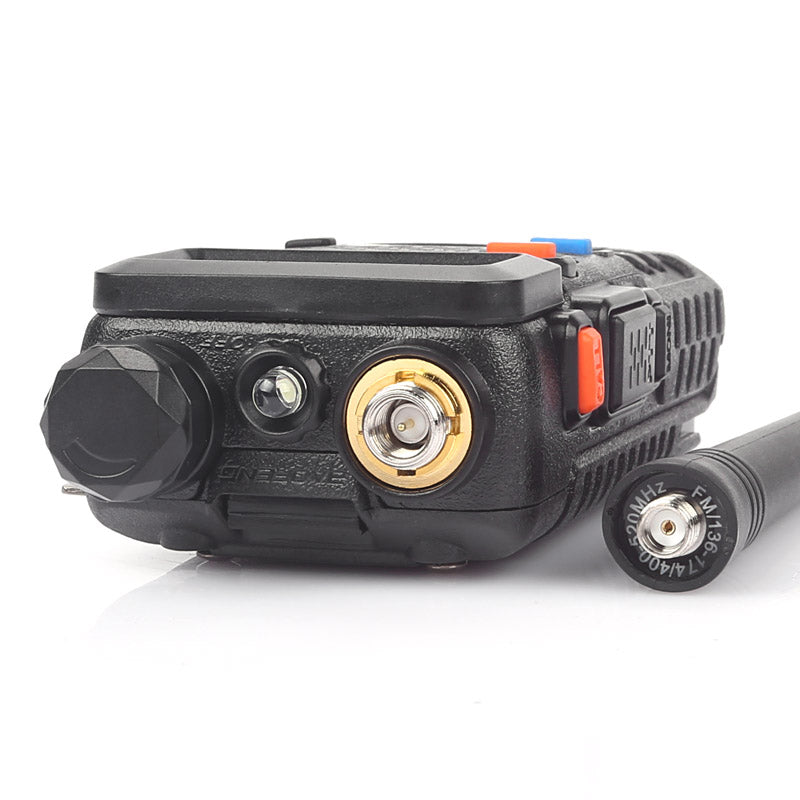

Antenna Type: Compatible with SMA-Female Antenna

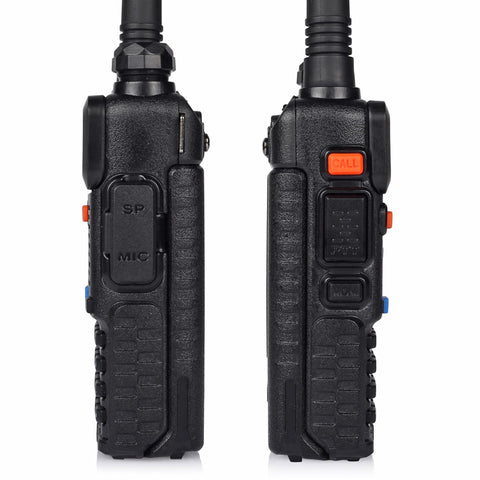

Earpiece & Programming Type: Compatible with K-plug earpiece/cable

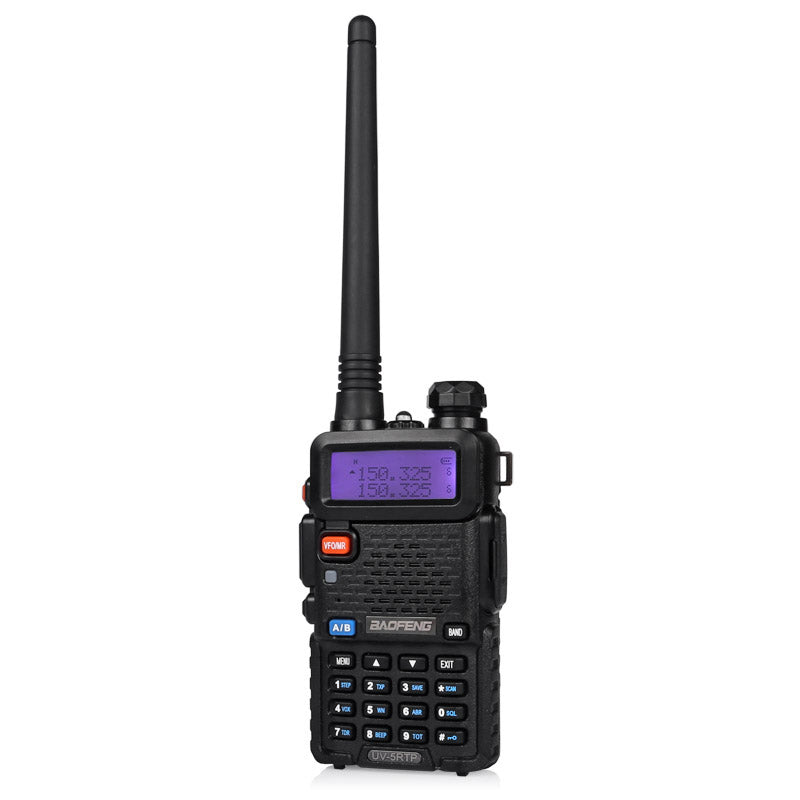

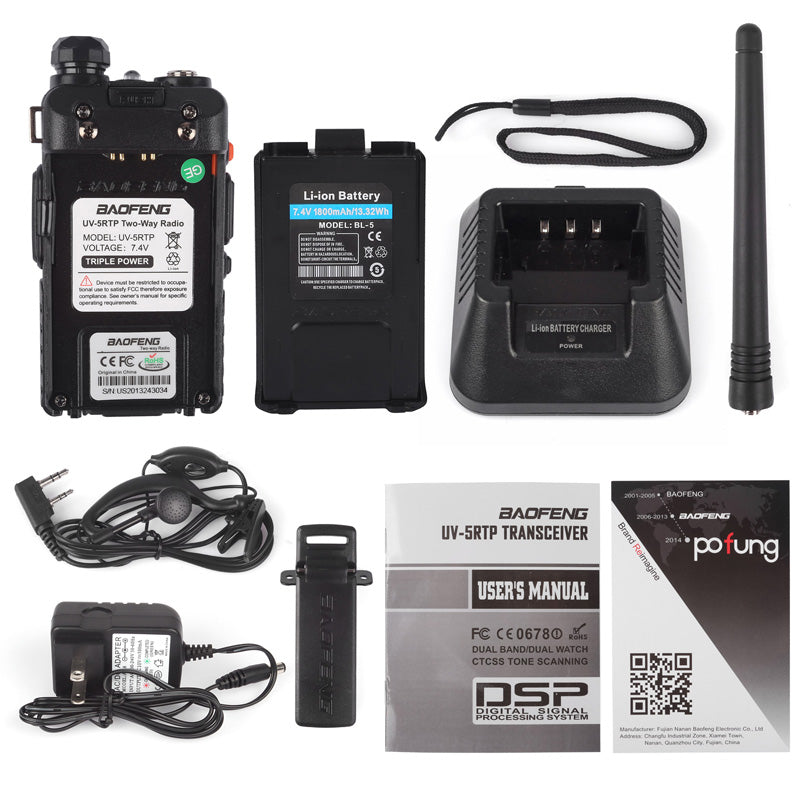

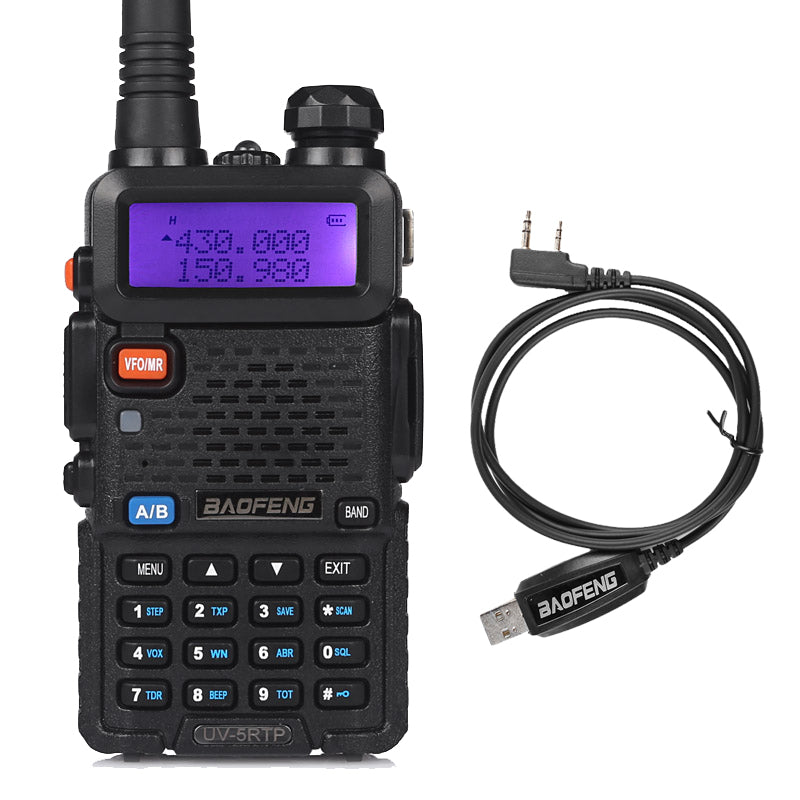

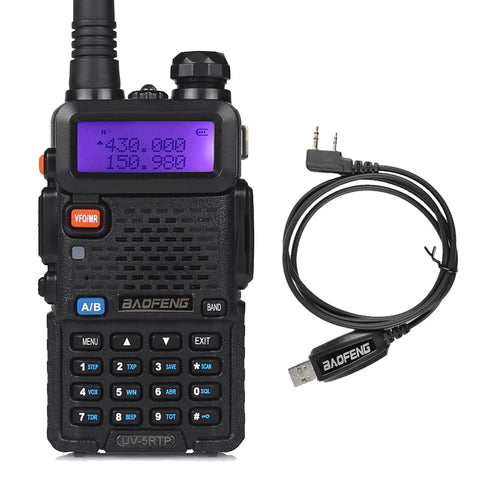

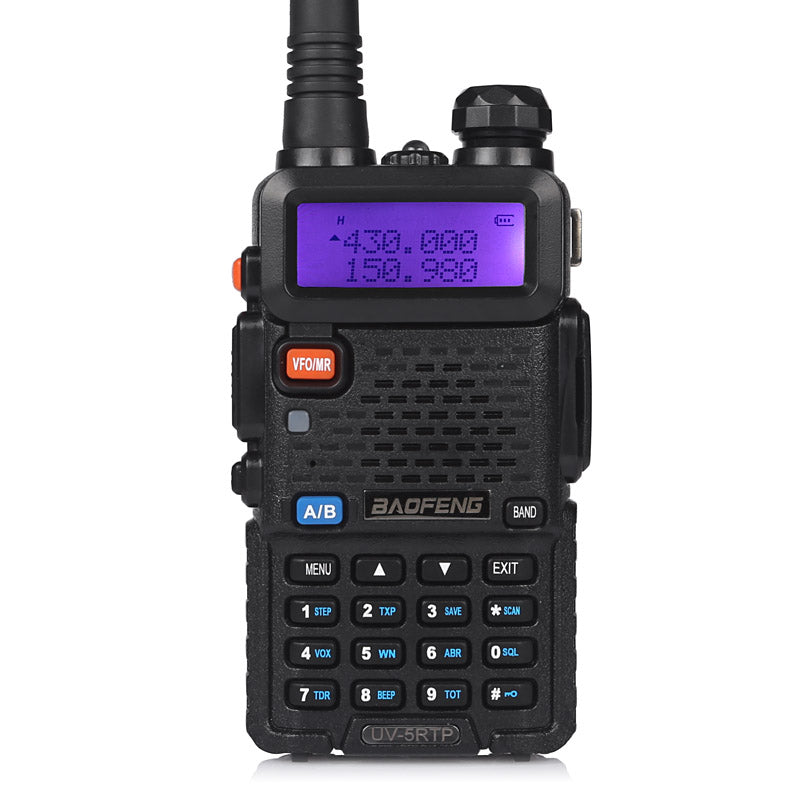

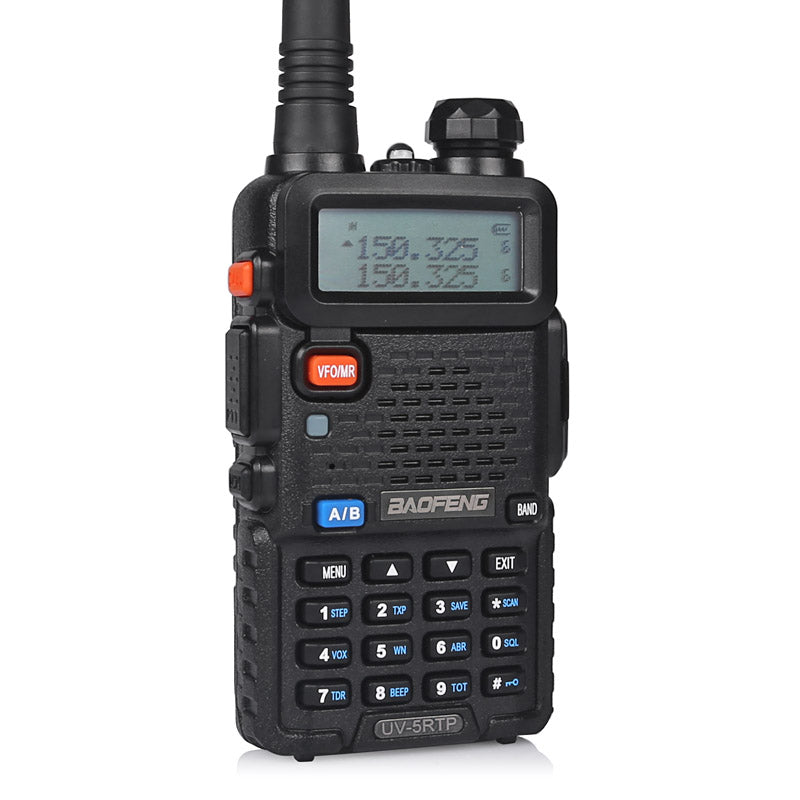

1 x Baofeng UV-5RTP Two Way Radio

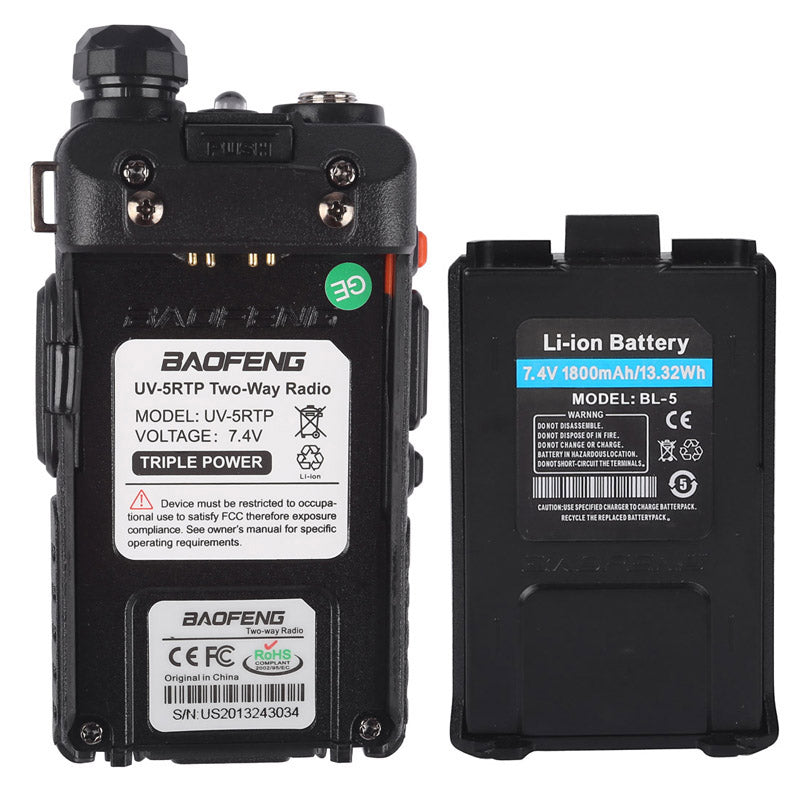

1 x 7.4V 1800mAh Li-ion Battery
1 x Antenna
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x Manual
1 x Adapter
1 x Desktop Charger

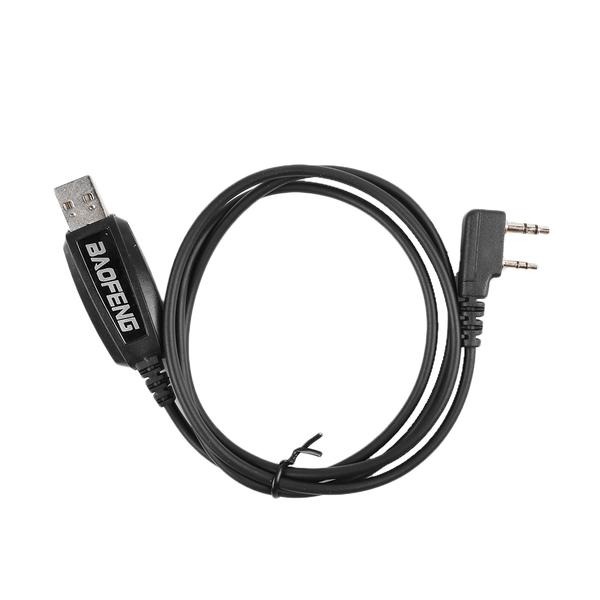

1 x Programming Cable
1 Year and 6 months Manufacturer's Warranty.
