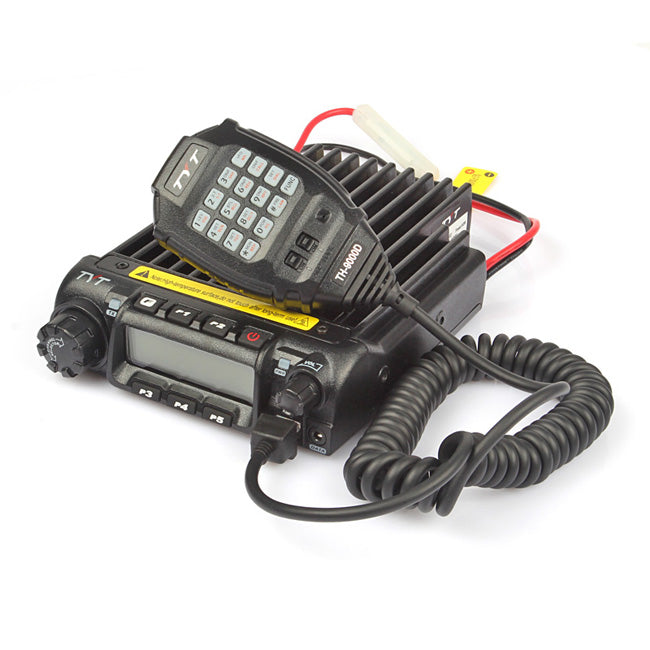

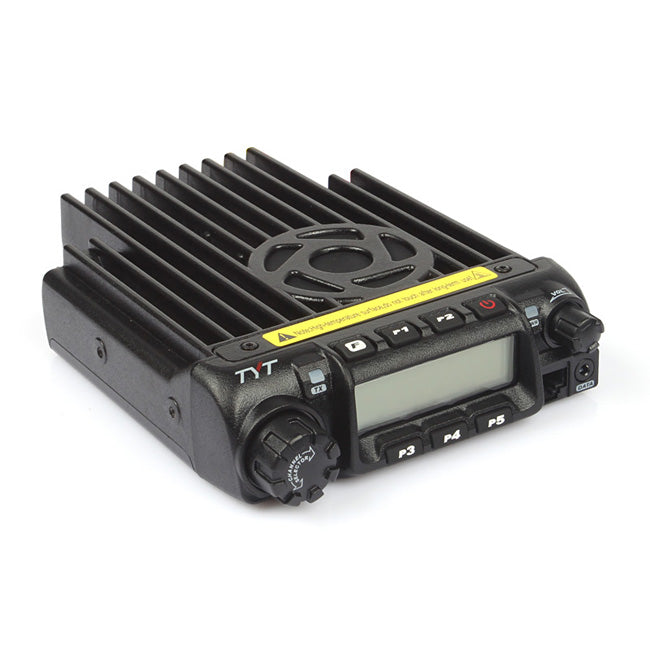

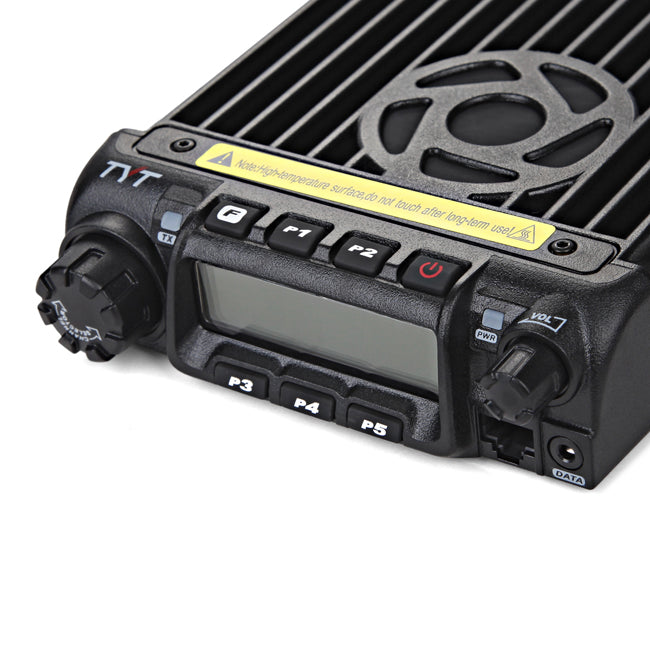

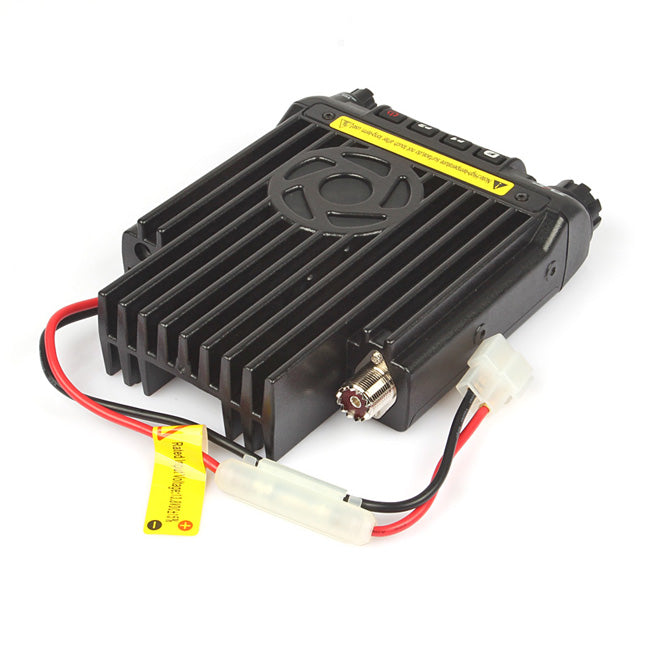

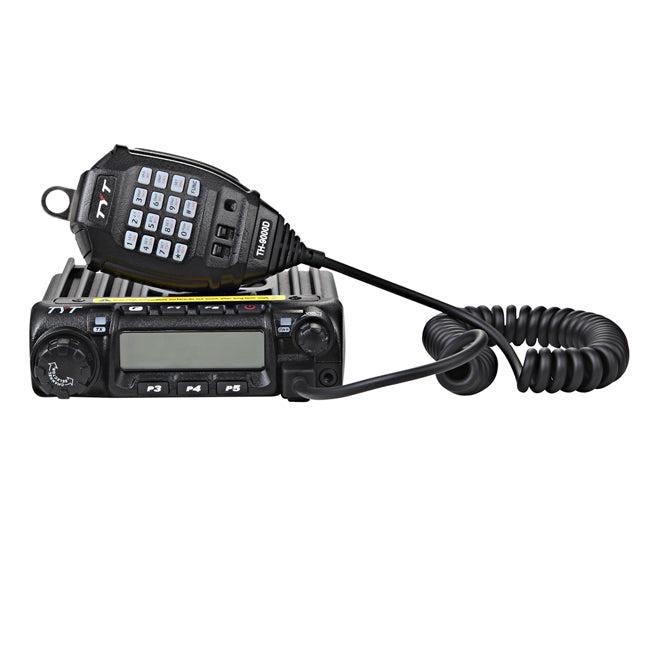

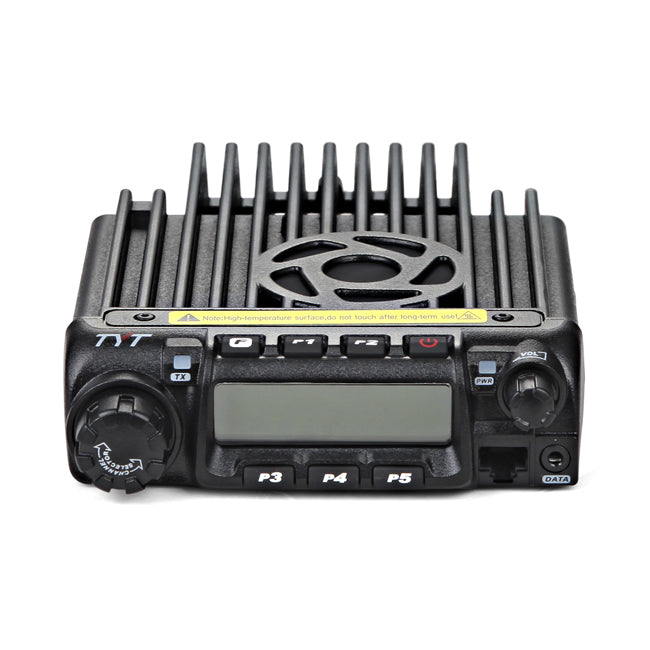

- 65 Watt Heavy Duty Two Way VHF Mobile Transceiver with ctcss/dcs ( PL & DPL ).
- 200 AlphaNumeric Channels, Full Keypad Microphone. NEW Cool-Blue Display Backlight (not shown). Includes mounting bracket & fused power Cable.
- Great for Amateur 2M Band 144-148Mhz , full 220-260Mhz VHF. 2.5Kz Steps
- Features 3 Selectable Power levels, DTMF,Keypad lock, Scan modes & more!
- Requires Optional Suitable VHF Antenna, & hookup to 12-14Vdc ( 12-14A)
Frequency Range: VHF: 245-245.9875MHz (220-260MHz)
Output Power: VHF: 10W/25W/60W
8 groups of scrambler:
1750Hz Tone:CTCSS/DCS setting & scanning
0-9 SQL grade setting: Frequency/Channel scanning
High/Mid/Low power selectable: Voice commander
Repeater offset shift: Keypad lock function
Contact book: Battery voltage display
DTMF/2 tone/5 tone: ANI ID
Remote kill/ stun/ activate/ revive: Emergency alarm
Wide/Narrowband setting: TX inhibit
Busy Channel Lock-Out: Channel name editing
Reverse frequency: Talk around
Scrambler(Optional): Voice prompt
Time-out Timer: Auto Power-off
VFO step setting:5/6.25/10/12.5/20/25/50kHz
Frequency Range: 136-174/245-246/400-490MHz
Channel Capacity: 200
Channel Spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability: 2.5ppm
Operating Temperature: -20℃ ~ + 60℃
Operating Voltage: 13.8V DC ± 15%
Dimension(HxWxD): 145mm x190mm x47mm
Weight(with bracket): 1200g
Reference Sensitivity: 0.2μV @ 12dB SINAD
Operating Bandwidth: 0dB@12.5KHz /70dB@25KHz
Adjacent Channel Selectivity: 60dB@12.5KHz 70dB@25KHz
Inter-modulation Rejection: ≥60dB/ ≥65dB
Spurious Response Rejection: ≥70dB
Rated Audio Response: +1-+3dB
Rated Audio Distortion: <5%
FM Hum&Noise: ≥40dB@25KHz /≥45KHz @12.5KHz
RF Power: 45W/25W/10W(UHF)/60W/25W/10W(VHF)
Frequency Modulation: 11kΦF3E / 16kΦF3E
Modulation Distortion: <5%
FM Noise: ≥36dB@25KHz /≥40KHz @12.5KHz
Adjacent Channel Power: ≥60dB@12.5KHz /≥70KHz @25KHz
Audio Response: +1-+3dB
Audio Distortion: <5%

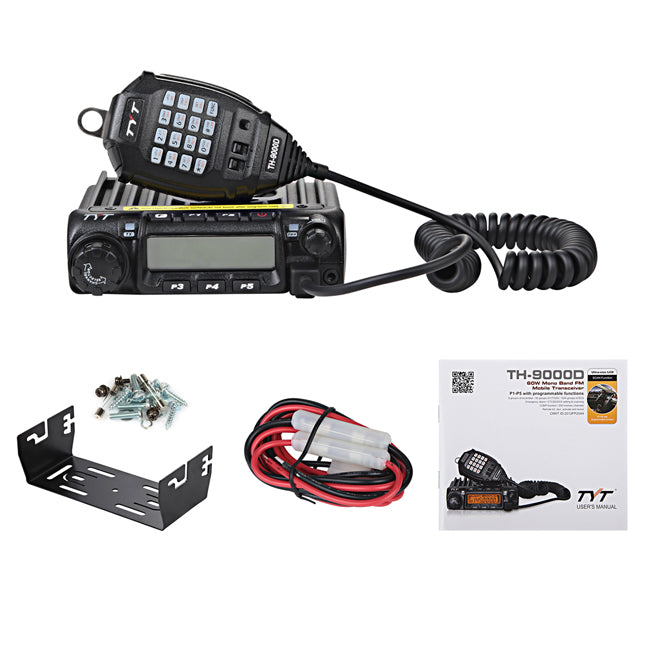

1 x TYT TH-9000D 220-260MHz Mobile Transceiver

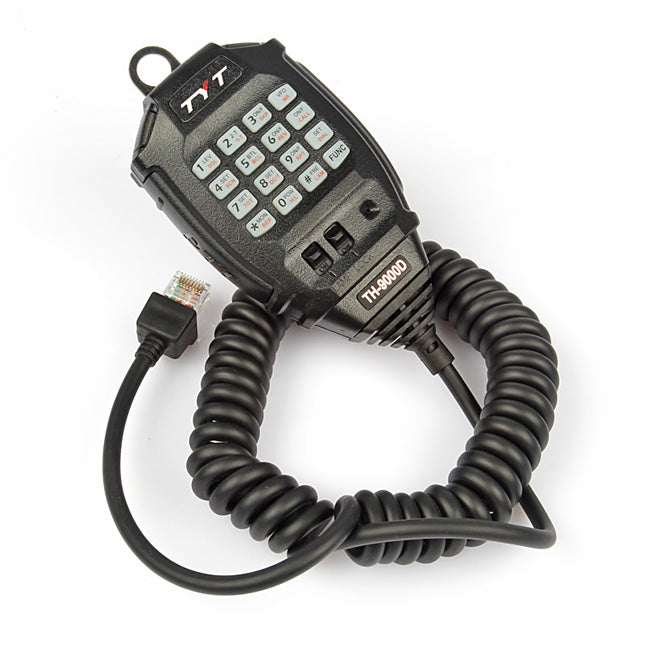

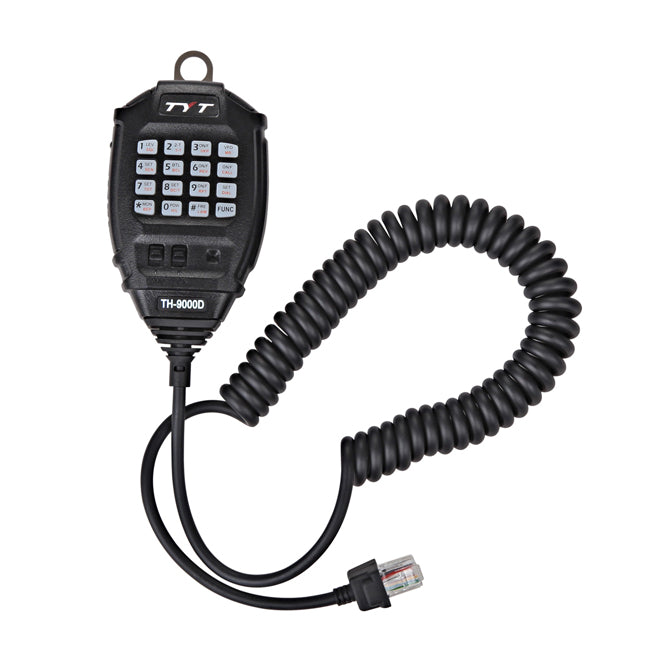

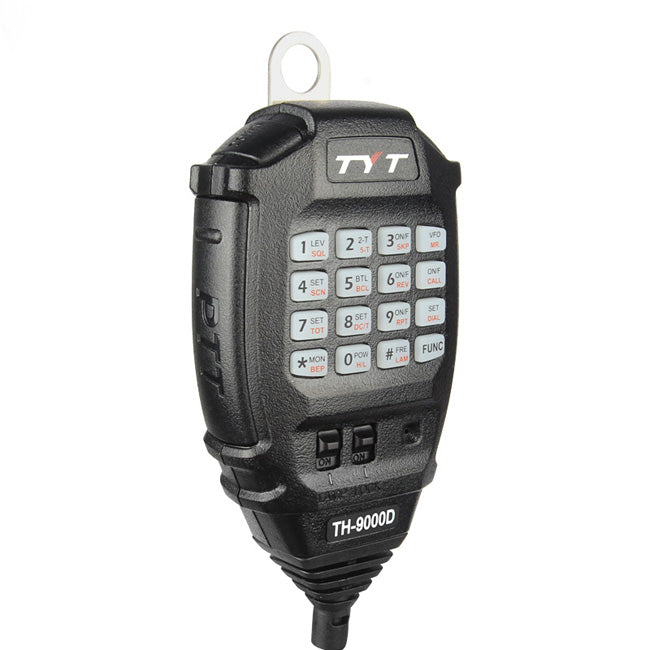

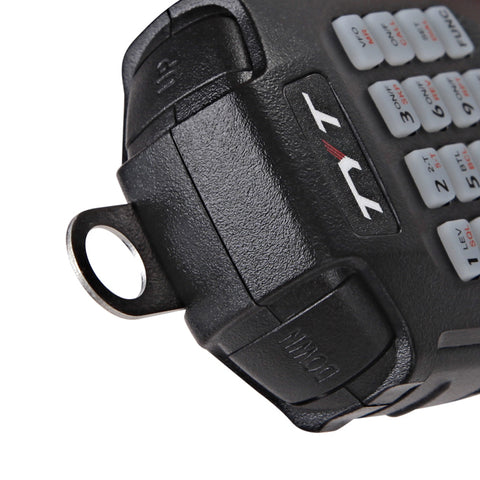

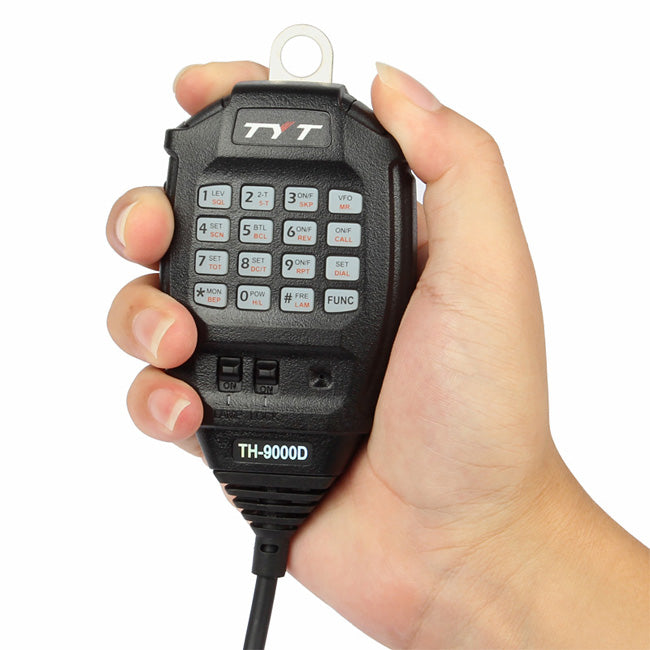

1 x Handheld Microphone
1 x Power Cable
1 x Screws and Accessories
1 x User's Manual
1 x Fixed Bracket

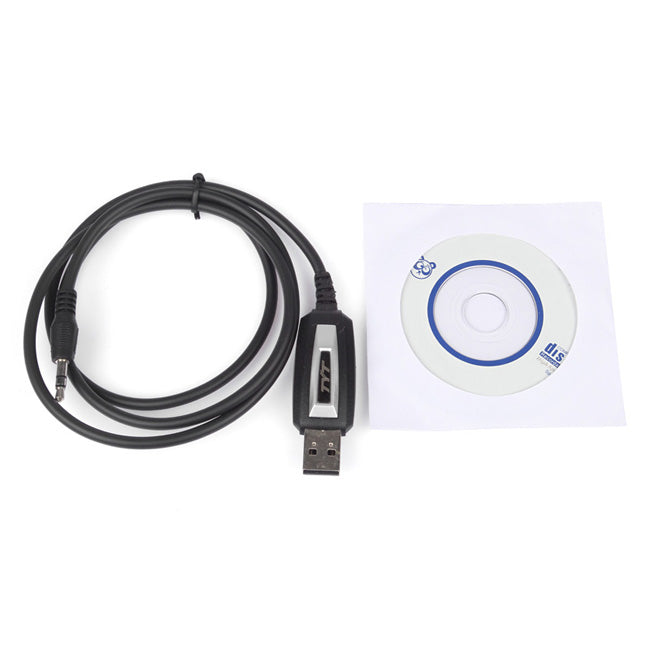

1 x Cable
1 Year and 6 months Manufacturer's Warranty.
