Note: This code is not allowed on Sale Bundles.
5 Band Filter: Radioddity LPFX7 low pass filter comes with 5 bands filtering function (10M, 15M, 20M, 40M, 80M).

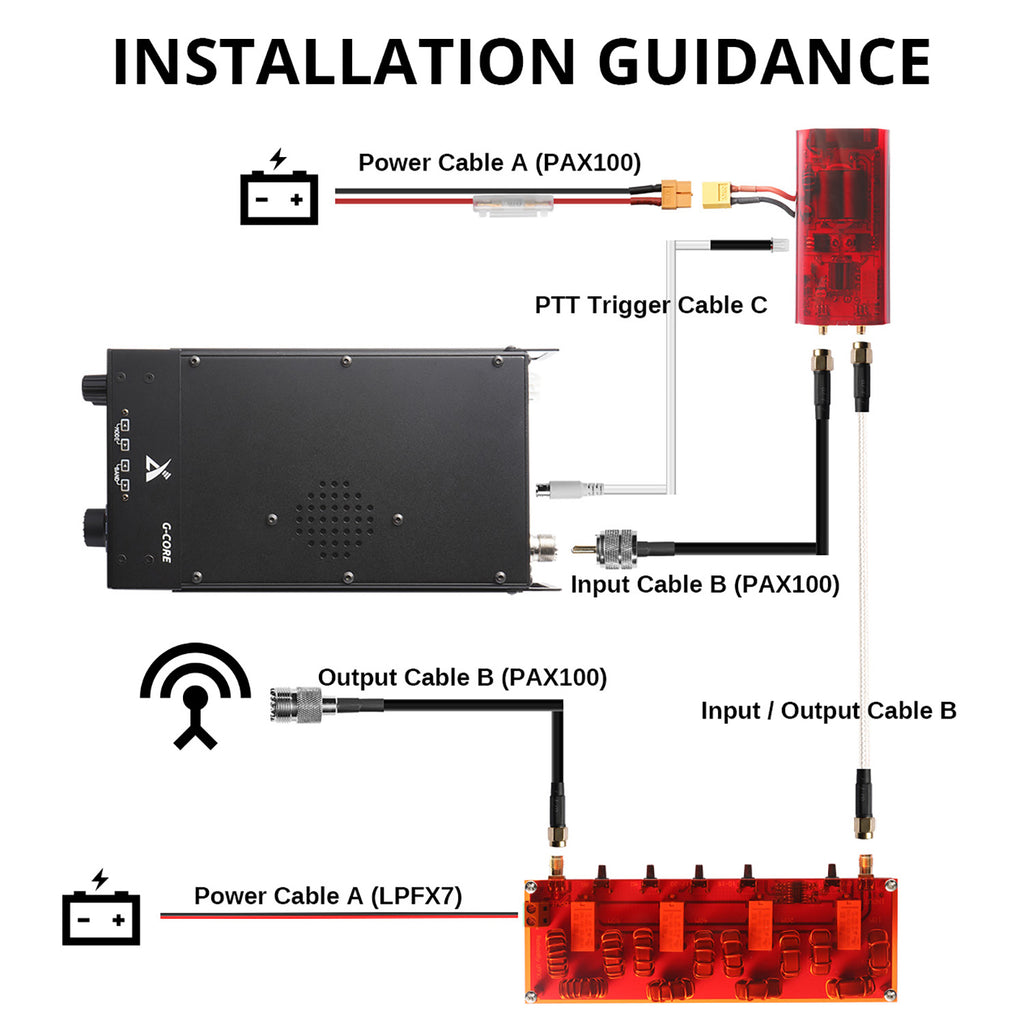

Plug and Play: Equipped with input/output and power cable, simply connect it with your radio/amplifier and antenna, power it on and select your band, then it’ll work automatically. No extra soldering needed.

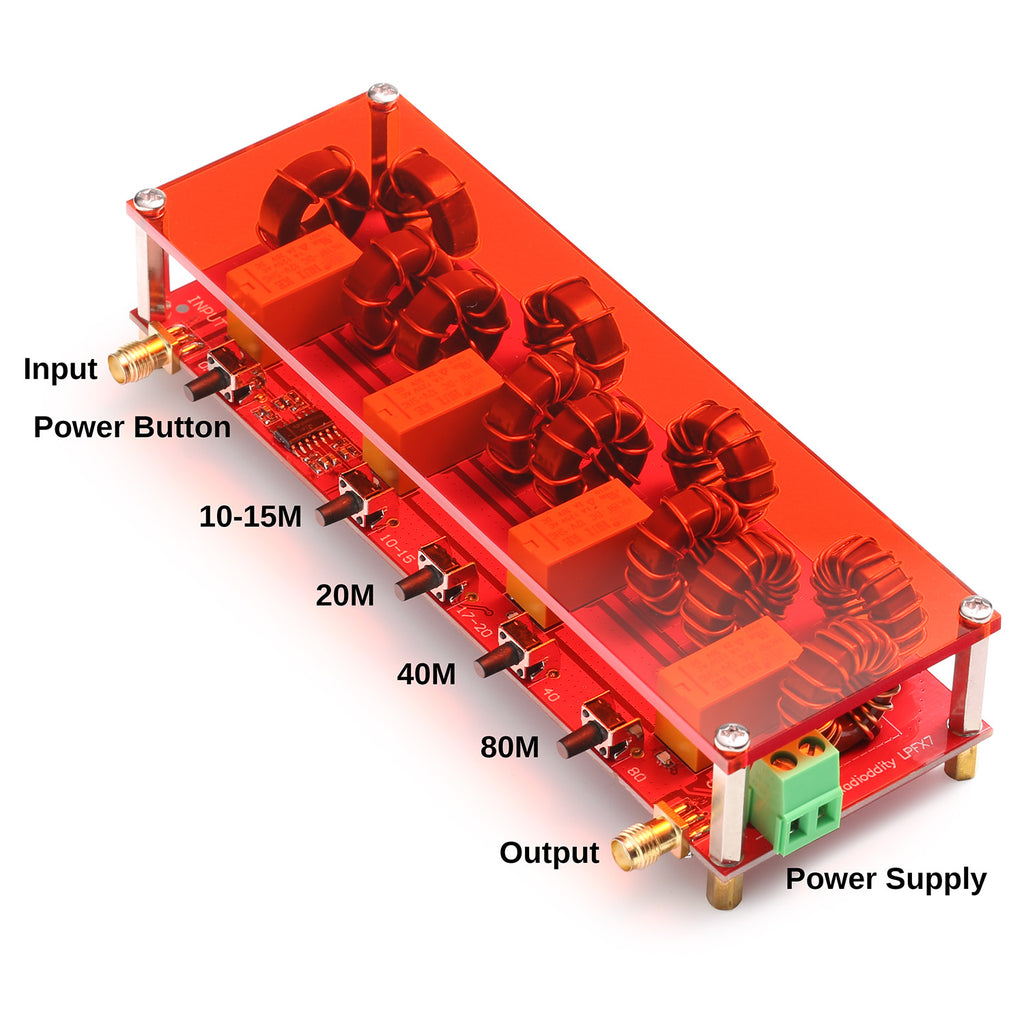

One Key Switch: LPFX7 is with 4 buttons to allow you select the working frequency band according to your radio frequency. One press to switch, easy and convenient.
LED Lights Indicator: In order to help you learn which band of the filter is working, the filter is with 4 LED indicators. The LED will light up when corresponding band is pressed.

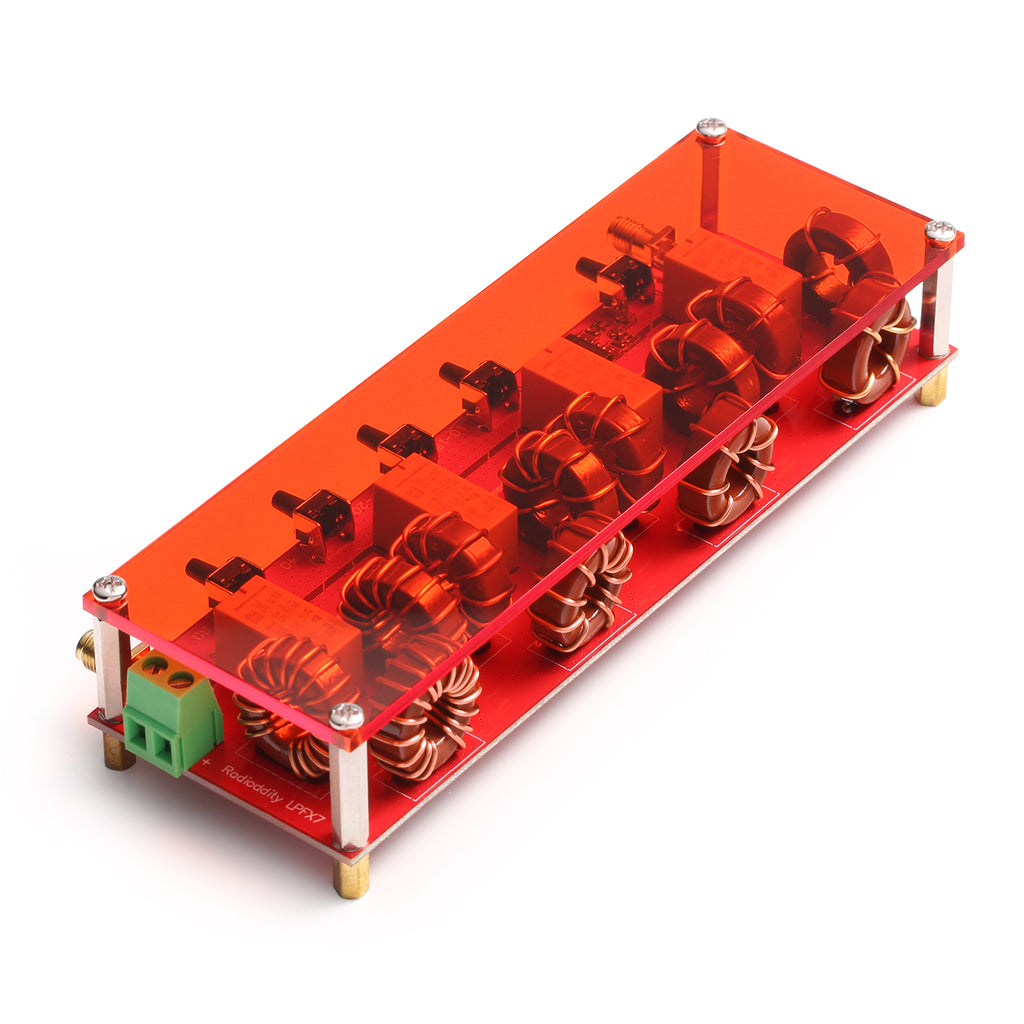

Radioddity LPFX7 Low Pass Filter is designed for Radioddity PAX100 RF power amplifier and other devices, mainly used to suppress transmitter harmonics during transmission and reception. It also provides some pre-selection filtering on receive. The LPFX7 is with
Frequency Range: 10M, 15M, 20M, 40M, 80M
Input Power: 100W CW, 200W SSB
Filter Structure: Elliptic filter
Filter Order: 7th order
Harmonic suppression: >30dB
Input & Output Connectors: SMA-K
Power supply voltage: 12V-16V
Working current: 100ma
Size: L150mm, W50mm, H35mm (5.9 x 1.97 x1.38in)
Weight: 190G (0.42lb)
Working temperature: -15℃～55℃
Storage temperature: -30℃～75℃
1. The filter is designed for the PAX-100 and achieves the best performance with it.
2. When used with other radios or devices, slight degradation of performance can be expected.
3. Working Voltage: 13.8V | Working Current: 0.1- 0.5A
4. Maximum Input Power: 100W for CW, 200W for SSB. Exceeding the rated power levels may cause damage to the filter.
5. Harmonic suppression：
10M & 15M, 20M, 40M＞30db

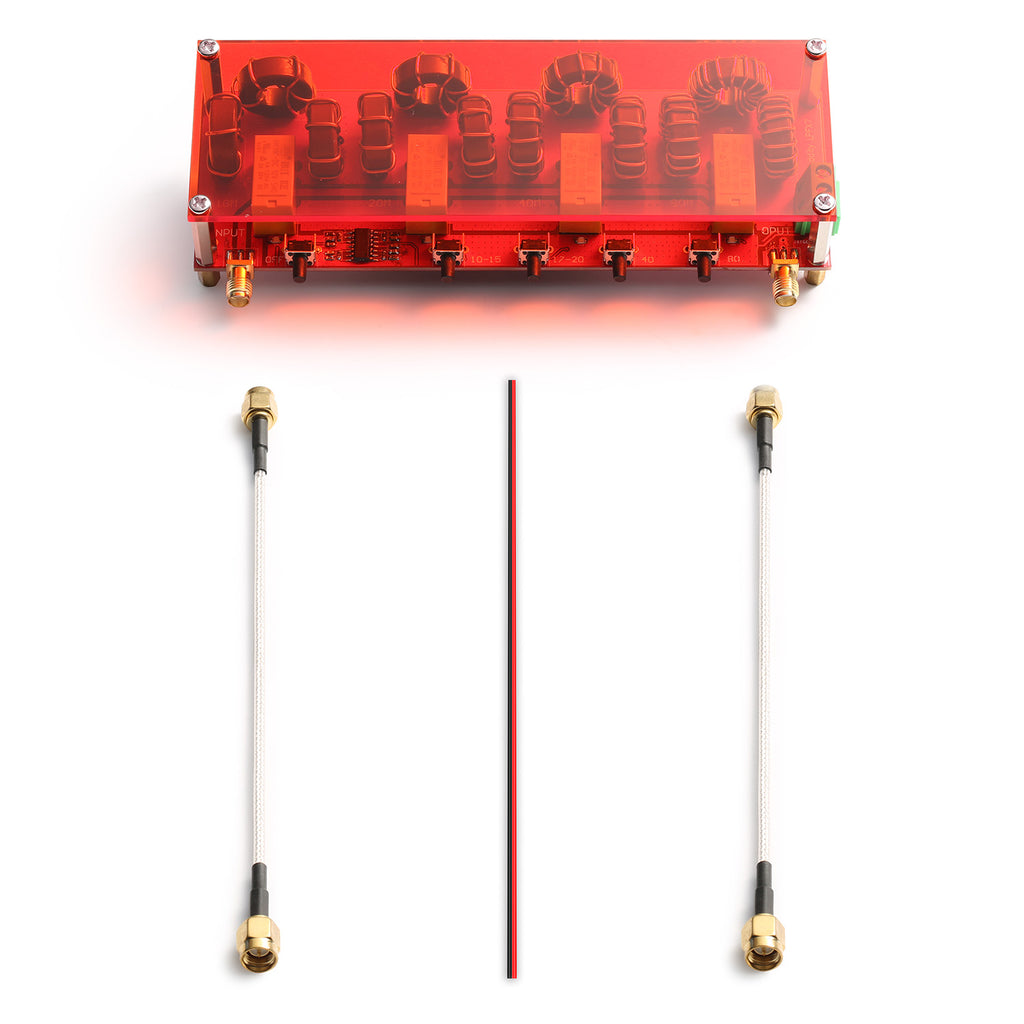

What’s in the box
1 x Radioddity LPFX7 Low Pass Filter
2 x Input & Output Feeder
1 x Power Cable
