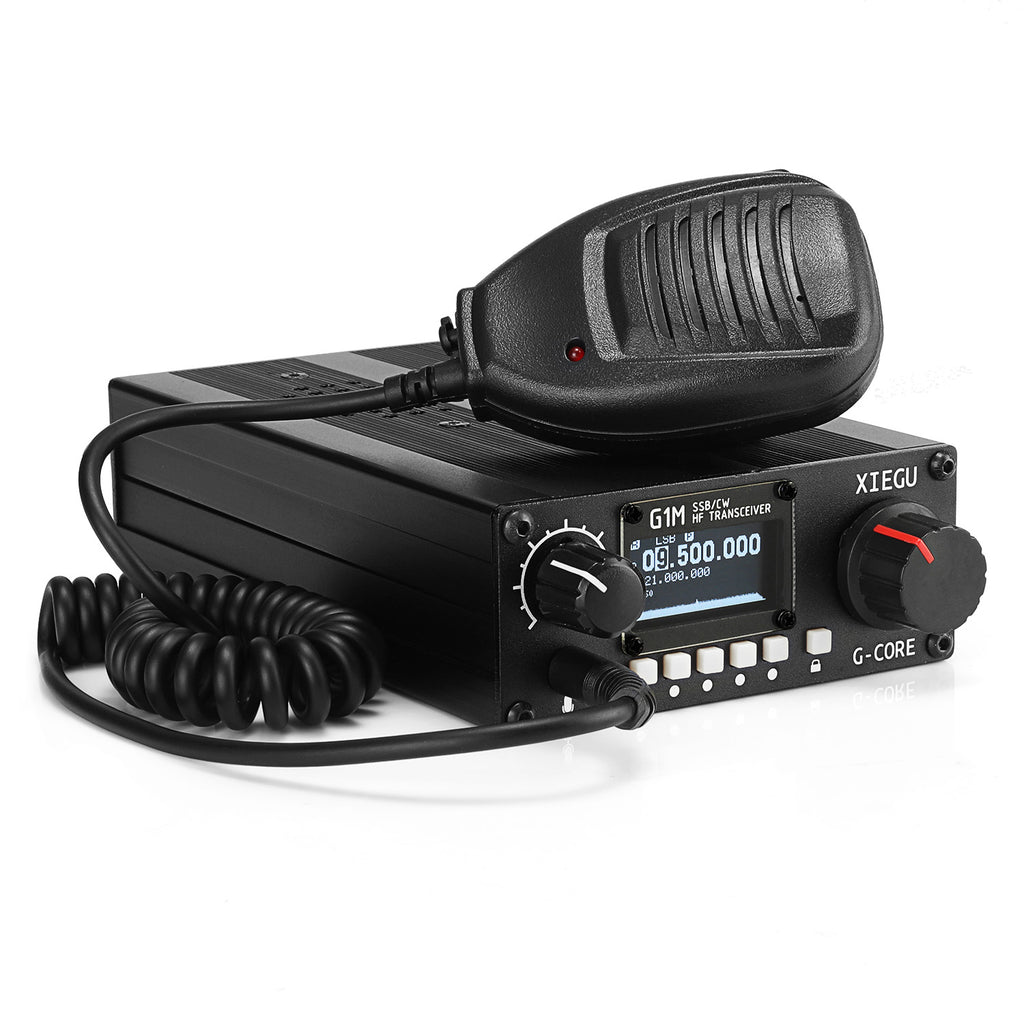

[Mini Five Watt QRP Transceiver] – Receiving Capability 0.5-30 MHz General Coverage and transmitting capabilities on four most popular amateur radio bands, the G1M is a highly portable QRP transceiver and has a clear and bright OLED screen.

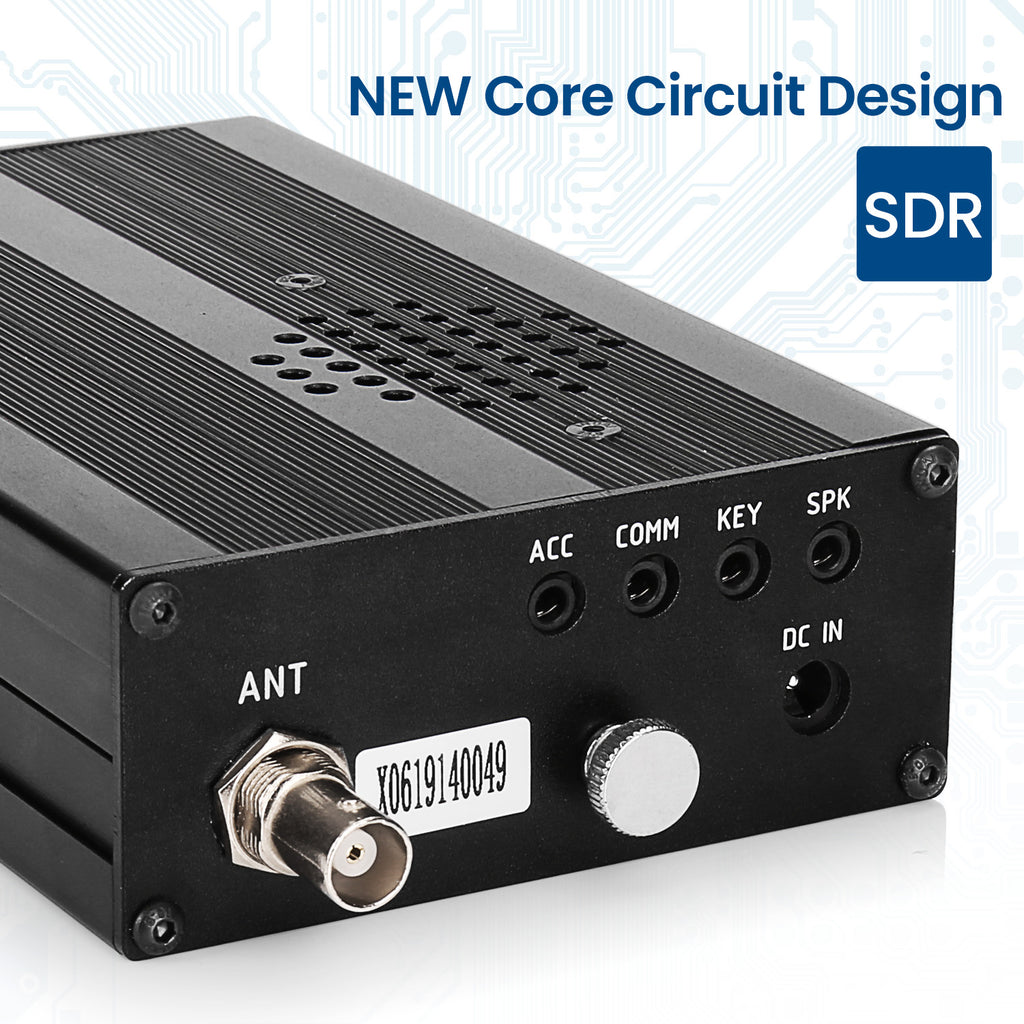

[NEW SDR Core Circuit Design] - With SDR structure, the G1M’s core is based on 16 bit-CODEC sampling and has excellent performance in a compact size.
[NEW AM Receiving Mode] - The newly added AM receiving mode allows you to listen to news radio from around the world.
[CW Reception] - The 800Hz narrowband CW digital filter makes Morse Code transmissions easier and clearer to decode.

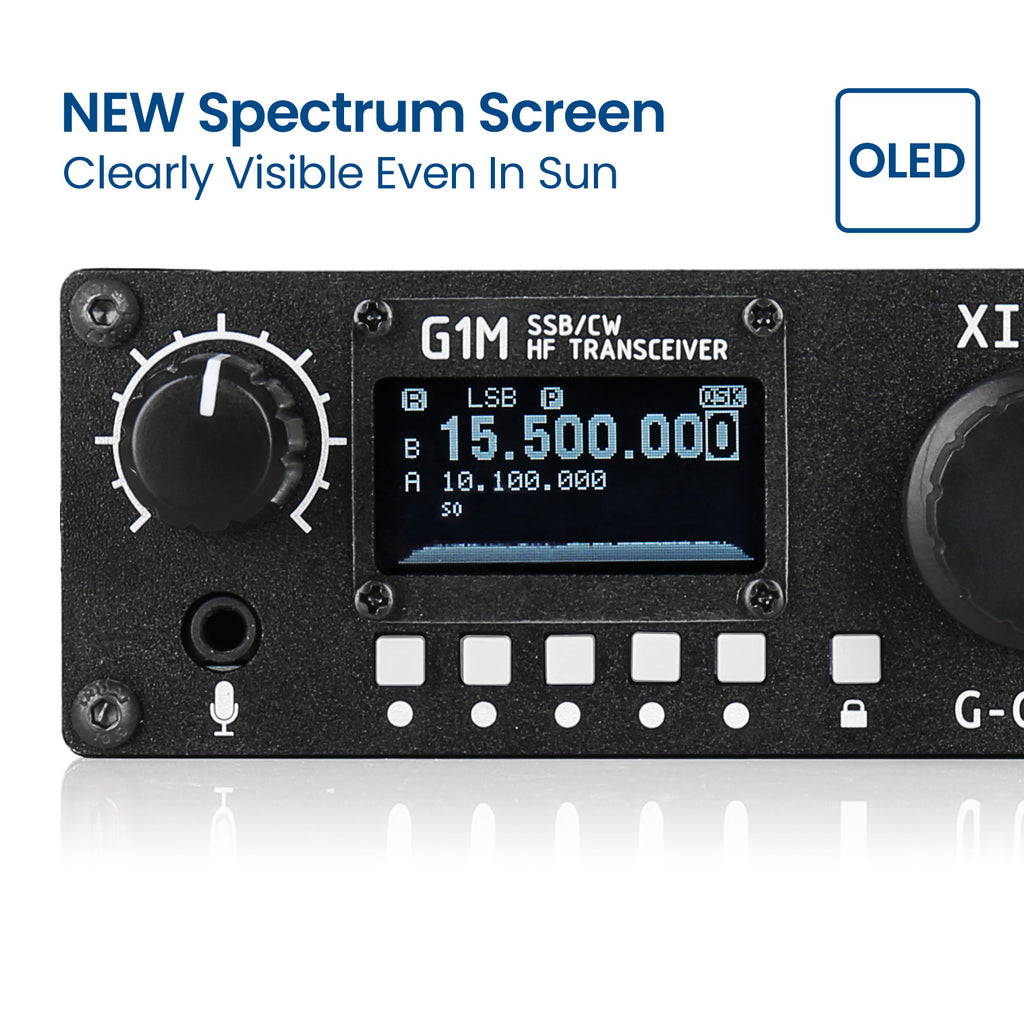

[NEW Spectrum Display] – The G1M uses a bright OLED display screen that displays all status information, which is of great convenience to use. The screen effect is clear even in sunlight.
[Warranty Note] - We provide a 1 year warranty on the Xiegu G1M. As usual, if you modify the radio's hardware, the warranty is void.
[Disclaimer] - No License is required to purchase this radio, nor to Monitor (listen) to the many Amateur (Ham) Radio frequencies. However, an FCC License is required to Transmit (Talk) on Amateur Radio Frequencies in the USA. Please visit http://wireless.fcc.gov/services/amateur/licensing to learn more.
CLICK HERE to download the user manual.
• High Performance SDR Core Circuit Design
• Bright OLED Display + Spectrum Display
• NEW AM Broadcast Receiving Mode
• NEW Added CW Trainer Function
• Adaptive Speech Noise Reduction processing
• HF Continuous ReceiverTuning
• Supports Data Communication Mode
• Supports Connection interfacing with PC
• Supports Manual / Automatic CW Key operation for Straight or Iambic Keys (see below)
• Supports Connection with XPA125 / XPA125B / XPA20 Amplifiers
• Adjustable AGC Control
Note: Please do not randomly change the settings of the factory configuration menu, or the whole machine may be damaged or function abnormally!
Supports Connection with a PC: With 3.5mm socket, G1M can connect to a computer for data modes using aftermarket soundcards. As an example Tigertronics Inc. sells a G1M kit developed with a G1M user, for data modes, others are available as well.
Also, via new interfaces G1M can easily connect to the XPA125/XPA125B /XPA20 amplifiers.

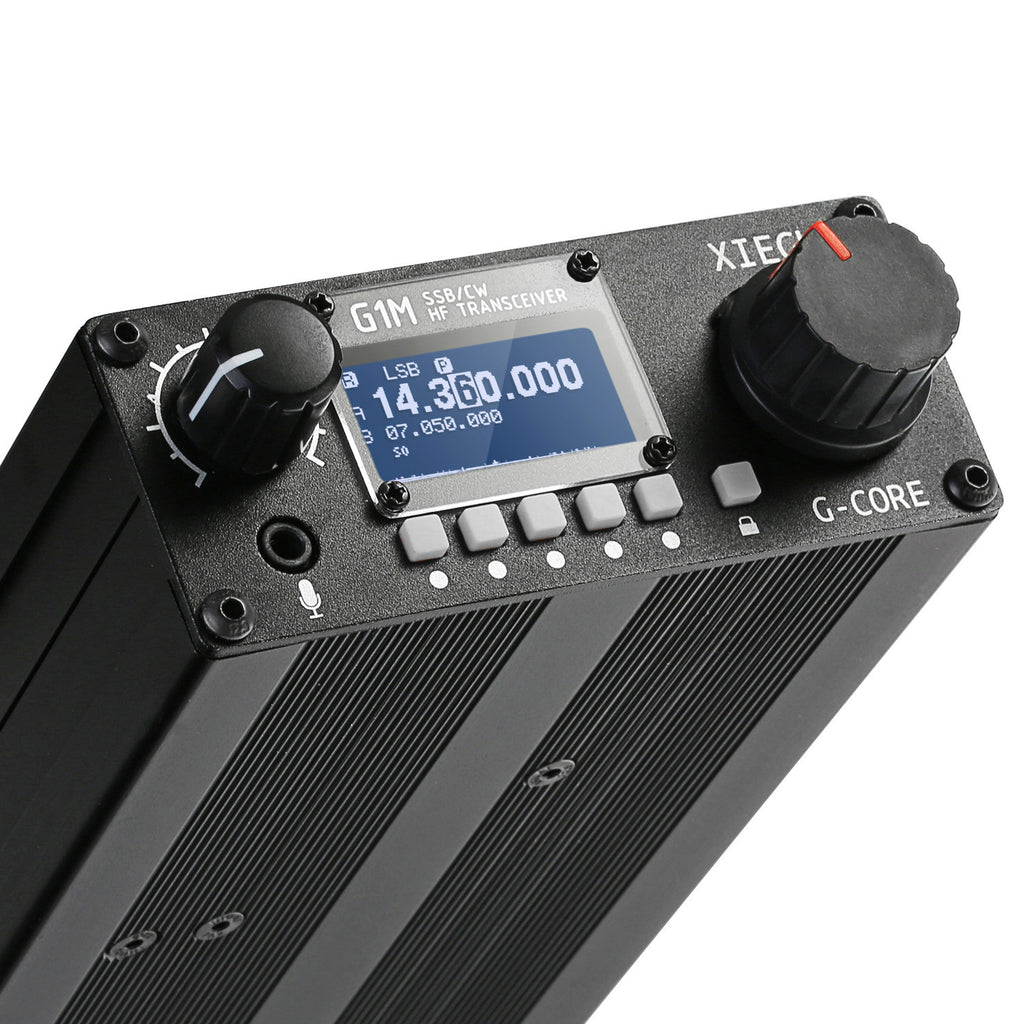

Clear OLED Display: All the function changes are clearly shown on the display. The screen is clear even in sun.
Support Key Mode Selection: You can choose manual or automatic mode, left-hand mode or right-hand mode as you desire via multi-function buttons.
Receiving Frequency: 0.5～30MHz（Continuous）
Storage Channel: 99

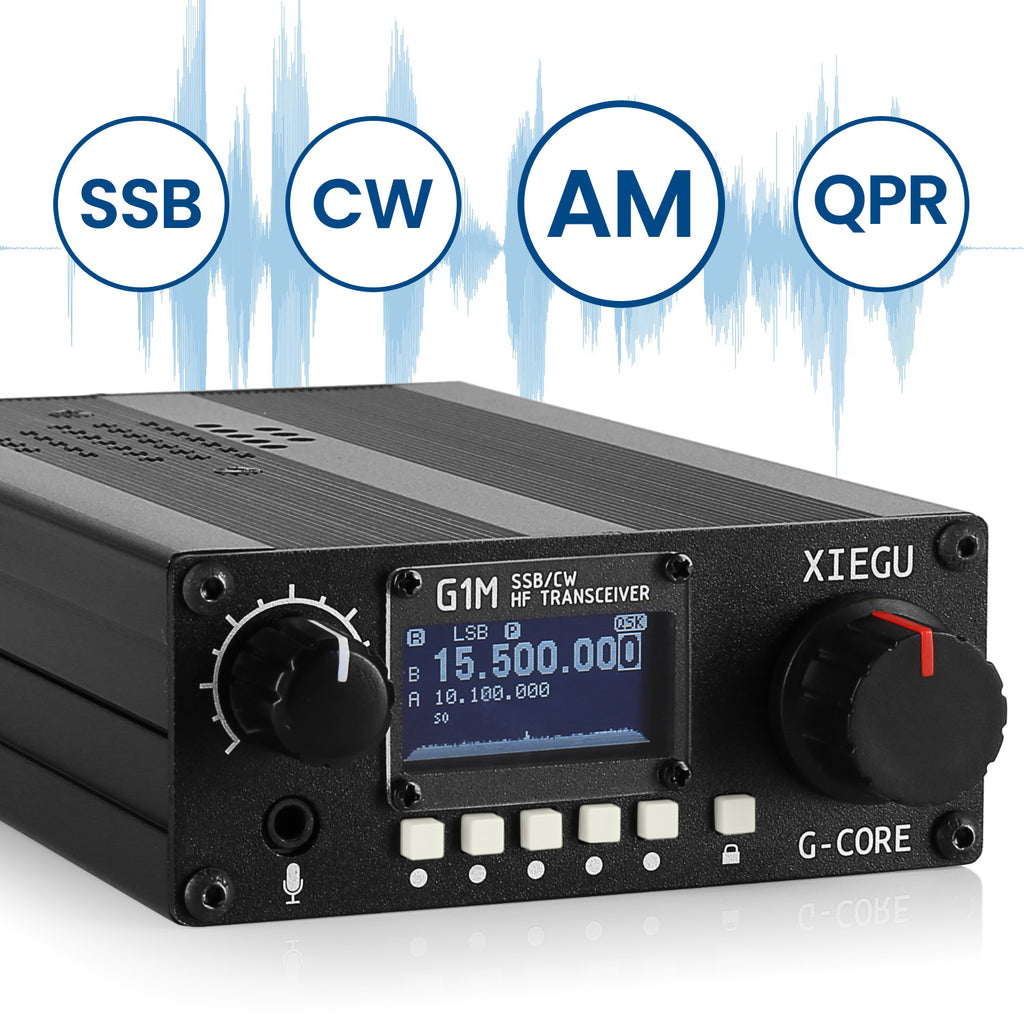

Operating Mode: SSB/CW/AM (AM is only used to receive broadcasts)
Receiving Sensitivity: 0.45uV 12dB SINAD
Receiving Dynamics: 90dB
Transmit Power: 5W 13.8V DC
Spurious Suppression: ≥45dB
Frequency Stability: ±1.5ppm (30 minutes after turning on the power)
Audio Output Power: 0.5W
Operating Voltage: 12～15V DC
Stand-by Current: 0.5A max
Transmitting Current: 2.5A max
Wavelength: short-wave including four amateur radio bands

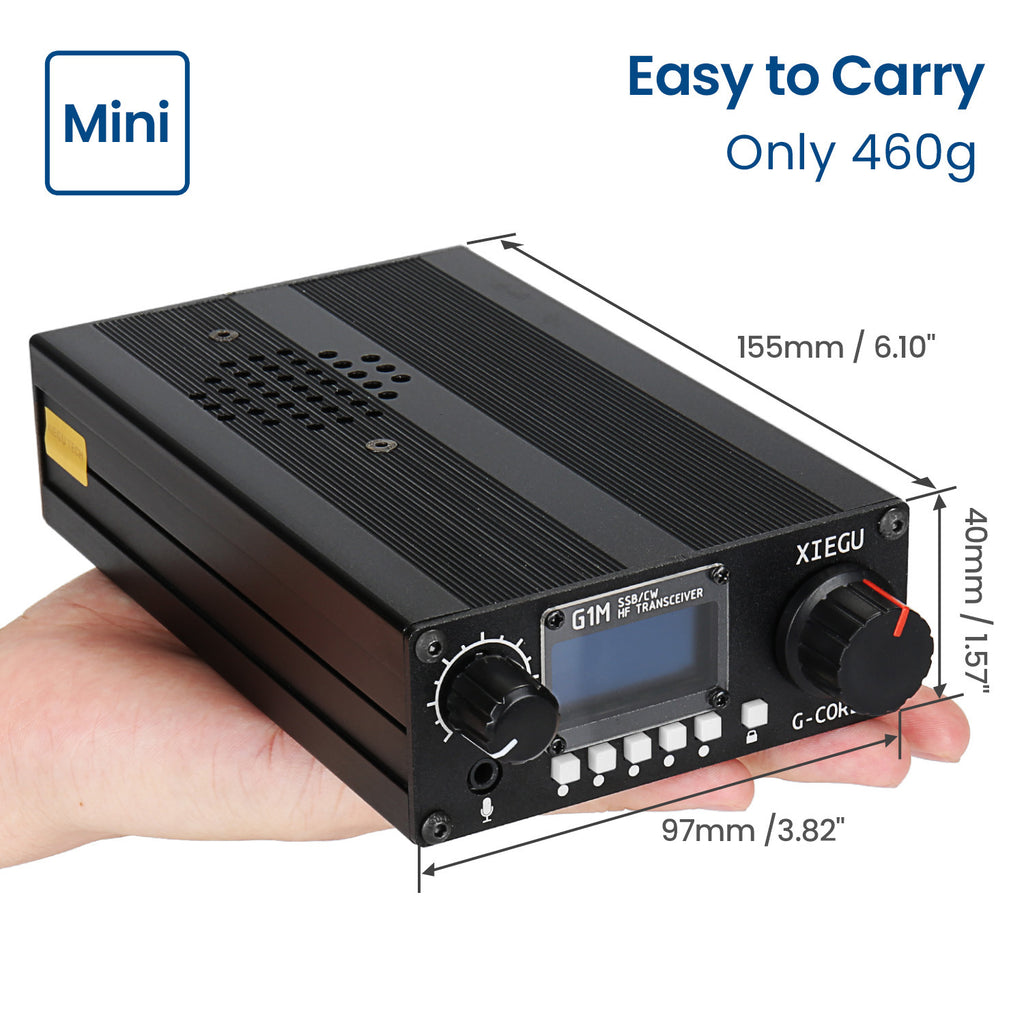

Case Size: 97*40*155 (mm)
Antenna Socket: BNC connector
Certification: CE, FCC (ES190111036E)
More Related Procucts
1. Xiegu G90 SDR Radio
2. Xiegu X5105 HF Transceiver
3. Xiegu XPA125B Power Amplifier
2. CE-19 Expansion Port for easy PC connection
3. Radioddity G90-H1 Holder & Cooling Fan
4. Radioddity PAX100 100W Amplifier
5. Xiegu GSOC Controller Panadapter/Data Terminal
6. Xiegu GNR1 Digital Audio Noise Filter

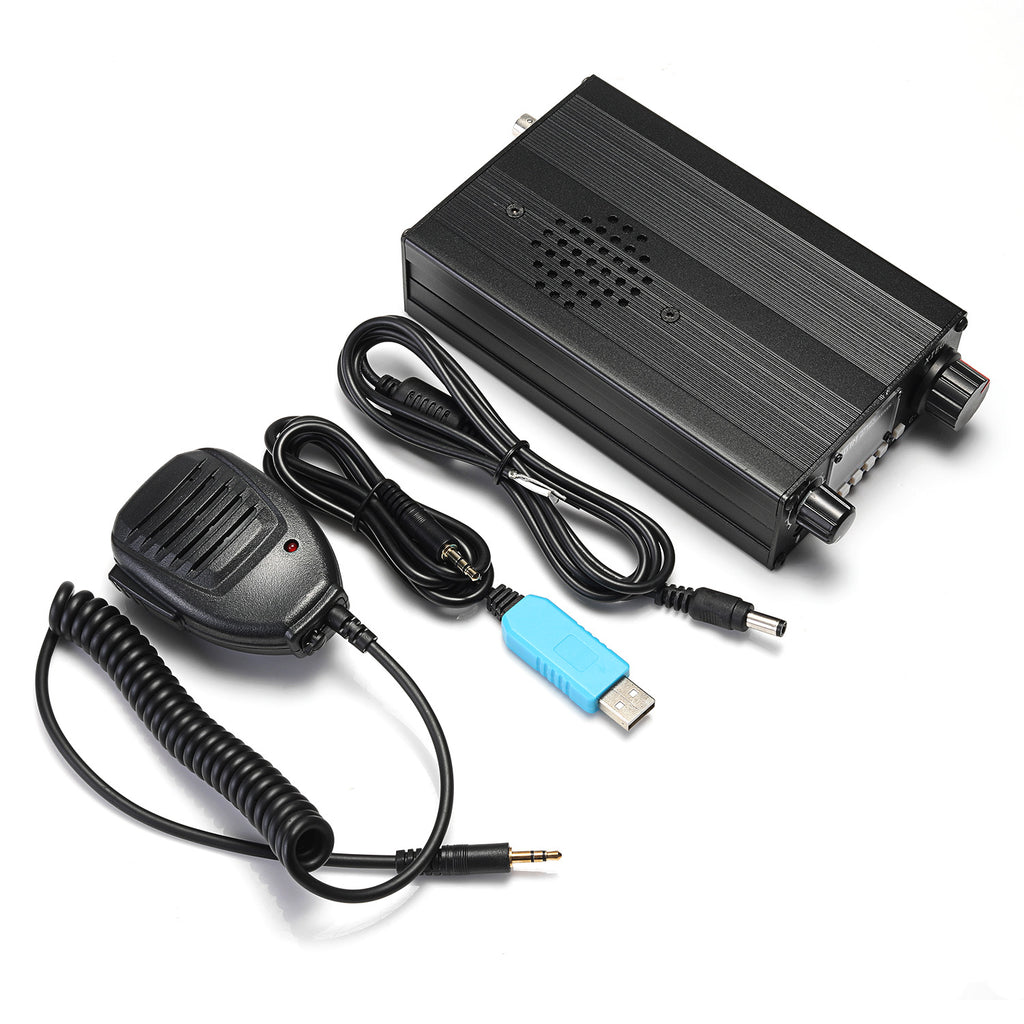

1x G1M HF Transceiver

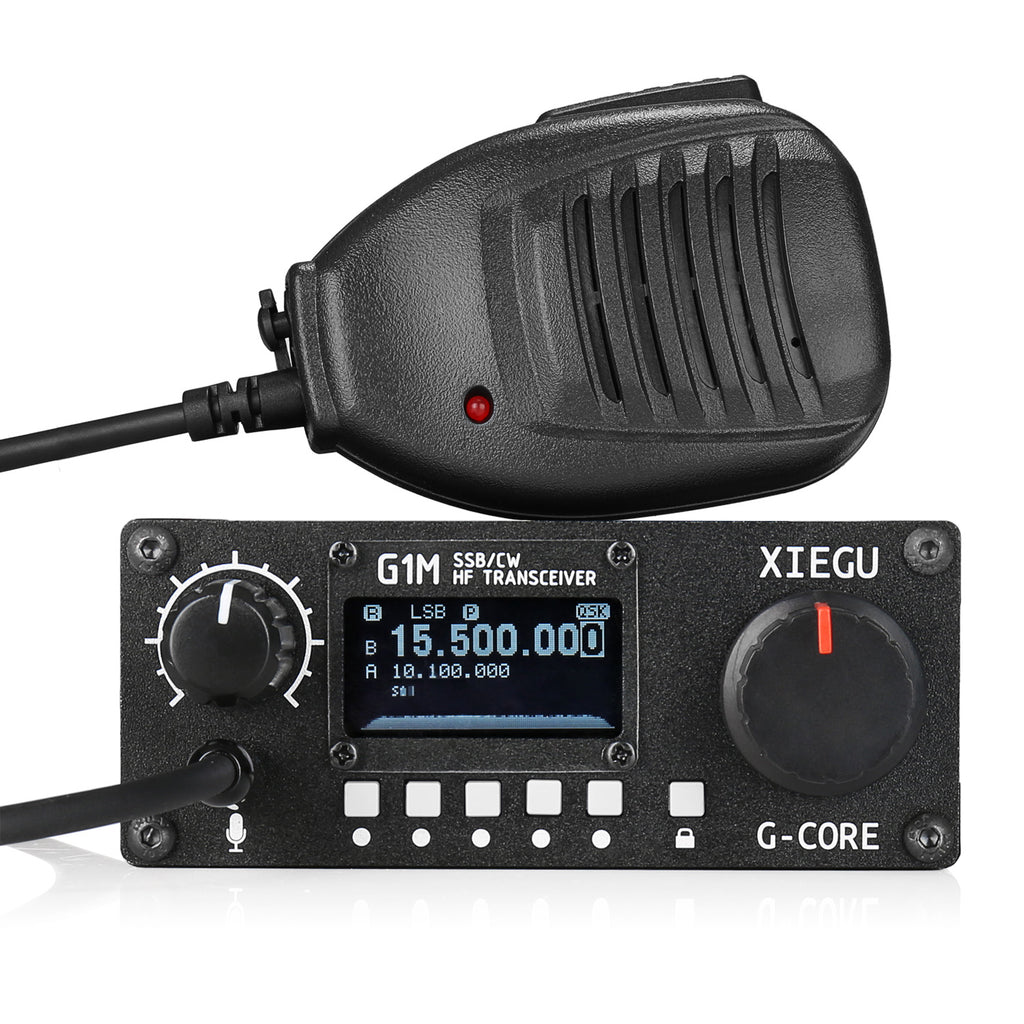

1x Speaker Mic
1x Coaxial Power Cable
1x English Manual
1x Warranty Card
