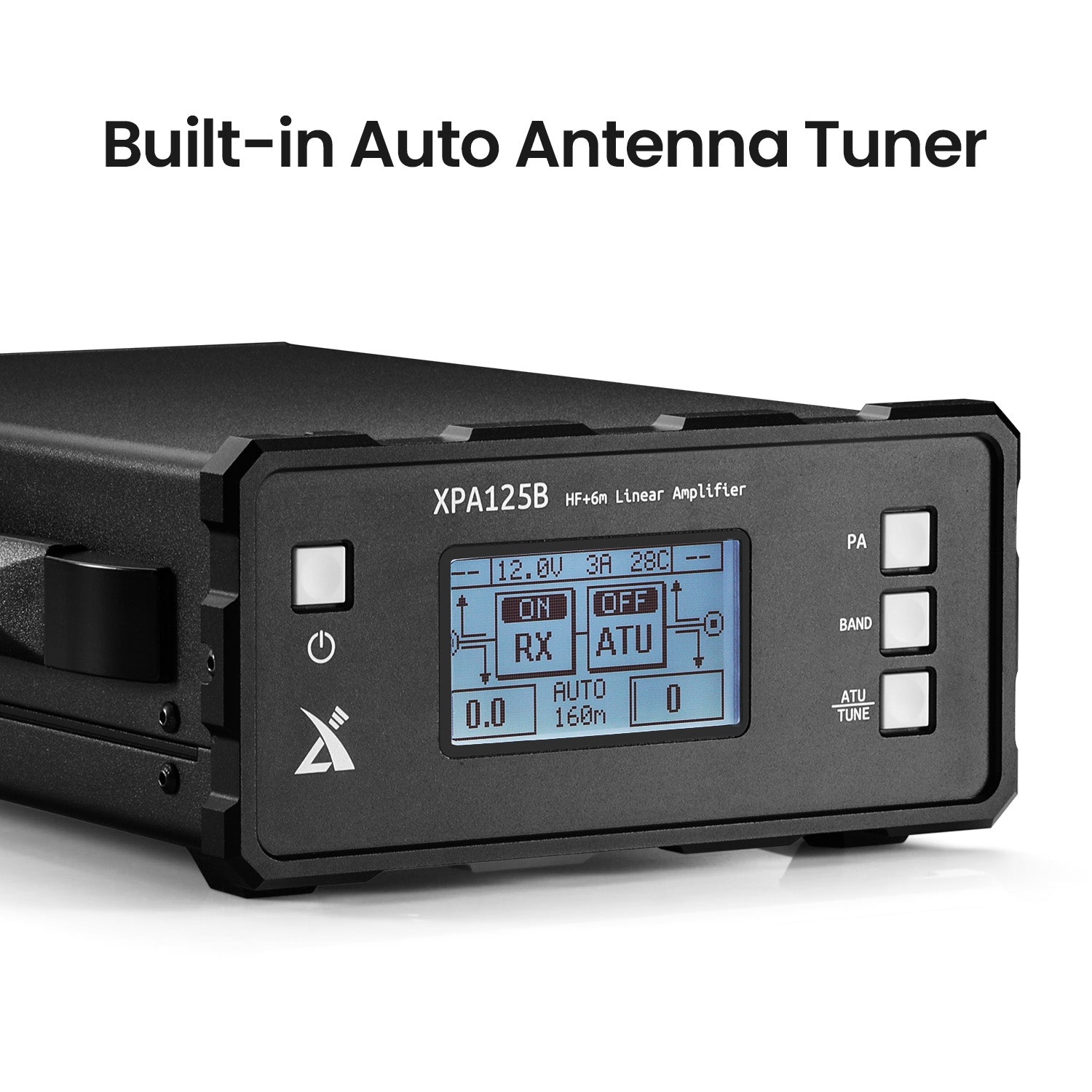

1. Built-in Automatic Antenna Tuner: The automatic antenna tuner and power amplifier unit of XPA125B can be used independently of each other as either an automatic antenna tuner or a separate power amplifier. The tuner handles 14-500 ohm loads in the HF bands 1.8-30 MHz and 6-meter band 50-54 MHz.
2. 100W Power Output: The XPA-125B is the perfect amplifier for QRP radios or SDR transceivers with low power consumption （like a 5-watt transmitter） when 100-watt output is needed. Its maximum power output is 125 watts.
3. Safty & Protection: The XPA125B has a variety of intelligent protection circuits to ensure the safety of the amplifier and connected transceiver. When abnormal operating conditions appear like SWR is too high, too much drive power, or too high temperature, the amplifier enters bypass mode and displays an alarm message.
4. New Enhanced Version: After improving its shape and size from XPA125, it is smaller than the old version and can be worn on a bracelet like a small bag.
5. Large Screen Display: The 2.7 inch large backlit LCD display shows input/output power, SWR, Voltage, Current, Temperature, amplifier status as well as warning messages making the operation of this modern amplifier simple and also user friendly.
6. Note: The XPA125B is with FCC & CE certificates. FCC ID: 2ANLH-XPA125B1
◆ Warranty Note —— We provide a 1 year warranty on the Xiegu XPA125B. As usual, if you modify the radio's hardware, the warranty is void. (The warranty is void right after you remove any part of the radio case without the agreement of our support team.) Note any firmware bugs or any other software-related issues are not under warranty.
◆ Disclaimer: No License is required to purchase this amp, nor to Monitor (listen) to the many Amateur (Ham) Radio frequencies. However, an FCC License is required to Transmit (Talk) on Amateur Radio Frequencies in the USA. Please visit http://wireless.fcc.gov/services/amateur/licensing to learn more.
CLICK HERE to download user manual.

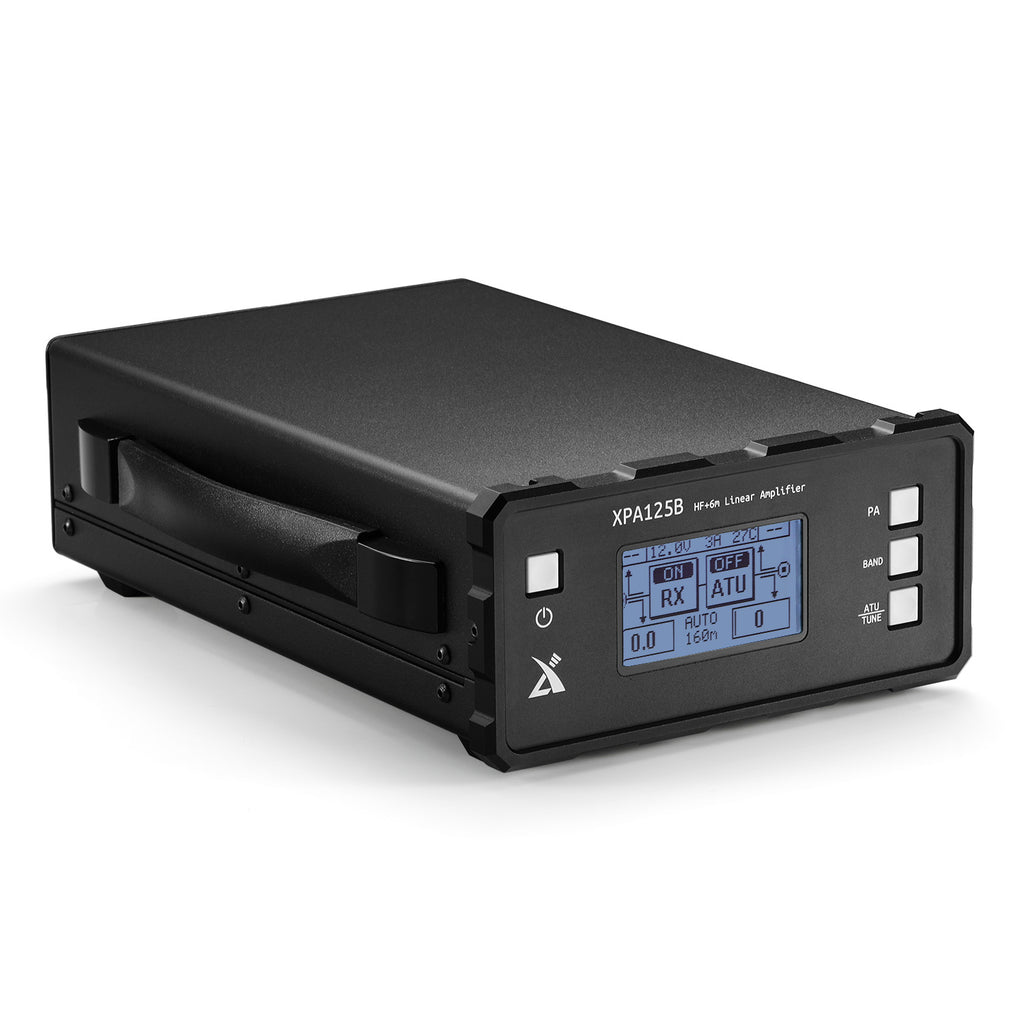

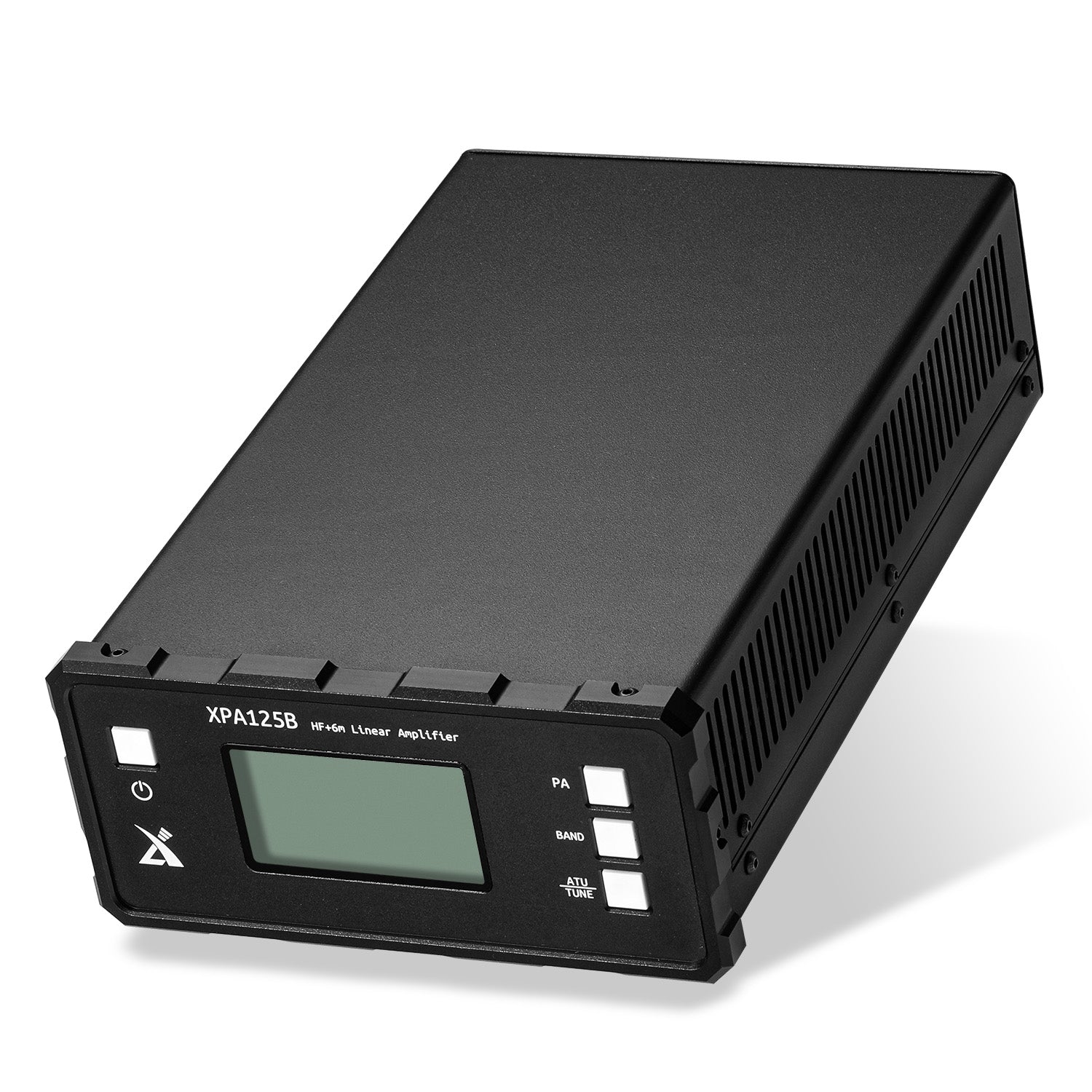

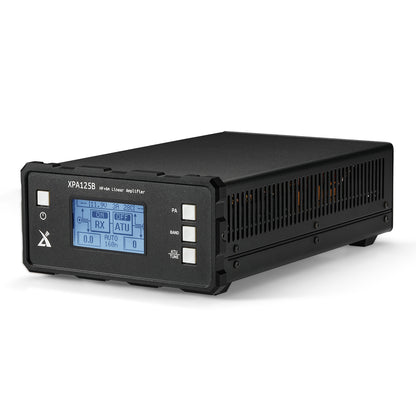

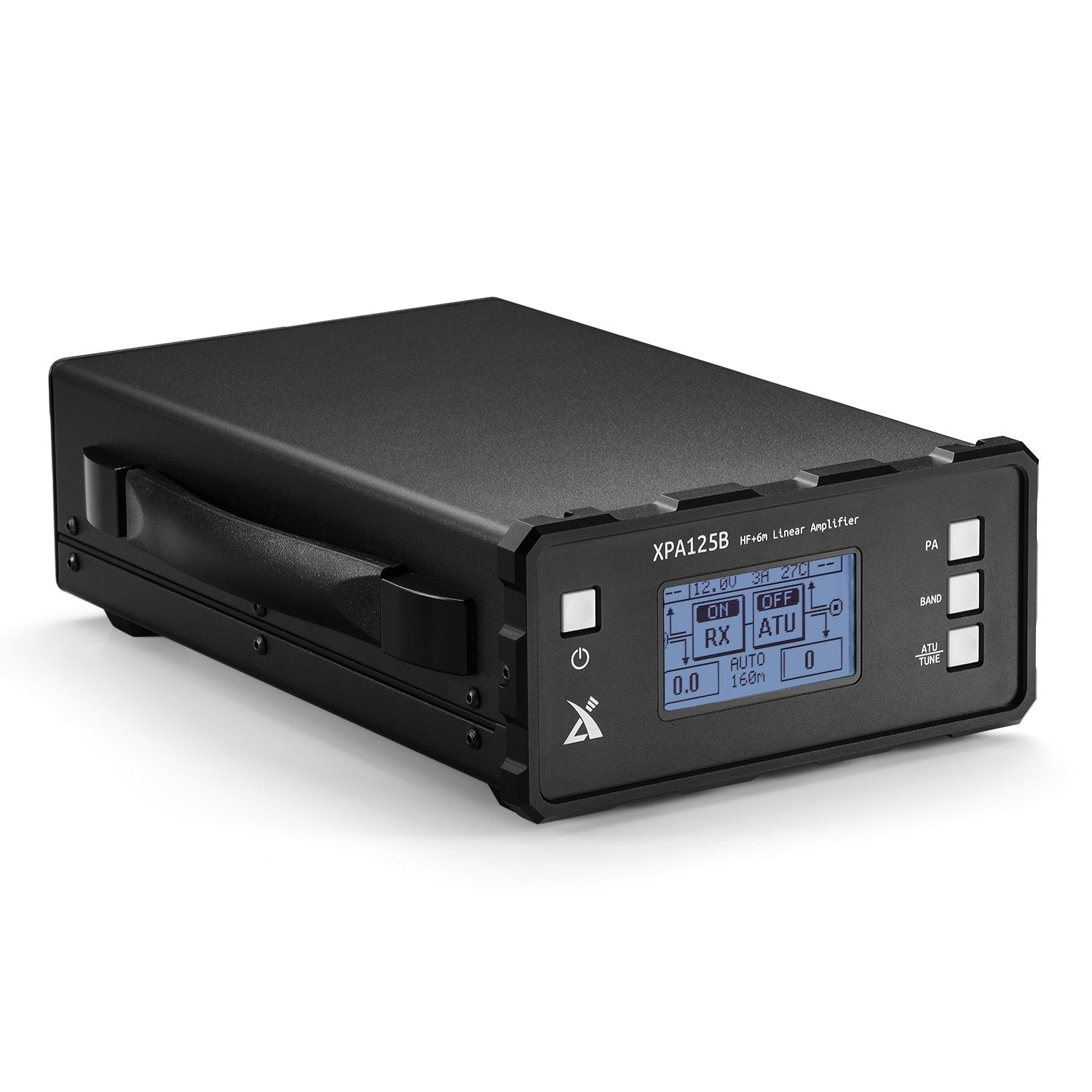

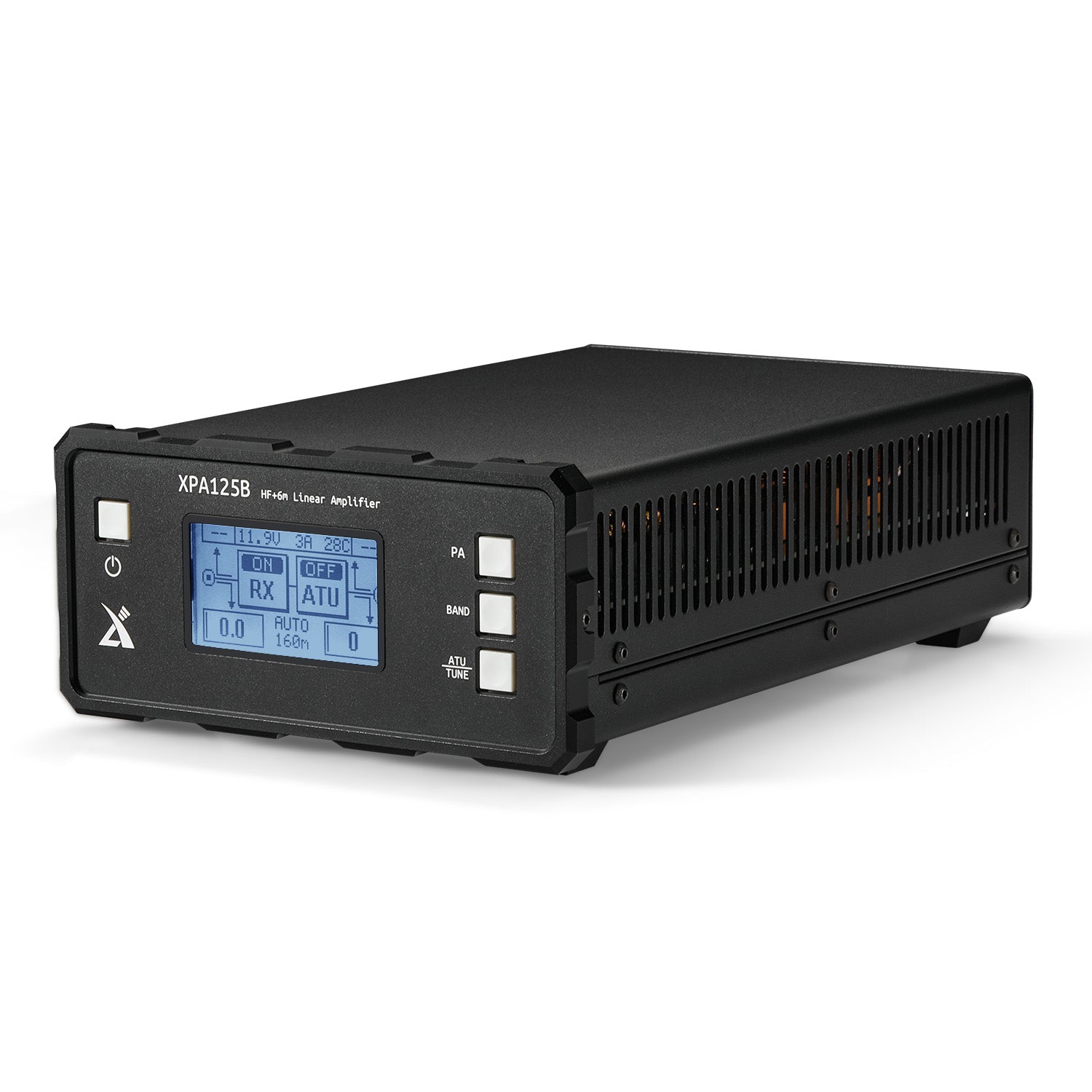

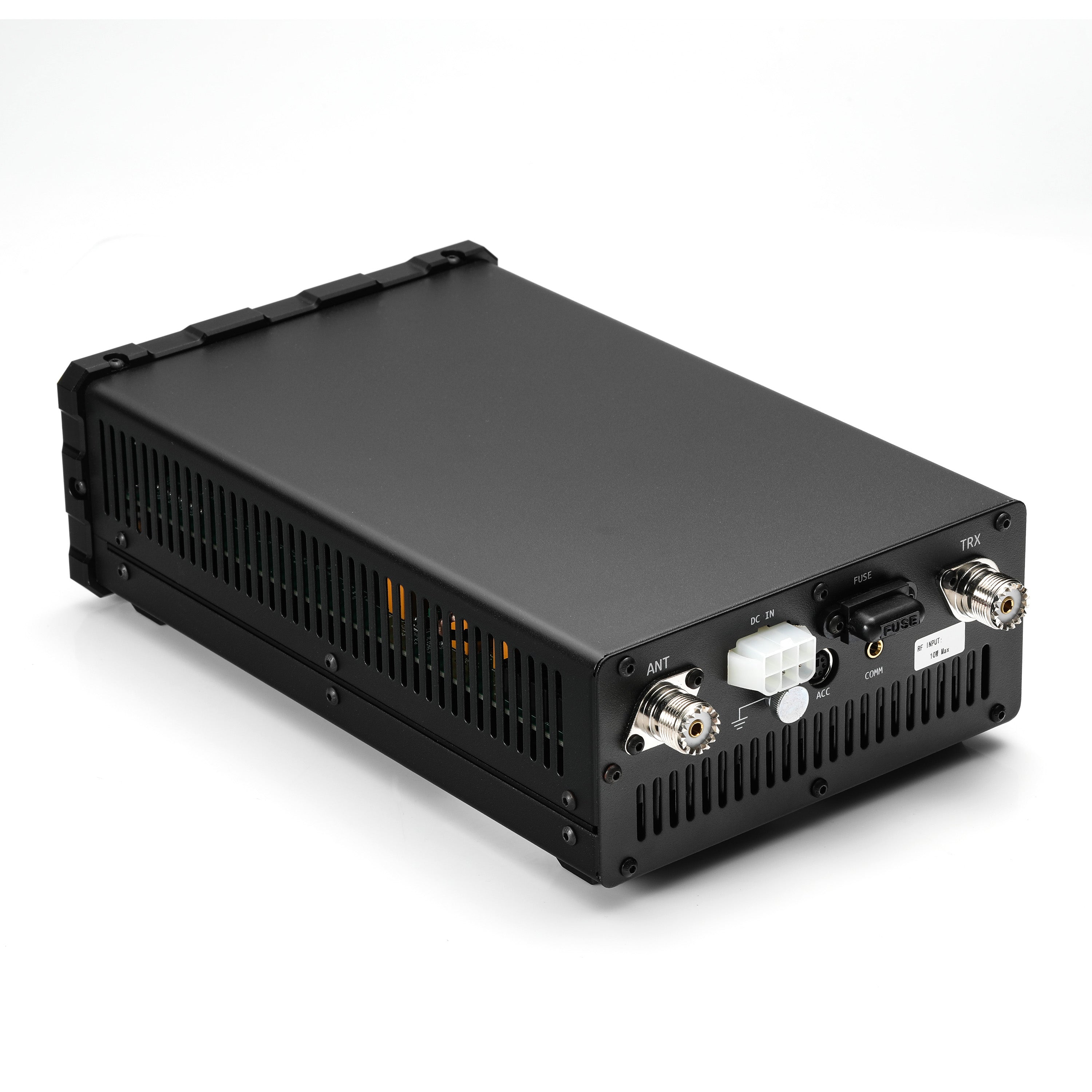

The Xiegu XPA125B (new version) is a 100-125 watt solid-state linear power amplifier for frequencies from 0.5 to 30Mhz and 50 to 54Mhz, with an integrated antenna tuner (1.8 to 30Mhz) and a big and bright display for monitoring the amplifier status. It is equipped with protections: temperature, overcurrent, detection of input and output. It's perfect for your QRP radio or low power SDR transceiver.
The XPA125B HF amplifier can be used with any QRP HF transceiver and is compatible with the Xiegu G90, X108G and X5105 and it's with the automatic bandwidth and output power control function (ALC).

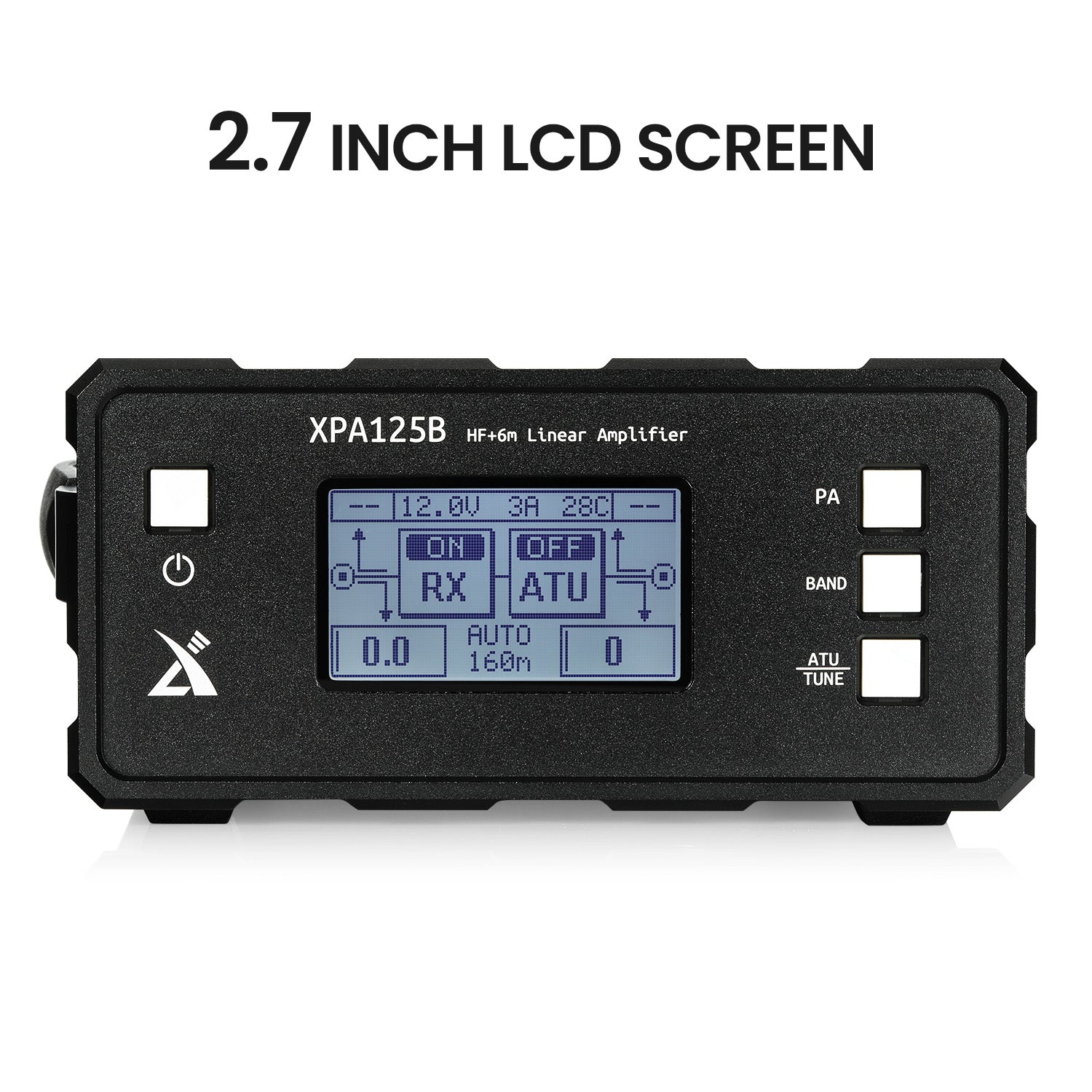

The large backlit 2.7 inch LCD display screen shows input/output power, SWR, Voltage, Current, Temperature, amplifier status as well as warning messages making the operation of this modern amplifier simple and also user friendly. The serial connection allows you to hook it up the computer to update the firmware.
Operating frequency: 0.5~54MHz
Input power: ≤5W
Maximum output RF power: 1.8-30MHz ≥110W | 50-54MHz ≥ 90W
Maximum Ambient Operation Temp: 131 Fahrenheit(55 Celsius)
Gain: 13 dB (+/-2dB)
Spurious Suppression: >50 dB
Supply Voltage: 12-15 Volts DC
Transmit Current Draw: @ max output 30 Amps
Current parameters: Standby 260mA @Max Launch: 30A@Max
Receive Current Draw: @ max 700 mA
ATU Frequency Range: 1.8-30 MHz & 50-54 MHz
ATU Tuning Range: 14-500 Ohms
ATU maximum tuning range: 14~500Ω
Working voltage: 12V~14.5V DC

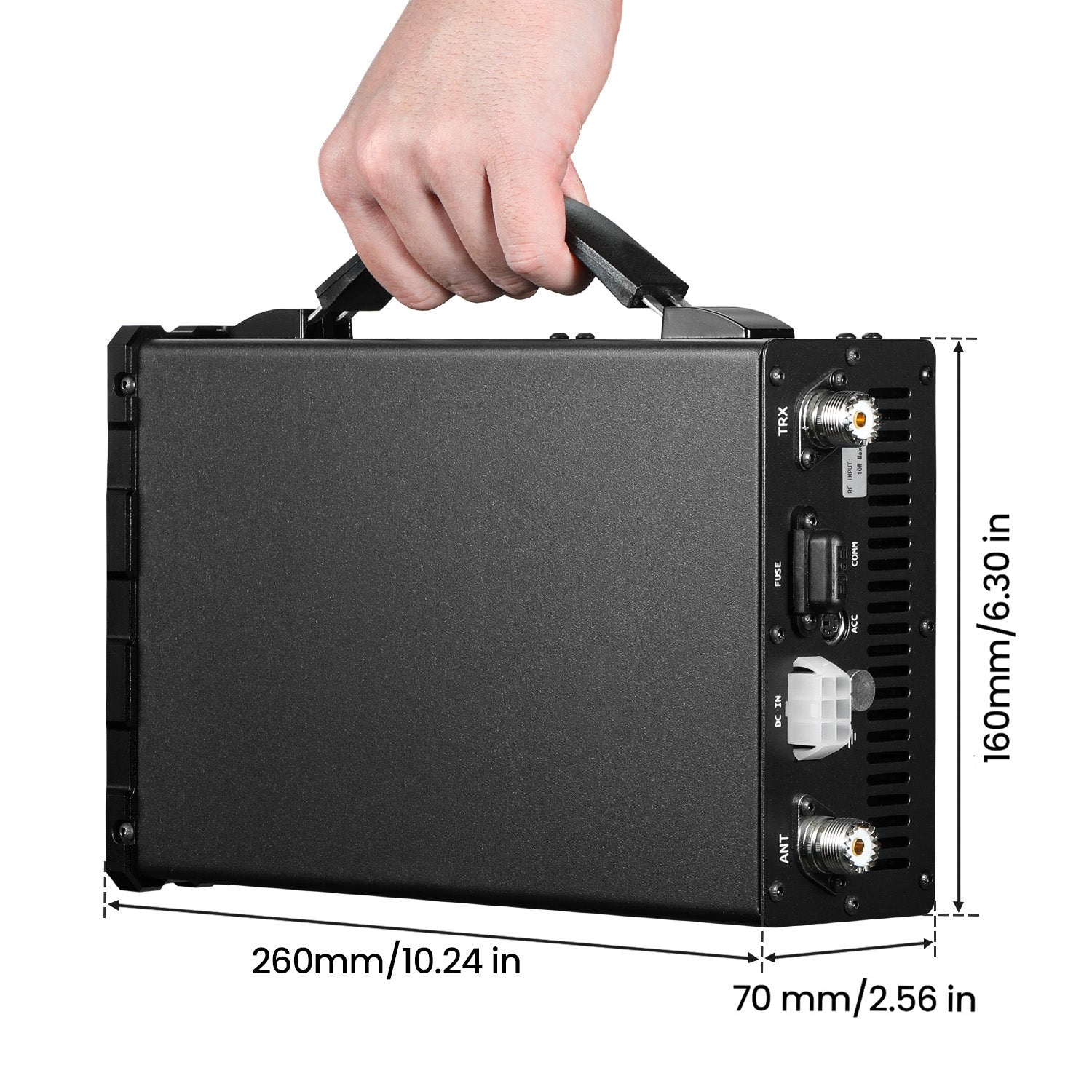

Machine size: 260*150*100mm | 10.24*6.3*2.56in [Excluding knobs, handles, etc.]
Weight:1.6kg | 3.53lb
Xiegu X5105, Xiegu G90, Xiegu X6100
Yaesu FT-817, Yaesu FT-818
Recommended Radio & Accessories
Xiegu CE-19 Expansion Port for connection with a Xiegu G90 or X5105 Transceiver
Xiegu G90 radio
Xiegu X5105 HF transceiver
Xiegu G1M radio
Xiegu X6100 & Xiegu L4001 Cable
Xiegu DH100 100W Portable Power Station

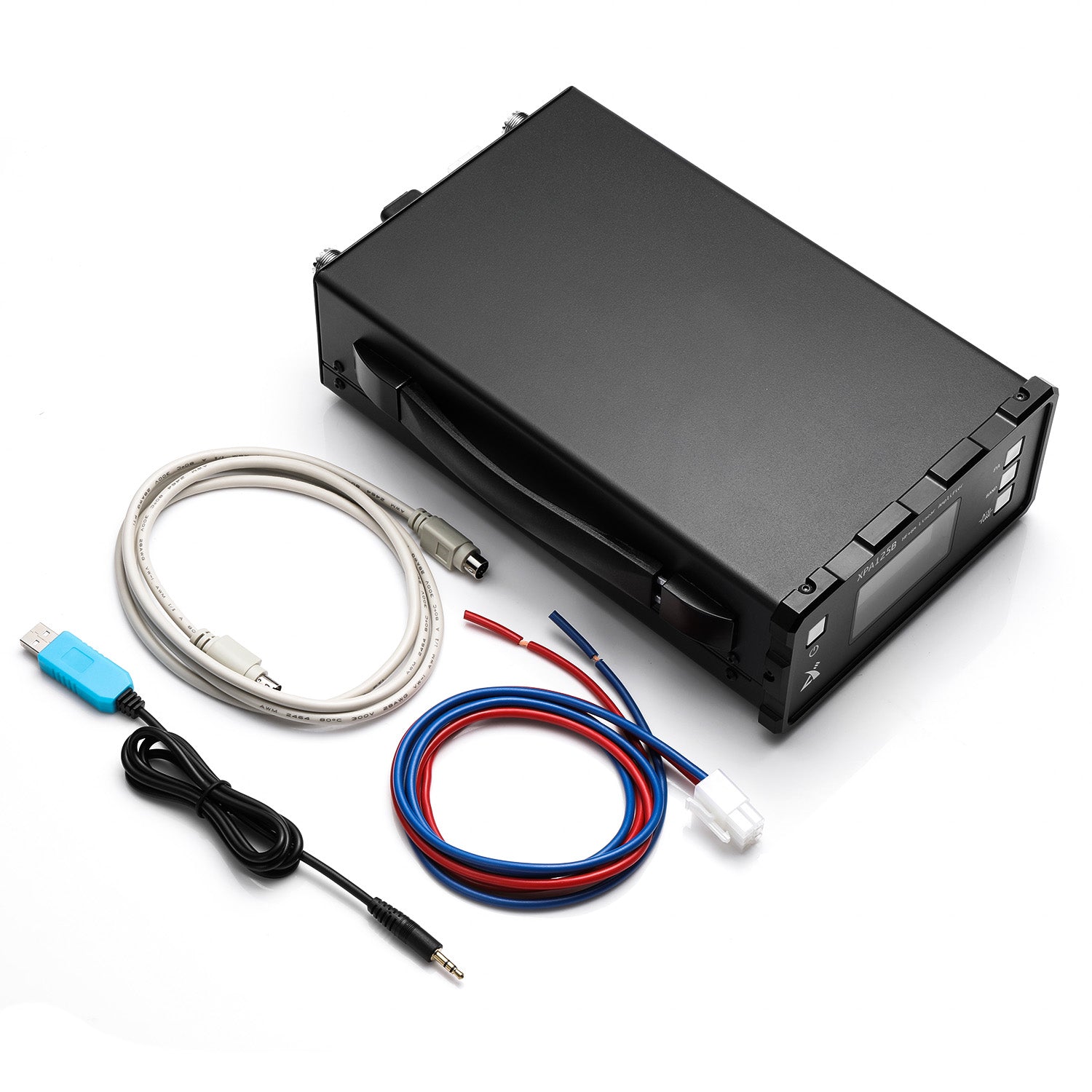

What's in the box?
1 x Xiegu XPA125B 100W Linear Power Amplifier
1 x Control Cable for Xiegu Transceivers
1 x DC Power Cable
1 x USB Cable for PC Connection
1 x User Manual
