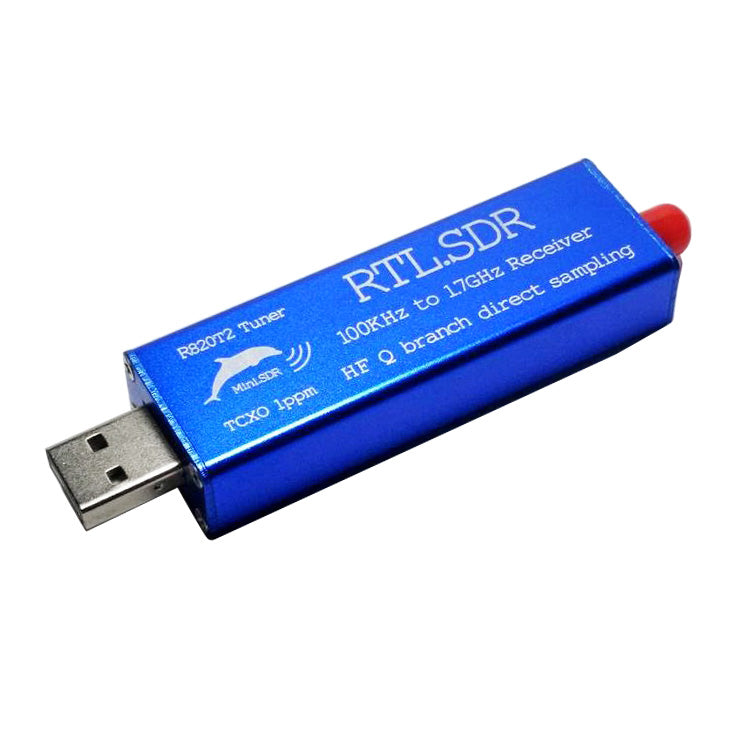

RTL-SDR TECHNICAL SPECIFICATIONS
-Fully assembled and ready to use
-Uses RTL2832U+R820T2 chip set.
(the R820T2 tuner has slightly better sensitivity than the R820T and also works better at frequencies around 1.5 GHz. 100% compatible with software for the older R820T)
-100KHz to 1766MHz, operating frequency
-1 PPM temperature compensated oscillator (TCXO)
(Accurate tuning and almost zero temperature drift <2 PPM initial offset, 1 PPM temperature drift>)
-Covers all HF amateur bands
-Covers VHF & UHF bands from 24-1766MHz
-Up to 3.2 M Sample rate. (~2.8 MHz stable)
-Receiver modes AM, NFM, FM, DSB, USB, LSB and CW
-HF Shortwave Q branch direct sampling
· Note: depends upon the SDR software used with the receiver
-8-bit ADC giving ~50 dB dynamic range
-50 Ohm input impedance
-SMA golden antenna connectors It is also more durable and has lower insertion losses.
-Aluminum enclosure screened panels
-Small size board
-Independent antenna inputs for Shortwave and VHF
-USB computer connection ( mini usb) Powered by common USB
-All specifications subject to change without notice
The following link is a user guide for Windows system.

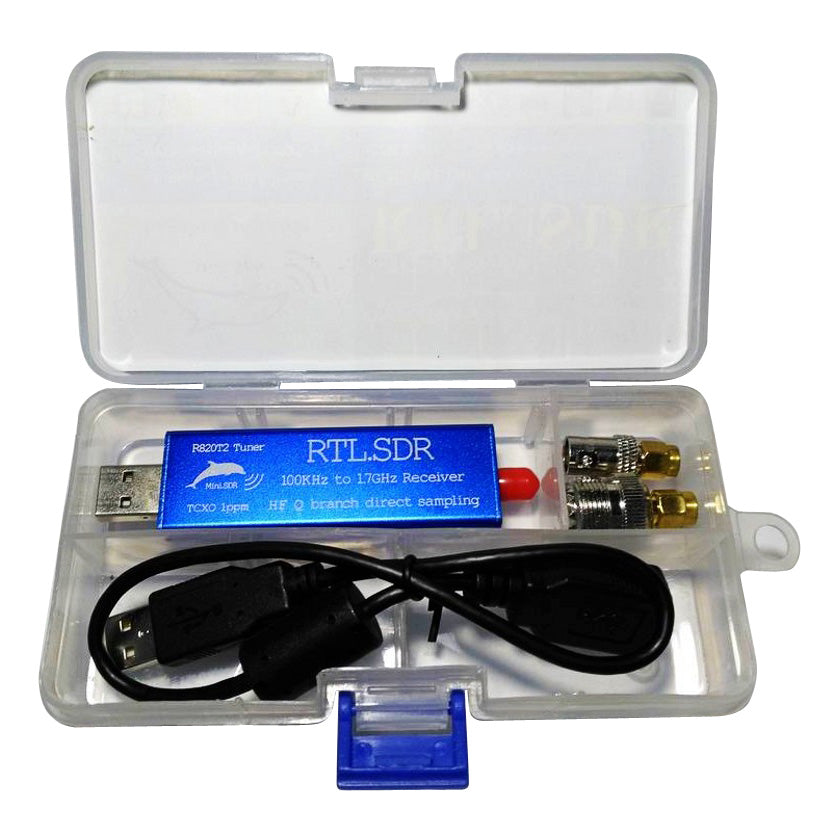

1x RTL SDR

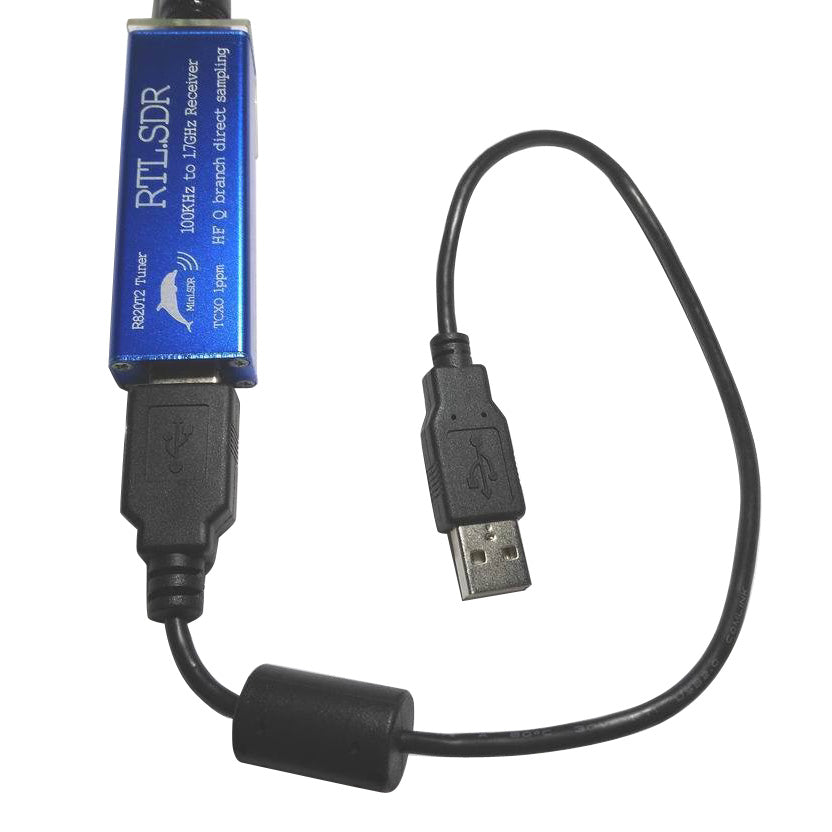

1x USB cable
1x Storage Box
2x SMA Straight Antenna Adapter (-SMA male to female UHF, -SMA male to female BNC)
1 Year and 6 months Manufacturer's Warranty.
