▸ FCC ID: 2AJGM-UV82
▸ Ultra-high Output Power = 8watt (Tri-Power 8/4/1W)
▸ High Battery Capacity = 2000mAh
▸ Upgraded User Interface
▸ FM Radio with 25 Station Memory, 1750Hz Burst tone
▸ Dual Band, Dual Display, Dual Standby, Dual PTT
▸ Tri-color Selectable Background Light

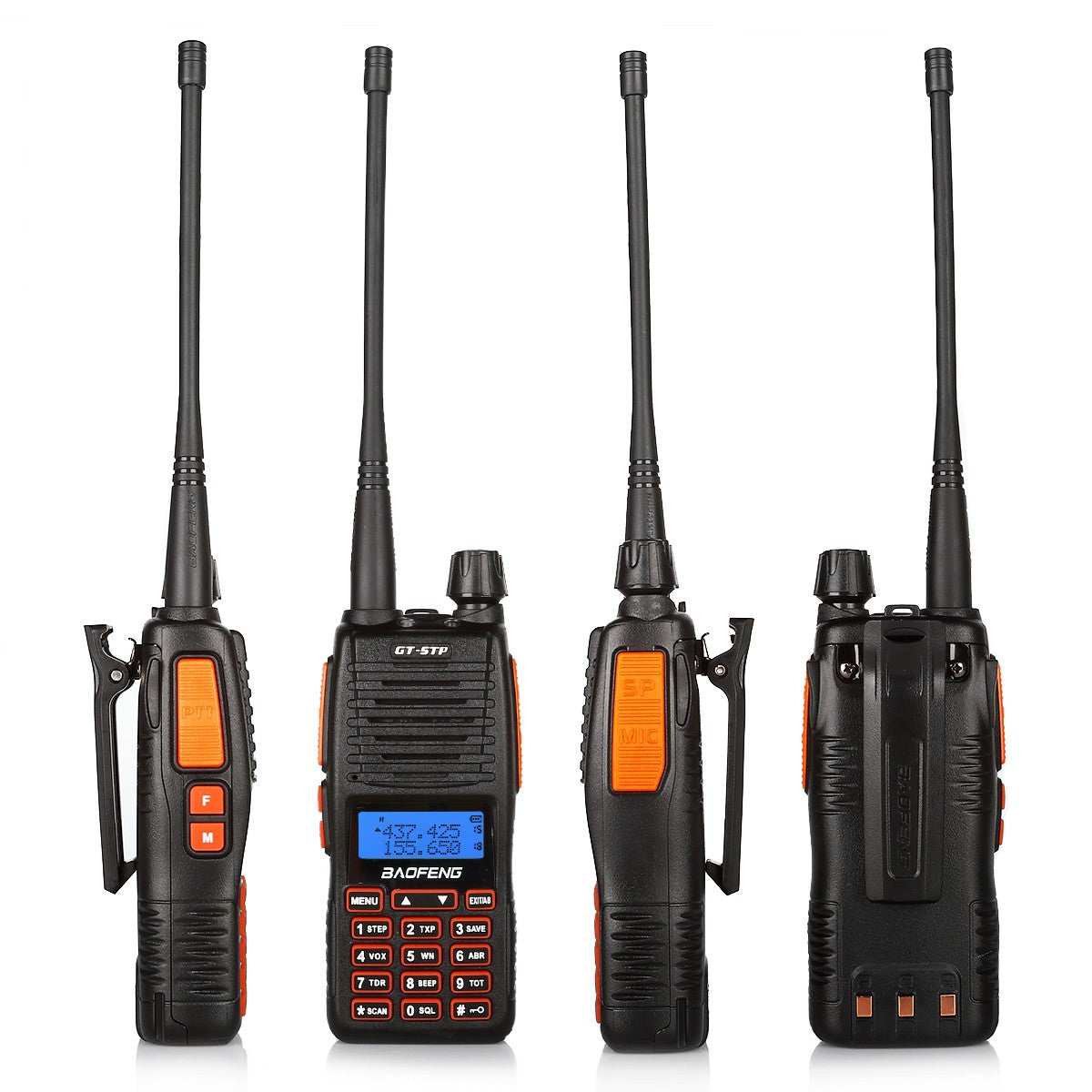

BaoFeng GT-5TP -- Upgraded from BaoFeng GT-5 → Kernel User Interface → Now a Super Tri-Power radio!
BaoFeng GT-5TP -- Tri-Power Settings 8/4/1W, Tri-color background light selectable, Dual Band VHF/UHF, Dual PTT
Tri-Power: High / Mid / Low Power (8W/4W/1W)
Frequency Range: 65-108MHz(FM Receive only), 136-174MHZ and 400-520MHZ (TX/RX)
Channel No: 128
Frequency Stability: ±2.5ppm
Antenna: High gain DualBand antenna
Antenna Impedance: 50
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Antenna: SMA -Female 18 CM
Dimension (W x H x D): 132 x 60 x 35 mm (not included antenna)
Weight: 238g(including battery, antenna)
Power adapter Input: AC100-240V, 50-60Hz; Output: DC10V/500mA; Plug Type: US
Modulation Mode: 16kF3E / 11kF3E
Maximum deviation: 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation: 7W
Adjacent Ch. power: -65dB(Wide) / -60dB(Narrow)
Pre-emphasis characteristics: 6dB
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: 10%

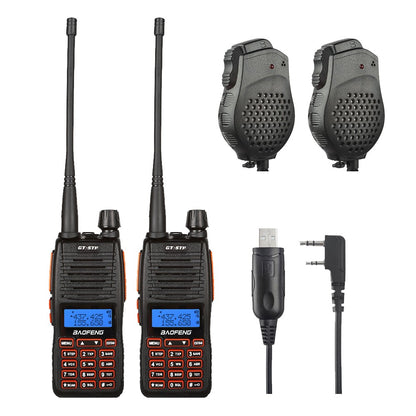

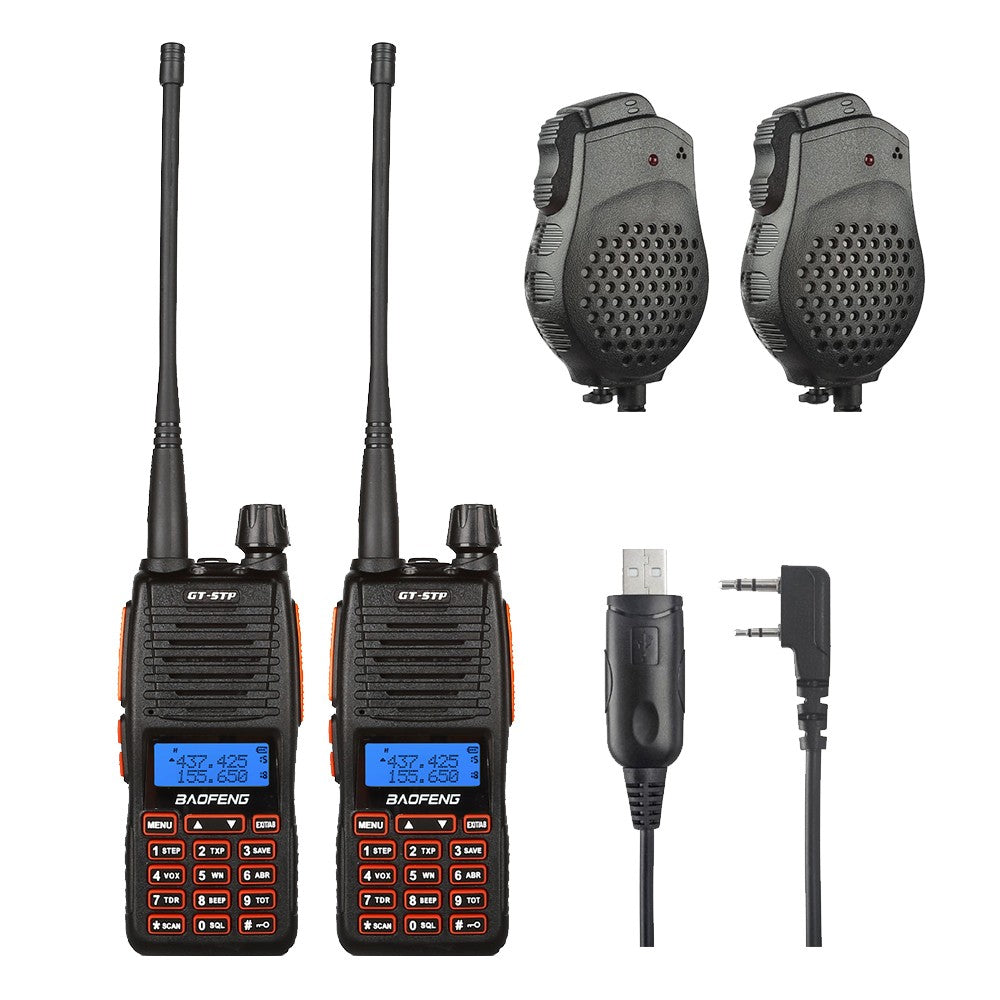

2 x BAOFENG GT-5TP Ham Two Way Radio Walkie Talkie
2 x BAOFENG 7.4V 2000mAh High Li-ion Battery
2 x BAOFENG Original Earpiece
2 x 17cm Dual Band Antenna
2 x Power Adapter
2 x Belt Clip
2 x Hand Strap
2 x Battery Charger (US/EU/UK Plug)
2 x User Manual

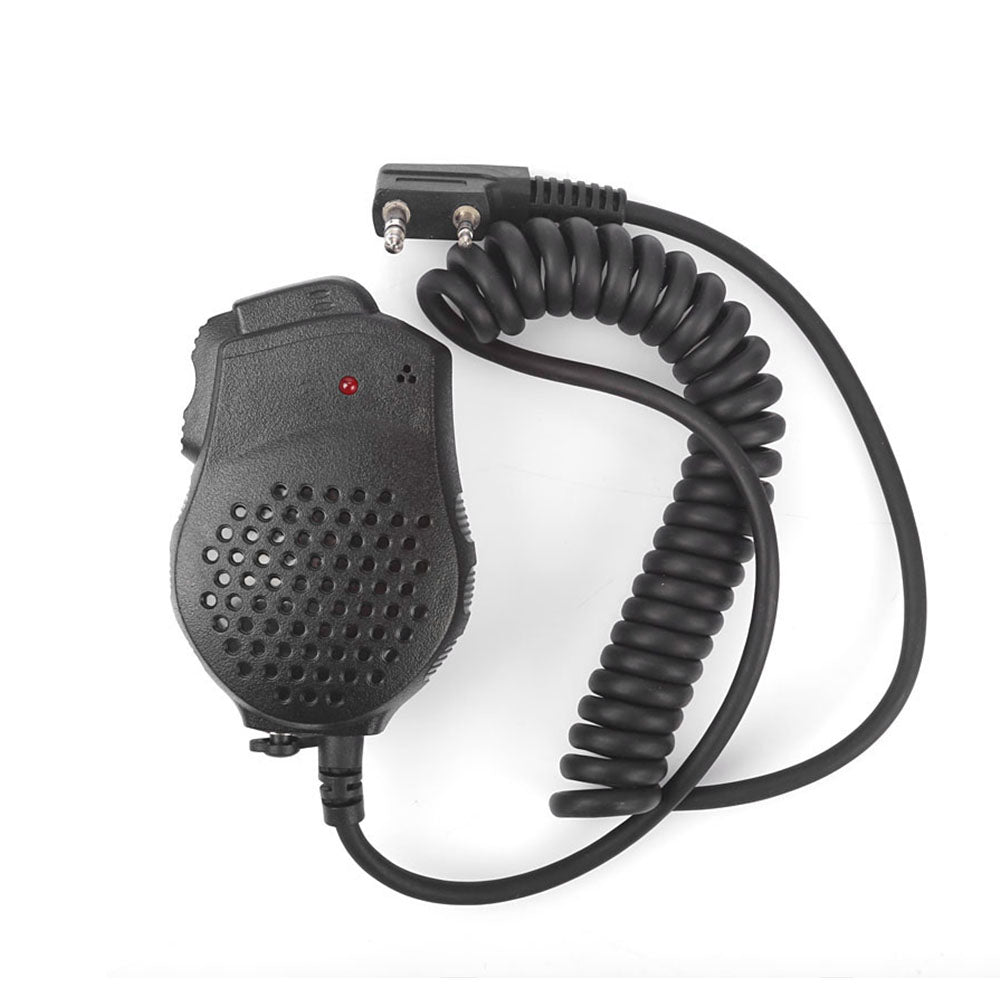

2 x VB-25 Dual PTT Speaker

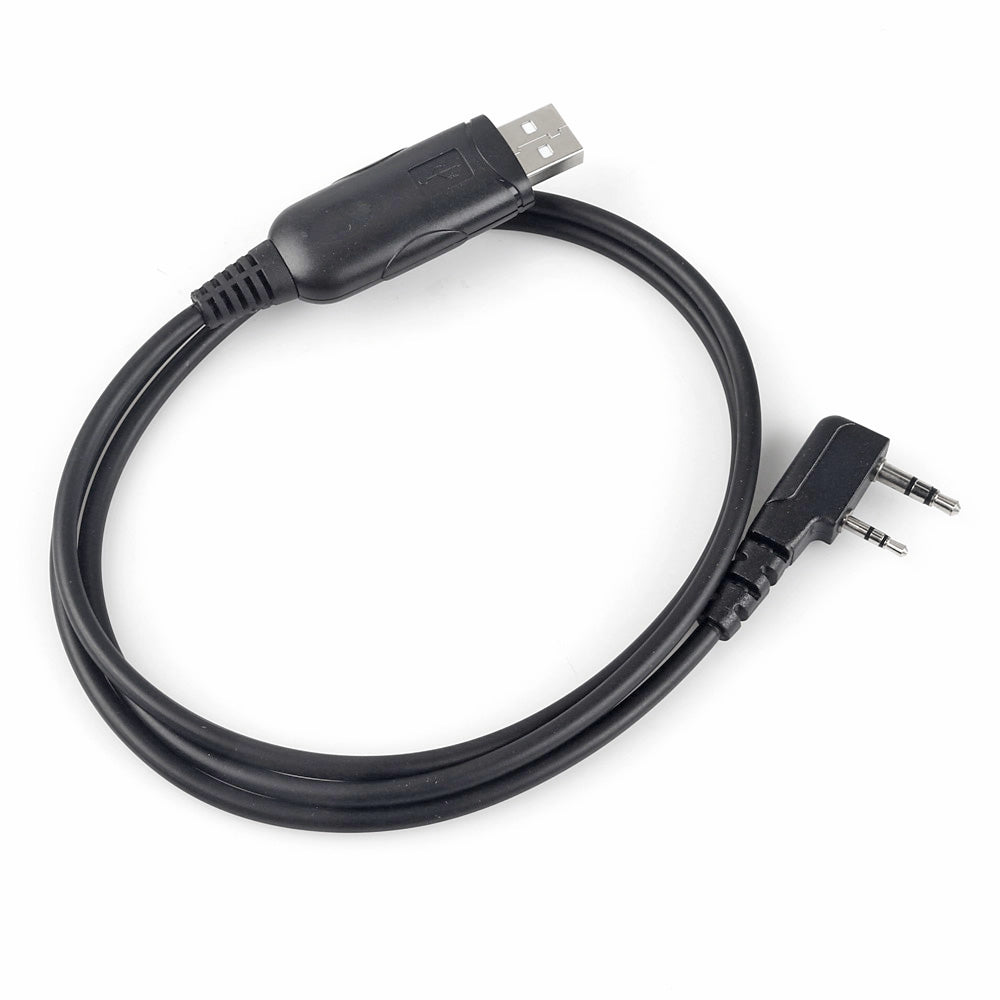

1 x Programming Cable For Baofeng TYT Wouxun Win10 K Black
1 Year and 6 months Manufacturer's Warranty.
