FCC ID: 2AJGM-BFA58
► This is a dustproof and waterproof two-way radio. After 30 minutes dropped into water, the radio still works very well. It ensures BF-9700's reliability in wet environments. No matter where you are, swimming pool or desert, you may enjoy with BF-9700!
► Incorporates 105 codes "DQT" and 50 privacy codes "QT" programmable; Broadband (Wide) / Narrowband (Narrow) selectable; High power / low power selectable; Timer transmission "TOT" programmable
► Function Busy Channel Lock "BCL"; Level Threshold "Squelch" adjustable from 0 to 9; Transmit 1750 Tone; Channel frequency-report
CLICK HERE to download software, manual or programming tips.
Output Power: 7W(H)/5W(M)/1W(L)
Frequency Range: 400.00-520.00MHz

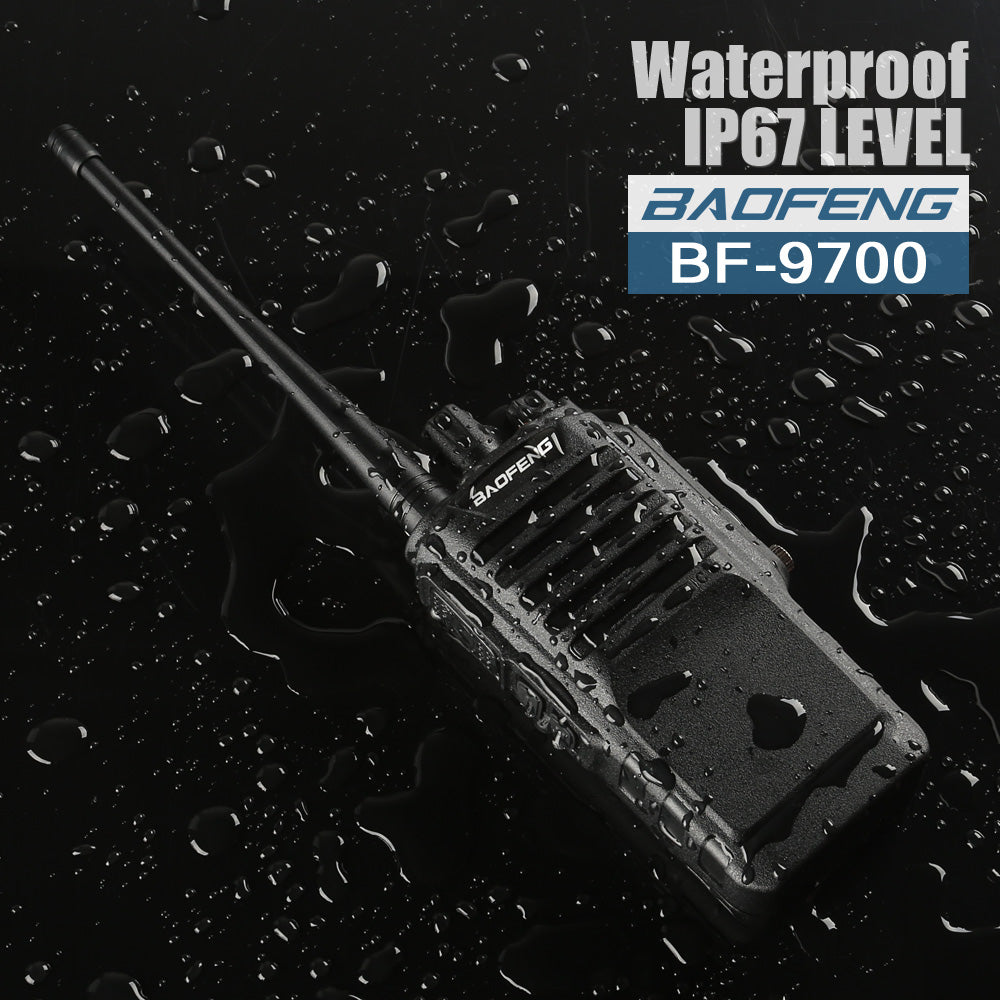

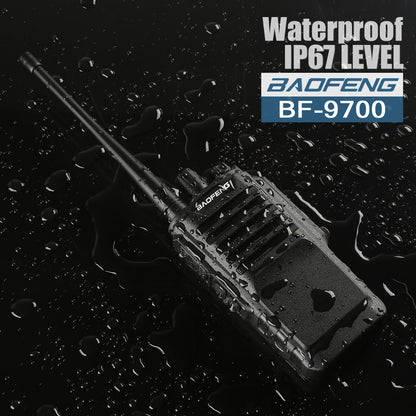

IP67 waterproof and dustproof

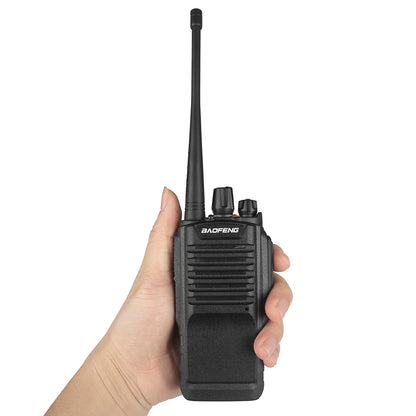

BF-9700 is a dustproof and waterproof two-way radio. After dropped into one meter underwater for 30 minutes, the radio still works very well. It ensures BF-9700's reliability in wet environments. No matter where you are, swimming pool or desert, you may enjoy with BF-9700!
What is IP67?
IP means Ingress Protection;
6: Dust Tight. No ingress of dust; complete protection against contact.
7: Immersion up to 1m. Ingress of water in harmful quantity shall not be possible when
the enclosure is immersed in water under defined conditions of pressure and time (up to 1m of submersion).
Waterproof Dustproof IP67
Incorporates 105 codes "DQT" and 50 privacy codes "QT" programmable
Broadband (Wide) / Narrowband (Narrow) selectable
High power / low selectable
Battery saving function "SAVE"
Timer transmission "TOT" programmable
Selecting the Scan Mode
Inspection, stun, kill and decoding
Distant urgency alarm, SOS function
Function Busy Channel Lock "BCL"
Level Threshold "Squelch" adjustable from 0 to 9
Transmit 1750 Tone
Frequency range: UHF 400-520 MHz 65MHz-108MHz (only commercial FM radio reception)
Memory channels: Up to 16 channels
Frequency stability: ±2.5ppm
Frequency step: 12.5/25 KHz
Antenna impedance: 50Ω
Operating temperature: -20℃ to +60℃
Supply voltage: Rechargeable lithium-ion mAh 7.4V/1800
Consumption in transmission: ≤1.5A
Maximum deviation: ≤±5KHz/≤±2.5KHz(W/N)
Spurious power: ≤7.5uW
Spurious emissions: ≤-65dB/≤-60dB
Signal to noise ratio: ≥-45dB/≥-40dB(W/N)
QT/DQT Frequency offset: 0.7±0.1KHz/0.4±0.1KHz(W/N)
Modulation sensitivity: 8-12mV
Weight: appr 252g

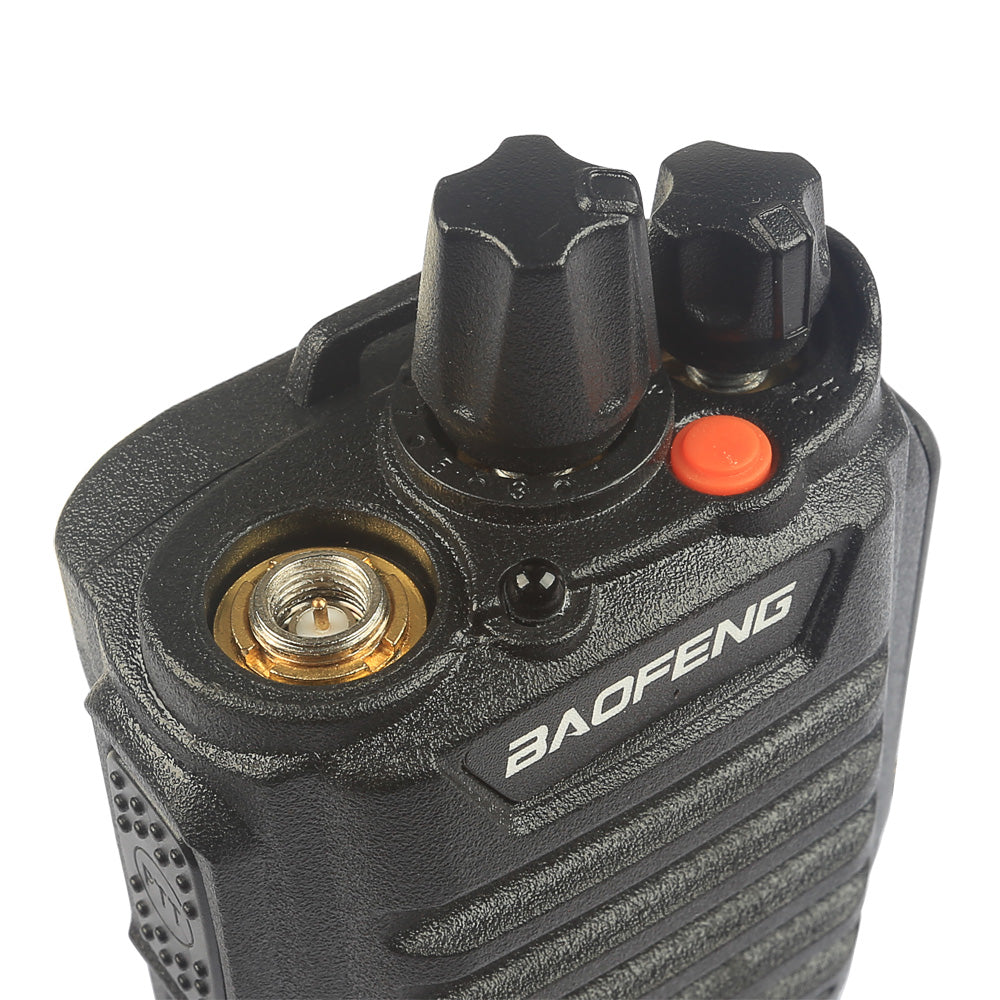

Antenna Type: Compatible with SMA-Female Antenna

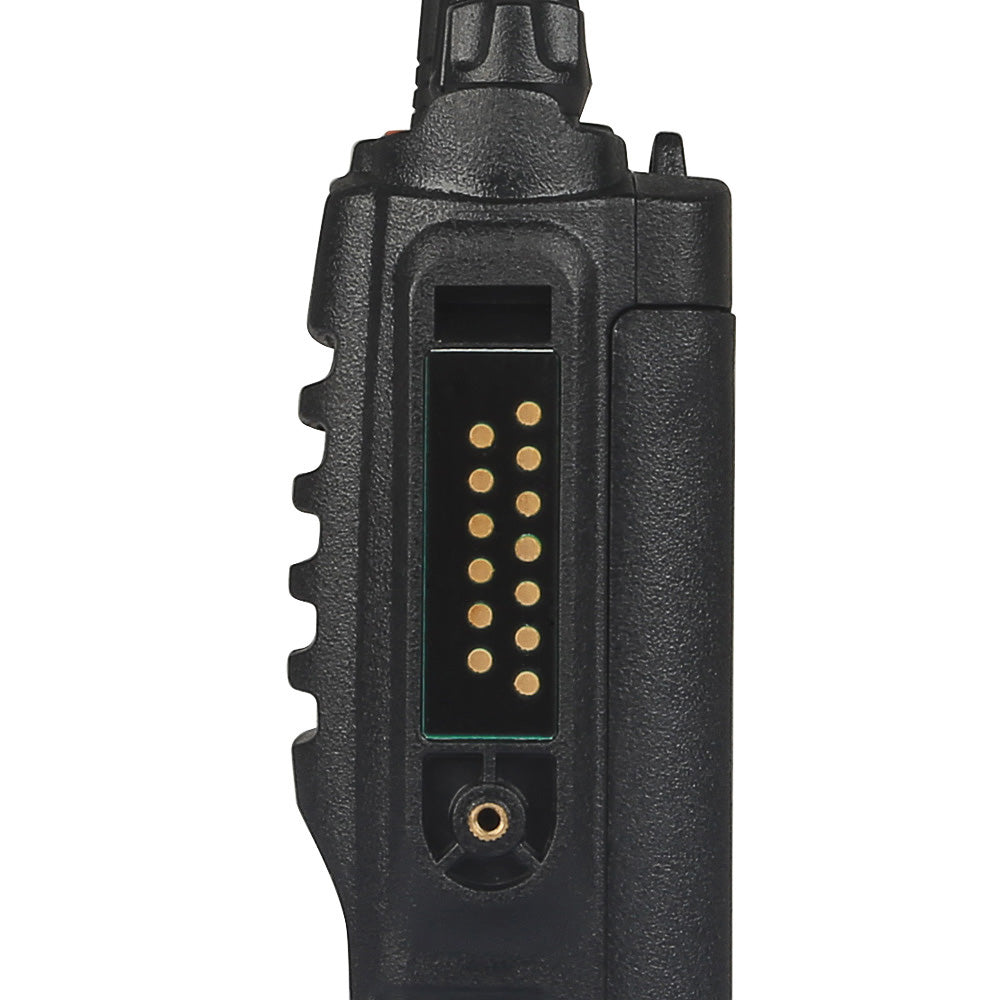

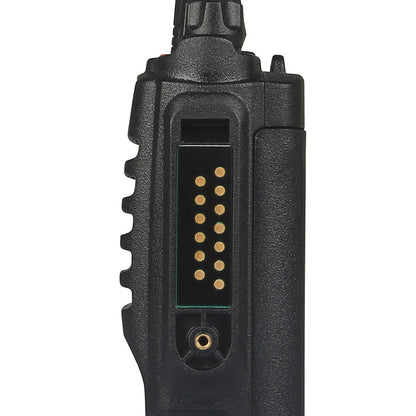

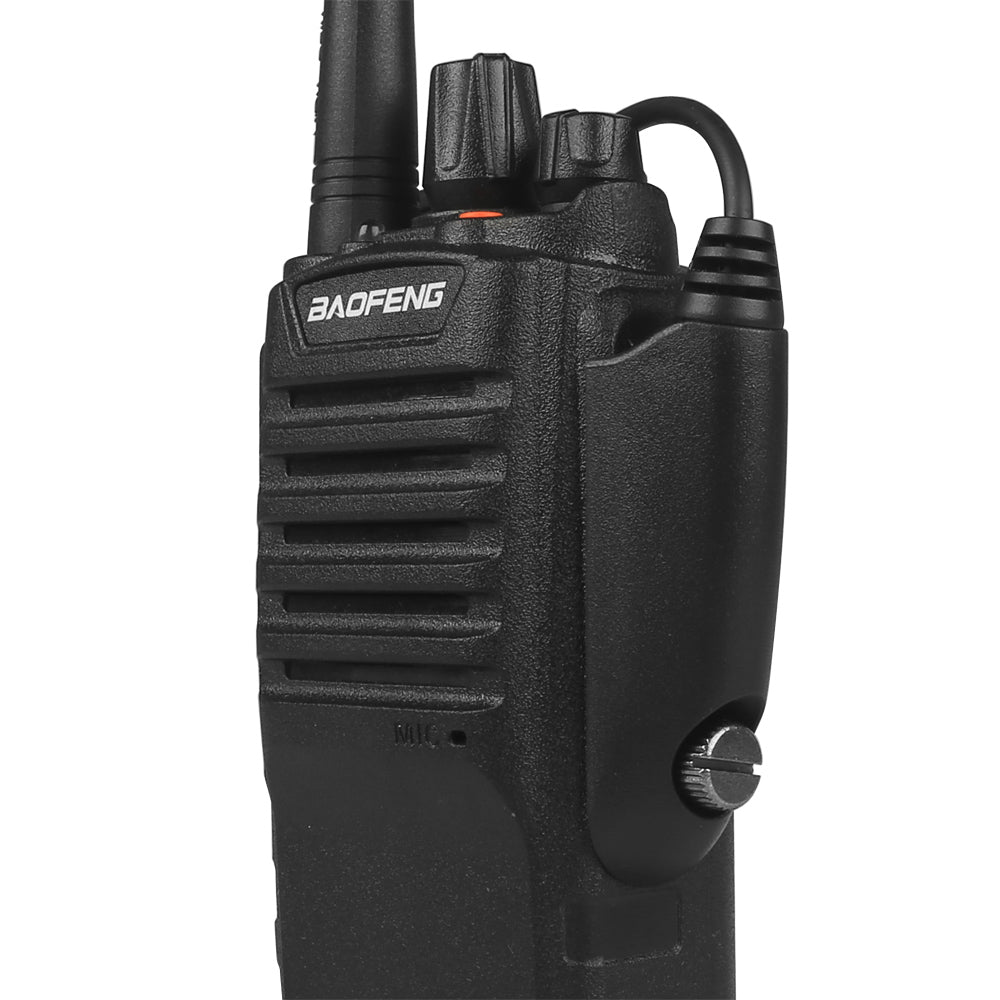

Earpiece & Programming Type: Special waterproof earpiece & cable

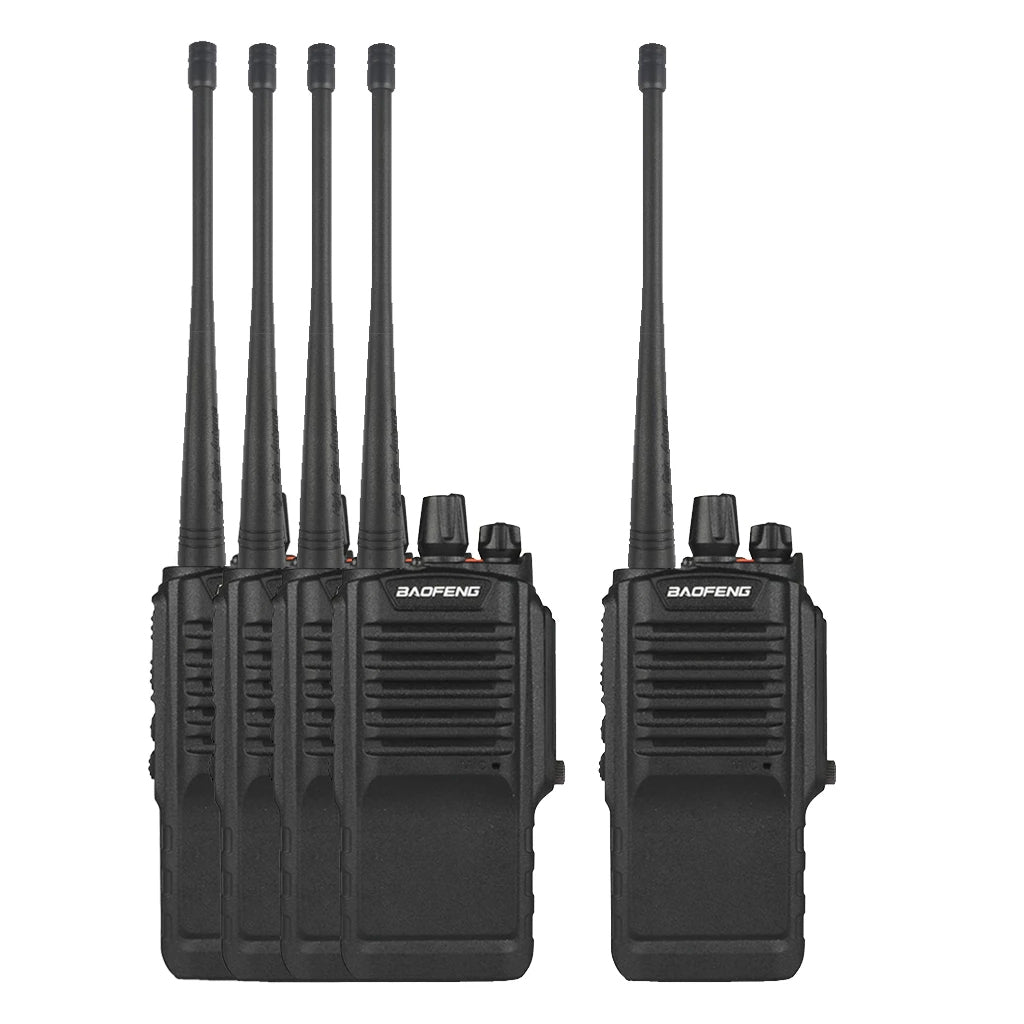

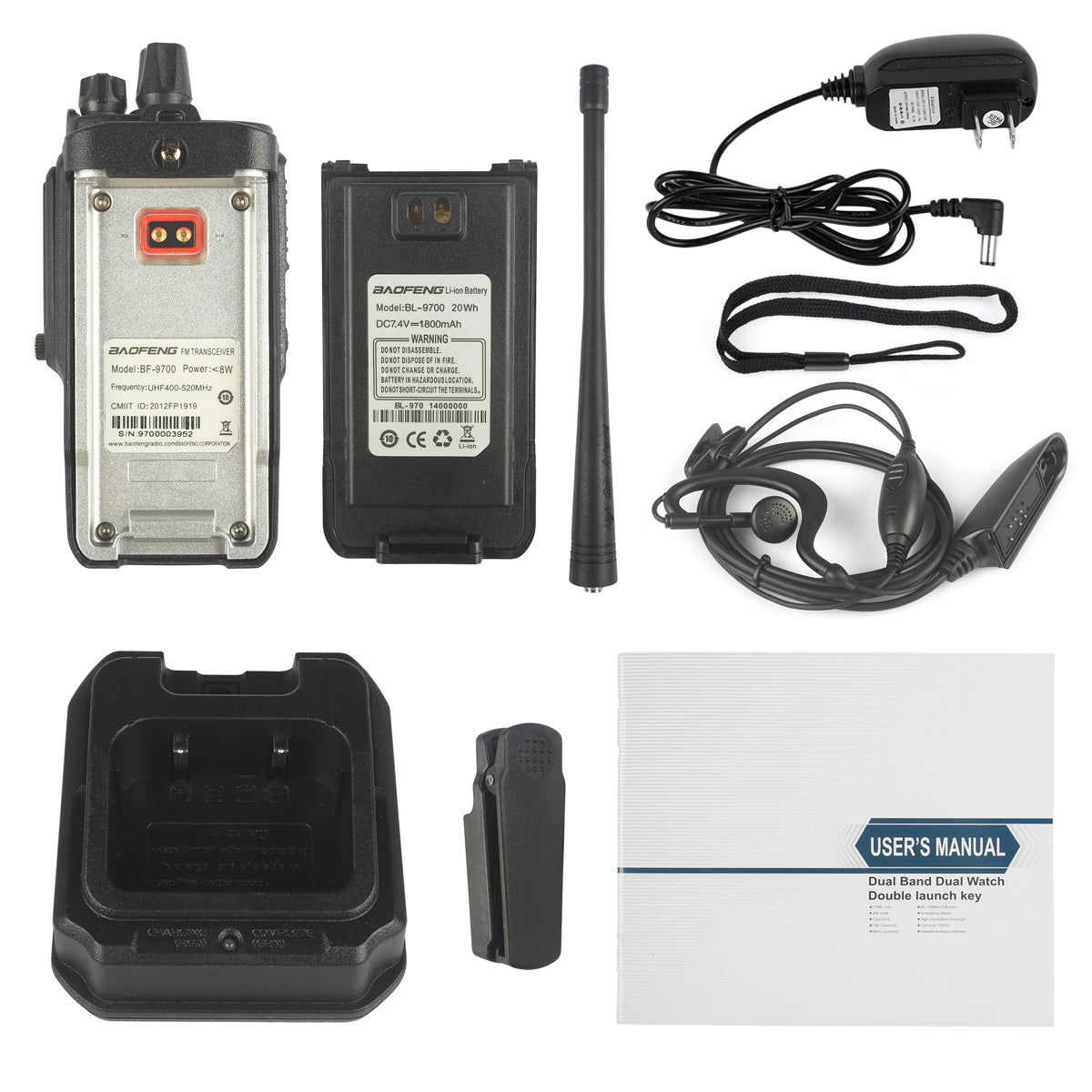

5 x Baofeng BF-9700 Waterpoof Radio
5 x Antenna

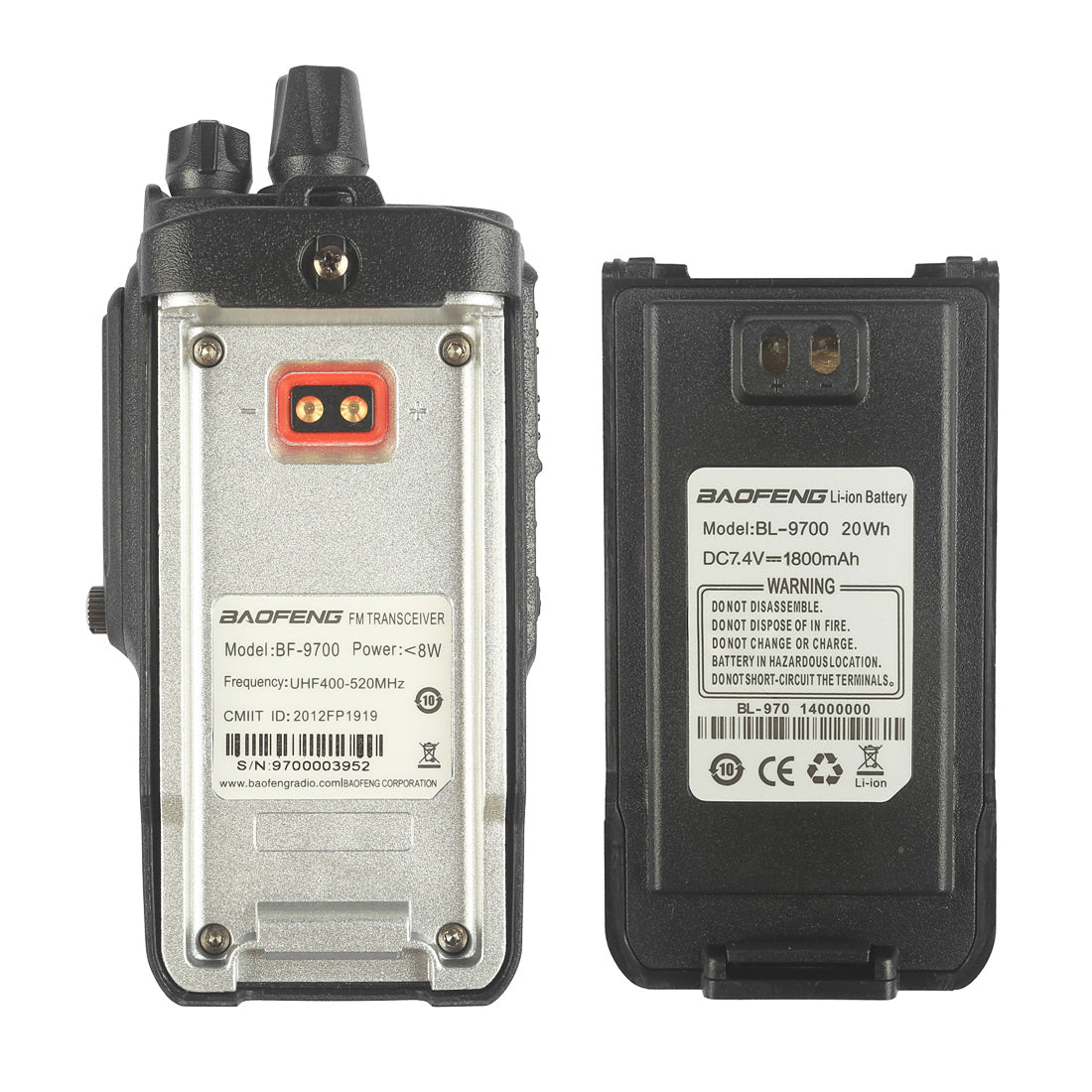

5 x 7.4V 1800mAh Li-ion Battery

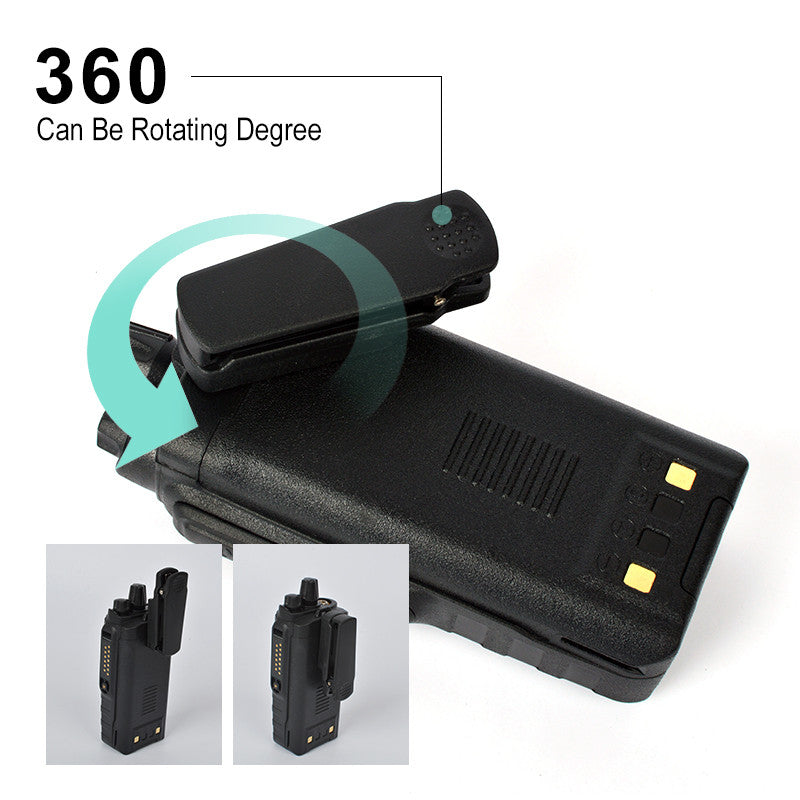

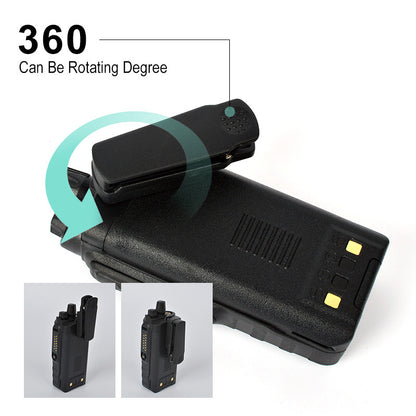

5 x Belt Clip
5 x Desktop Charger
5 x Adapter
5 x User Manual
5 x Earphone Mic/Headset
5 x Hand Strap
1 x Programming Cable
1 Year and 6 months Manufacturer's Warranty.
