▸ FCC ID: 2AJGM-UV5R

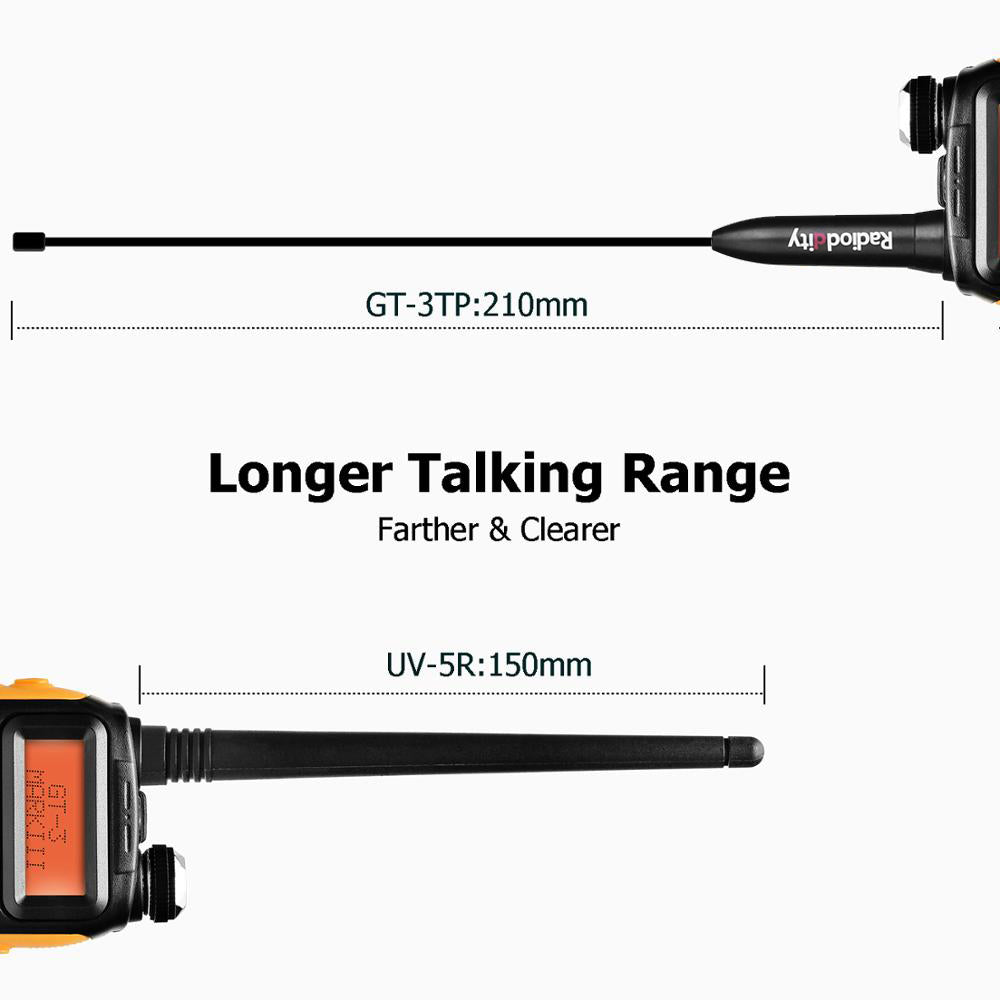

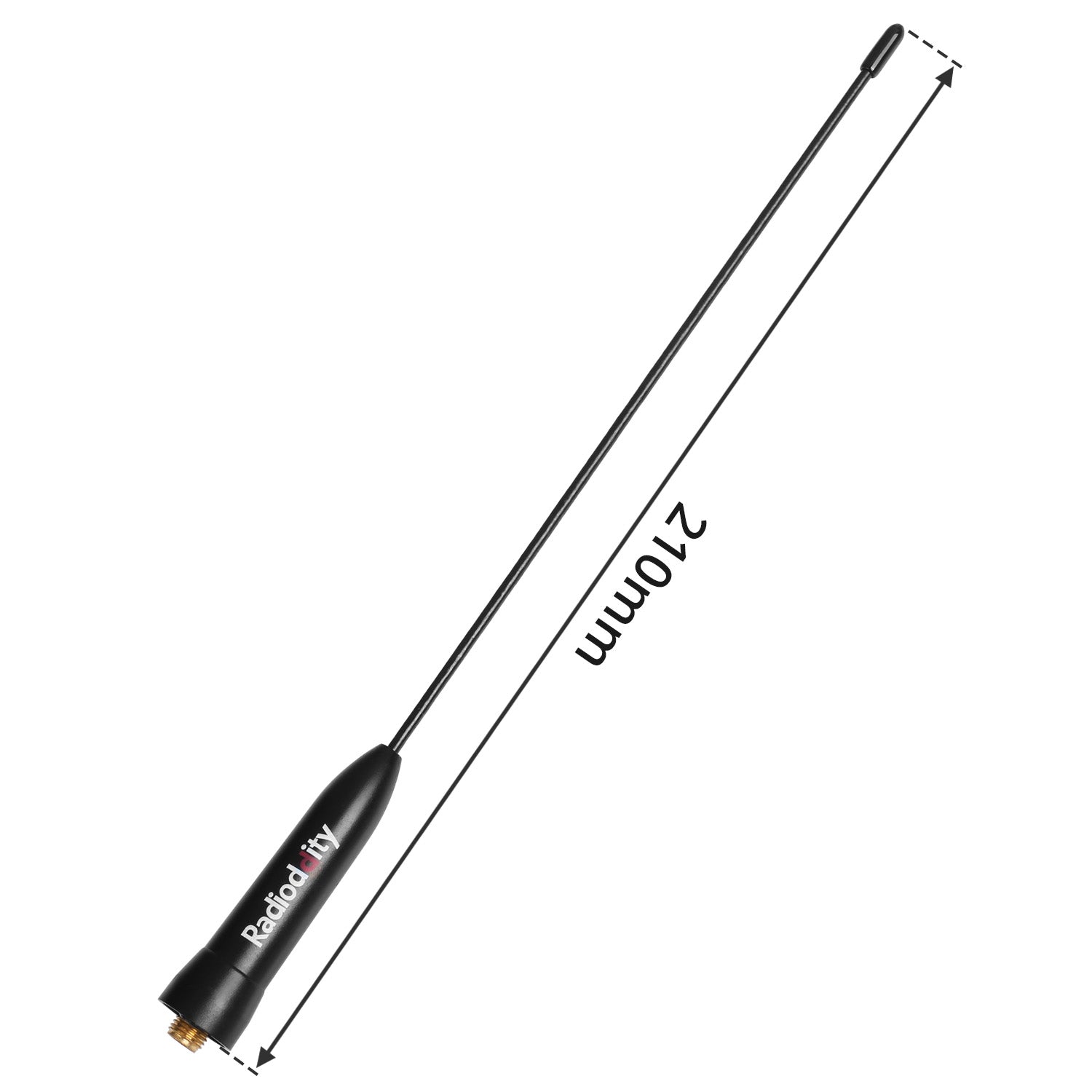

23CM High Gain Antenna allows GT-3 Mark II to transmit in 8KM.
- Optimal SQL Setting
- Frequecy Range: 65-108 Mhz(Only commercial FM radio reception) VHF: 136-174 Mhz(Rx/Tx). UHF: 400-520 Mhz(Rx/Tx)
- Broad (Wide) / Narrowband (Narrow), High power / low (5W/1W), selectable.
- Selectable Frequency Step/2.5/5/6.25/10/12.5/25 kHz.
- Function Busy Channel Lock "BCLO".
- Function "VOX" (Voice Operated Transmission), "OFFSET" (frequency offset for repeater access).
Function Busy Channel Lock "BCLO".
Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable.
Timer transmission "TOT" programmable.
Selecting the Scan Mode.
Built-in RX CTCSS/DCS scan, LED flash.
Programmable by PC.
Dual Watch/dual reception.
Level Threshold "Squelch" adjustable from 0 to 9.
Upgrade SQ to enhance the anti-interference ability.
Low crossover distortion. Low quiescent circuit current.
RDA1846S add an new tail tone elimination function, when transmit and receive signal between 50Hz with 55Hz
Reduce the receiver AGV switching noise when signal strength changes severe.
Memory channels: Up to 128 channels
Frequency stability: 2.5ppm
Antenna impedance: 50 ohm
Operating temperature: -20 ~ +60 °C
Supply Voltage: Rechargeable Lithium-Ion mAh 7.4V/1800
Consumption: in standby:≤73mA, in reception：380mA, in transmission：≤1.4A
Mode of operation: Simplex or semi-duplex

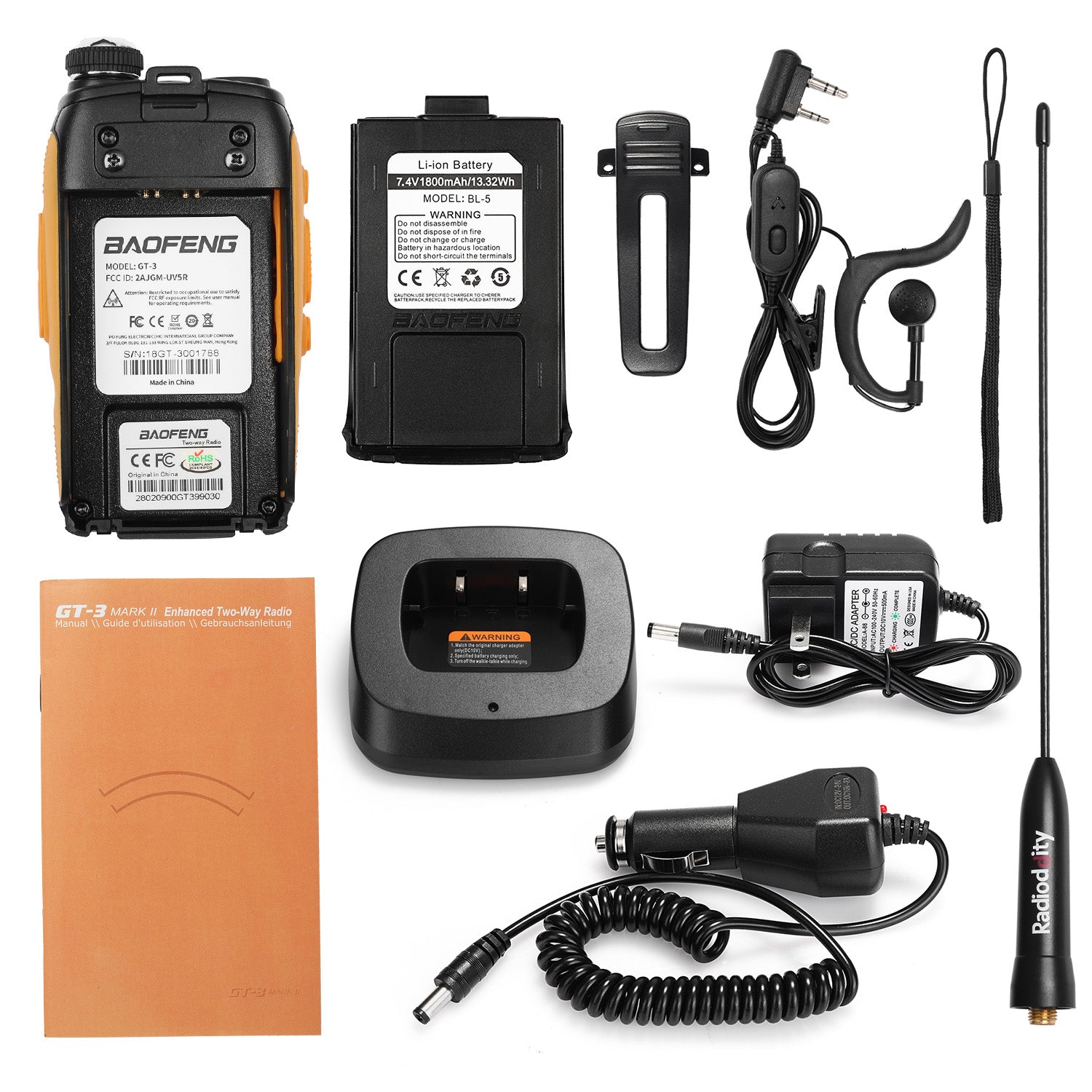

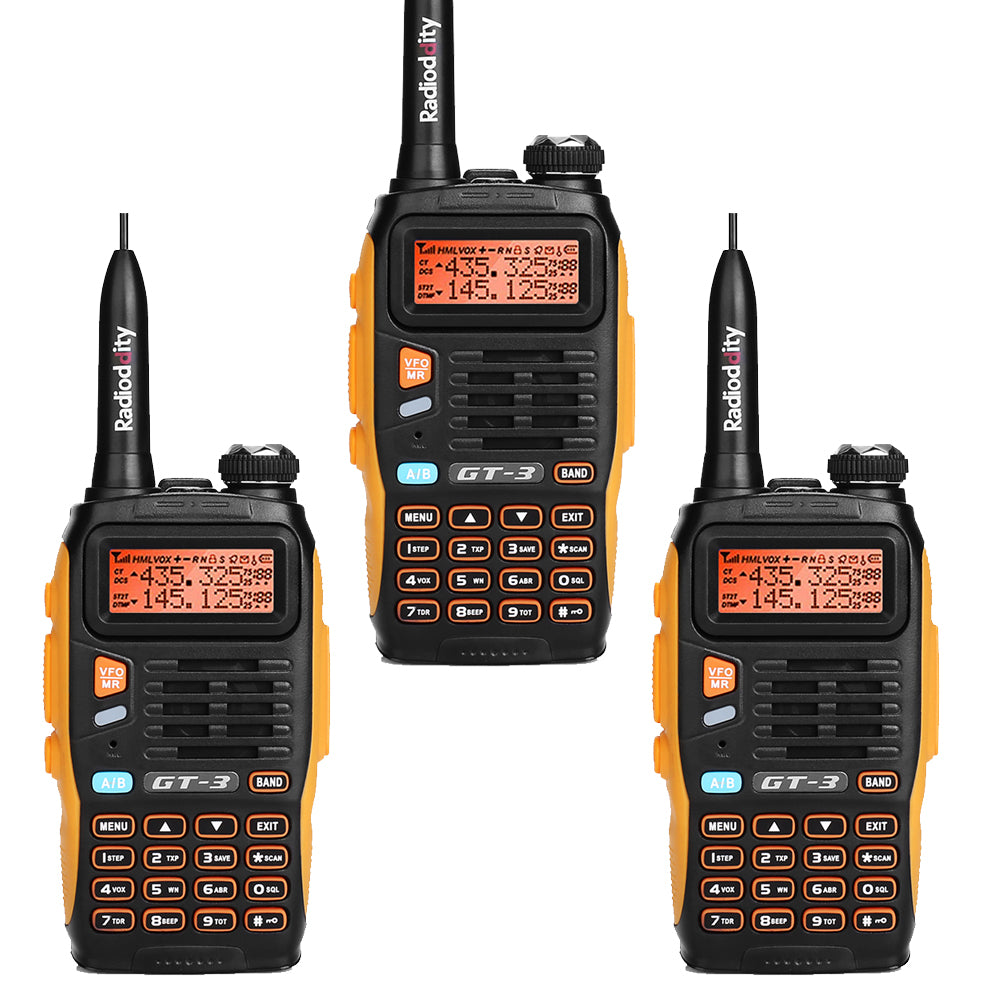

3 x GT-3 Mark-II Two Way Radio

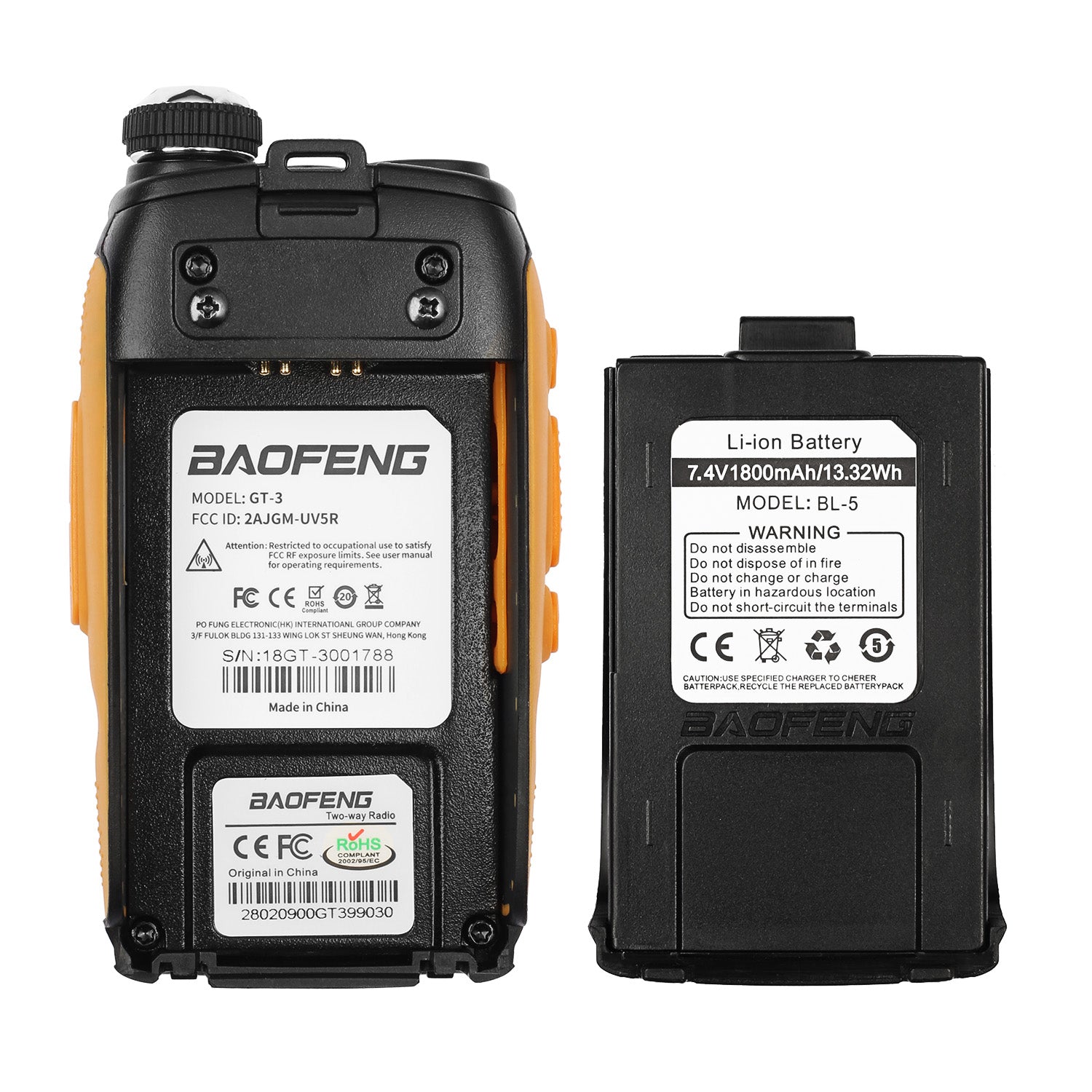

3 x 7.4V 1800mAh Li-ion Battery
3 x Antenna 136-174/400-519.995Mhz

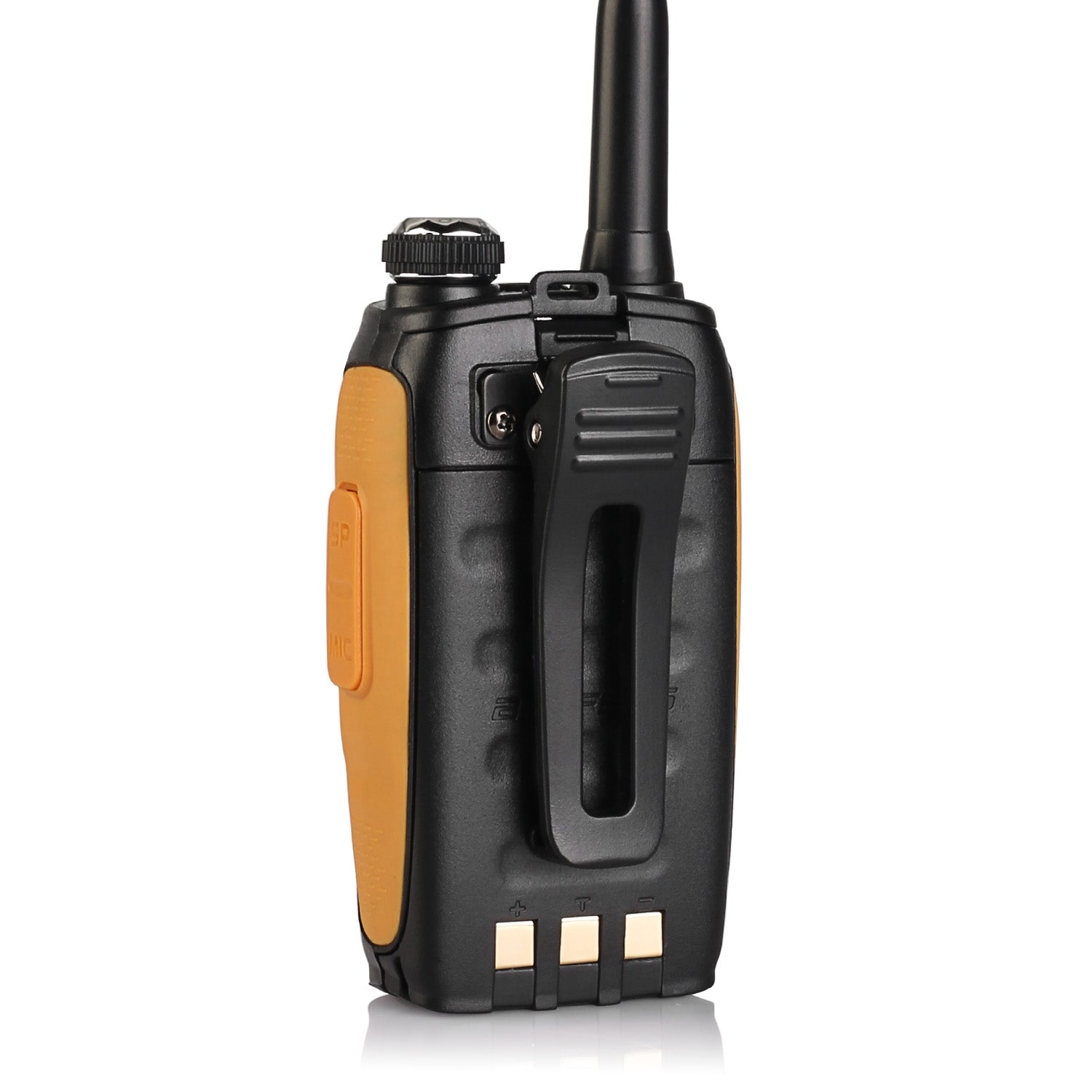

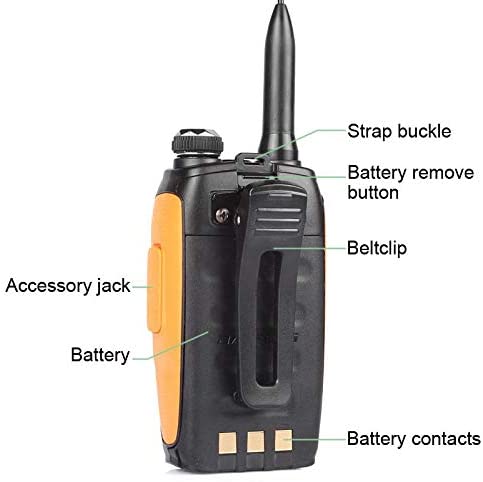

3 x Belt Clip
3 x Hand Strap
3 x User Manual
3 x Adapter
3 x Desktop Charger
3 x Headset

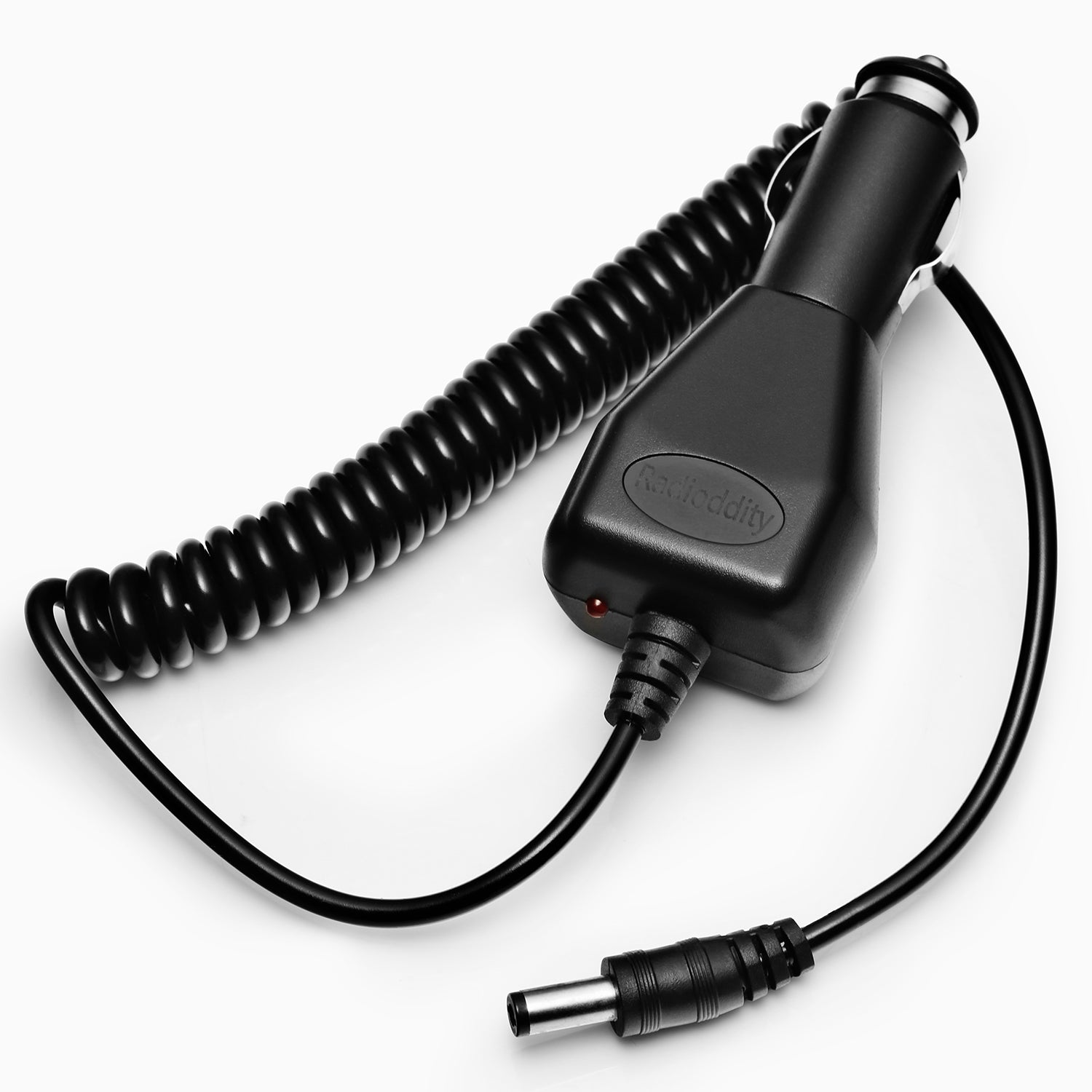

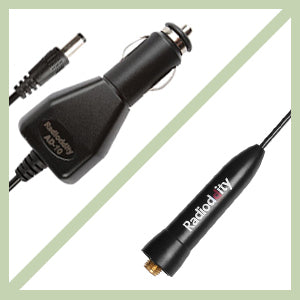

3 x Car Charger (12V-24V)
1 Year and 6 months Manufacturer's Warranty.
