▸ FCC ID: 2AJGM-UV5R

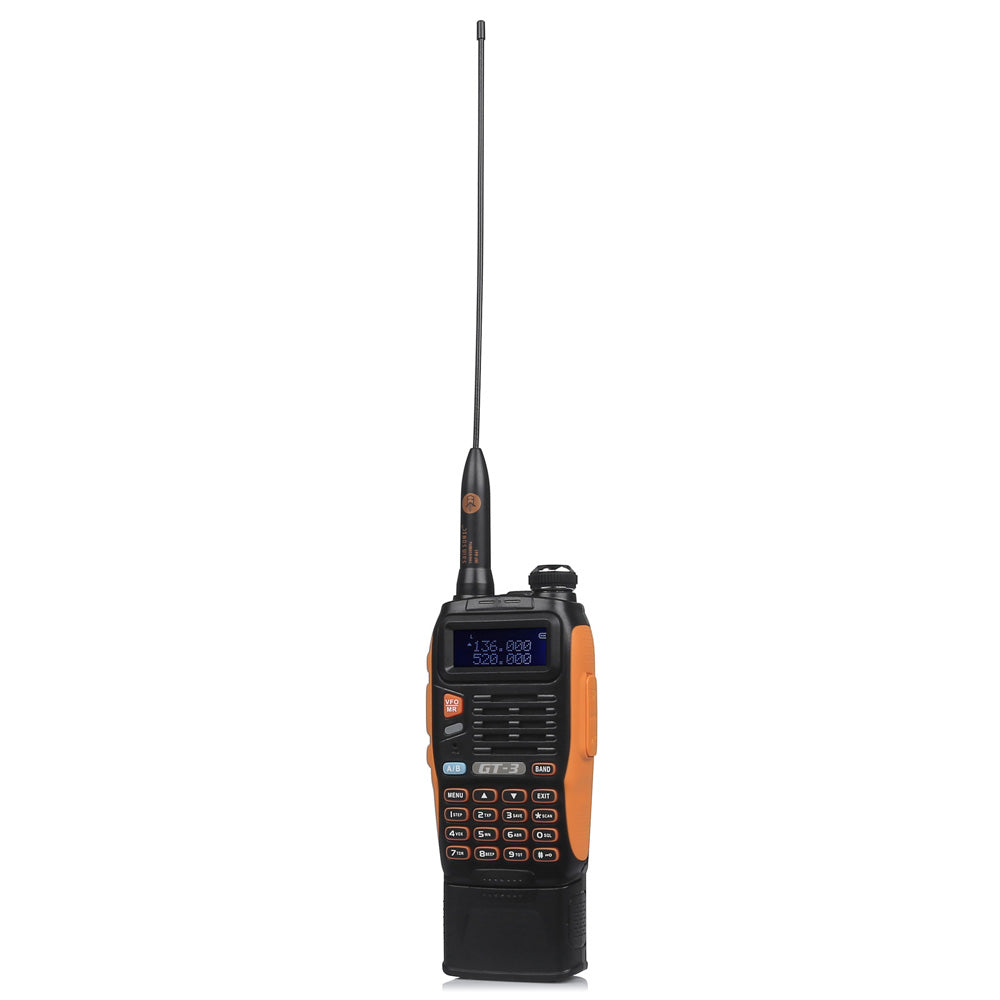

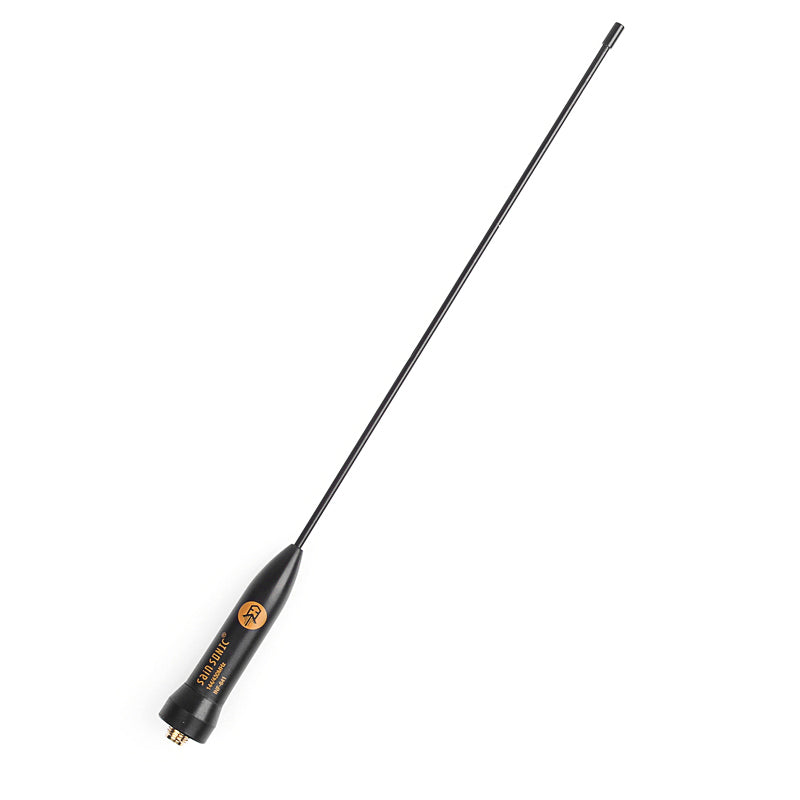

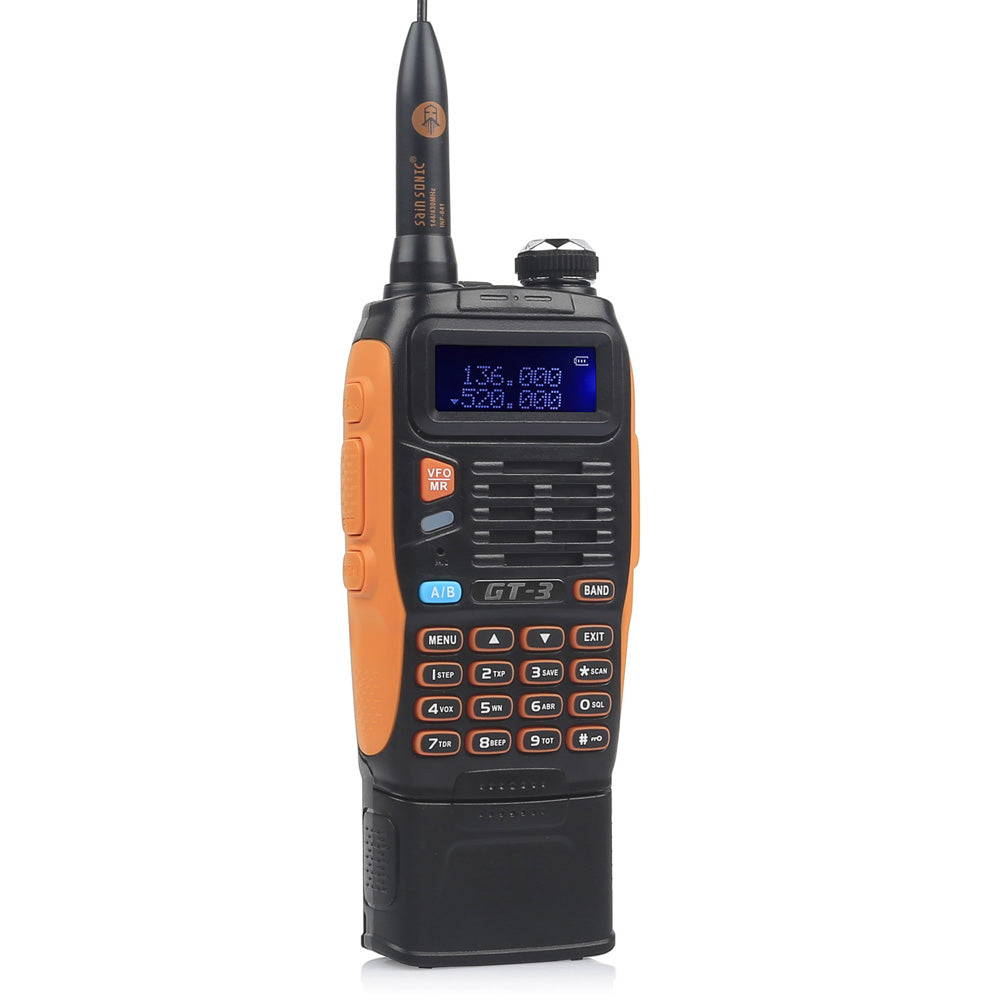

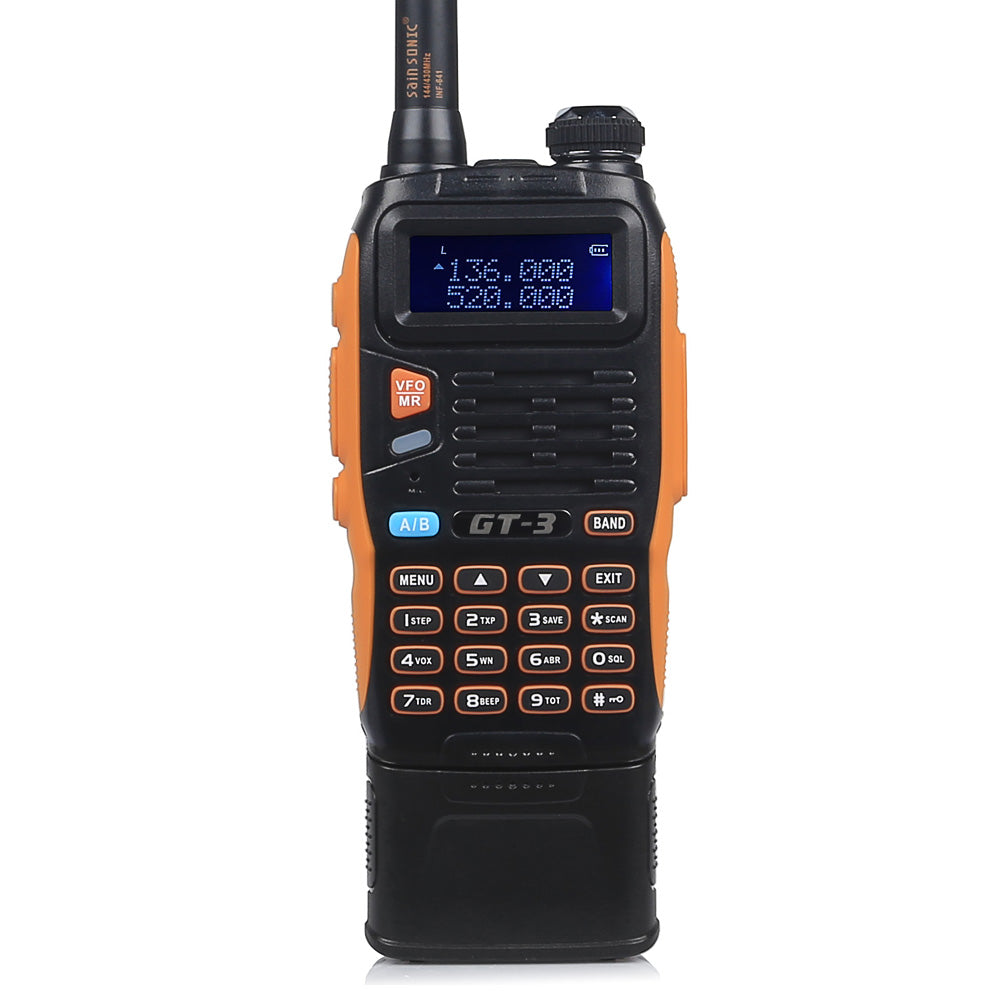

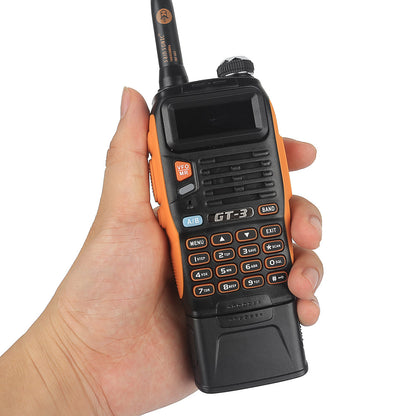

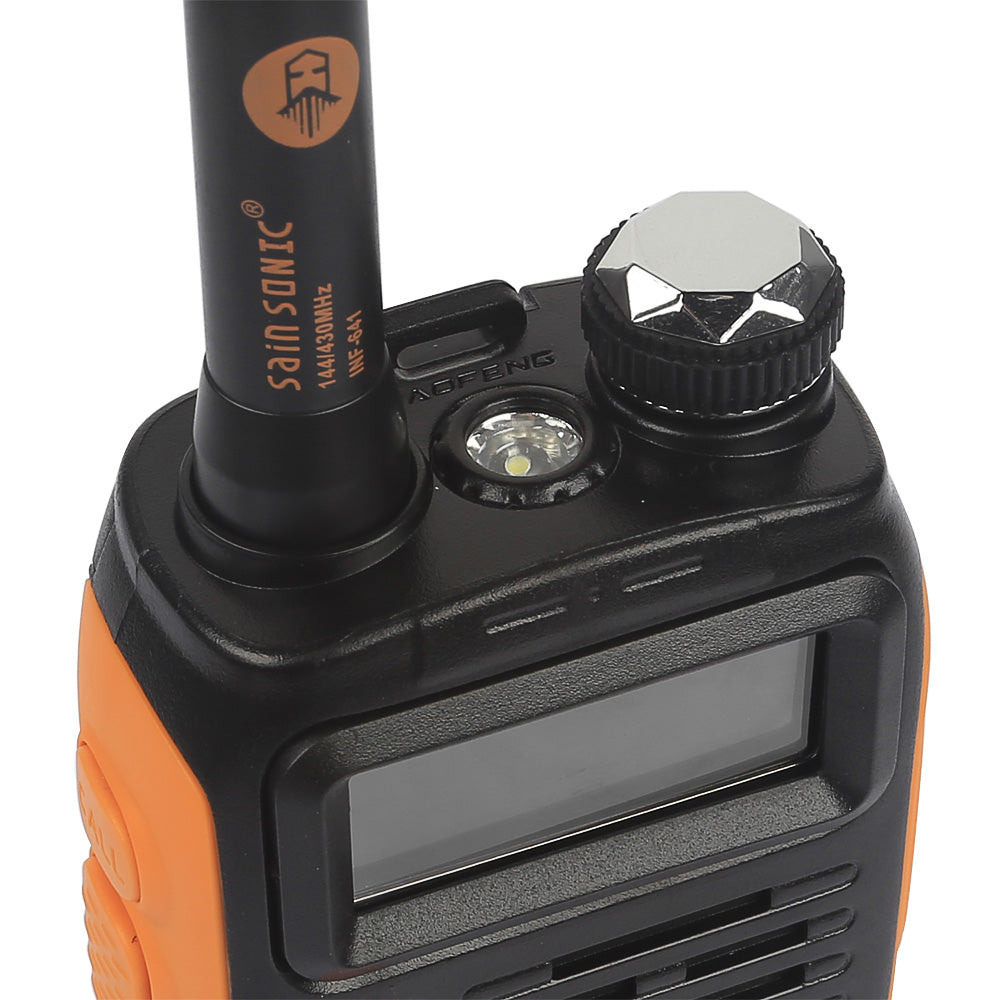

23CM High Gain Antenna allows GT-3 Mark II to transmit in 8KM.
- Optimal SQL Setting
- Frequecy Range: 65-108 Mhz(Only commercial FM radio reception) VHF: 136-174 Mhz(Rx/Tx). UHF: 400-520 Mhz(Rx/Tx)
- Broad (Wide) / Narrowband (Narrow), High power / low (5W/1W), selectable.
- Selectable Frequency Step/2.5/5/6.25/10/12.5/25 kHz.
- Function Busy Channel Lock "BCLO".
- Function "VOX" (Voice Operated Transmission), "OFFSET" (frequency offset for repeater access).
* Function Busy Channel Lock "BCLO".
* Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable.
* Timer transmission "TOT" programmable.
* Selecting the Scan Mode.
* Built-in RX CTCSS/DCS scan, LED flash.
* Programmable by PC.
* Dual Watch/dual reception.
* Level Threshold "Squelch" adjustable from 0 to 9.
* Crossband reception.
* Upgrade SQ to enhance the anti-interference ability.
* Low crossover distortion. Low quiescent circuit current.
* RDA1846S add an new tail tone elimination function, when transmit and receive signal between 50Hz with 55Hz
* Reduce the receiver AGV switching noise when signal strength changes severe
* Memory channels: Up to 128 channels
* Frequency stability: 2.5ppm
* Antenna impedance: 50 ohm
* Operating temperature: -20 ~ +60 °C

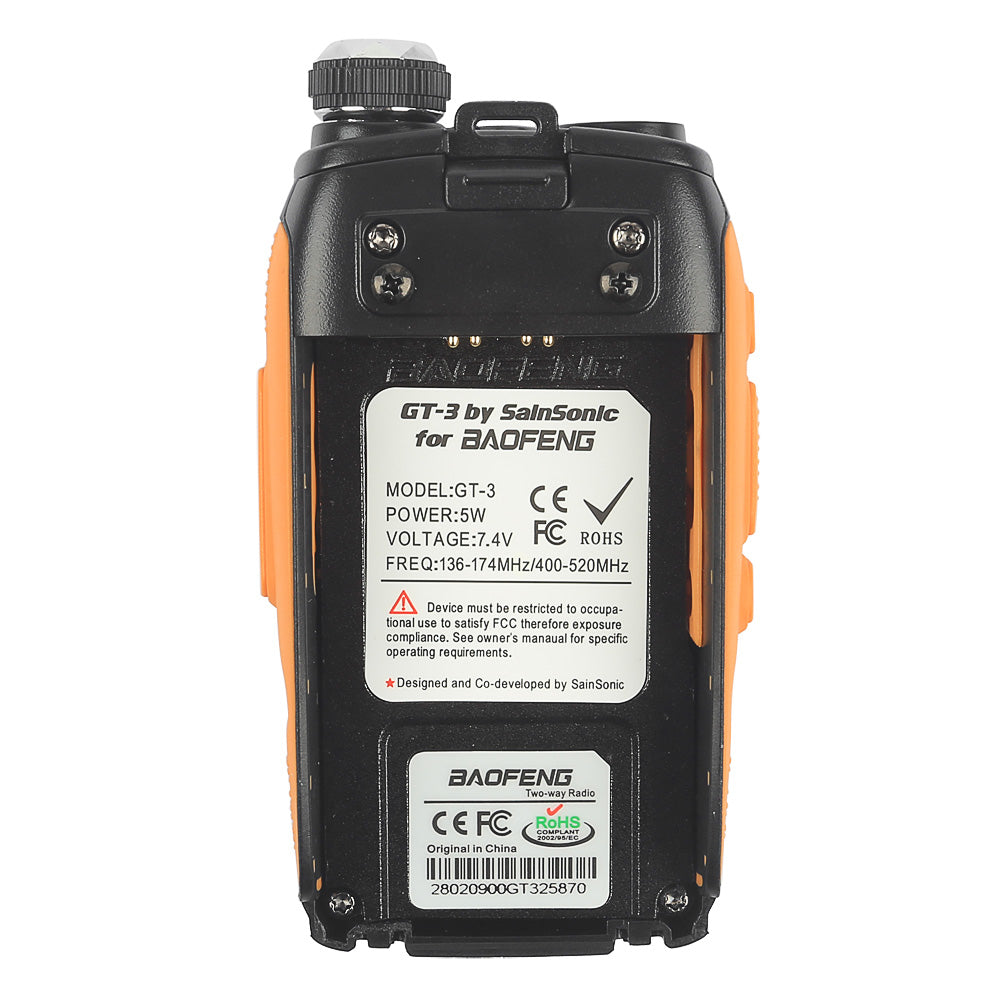

* Supply Voltage: Rechargeable Lithium-Ion mAh 7.4V/1800
* Consumption: in standby:≤73mA, in reception：380mA, in transmission：≤1.4A
* Mode of operation: Simplex or semi-duplex

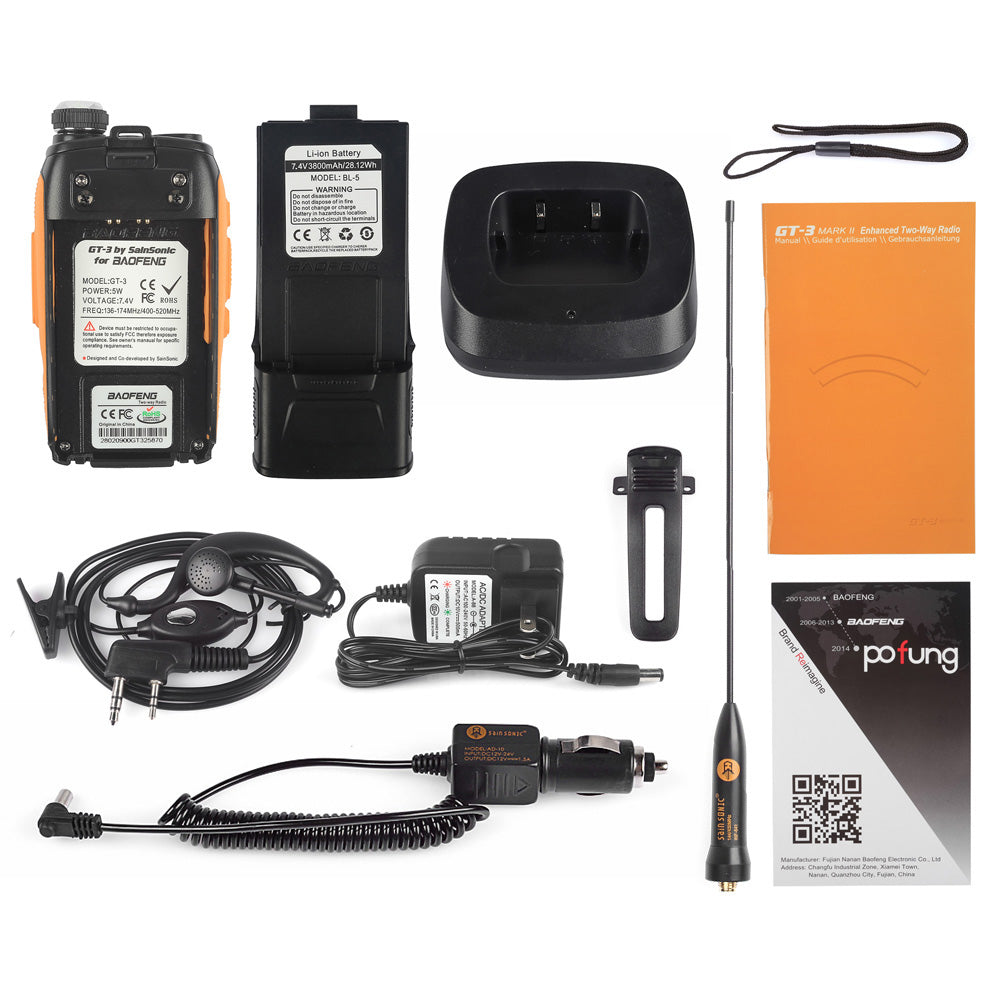

1 x Two Way Radio

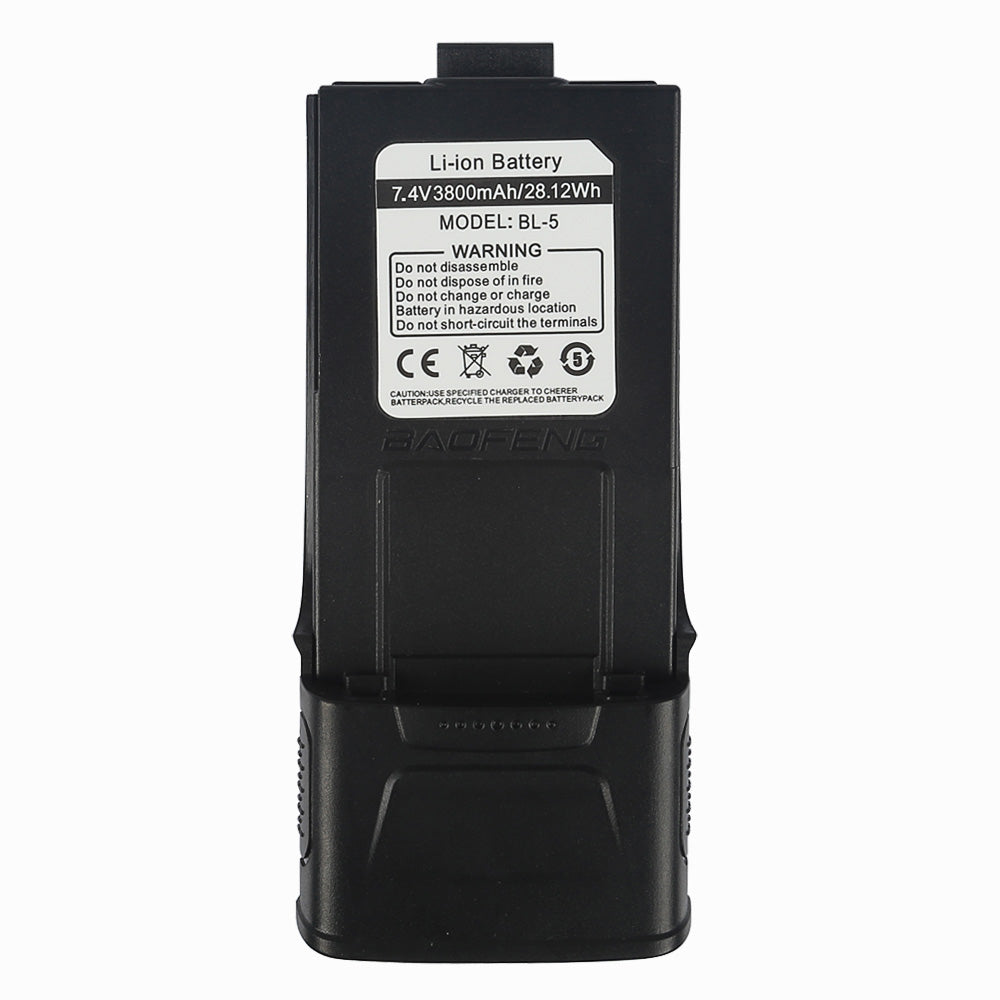

1 x 3800mAh Li-ion Battery
1 x Antenna
1 x Car Charger

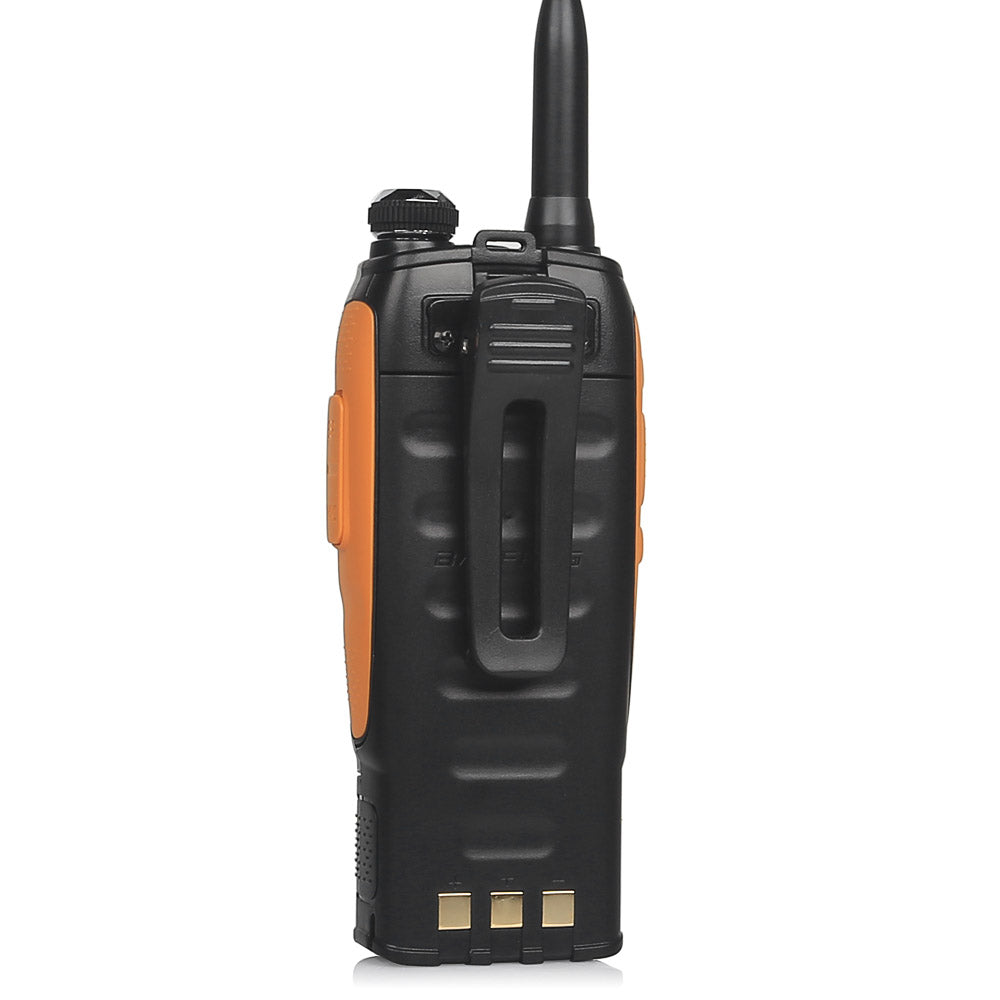

1 x Belt Clip
1 x User Manual
1 x Adapter
1 x Desktop Charger
1 x Headset
Note: Make sure the battery is fully charged before the first use to prolong battery life.
1 Year and 6 months Manufacturer's Warranty.
