FCC ID: 2AJGM-UV5R
Upgraded Version of Baofeng UV-5R

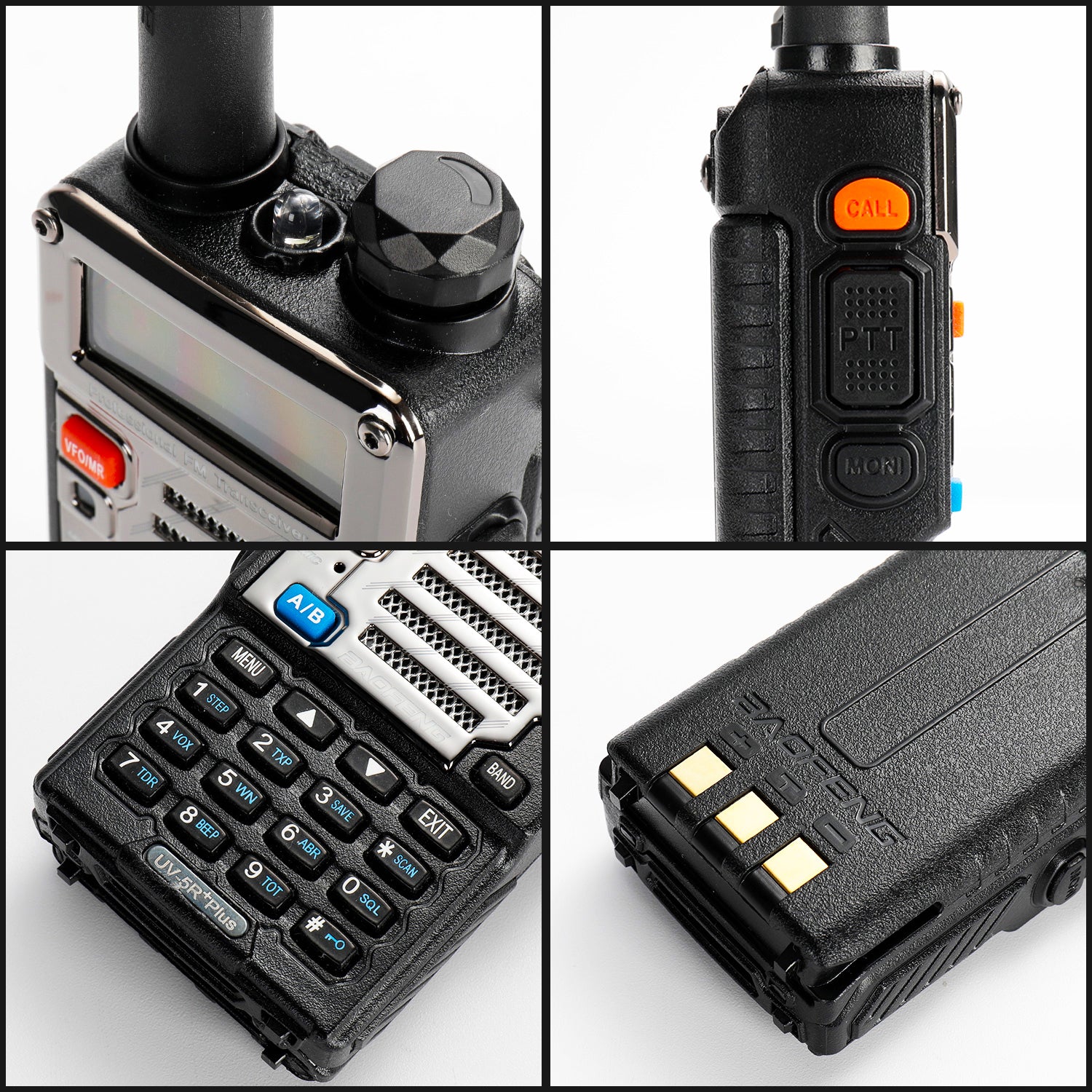

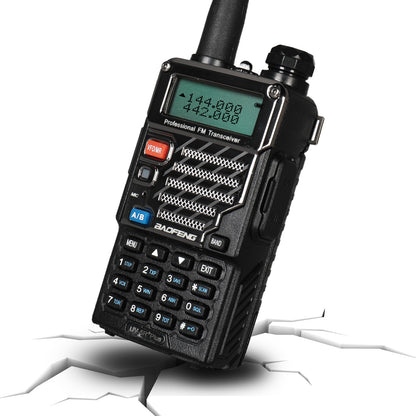

• Upgraded frame material. It's an extremely durable metallic-finish plastic material and looks better to boot.
• Has a detailed two color LED high-res display. The screen is very easy to read in all environments.
• It includes English, German & French languages. The user interface is optimized for ease of use.
CLICK HERE to download software, manual or programming tips.
CLICK HERE to download CHIRP. Support CHIRP quick programming.

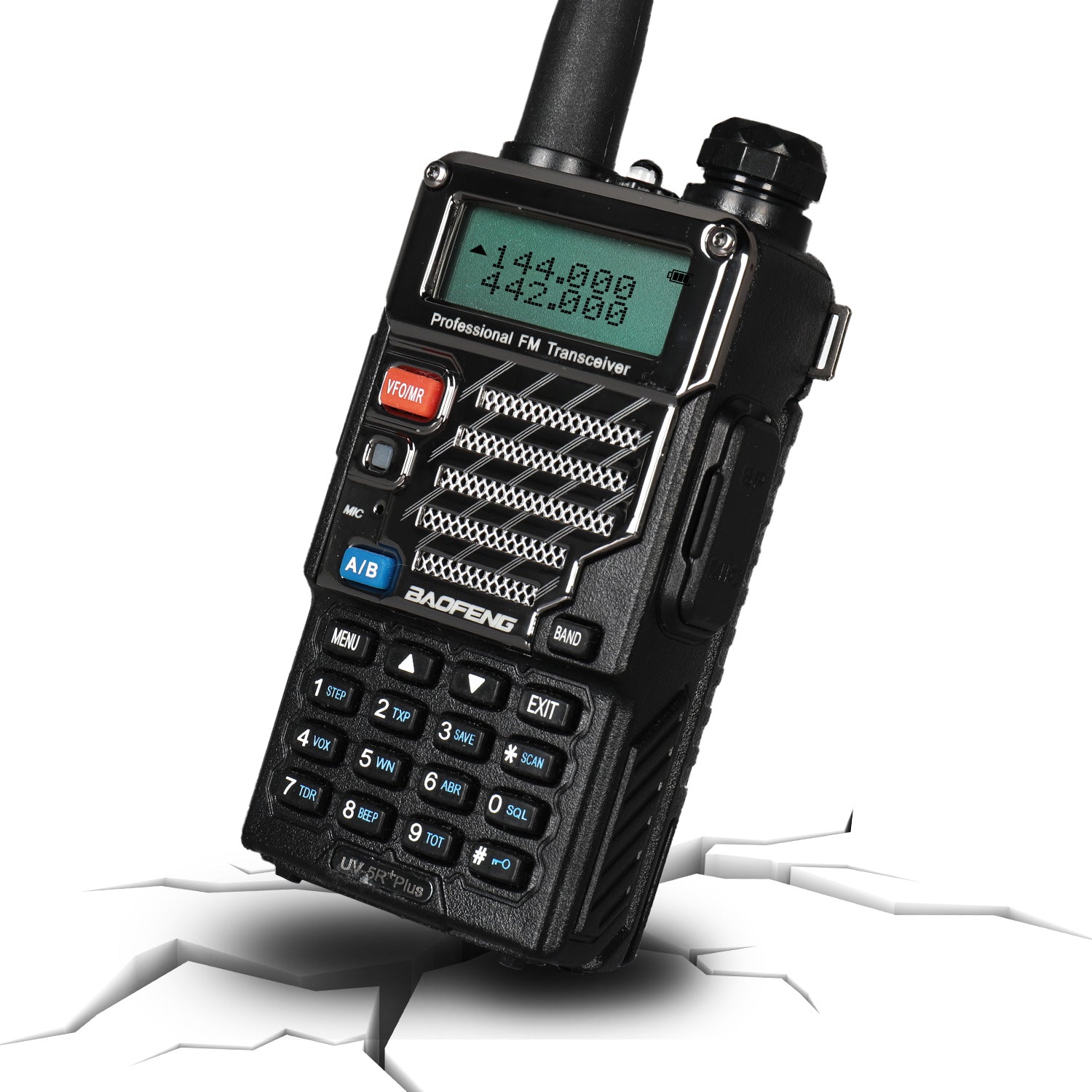

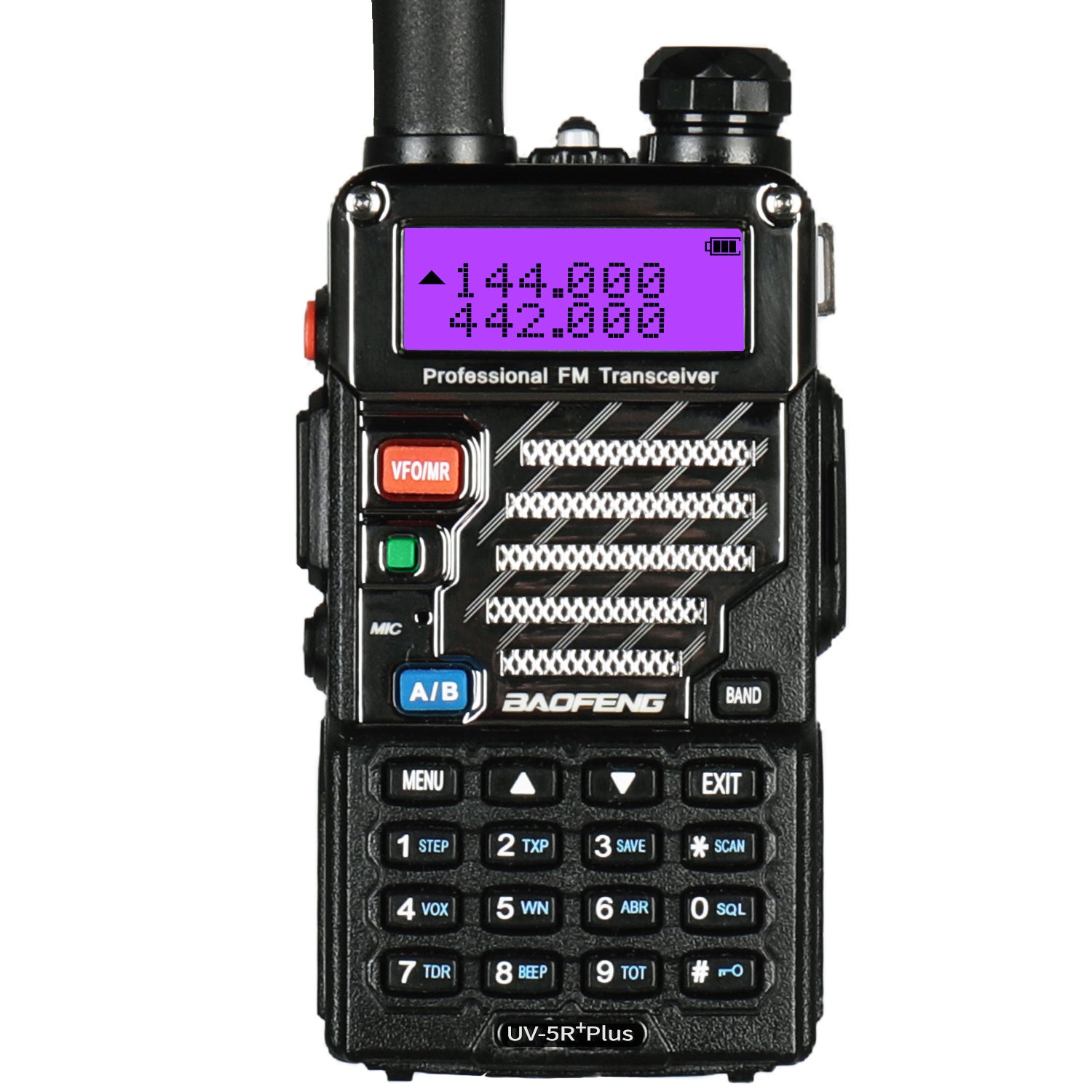

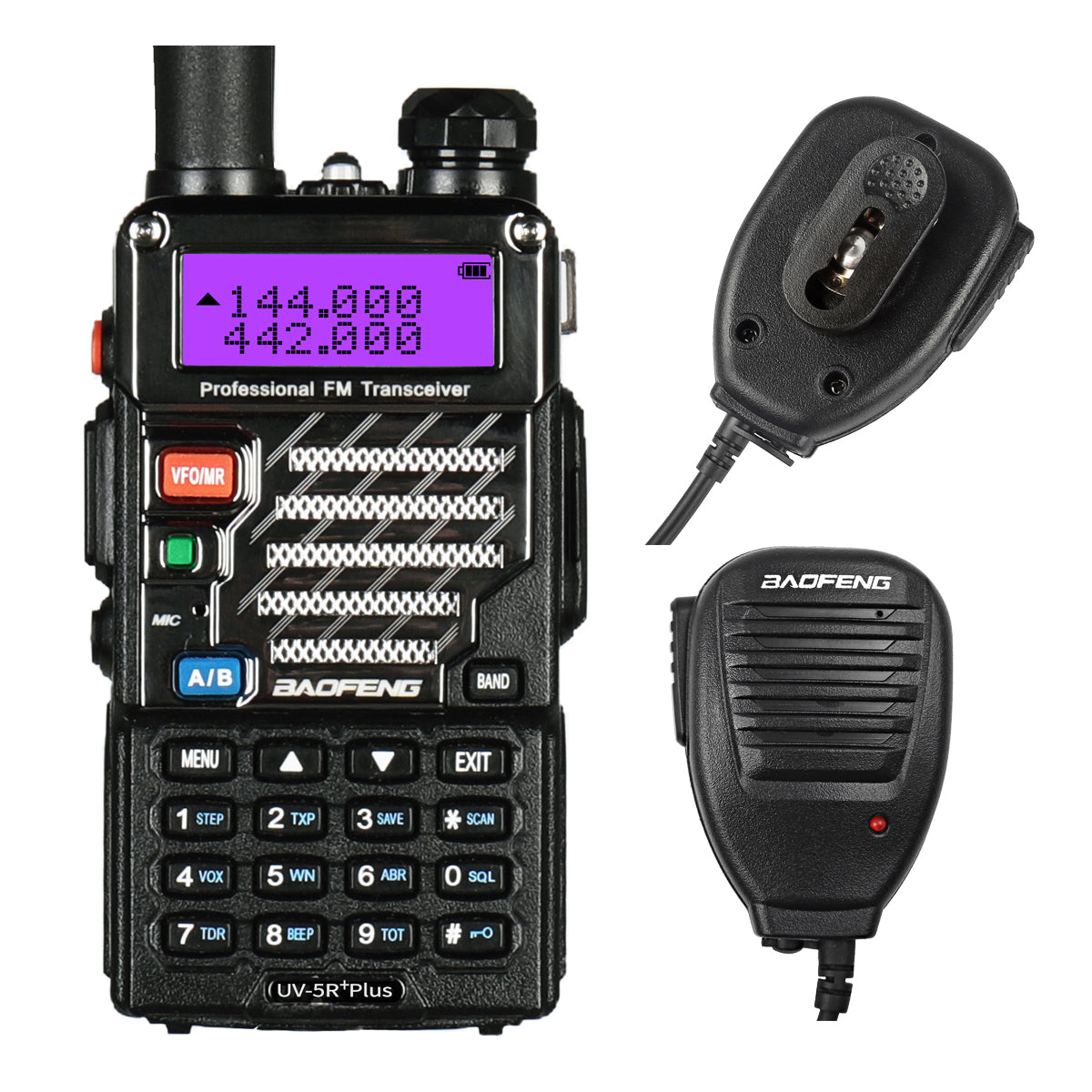

Baofeng UV-5R Plus UHF/VHF Dual Band Amateur Radio Handheld Radio
Complete with durable metal shell, updated and fashionable frame, more robust than UV-5R

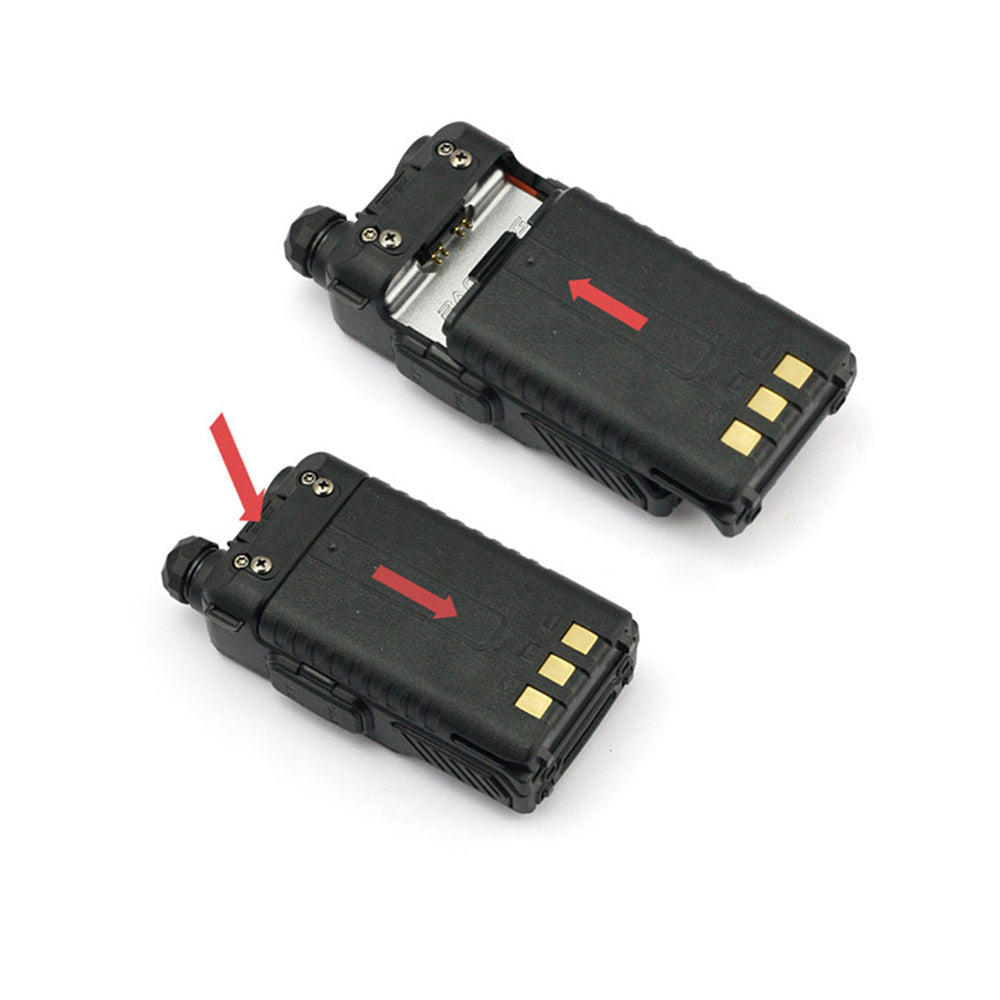

Compatible with UV-5R 3800mah extended batteries as well as other 5R series accessories.
Light weight and versatile, full HD color LED display, exquisite and clarity
Programming Tips: How to program Baofeng UV-5R series? CLICK HERE
1. Frequency Range: 136-174 / 400-520 MHz
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 4 /1Watts
4. 128 Channels 50 CTCSS and 104 DCS
5. Built-in VOX Function
6. 1750Hz Burst Tone
7. FM Radio (65.0MHz-108.0MHz)
8. LED Flashlight

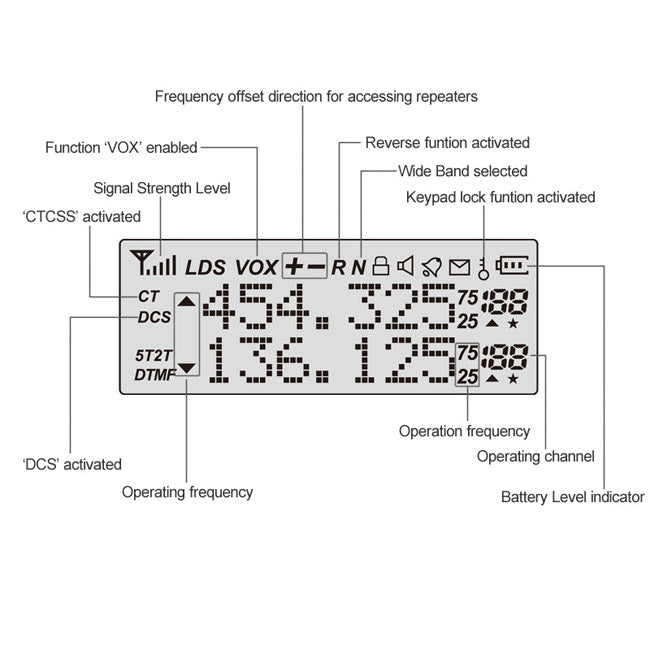

9. Large LCD Display
10. High / Low RF Power Settings
11. 25KHz/12.5KHz Channel Spacings
12. Emergency Alert
13. Low Battery Alert
14. Battery Saver
15. Time-out Timer
16. Keypad Lock
17. Monitor Channel
18. Channel Step: 2.5/5/6.25/10/12.5/25KHz

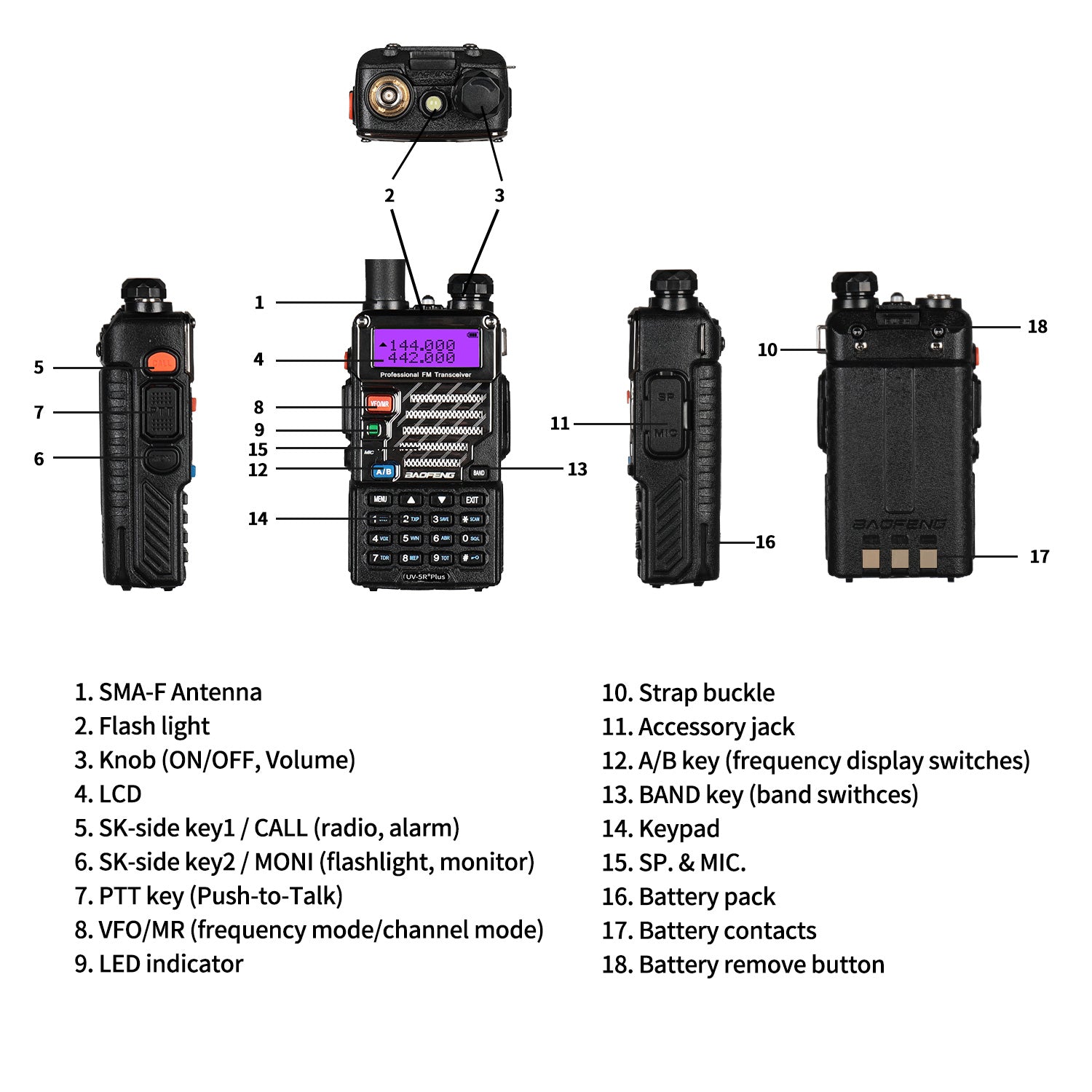

Set up your Baofeng UV-5R Plus
Frequency Range: 65-108MHz (FM Receive only); 136-174 MHz and 400-520 MHz (TX/RX)
Channel Memories: 128
Frequency Stability: ±2.5ppm
Operating Voltage: DC 7.4V
Output power: 4W / 1W (Max 5W)
Dimensions（W x H x D）: 100 x 52 x 32 mm
Weight: 250g （including battery, antenna）
Antenna Type: Compatible with SMA-Female Antenna
Earpiece & Programming Type: Compatible with K-plug earpiece/cable

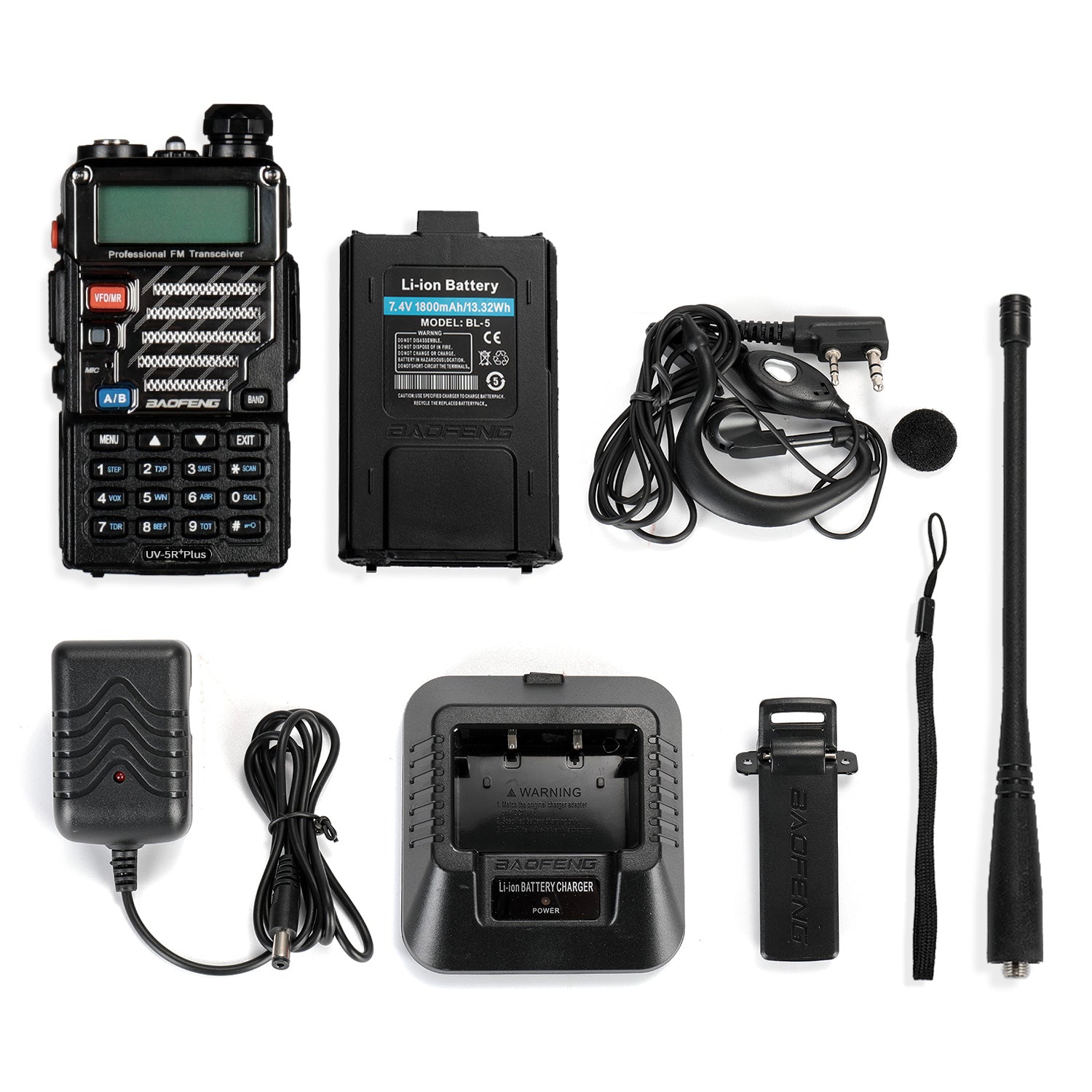

1 x Baofeng UV-5R PLUS (VHF136-174MHz / UHF 400-520MHz) Two Way Radio

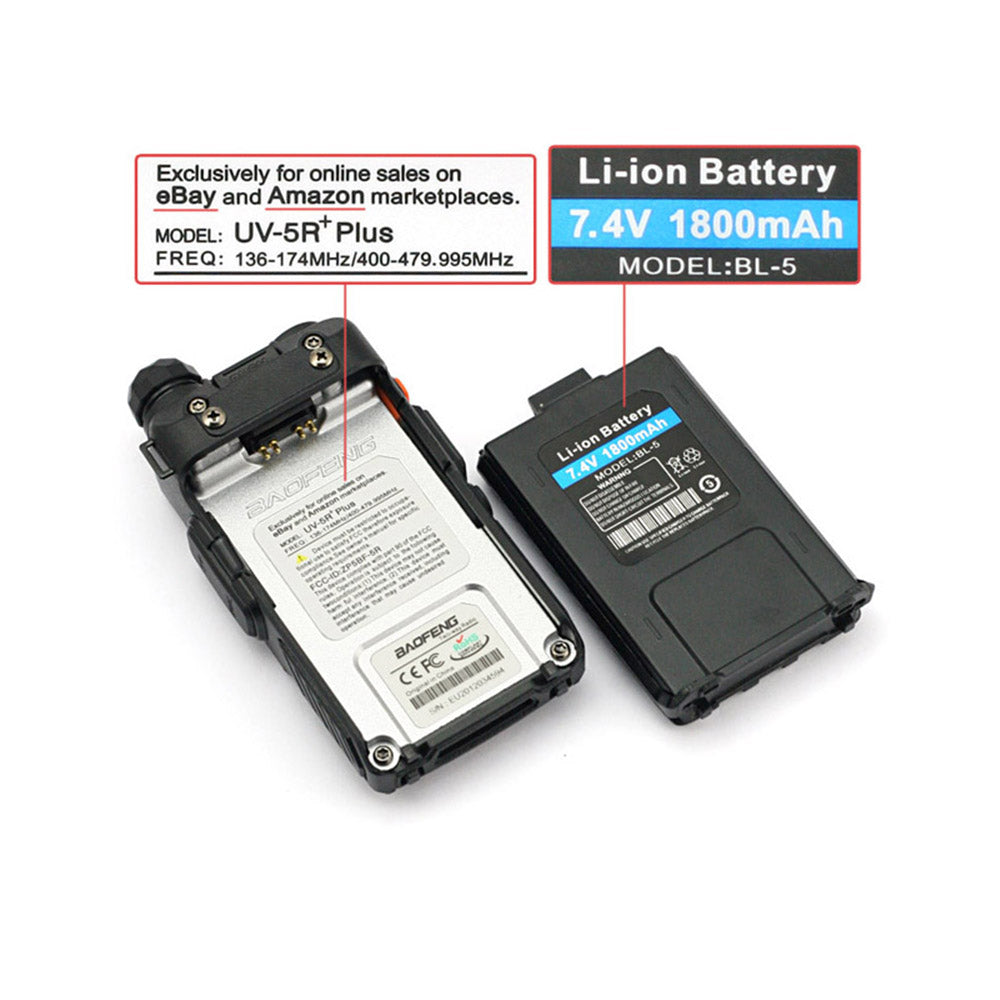

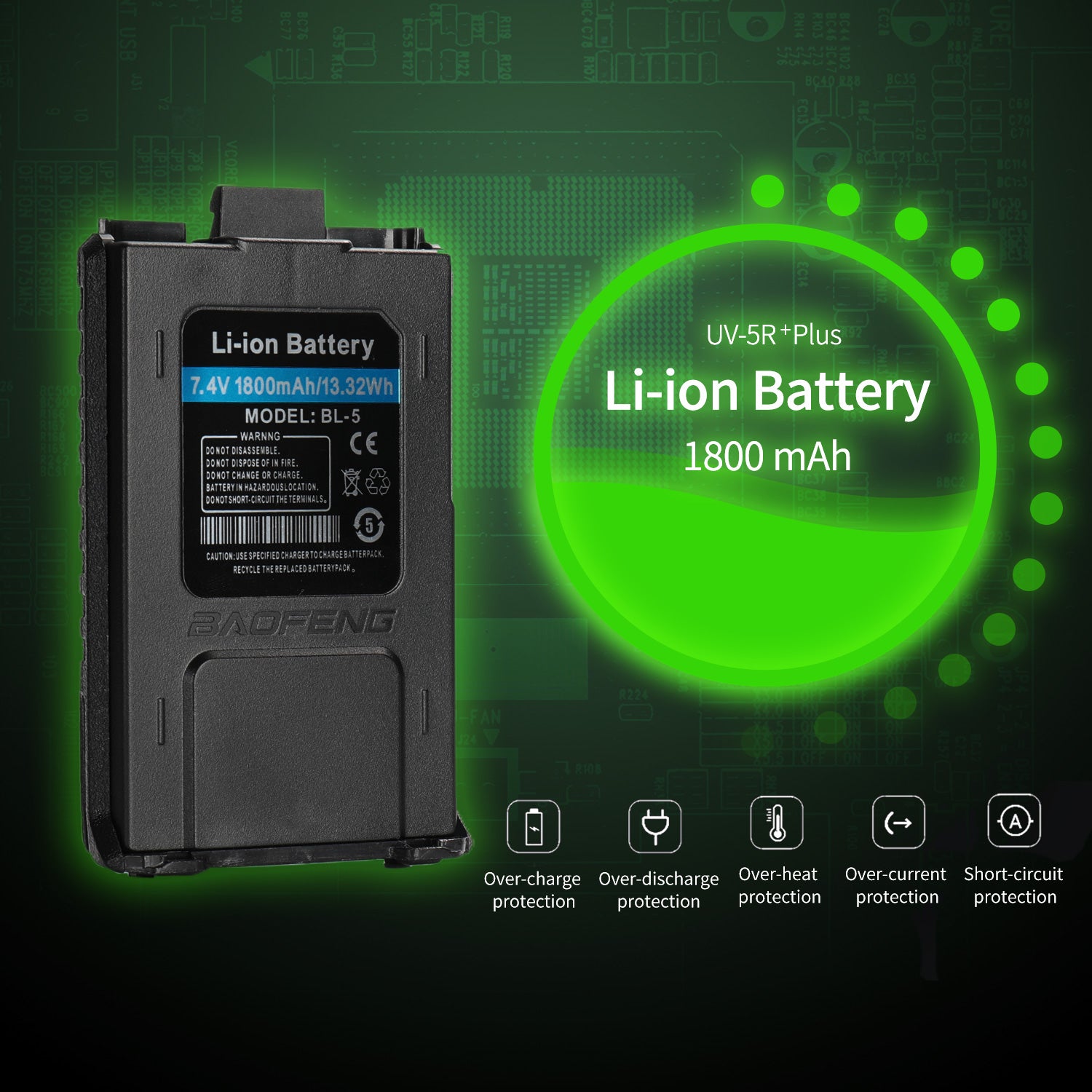

1 x 7.4V 1800mAh Li-ion Battery Pack
1 x Antenna 136-174/400-479.995Mhz
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x User Manual
1 x Adapter

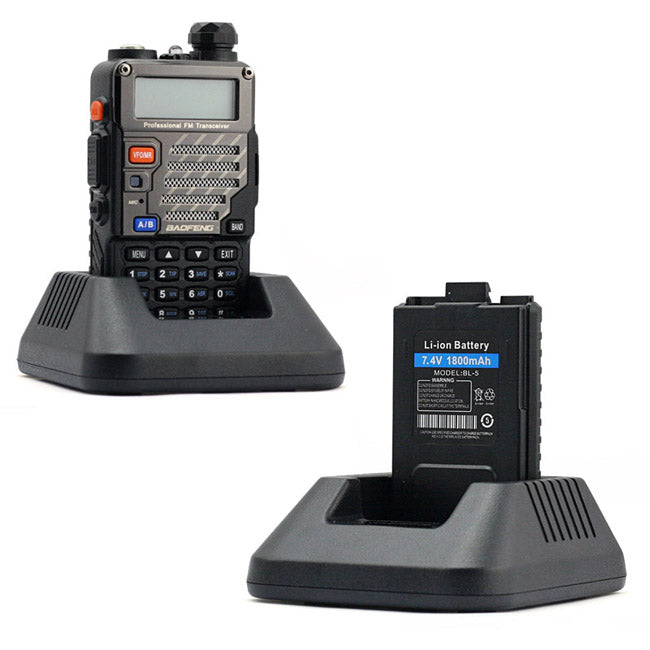

1 x Desktop Charger

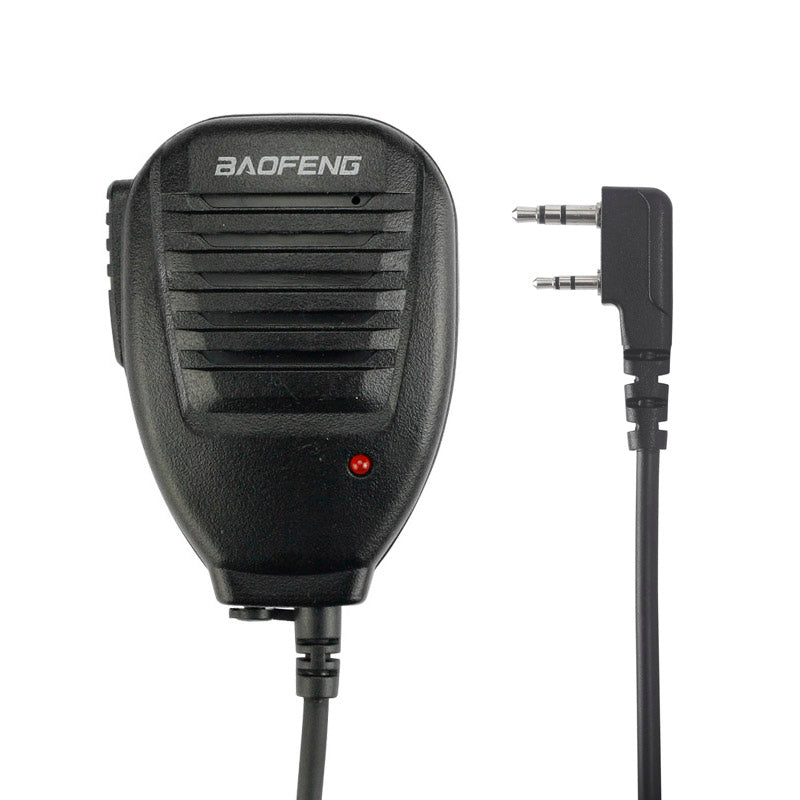

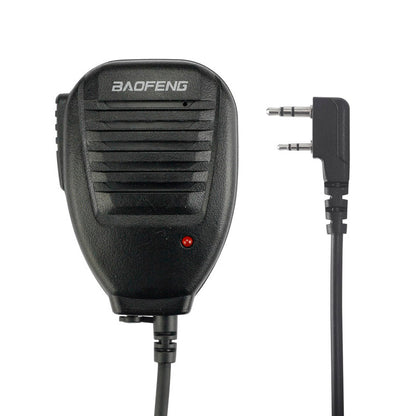

1 x Speaker
1 Year and 6 months Manufacturer's Warranty.
