▸ FCC ID: 2AJGM-UV5R
1. Frequency Range: 136-174 / 400-479.995 MHz
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 4 /1 Watts
4. 128 Channels 50 CTCSS and 104 DCS
5. Built-in VOX Function
6. 1750Hz Burst Tone

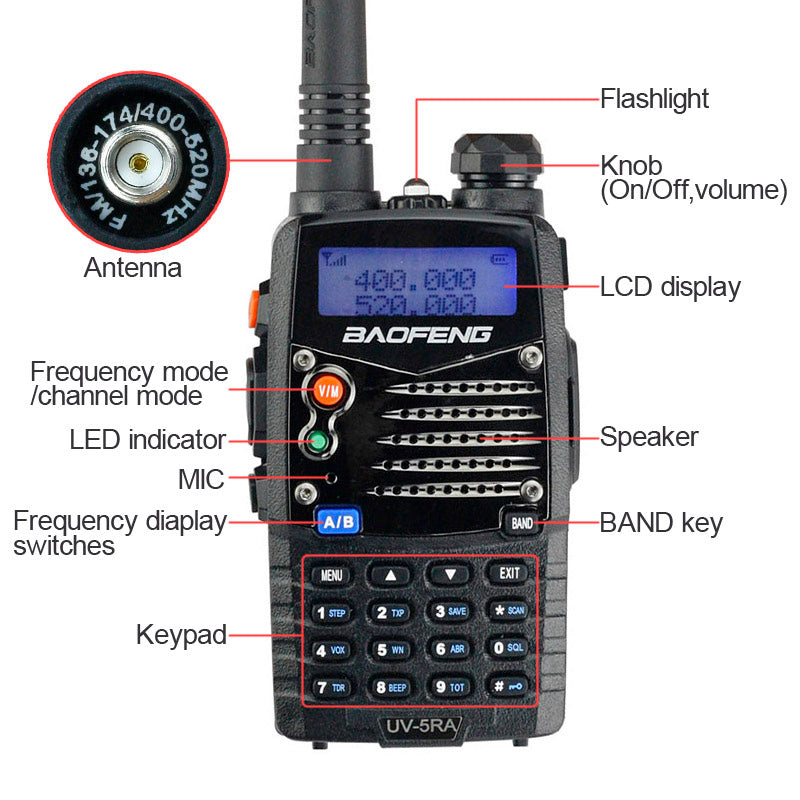

7. FM Radio (65.0MHz-108.0MHz)
8. LED Flashlight
9. Large LCD Display
10. High /Low RF Power Switchable
11. 25KHz/12.5KHz Switchable
12. Emergency Alert
13. Low Battery Alert
14. Battery Saver
15. Time-out Timer
16. Keypad Lock
17. Monitor Channel
18. Channel Step: 2.5/5/6.25/10/12.5/25KHz
|Frequency Range||65-108MHz (FM Receive only)
136-174 MHz and 400-479.995 MHz (TX/RX)
|Antenna||High gain Dual-Band Antenna|
|Operating Voltage||DC 7.4V|
|Mode of operation||Simple or semi-duplex|
|Dimension（W x H x D）||100 x 52 x 32 mm|
|Weight||250g （including battery; antenna）|
|Output power||4W / 1W (Max 5W)|
|Modulation Mode||16kΦF3E / 11kΦF3E|
|Maximum deviation||＜5kHz(Wide) / ＜2.5kHz(Narrow)|
|Adjacent Ch. power||≤-65dB(Wide) / ≤-60dB(Narrow)|
|CTCSS/DCS deviation||0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)|

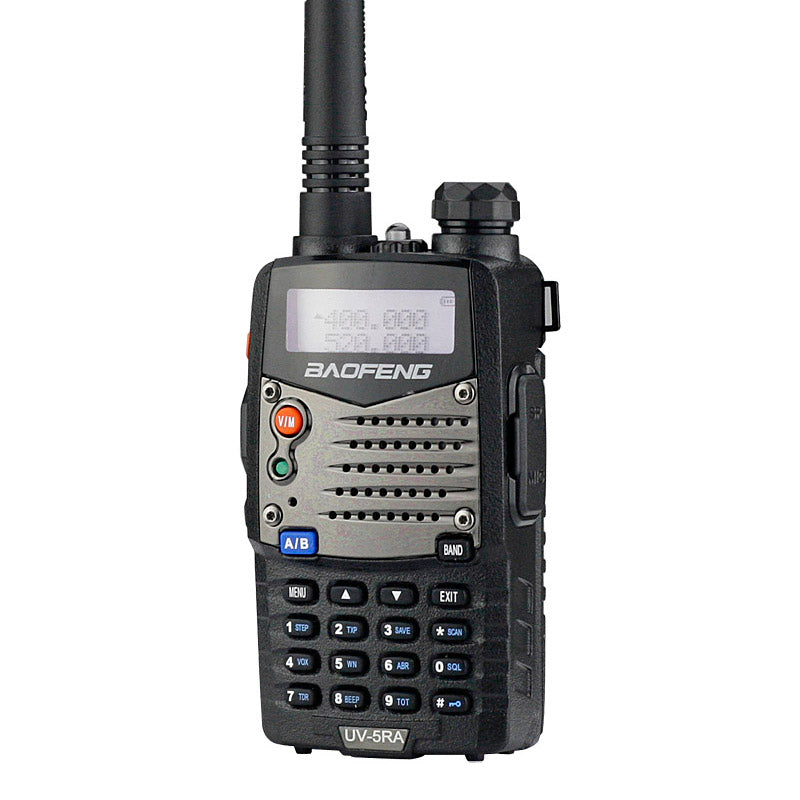

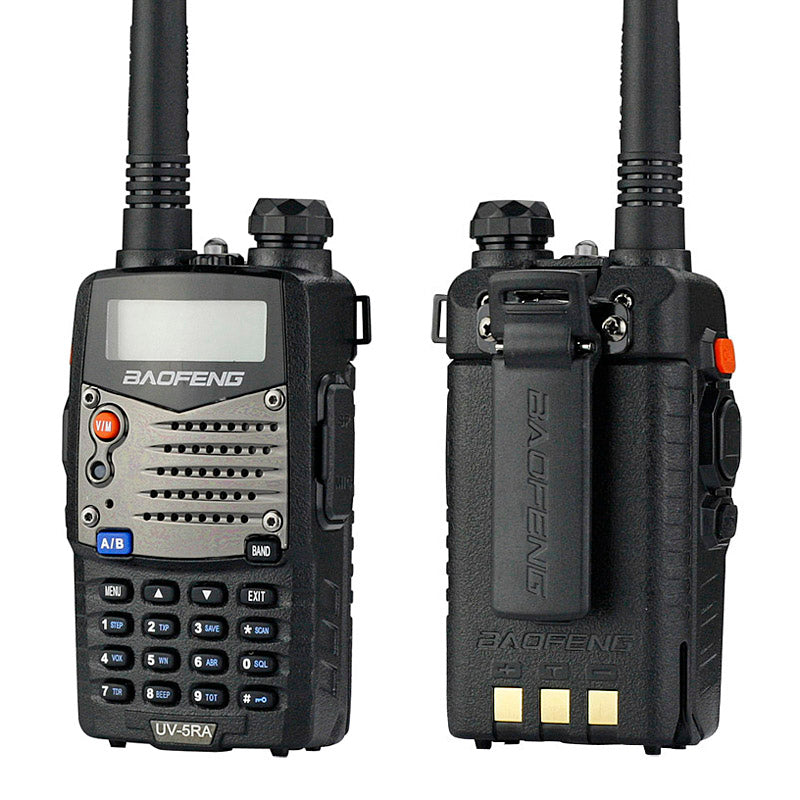

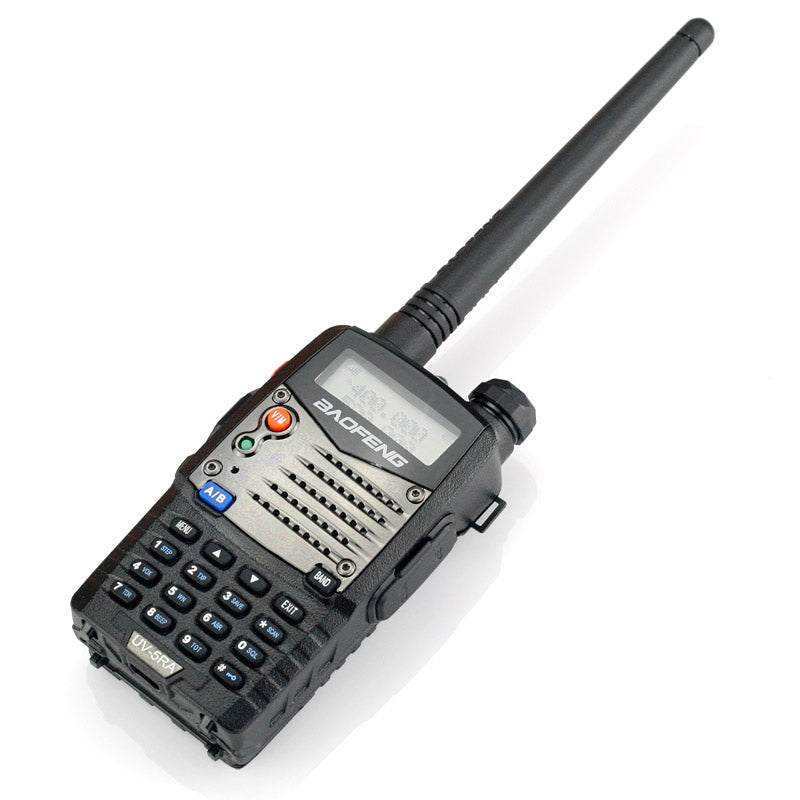

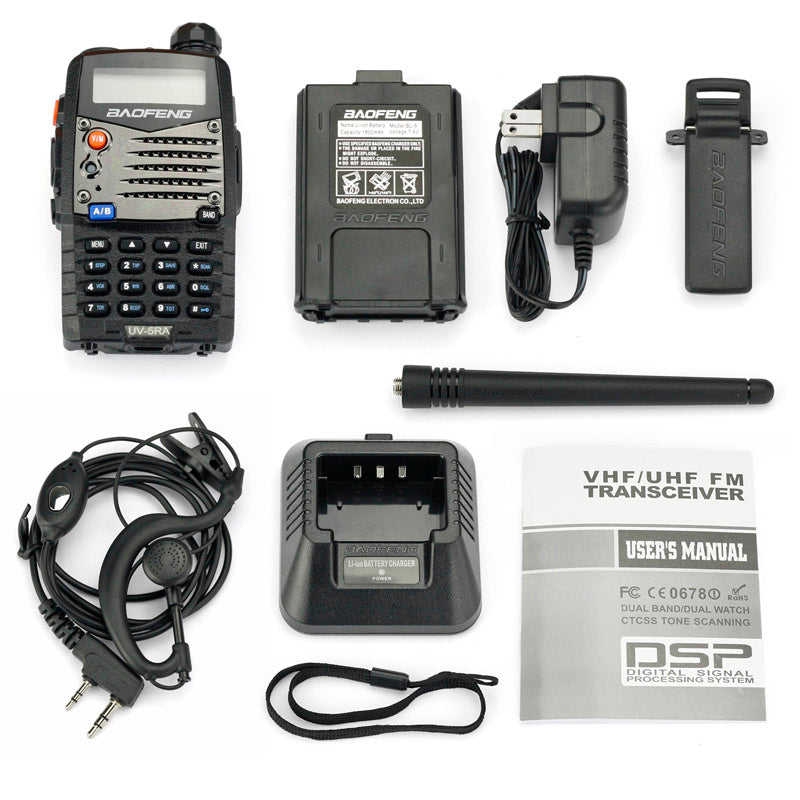

5 x BaoFeng UV-5R A (VHF136-174MHz / UHF 400-479.995MHz) Two-Way Radio

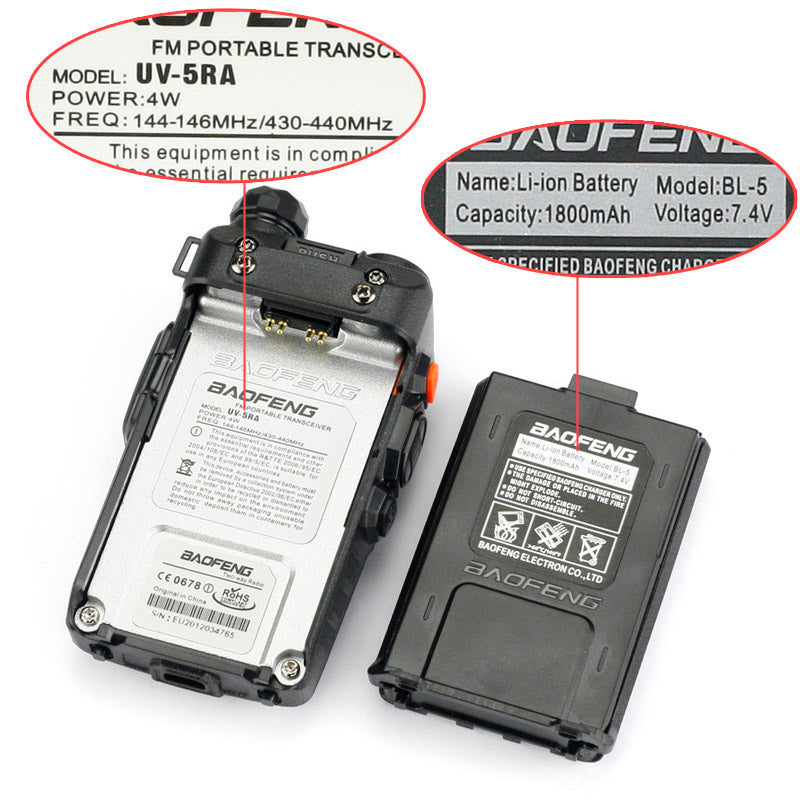

5 x 7.4V 1800mAh Li-ion Battery Pack
5 x Antenna 136-174/400-479.995Mhz
5 x Earphone Mic/Headset
5 x Belt Clip
5 x Hand Strap
5 x ENG Manual
5 x adapter

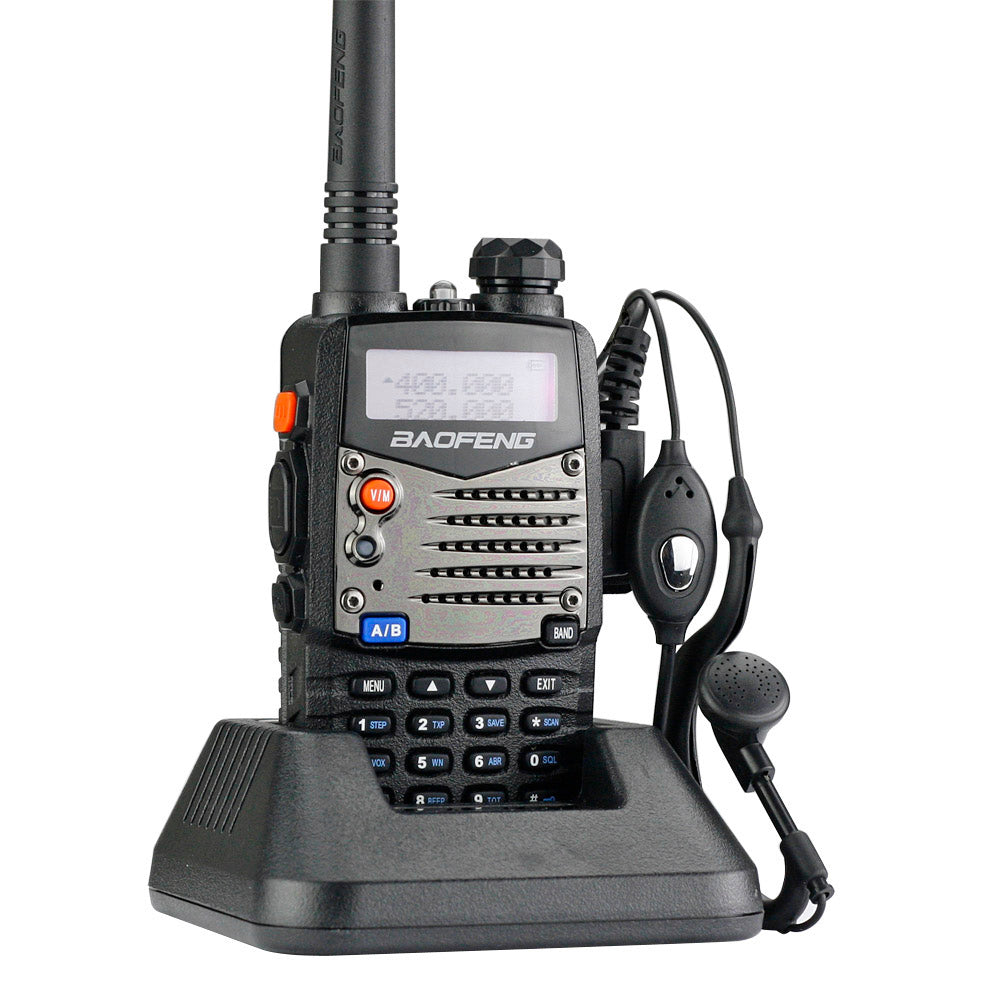

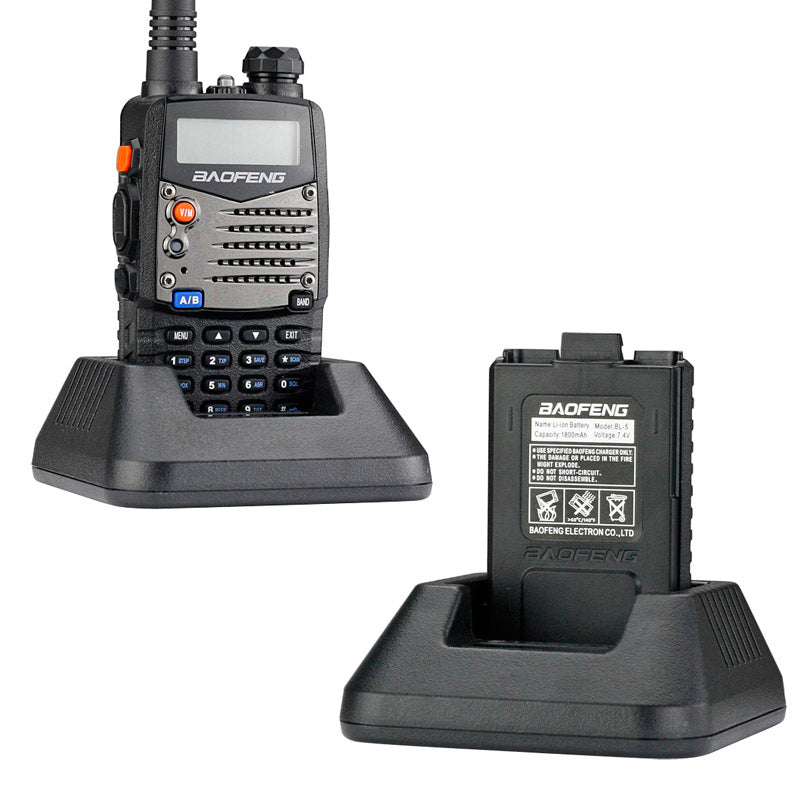

5 x Desktop Charger ( 100V ~ 240V )
1 x Programming Cable
1 Year and 6 months Manufacturer's Warranty.
