▸ FCC ID: 2AJGM-UV5R

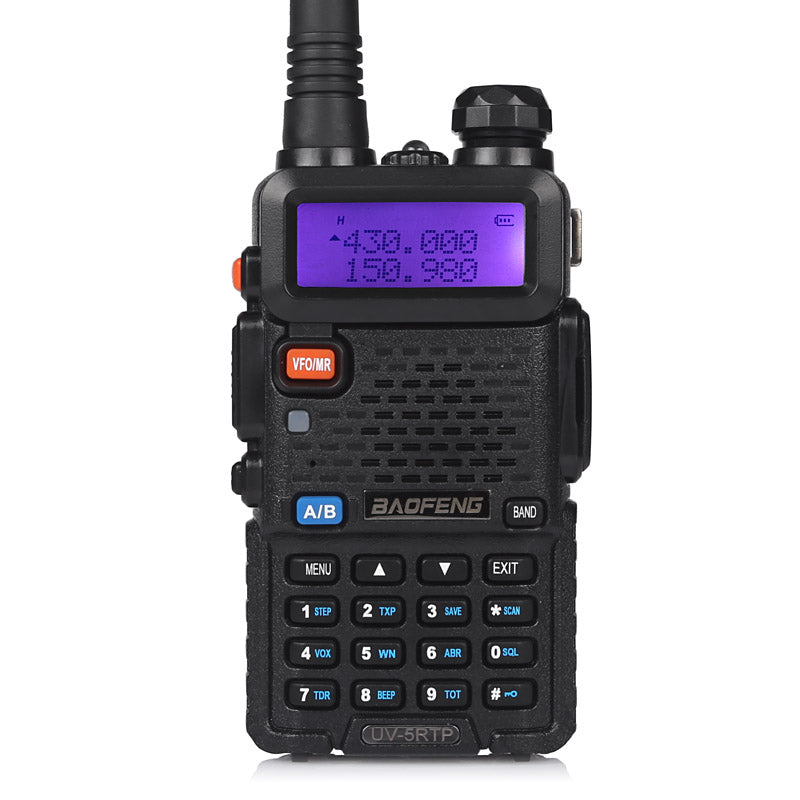

▸ UV-5RTP is Upgraded version of UV-5R with Tri-Power: High / Med / Low Power Settings (8W / 4W / 1W). Frequecy Range: 65-108 Mhz (Only commercial FM radio reception), VHF: 136-174 Mhz (Rx/Tx), UHF: 400-520 Mhz (Rx/Tx).
▸ Optimal Modulation of TX/RX Power transistor, True 8W Output Power, Longer Effective Talking Range.
▸ Upgrade the frame material. Metallic, more durable and more fashionable. With full high two colors LCD definition display, the screen exquisite clarity.
▸ 3 key BFB upgrade to BFB 301.
▸ NOTE: The frequncy of the UV-5RTP radio has been set as 140-150/430-440MHz when it manufactured. In order to use the 136-174/400-520MHz, you need to do the factory reset. Press the Menu button, type '40', and then the radio will be reset. Then, please use the the Baofeng official software (Not CHIRP) for programming. It has the page under "other" simply checking the box that says "allow more than 480MHz transmit", and changing the frequency range from 400-520MHz, then click write to radio.
The transcevier is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.
1. Frequency Range: 136-174 / 400-520 MHz
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 8/ 4 /1Watts Triple Power
4. 128 Channels 50 CTCSS and 104 DCS
5. Built-in VOX Function
6. 1750Hz Brust Tone
7. FM Radio (65.0MHz-108.0MHz)
8. LED Flashlight
9. Large LCD Display

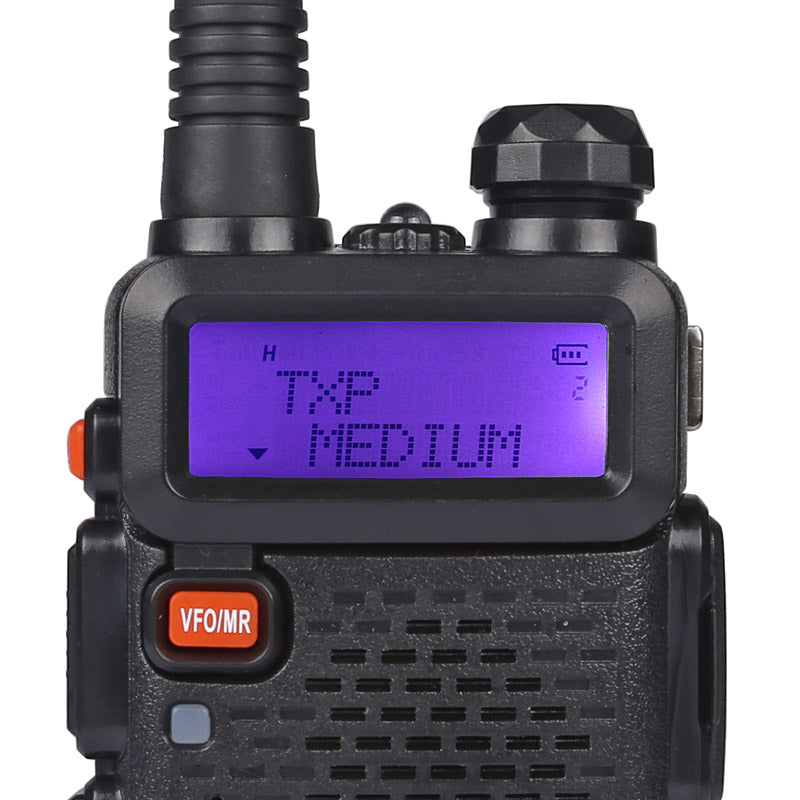

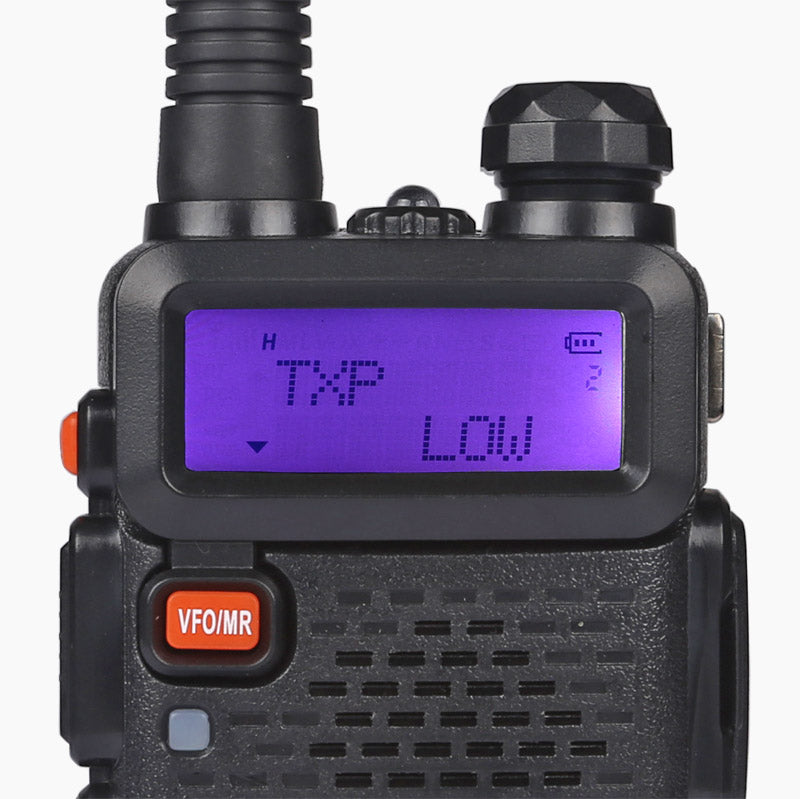

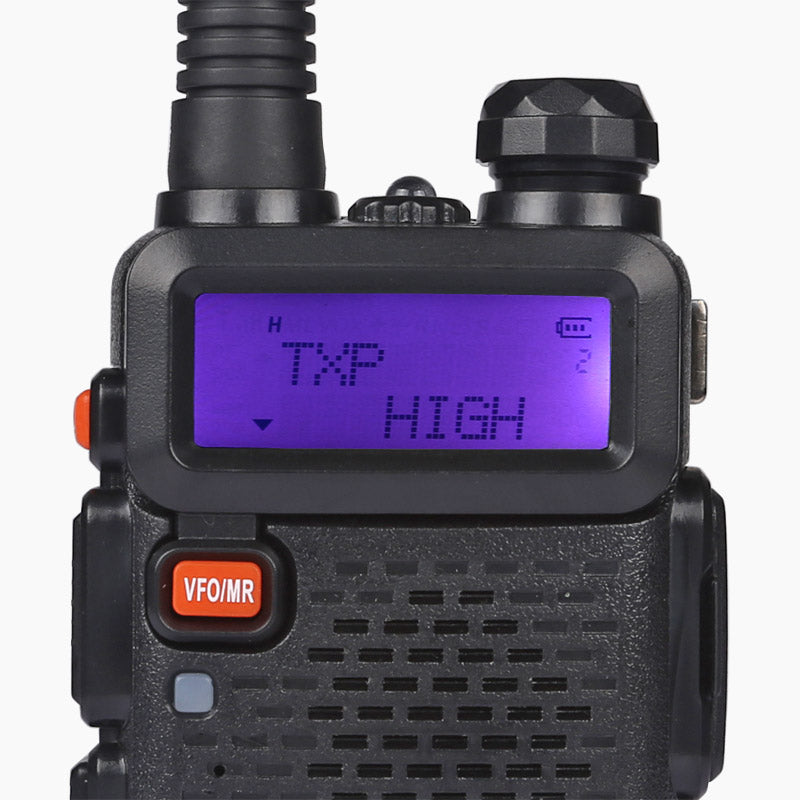

10. Hight / Med / Low RF Power Switchable
11. 25KHz/12.5KHz Switchable
12. Emergency Alert
13. Low Battery Alert
14. Battery Saver
15. Time-out Timer
16. Keypad Lock
17. Monitor Channel
18. Channel Step: 2.5/5/6.25/10/12.5/25KHz
19. ROGER SET
Frequency Range: 65-108MHz (FM Receive only); 136-174 MHz and 400-520 MHz (TX/RX)
Channel No.: 128
Frequency Stability: ±2.5ppm
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Output power: 8W / 4W / 1W (Max 8W)
Dimension（W x H x D）: 100 x 52 x 32 mm
Weight: 250g （including battery, antenna）

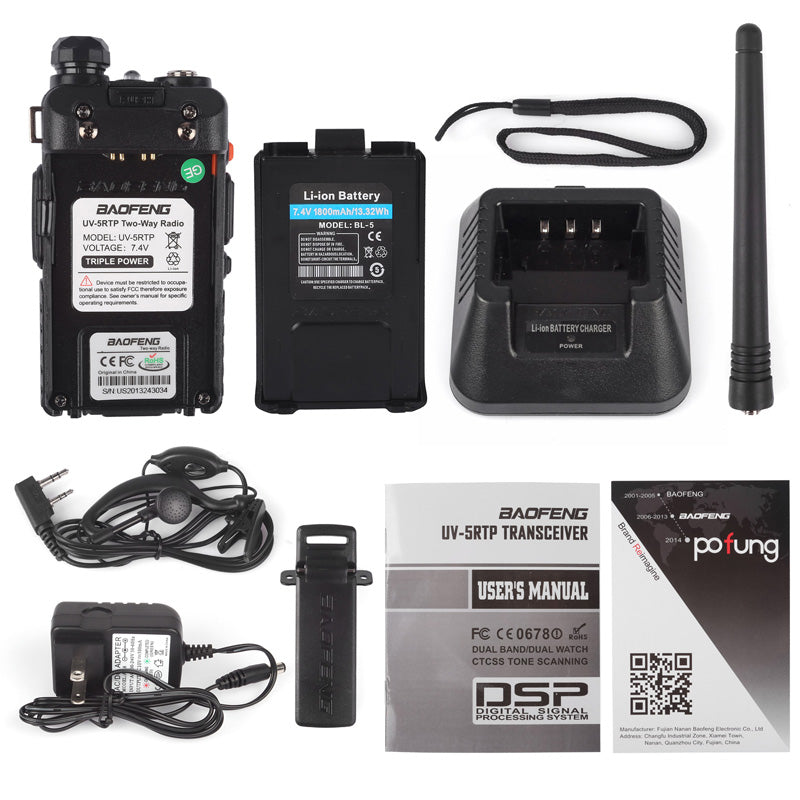

1 x Baofeng UV-5RTP Two Way Radio

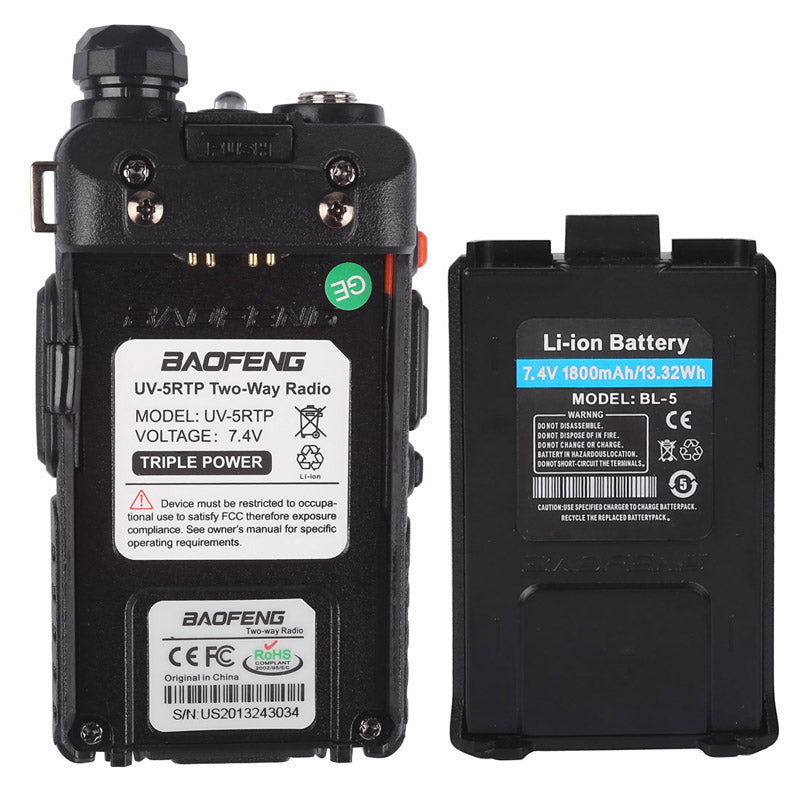

1 x 7.4V 1800mAh Li-ion Battery Pack
1 x Antenna 136-174/400-479.995Mhz
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x ENG Manual
1 x Adapter
1 x Desktop Charger ( 100V - 240V )

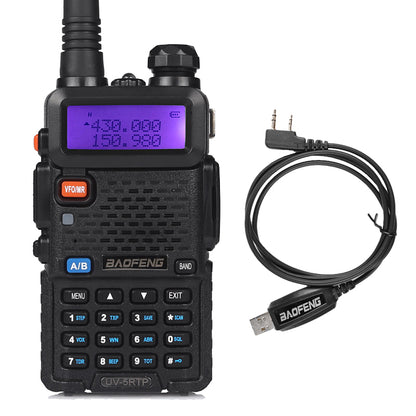

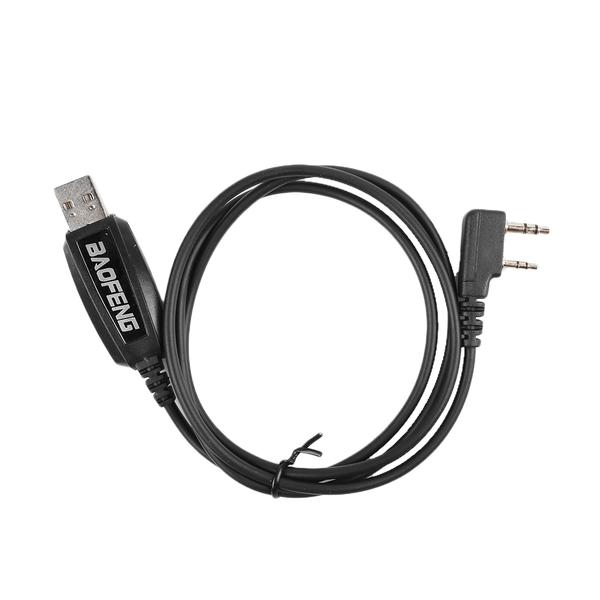

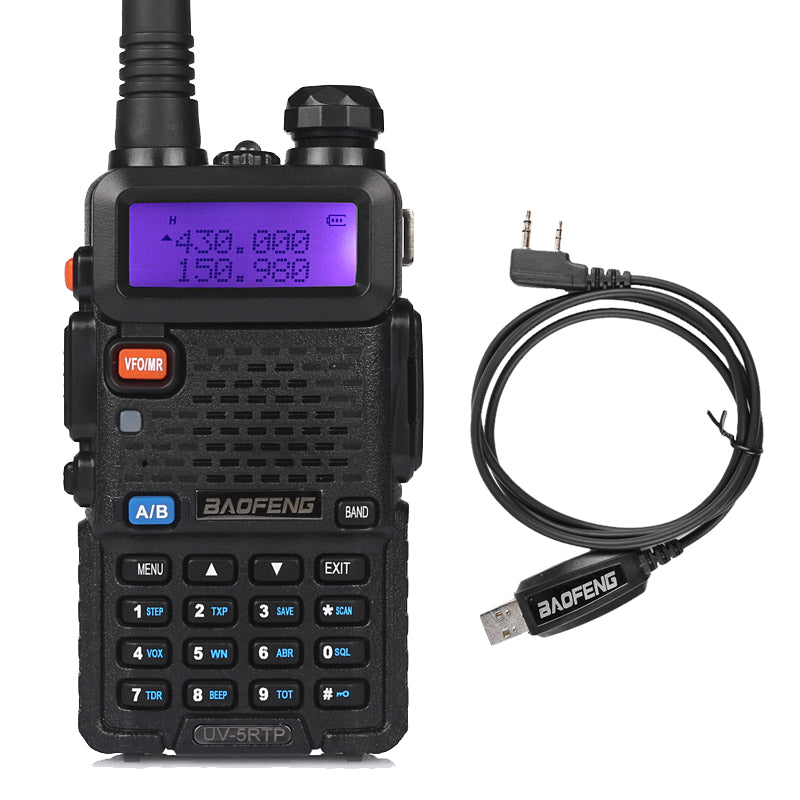

1 x Programming Cable
1 Year and 6 months Manufacturer's Warranty.
