Baofeng UV-6R Dual Band Two-Way Radio

SKU: 28-120-100 In Stock
  • Regular price $43.99
  • $34.99


  • Three Background Colors to Choose
  • More Humanized Design on the Keyboard Button
  • Frequency Range: 136-174 / 400-480MHz; 25KHz/12.5KHz Switchable
  • 128 Channels 50 CTCSS and 104 CDCSS; Channel Step: 2.5/5/6.25/10/12.5/25KHz
  • Dual-Band Display, Dual Frequency Display, Dual-Standby; A/B band independent operation

Functions:
Frequency Range: 136-174 / 400-519.995 MHz
Dual-Band Display, Dual Freq. Display, Dual-Standby
Different LED Background colors
Output Power: 5 /1Watts
128 Channels 50 CTCSS and 104 DCS
Built-in VOX Function
1750Hz Brust Tone
FM Radio (65.0MHz-108.0MHz)

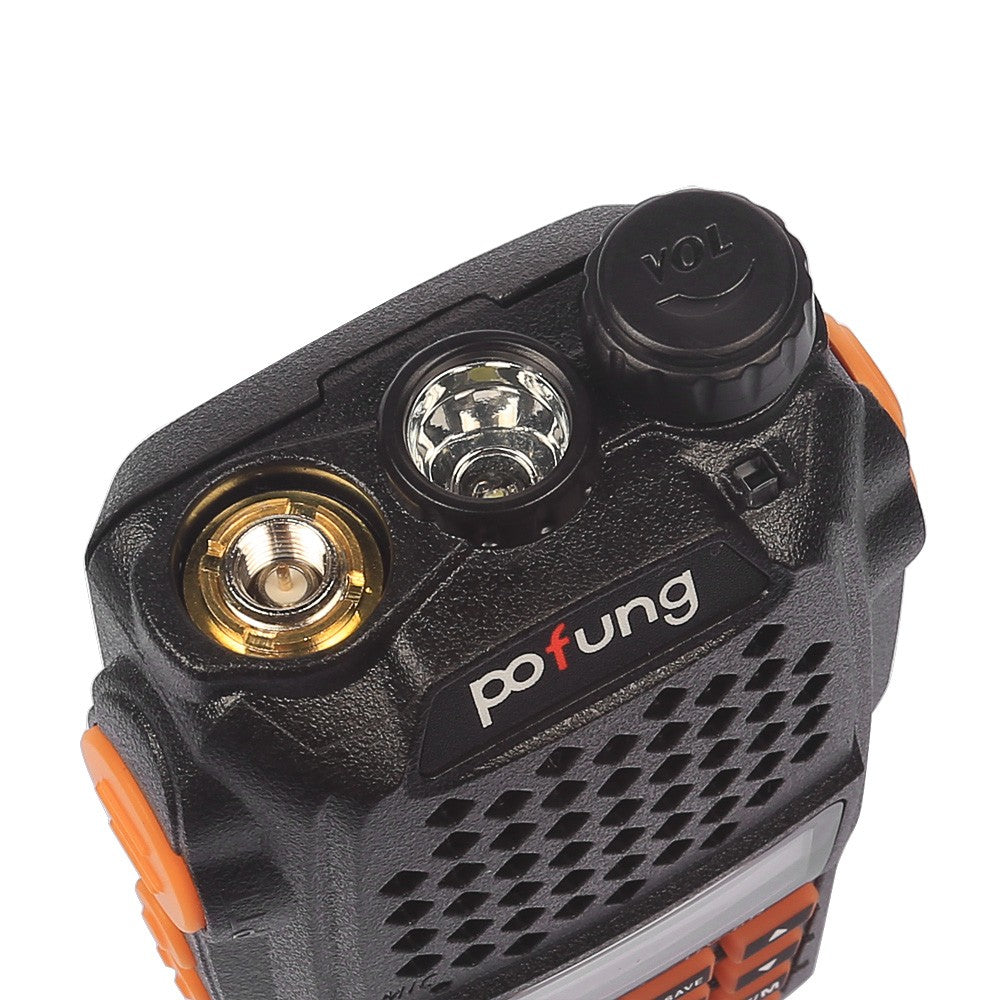

LED Flashlight
Large LCD Display
Hight /Low RF Power Switchable
25KHz/12.5KHz Switchable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Auto Lock
Monitor Channel
Channel Step: 2.5/5/6.25/10/12.5/25KHz

Specification:
Frequency Range: 65-108MHz (FM Receive only); 136-174 MHz and 400-519.995 MHz (TX/RX)
Channel No.: 128
Frequency Stability: ±2.5ppm
Antenna: High gain Dual-Band Antenna
Antenna Impedance: 50Ω
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Dimension(W x H x D): 100 x 52 x 32 mm
Weight: 500g (including battery, antenna)

Transmitter:
Output power: 5W / 1W (Max 5W)
Modulation Mode: 16kΦF3E / 11kΦF3E
Maximum deviation: <5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation: <7μW
Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics: 6dB
Current: ≤1.6A(5W)
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: <10

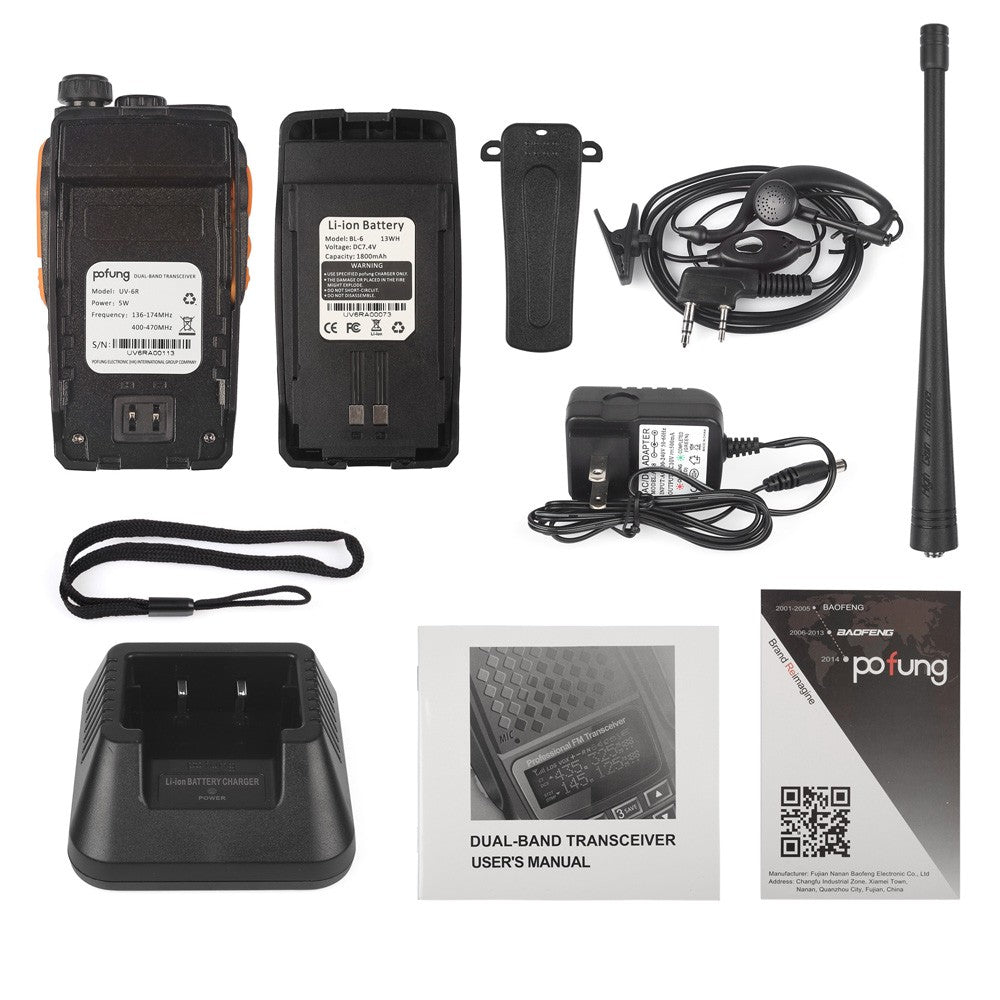

Package Content:
1 x Baofeng UV-6R (VHF136-174MHz / UHF 400-519.995MHz) Ham Radio

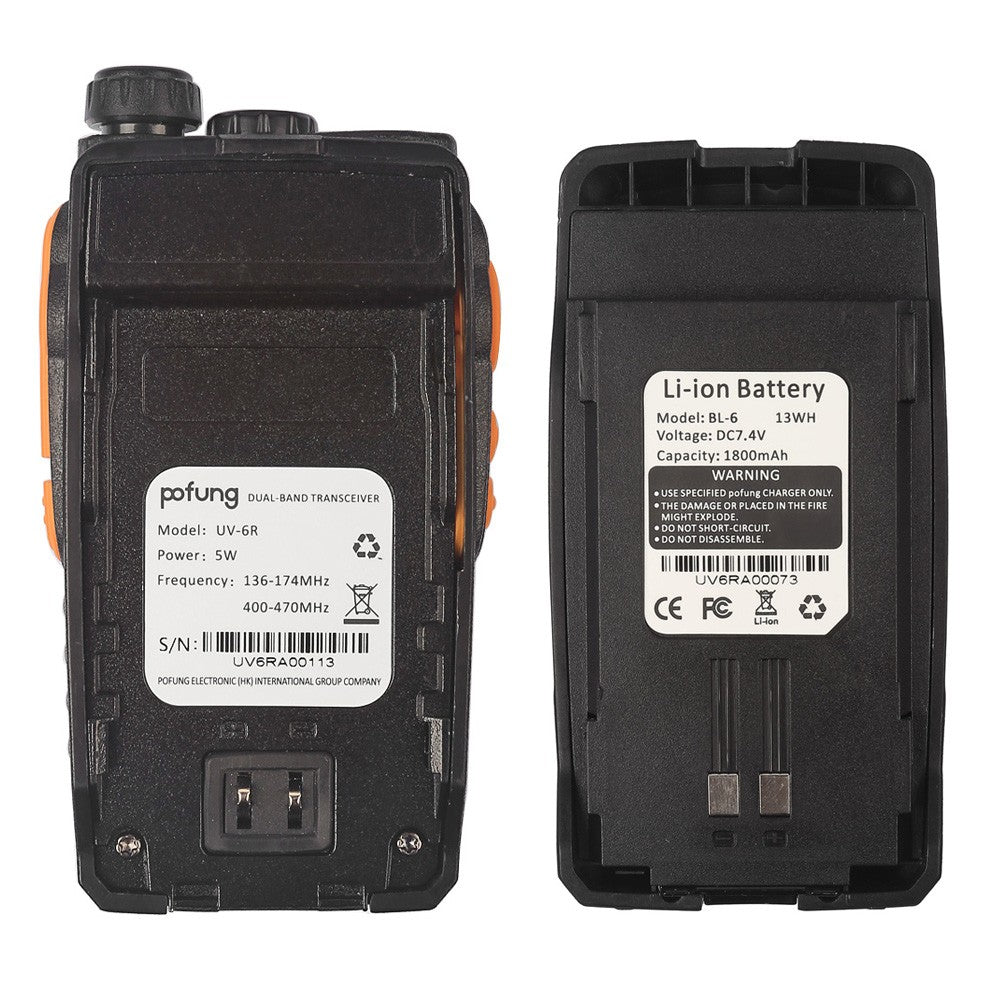

1 x 7.4V 1800mAh Li-ion Battery Pack
1 x Antenna 136-174/400-519.995Mhz
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x ENG / GER / FRA Manual
1 x Desktop Charger ( 100V ~ 240V )
