▸ FCC ID: 2AJGM-UV82

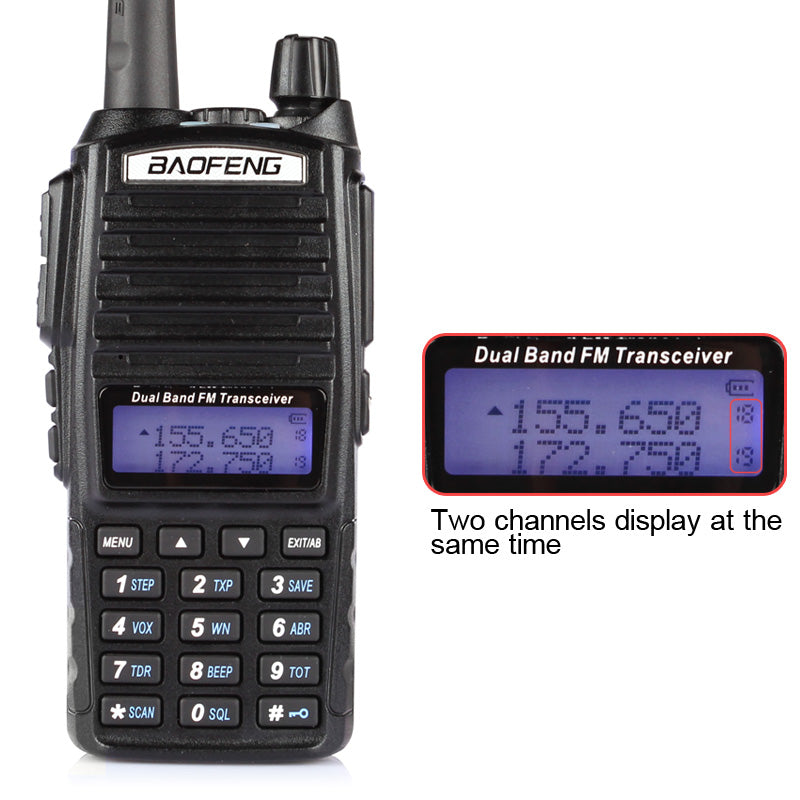

▸ Frequency Range: 136-174 and 400-520MHz, Dual Band, Dual Display, Dual Frequency, Dual Standby
▸ A/B band independent operation, 128 groups channels storage, Shortcut menu operation mode
▸ VFO and Memory channels scan, Emergency Alarm, Tri-color background light selectable
▸ 0~9 grades VOX selectable, PTT and ANI ID, FM radio and 25 stations storage, 1750Hz Brust, Time-out Timer.If you have any questions,please feel free to contact us!
▸ Channel Monitor, Battery Saver, Keypad Lock, Channel Step: 2.5/5/6.25/10/12.5/25KHz, Low Battery Alert, ROGER SET, Emergency Alert.

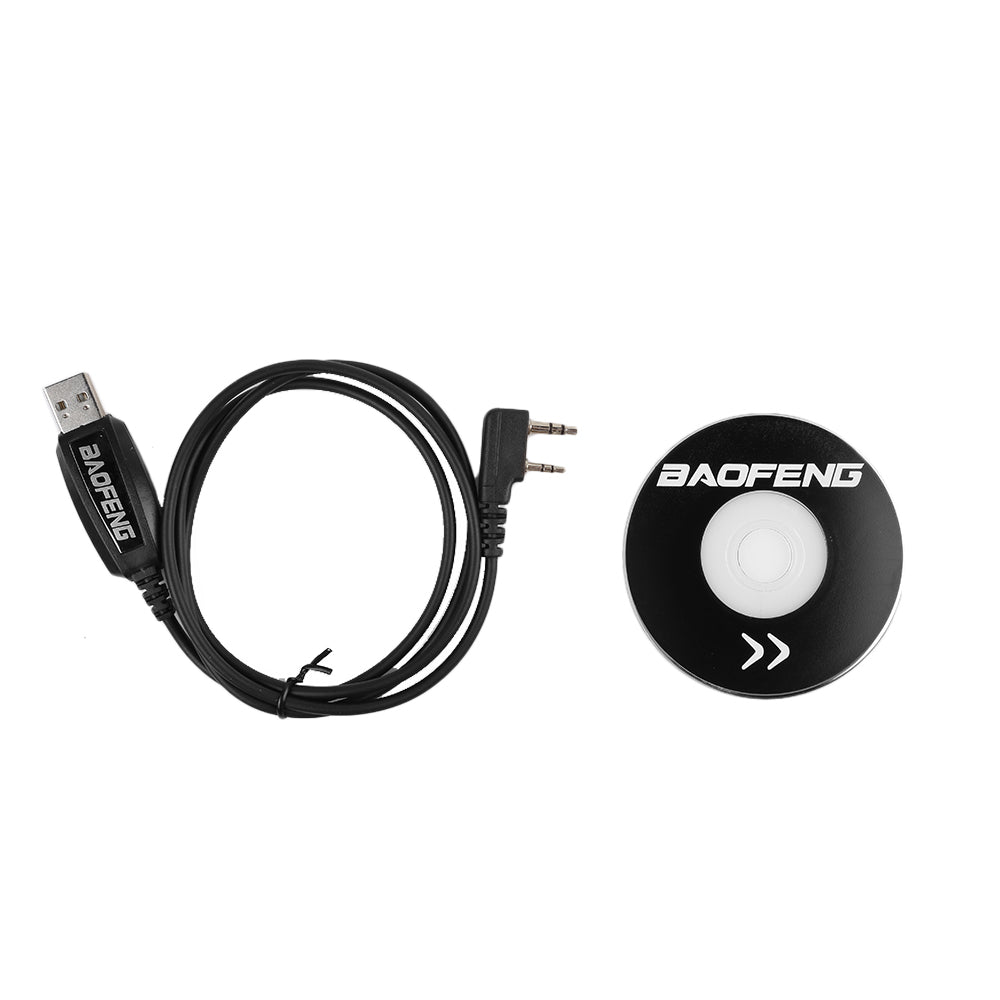

Please note that we have already upgraded the software. If the software and driver in the CD does not work properly, please download the newest version: http://s3.amazonaws.com/UV-82L/UV82L-DRIVER%2BSOFTWARE.zip

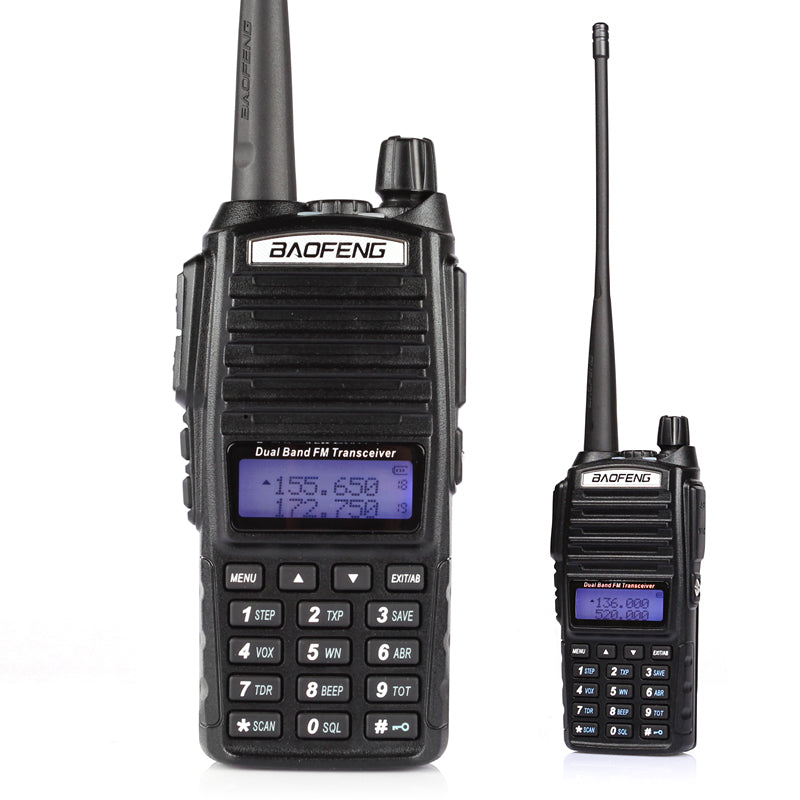

This radio has upped the bar on ham radio technology! Compared to previous Baofeng products (UV-5R and the UV-B Series) this radio comes with a much louder speaker (1 watt!), a more solid design, larger buttons, and a better antenna. This radio can be programmed with or without a PC to also work on private repeater systems. (Save thousands compared to a Motorola / Kenwood setup).
FM Radio (65.0MHz-108.0MHz).

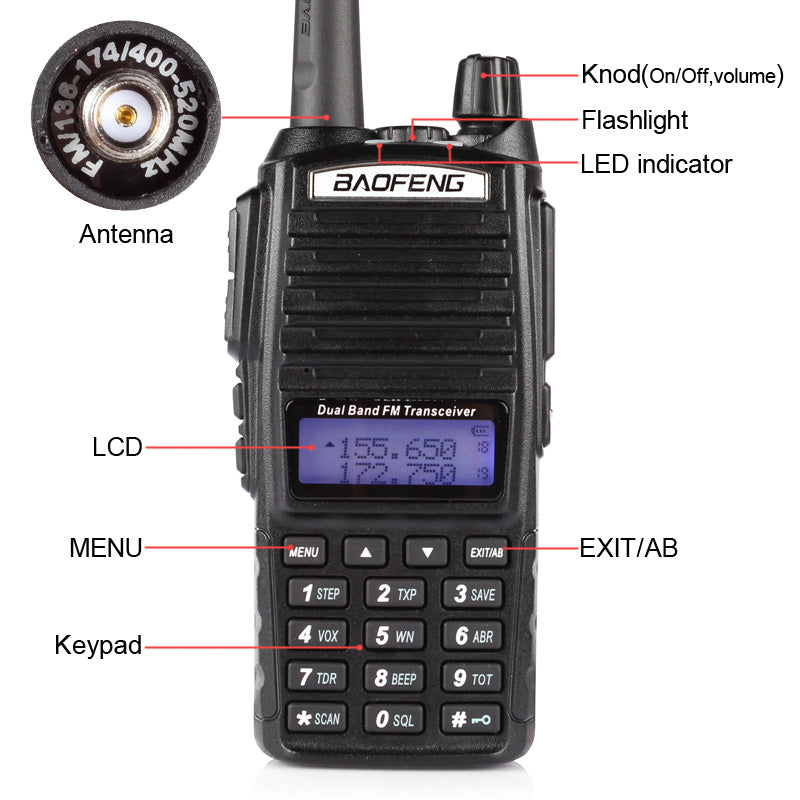

Large LCD Display. LED Flashlight.
High /Low RF Power Switchable
50 CTCSS/ 104DCS coder and tone searching - dual standby.
Wide/Narrow Band (25kHz/12.5kHz).
Transmitter time-out timer (TOT).
High/Low TX power selectable.
Busy channel lock-out (BCLO).
General Frequency Range: 65-108MHz (FM Receive only), 136-174MHZ and 400-520MHZ (TX/RX).
Channel Memories: 128.
Frequency Stability: ±2.5ppm.
Antenna: High gain DualBand antenna.
Antenna Impedance: 50Ω.
Operating Voltage: DC 7.4V.
Mode of operation : Simple or semi-duplex.

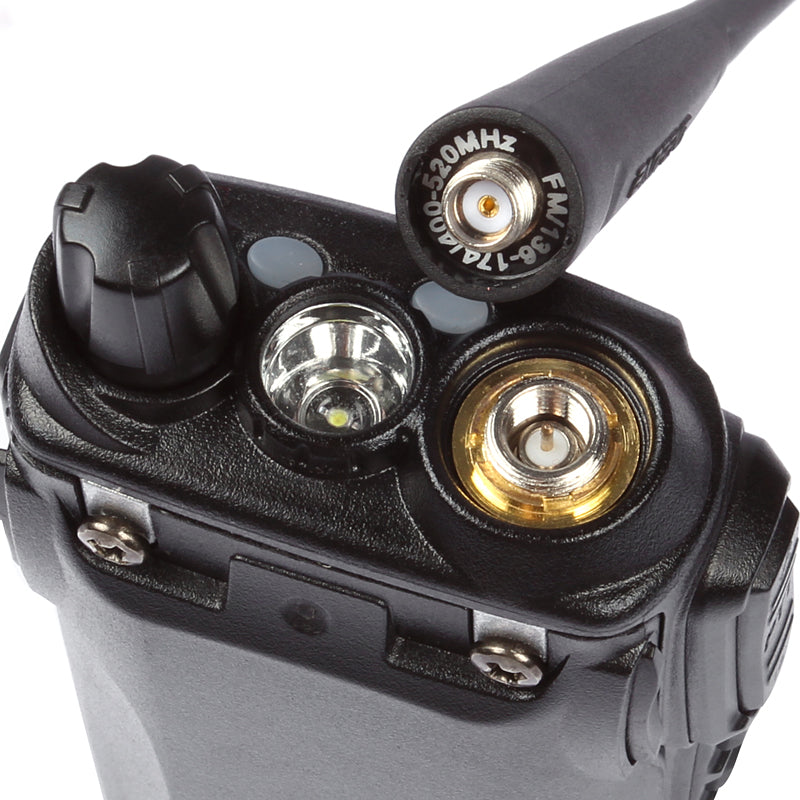

Antenna: SMA -Female.

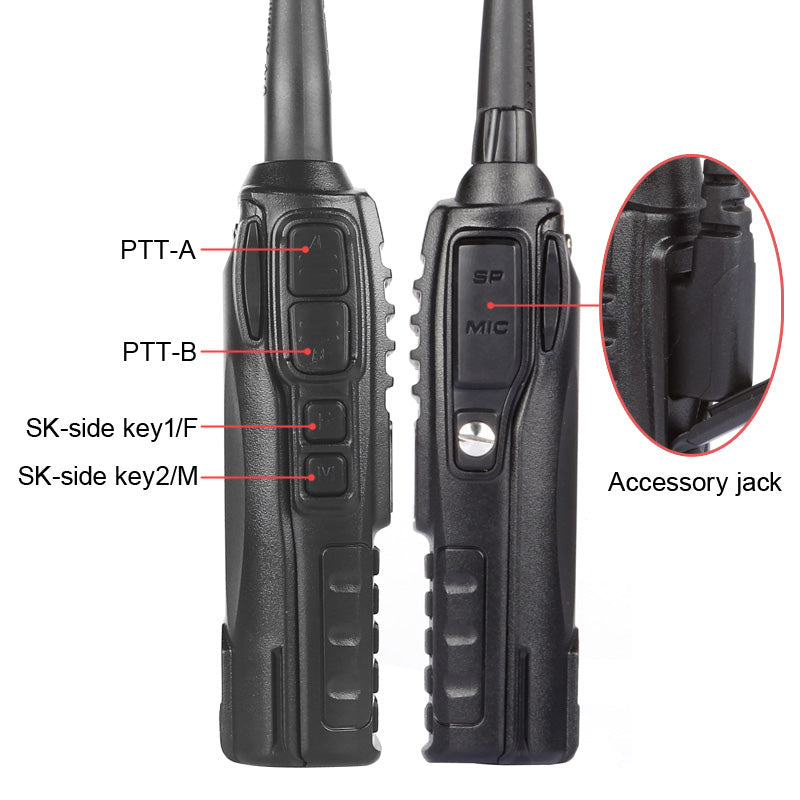

Earpiece / mic type: Kenwood Plug type.
Dimension(W x H x D): 132 x 60 x 35 mm (not included antenna).
Weight: 238g (including battery, antenna).
Power adapter: Input: AC100-240V, 50-60Hz;Output: DC10V/500mA;
Plug Type: US.
Transmitter: Output power: 5W / 1W (Max 5W).
Maximum deviation: 5kHz (Wide) / 2.5kHz (Narrow).

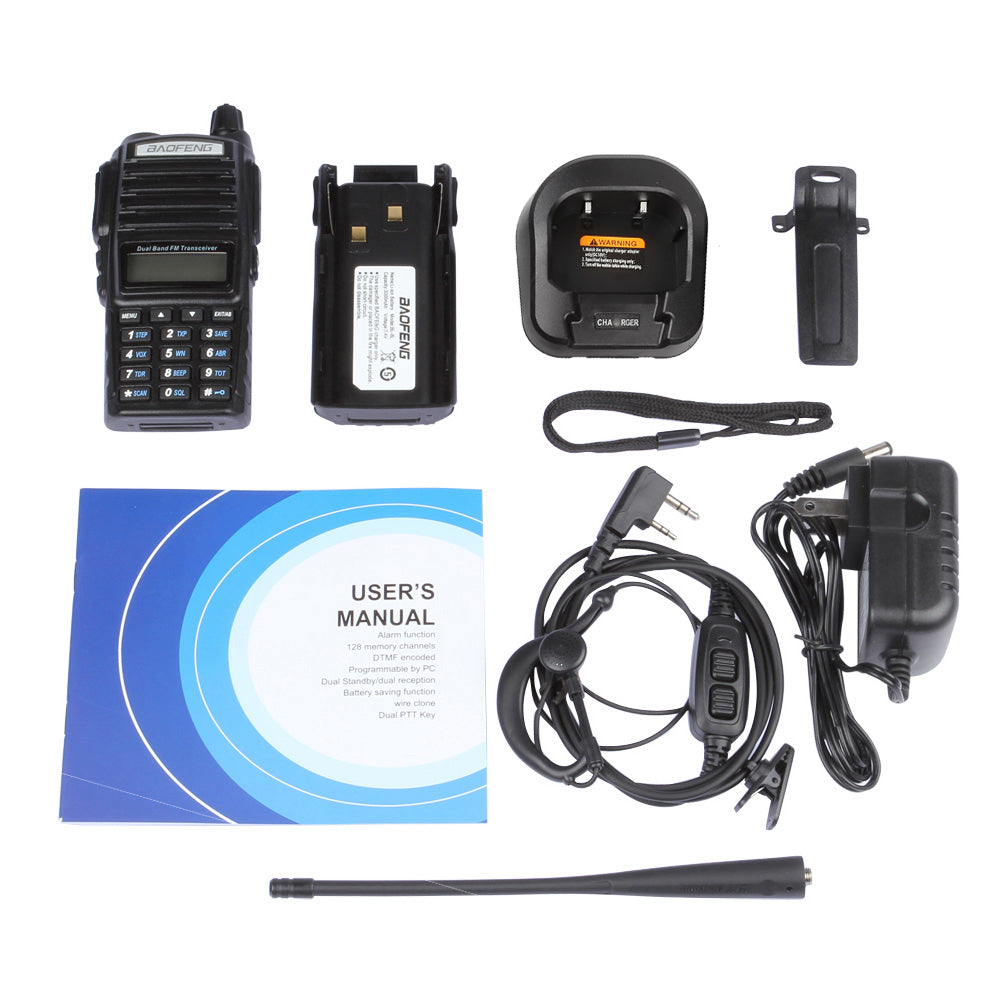

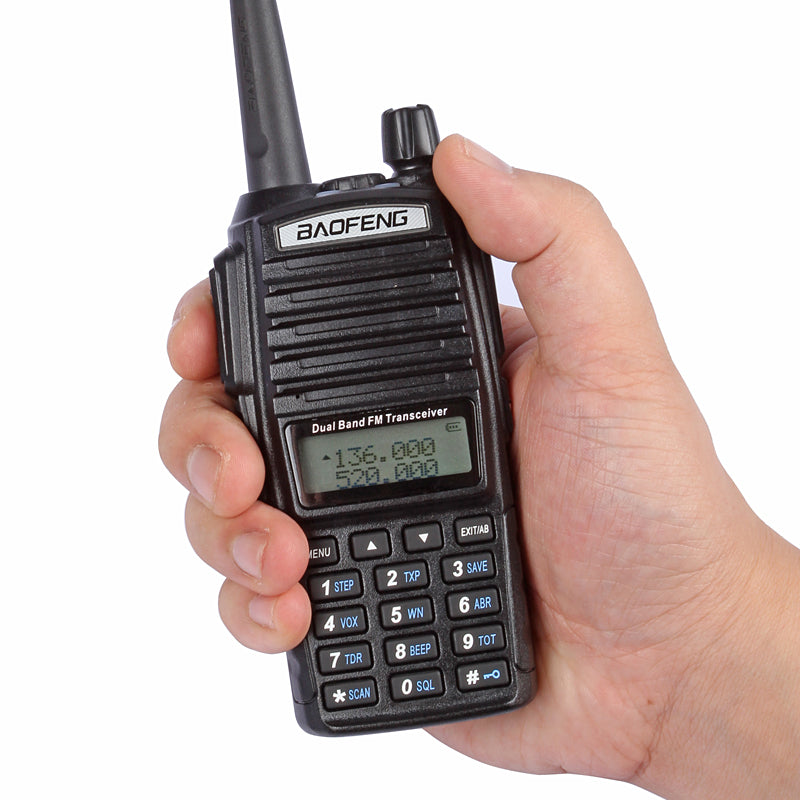

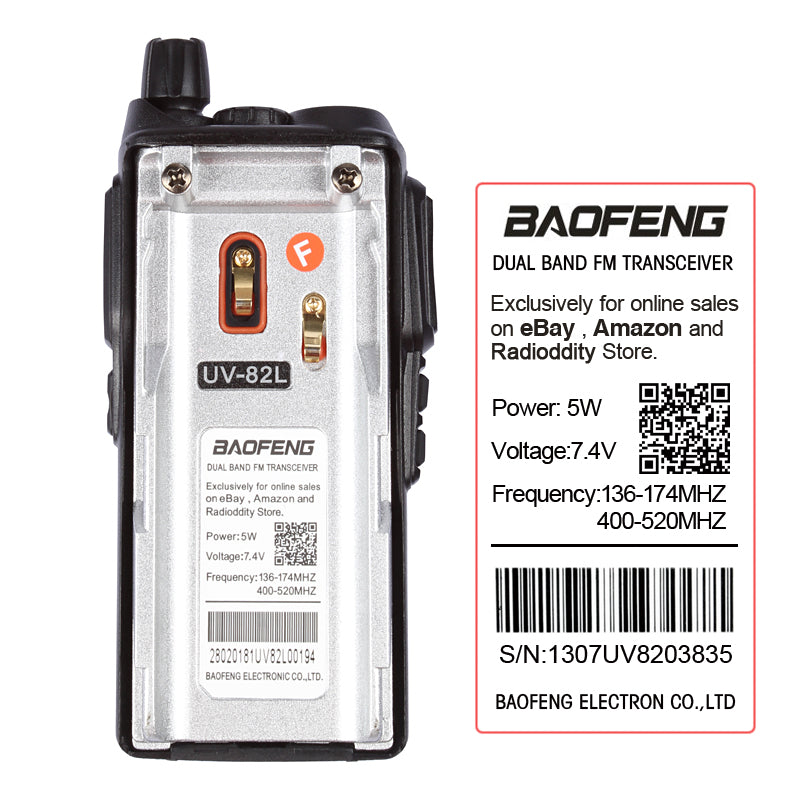

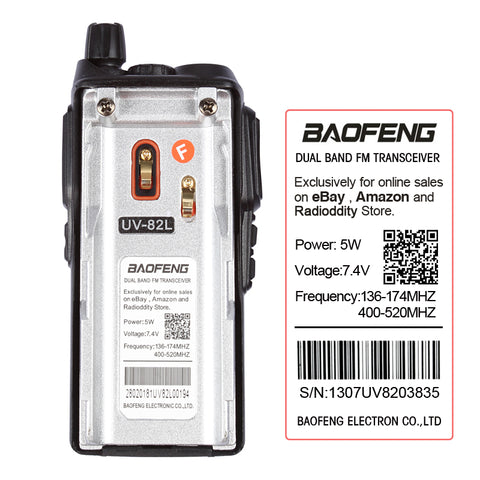

BAOFENG UV-82L Dual Band FM Transceiver.

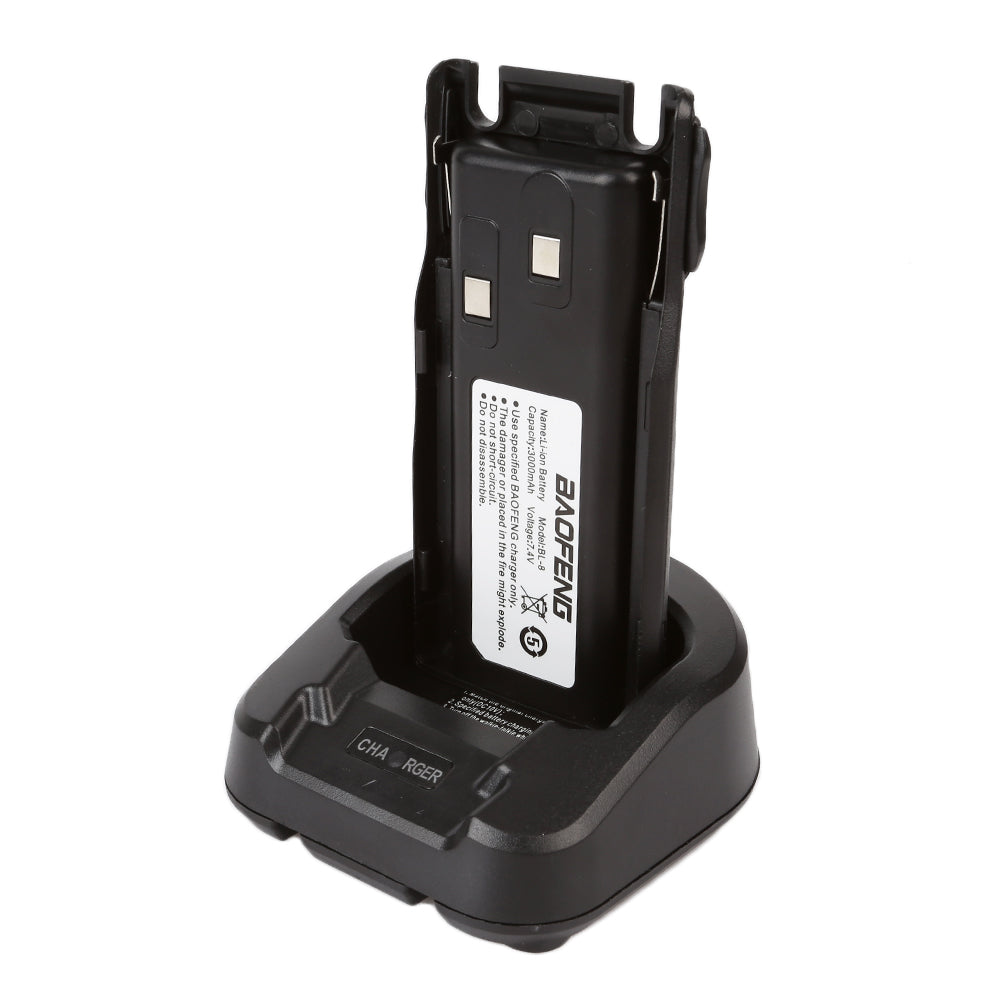

7.4V/1800mAh BL-8 Battery Antenna.
1 Year and 6 months Manufacturer's Warranty.
• Radioddity's limited warranty applies to all BRAND NEW items sold by radioddity.com and other authorized dealers.
• This warranty is non-transferable and proof of purchase from us or an authorized dealer is required for warranty service.
What Does This Limited Warranty Cover?
We warrant that the Products are free from defects in materials and workmanship under normal use and use in accordance with the respective Product user manual, during the Warranty Period. Please refer to the Instructions inside each package for a description of proper use and care of the unit.
What Does This Limited Warranty Not Cover?
This limited warranty does not cover damages directly or indirectly arising or resulting from or during:
(1) accident, misuse, abuse, vandalism or acts of God (including lightning and other weather conditions)
(2) use with another product or other damage or loss suffered by the use or combination of any other item
(3) improper or inadequate maintenance
(4) repairs by an unauthorized service technician
(5) normal wear and tear
