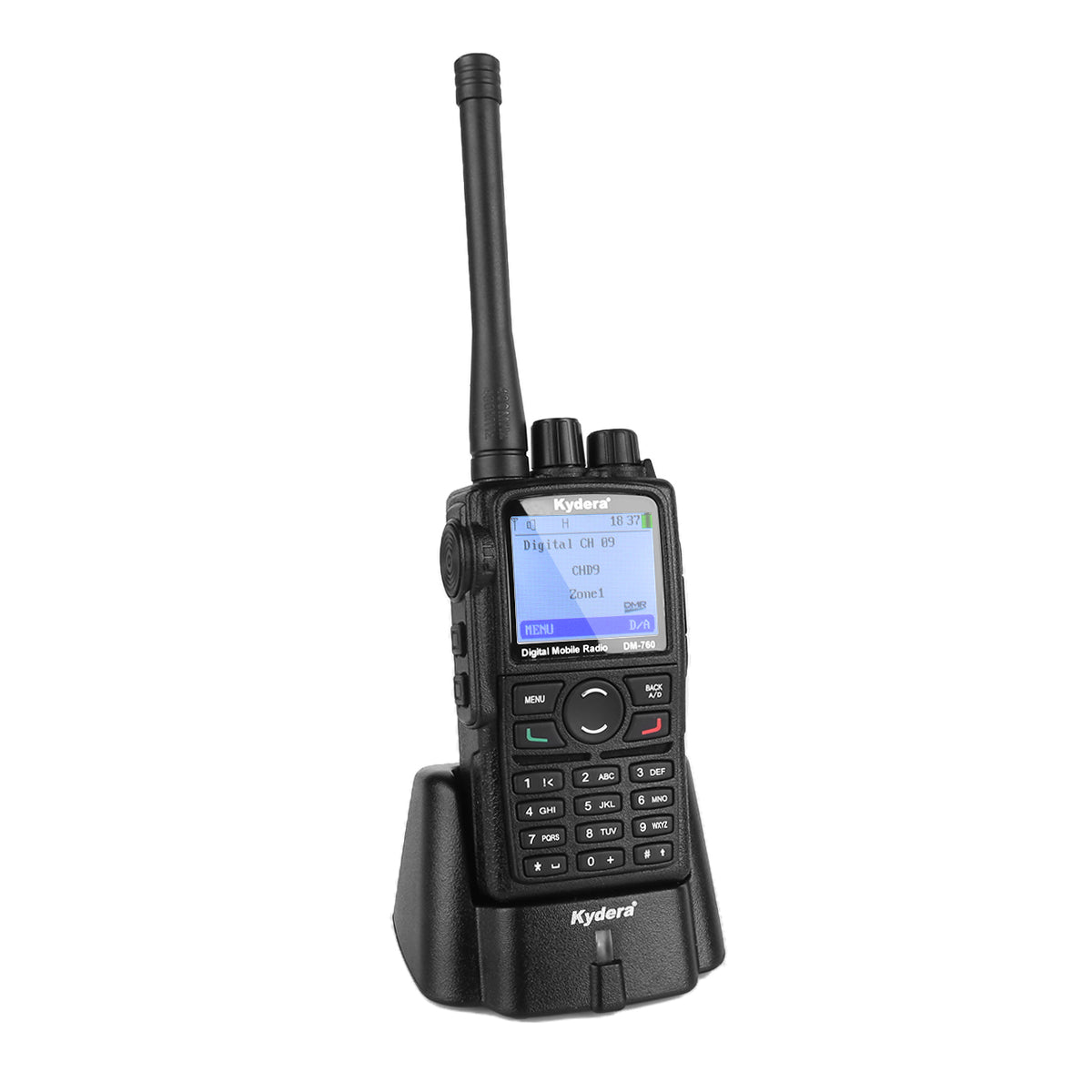

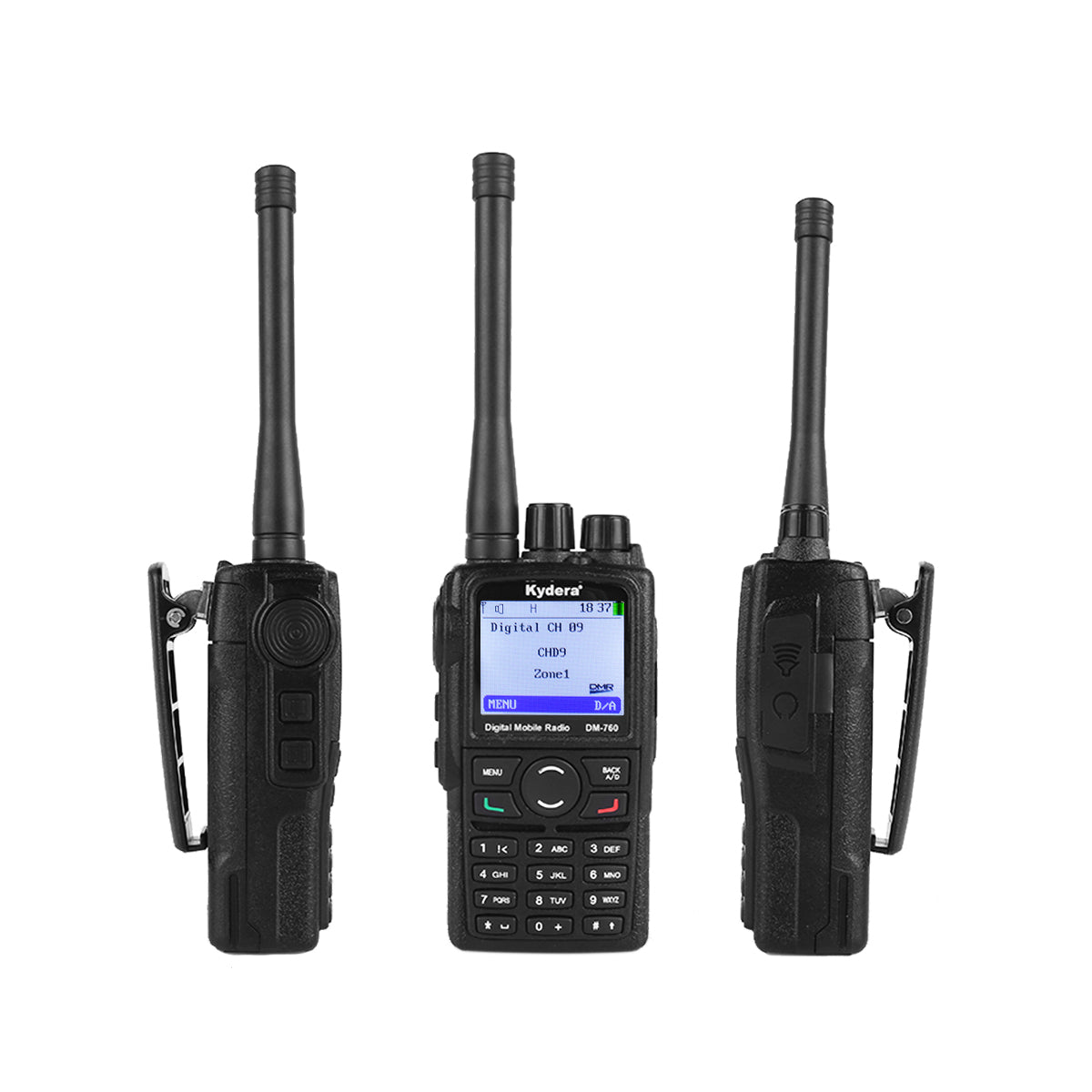

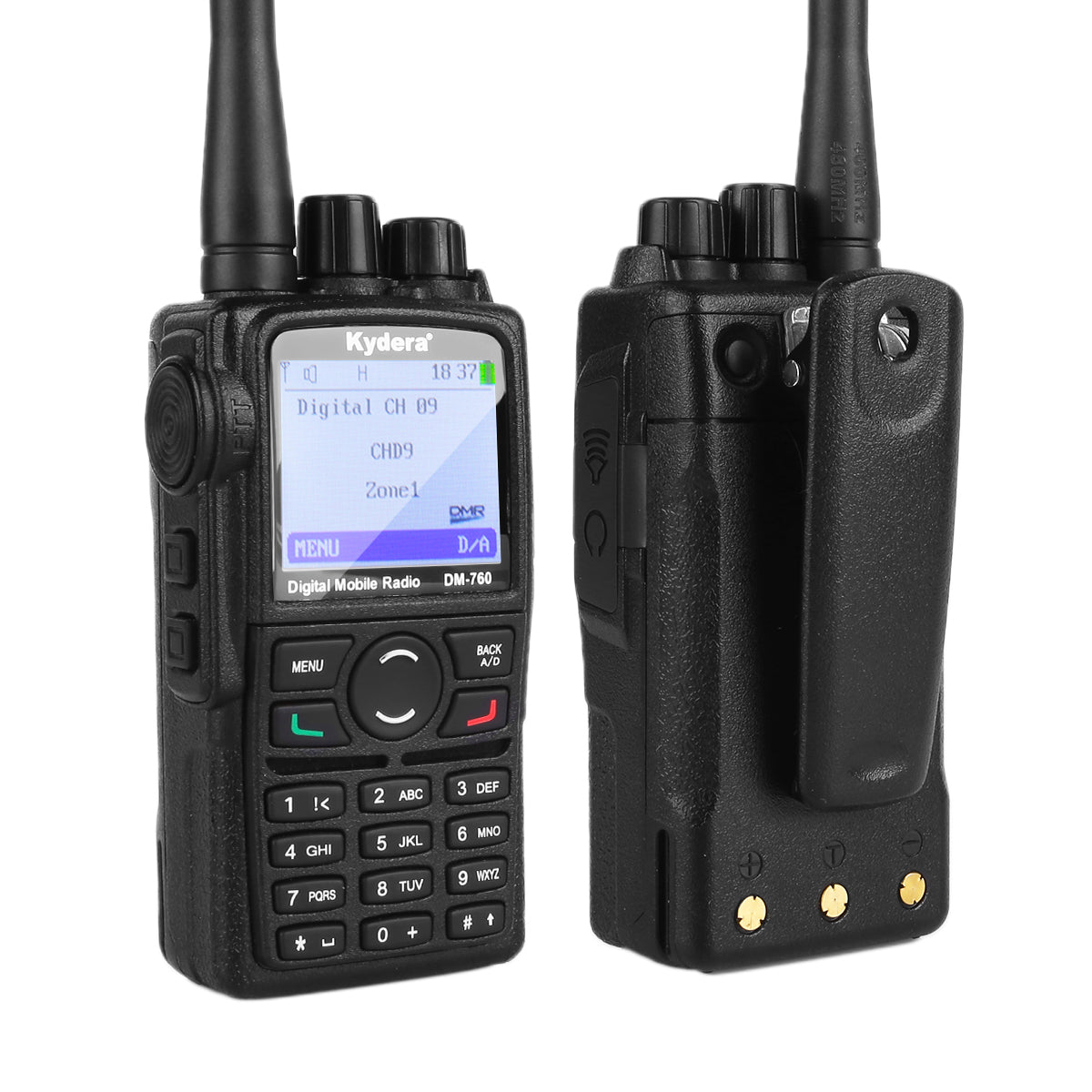

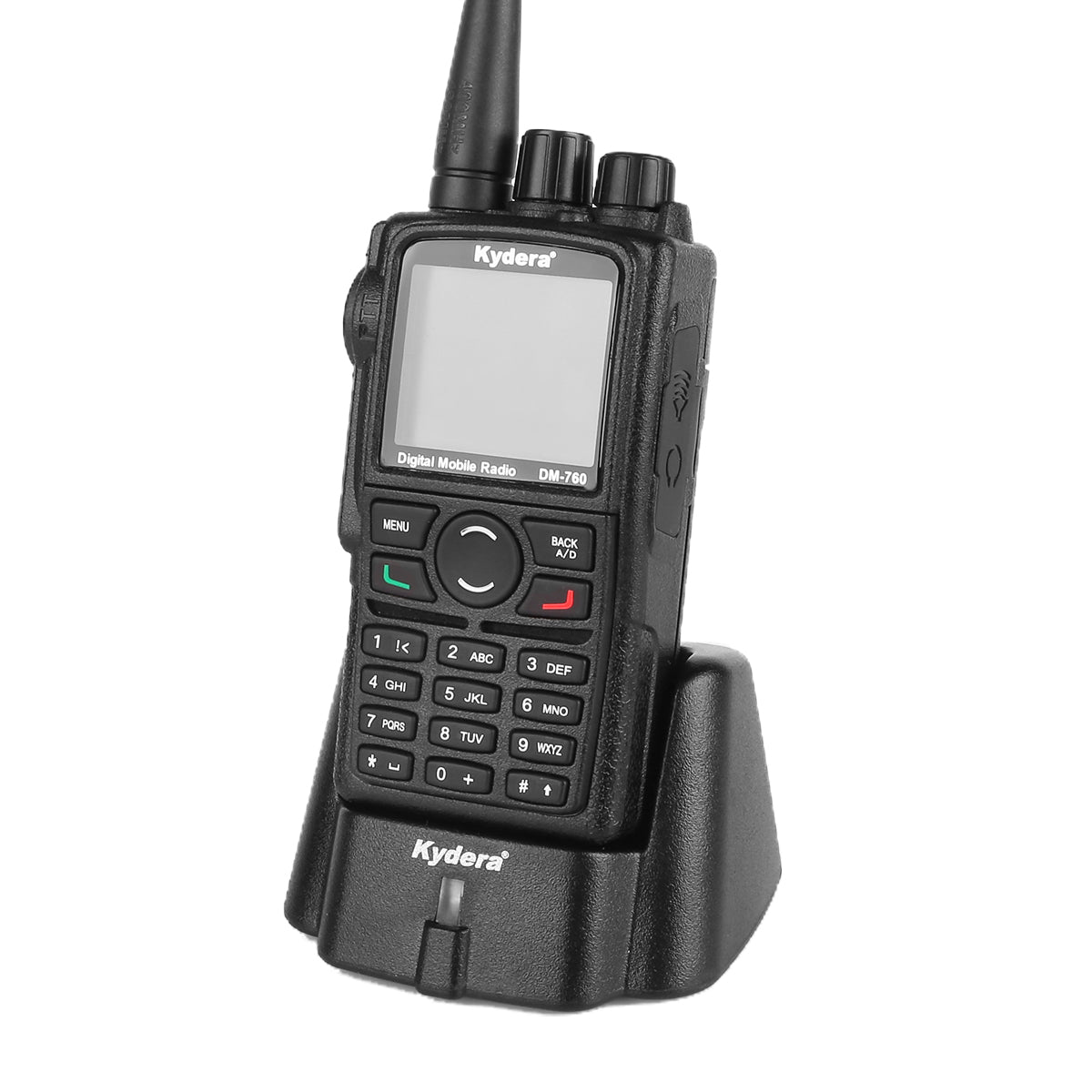

➠ DIGITAL MODE RADIO: Kydera DM-760 is a walkie talkie with two working
modes, digital and analog. As a DMR applying DVIS-AMBE+2 vocoder, with time slot
I & II, it is 100% compatible with Motorola's digital two way radios. DMR
features a clearer vocie and SMS function, also with 16-bit digital voice
encryption, private/group/generall call, remote detection, emergency alarm,
remote kill / revivie, etc. As a analog radio, it is with CTCSS/DCS, narrow/wide
band, 2 tone/5 tone.
➠ UHF & 512 CHANNELS: Kydera DM-760 supprts UHF frequency (400-480MHZ), it's the best option when you intend to use it inside city limits where you are surrounded by a lot of tall buildings and your signals are expected to pass through multiple walls. Besides, you can store 512 personal channel ( 256 for analog & digital respectively) by programming. With scrambler function, other machine can receive your signals, but can not hear clearly what you say (with anti-frequency monitor).

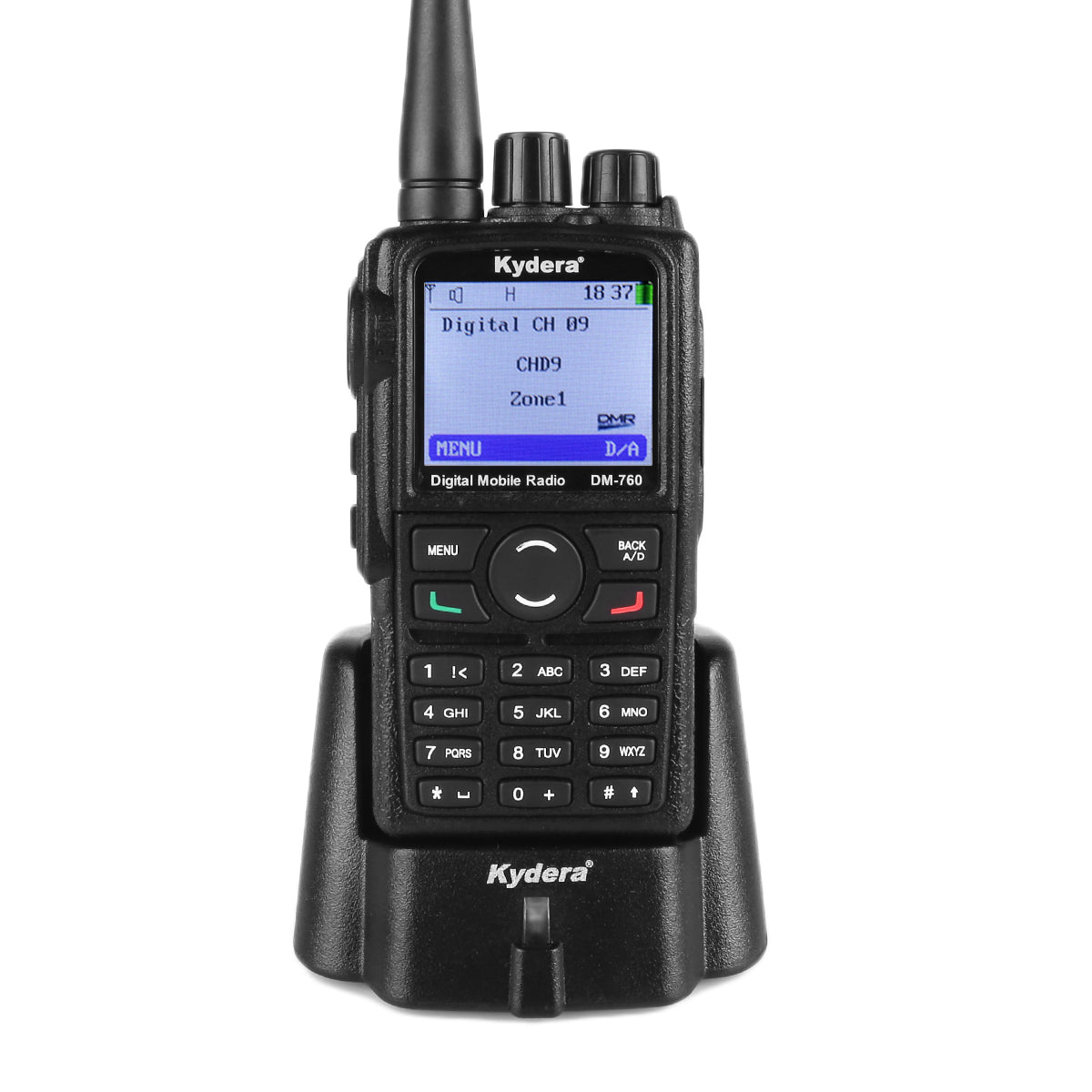

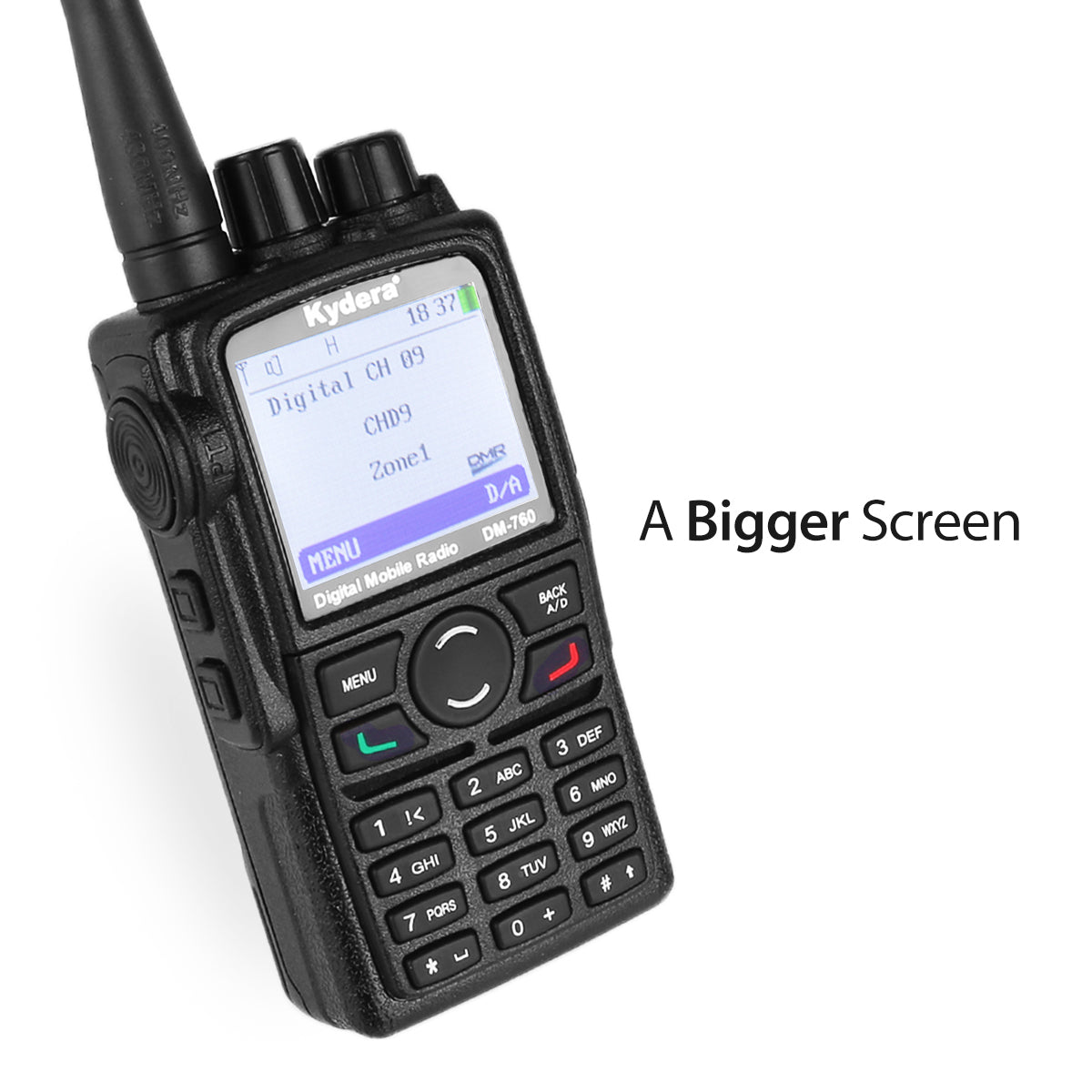

➠ 2.3'' COLORFUL TFT DISPLAY: Kydera DM-760 is equipped with a big colorful TFT high definition display screen, providing vivid color display, visual icons, and user-friendly menu operation, making operation easier and agiler.

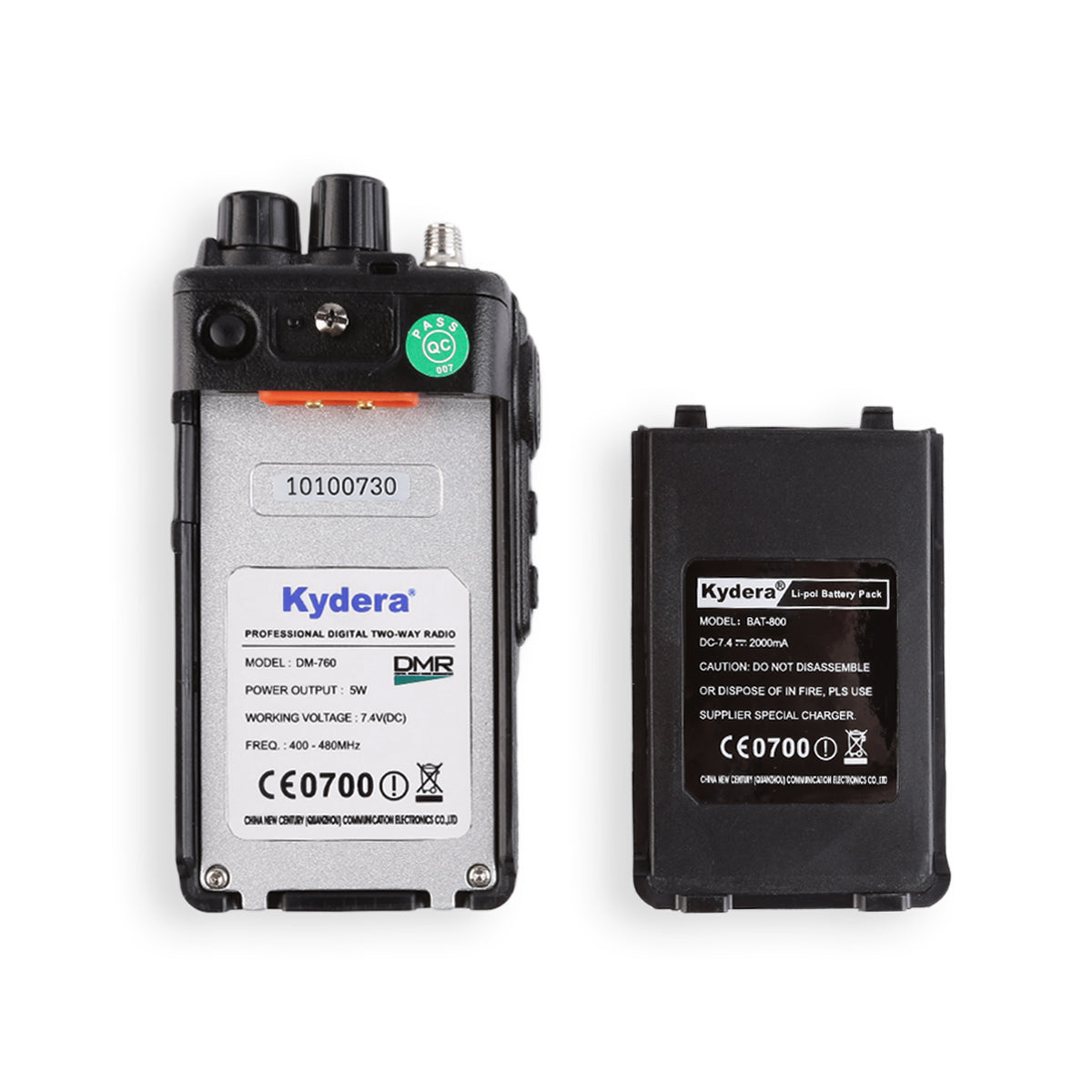

➠ 2000mAh BATTERY: As a professional two way radio, Kydera DM-760 is with 2000mAh battery, thus with the unique power saving techenology its working time is up to 15 HOURS in analog mode and 20 HOURS in digital mode.
➠ CPS Software Download: https://radioddity.s3.amazonaws.com/Kydera%20DM-760%20Programming%20Software%20DMR_V2.2.1%28Setup%29.exe
1. Call Log to check records for incoming, outgoing and missed calls
2. Maximum output audio to be 1000mW
3. DMR radio can obtain double calling capacity by means of TDMA technology
4. Integrated voice and data, improce the work efficiency, support multiple applications
5. Define side keys
6. Use digital vocoder AMBE++ to ensure excellent audio quality
Frequency Range: UHF: 400-480MHZ
Channel Zone: 16
Total Channel Capacity (512): 256(Analog)/256(Digital)
Antenna Impedance: 50¦¸
Dimension (H x W x D): 100x57x35mm
Weight (W/Battery): 210G
Rated Voltage: DC: 7.4V
Battery Life: Analog: 15 hours / Digital: 23 hours
Other Main Functions:
✔ FM Radio
✔ Backlight Control
✔ High/Low Power
✔ Language Selection
✔ Profiles Selection
✔ Keytone Control
✔ Low Power Alert
✔ Display Mode
✔ Remote Kill
✔ Remote Revive
✔ No-address Call
✔ Remote monitor
✔ Remote detection
✔ Call Alert
✔ Call log
✔ Emergency Ala
