Radioddity SRH805S 1.97 Inch Elite VHF/UHF 144/430MHz SMA-Female Dual Band High Gain Antenna

Write a review SKU: 28-020-373 In Stock
  • Regular price $4.99


  • Radioddity SRH805S Antenna is able to get longer range on handheld radios. Like BaoFeng UV-5R radio. This antenna features a 2.15/3.0 dBi signal with up to 10Watts of power.
  • Radioddity SRH805S is only 5cm (1.97 inch) and 20 grams. It is so small and lightweight that it is convenient for us to carry the radio whereever we go.
  • Radioddity SRH805S is a dual band high gain antenna. Frequency: 144/430MHz (136-174MHz+400-470MHz); Gain: 2.15/3.0 dBi; Max power: 10 Watts.
  • Compatible with all BaoFeng, Wouxun, TYT and Kenwood Handhelds. For example: UV-5R/5RTP (All models), UV6R, GT-1, GT- 3/3TP/3WP, GT-5/5TP, BF-9700, BF-F9+TP, BF-888S, UV-82.

Description:
Radioddity SRH805S is only 5cm (1.97 inch) and 20 grams. It is so small and lightweight that it is convenient for us to carry the radio whereever we go. In the meantime, Radioddity SRH805S Antenna is able to get longer range on handheld radios.

Specification
Frequency: 144/430MHz (136-174MHz+400-470MHz)
Gain: 2.15/3.0 dBi
Max power: 10 Watts
VSWR : <1.5
Impedance: 50 OHM
Connector: SMA-F

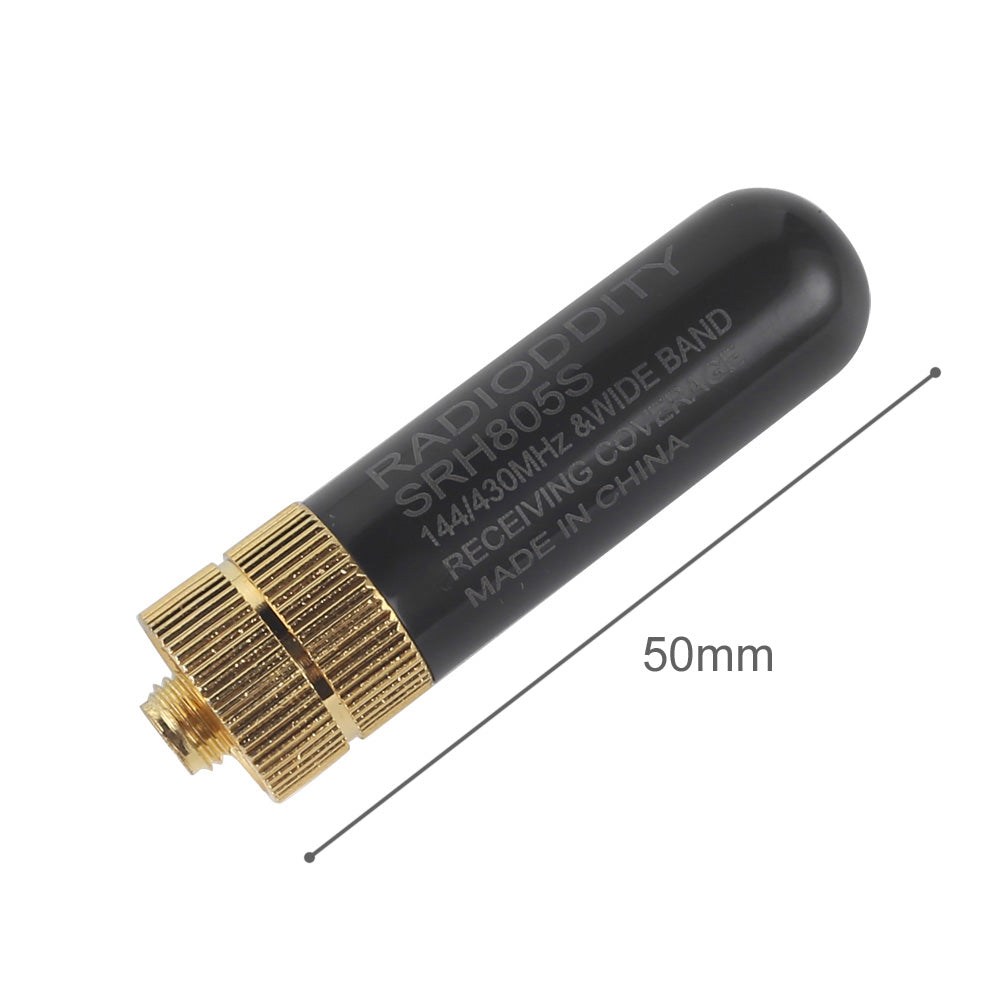

Length: 5 cm (~1.97 inches)
Impedance : 50 ohms
RoHS Compliant

Version: Chinese Version

Compatible Model:

BaoFeng
UV-5R/5RTP(All models), UV6R, GT-1, GT-3TP/3WP, GT-5/5TP, BF-9700, BF-F8HP, BF-F8+, BF-F9+TP, BF-888S, UV-82 (Series All
Models excluding the UV-82X which is a 144/220 radio), and all others. (Compatible With Models of BaoFeng)

WOUXUN
KG-UVD1P, KG-UV6D, KG-659, KG-669, KG-679, KG-689, KG-699E and more

TYT
TH-F5, TH-UVF9, TH-UV3R, TH-UVF8D, TH-UVF9D

Kenwood
TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-
360G and more

LINTON
LT-2288, LT-3288, LT-6288, LT-5288, LT-3188, LT-2188, LT-3260, LT-2268, LT-3268, LT6188, LT3288 and more

PUXING
PX-777, PX-777 PLUS, PX-666, PX-3288, PX-888

WEIERWEI
VEV-3288S,VEV-6288,VEV-3288, V-1000

And any other radio that uses the SMA-FEMALE Connection.

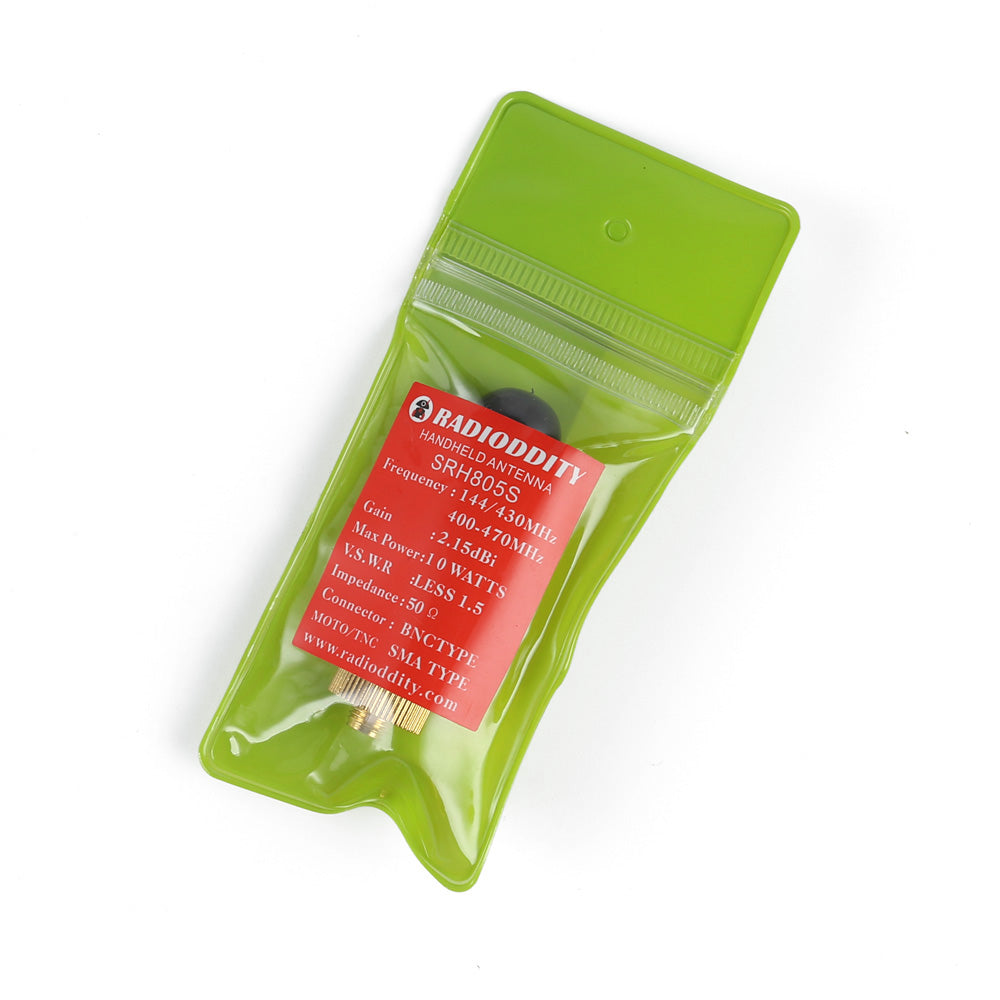

Package Content:
1 x Radioddity SRH805S
