➤ VSWR. Forward and reflected power direct digital readout, without any
➤ Maximum measurable power range up to 120W.
➤ Low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.

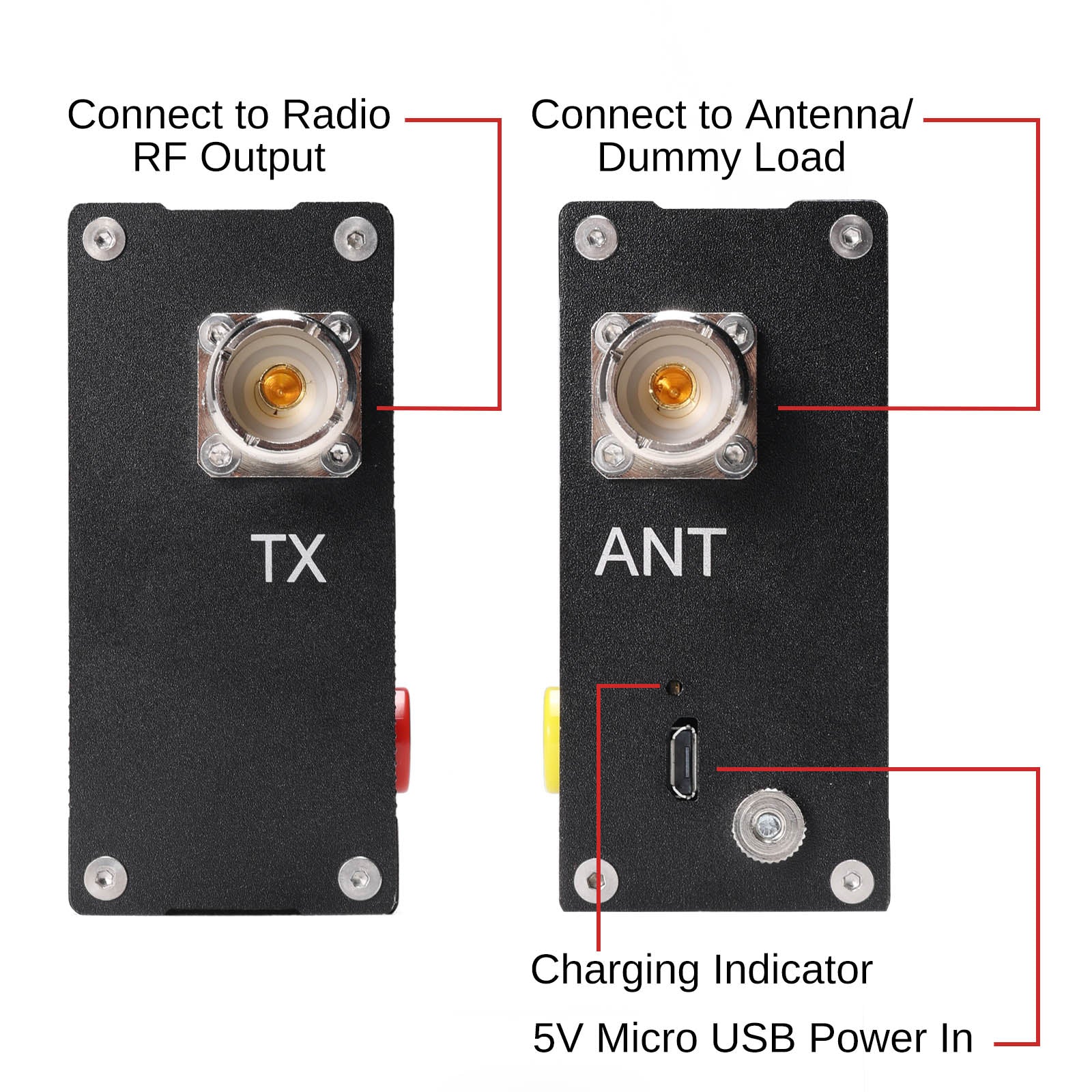

➤ Build in Frequency counter . Connect the Output of your transceiver to "TX" and Antenna or Load to "ANT". Proper adaptor/cable is required if your device has different type of connectors.1) Adj. RF Forward %.Press 2 second the [Red button] to power on or power off
➤ All Funtion display ( Frequency,Power , SWR,FW,RW,Battery voltage)
Frequency range: 100 - 520MHz
Measurable power range: 0 - 120W
Input Frequency counter
Maximum power:120W Accuracy: mean +/- 5%
Battery:3.7V Li-ion Rechargeable Battery
Interface: N-J Interface
MAX. Power in 120 W
Frequency Ranger COVER:100MHz~520MHz
Insertion Loss < 0.15dB(VHF) , < 0.25dB(UHF)
Temperature 0℃~60℃ Input Frequency counter Yes
Battery Voltage Display Yes
Battery Build-in 14500 Li-ion Rechargeable
Auto Power Off 1-9 mins

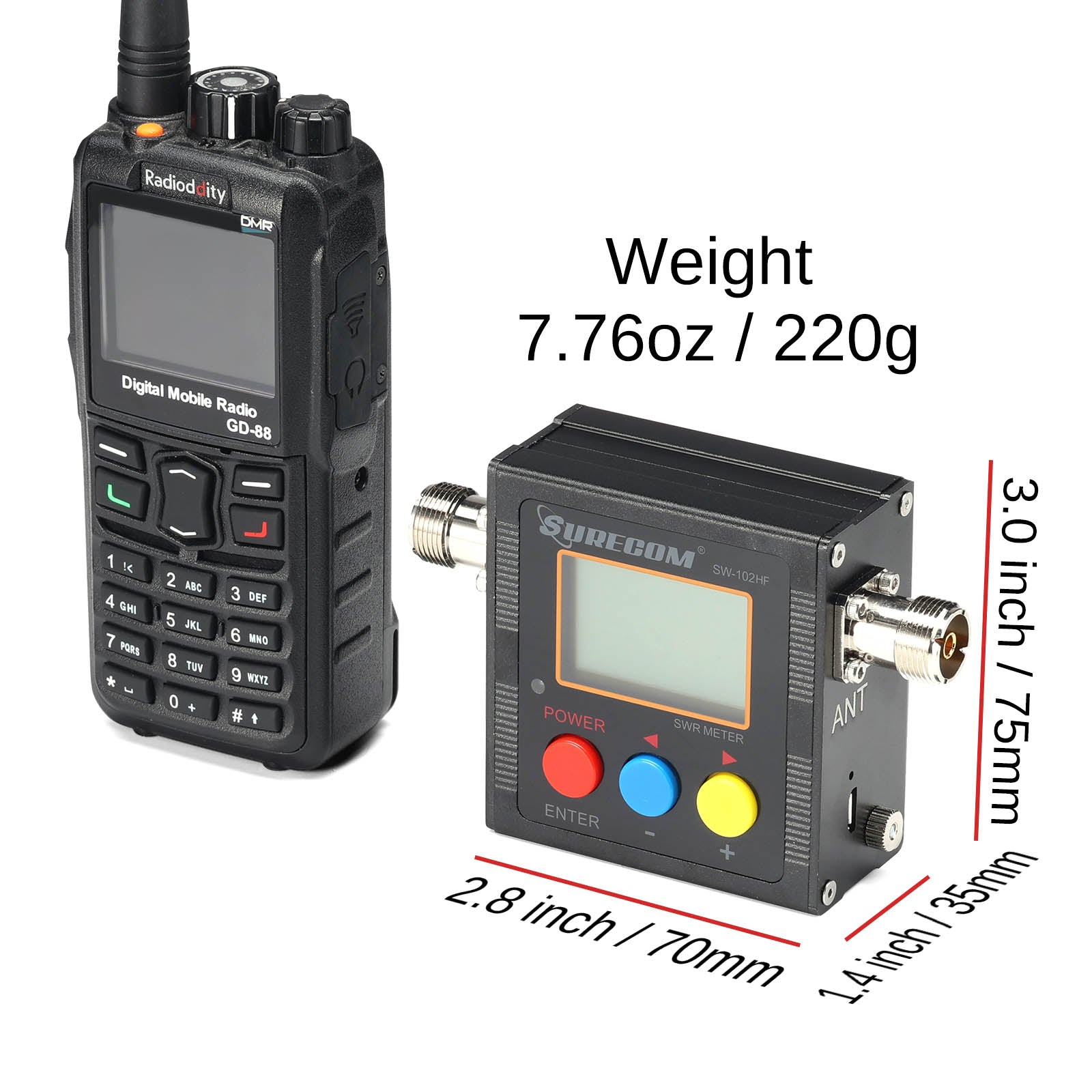

Size 66*68*37 (mm)
Charger in 5V (micro usb)
Backlight AUTO OFF 1-9 mins
Interface (in and out ) N(SL16)
Weight 220g (include battery)
1) Adj. RF Forward %
2) Adj. RF reward %
3) Adj. frequency counter time base.
4) Adj. RF Power %
5) Adj LCD dim of light
6)Adj. power off time
Funtion Memory SAVE:

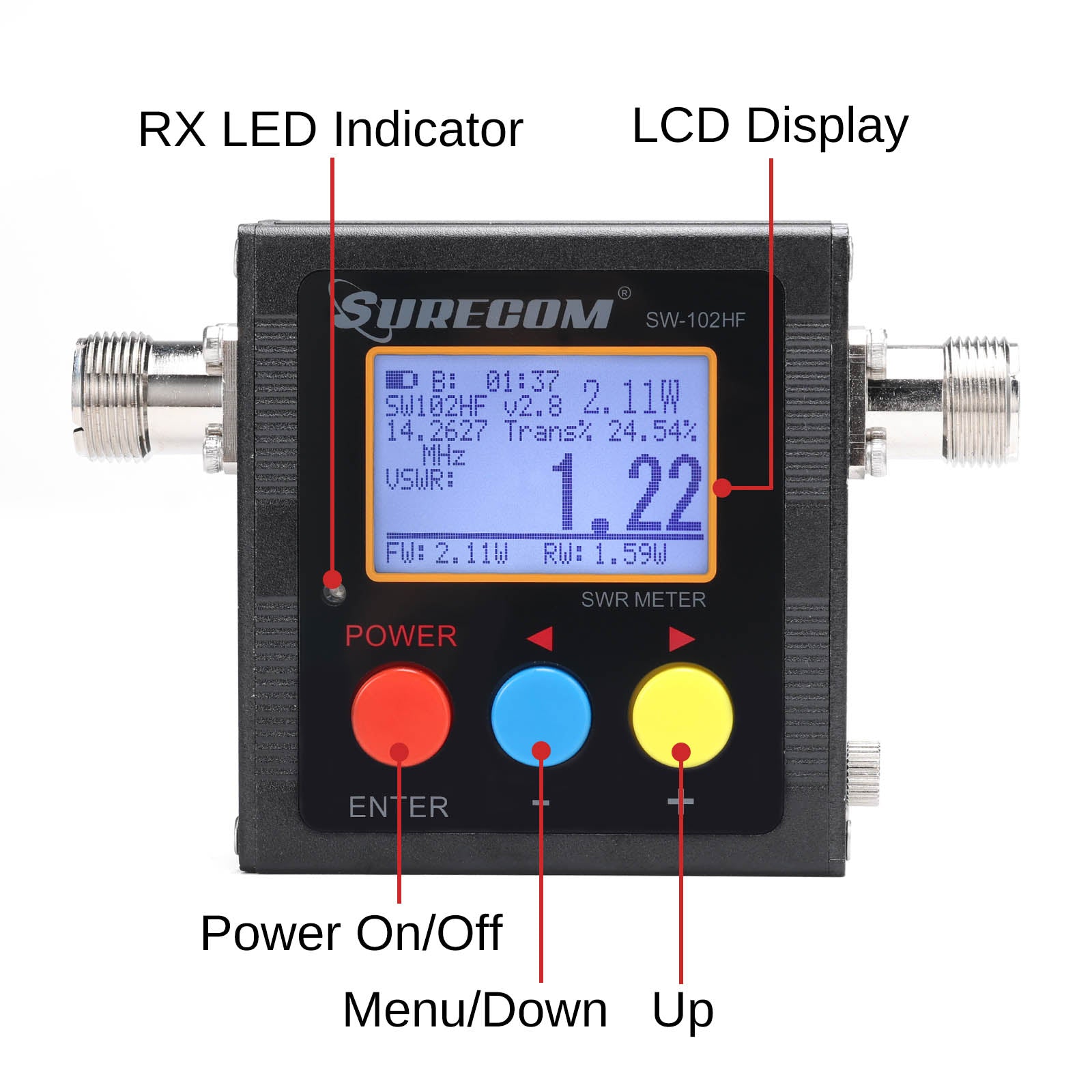

1. Press MENU (Blue button)
2. Press F1 (Red button) (Select 1-6 Funtion)
3. Press Blue button ( - ), Yellow button (+)
4. Press the Red button for 2 seconds
5. Press the Blue button to SAVE and EXIT
1 Adjustment Forward (-99 to +99) Fine Tune Level %
2 Adjustment Reverse (-99 to +99) Fine Tune Level %
3 Adjustment Time Base (-99 to +99) Frequency Counter
OSC Time Base
4 Adjustment Power Level (-99 to +99) Fine Tune Level %
5 LCD DIM (LCD Backlight Time) ( 0 to 9 ) "0" is ON,
1 min to 9 mins
6 POWER OFF ( 0 to 9 ) "0" is ON,
1 min to 9 mins

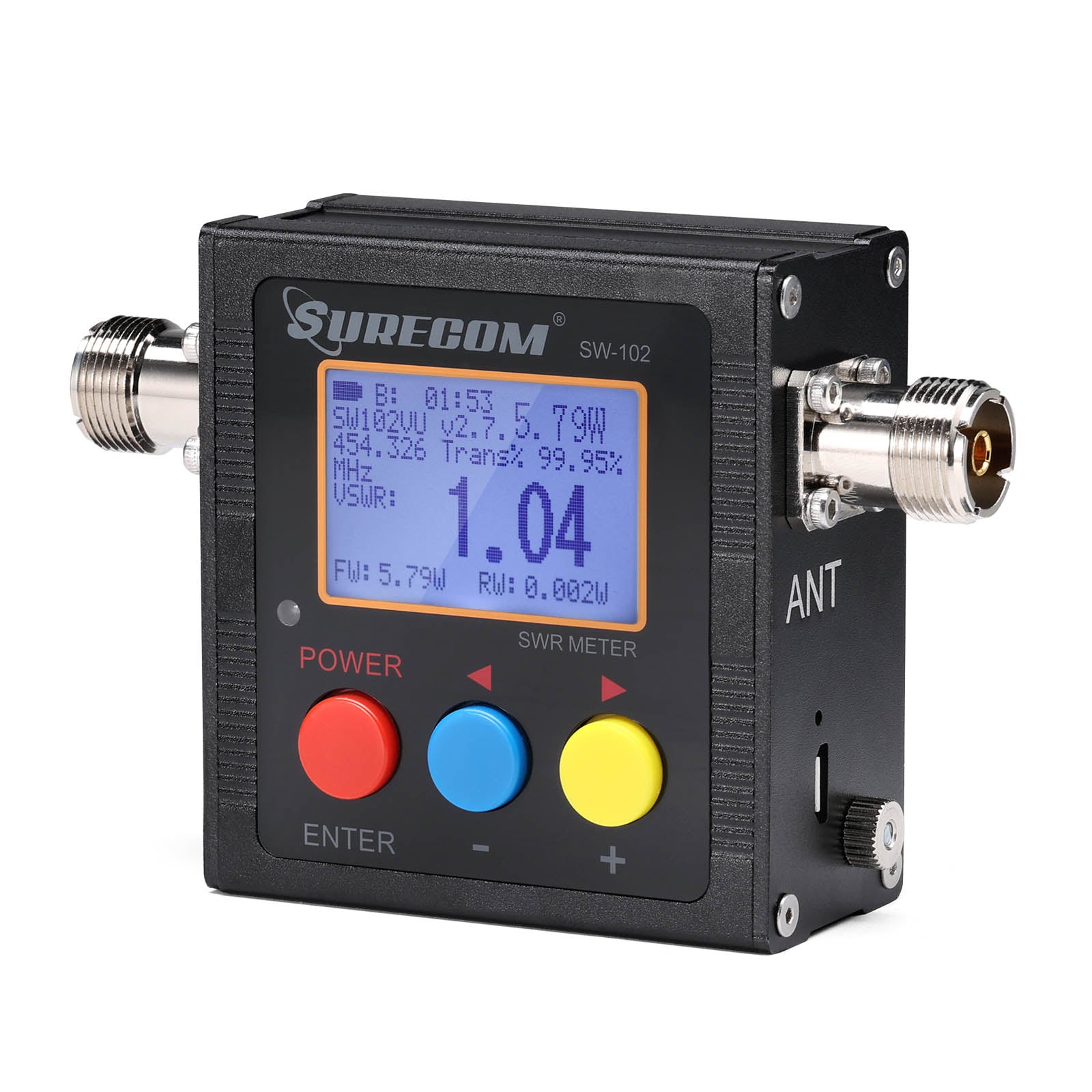

1x SURECOM SW-102-UV (N - connector) VHF/UHF Power & SWR Meter
1x Power PSU 100-240V
1x Charger Cable
1x English Users Manual
