• Advanced GPS function for emergency communications
• Large Capacity 2200mAh Battery
• Complies with Mototrbo Tier I & II
• IP67 Waterproofed
• Supports quick text message
• Private/Group/All Call
• Remote Speaker included
• FCC ID: PODMD-380

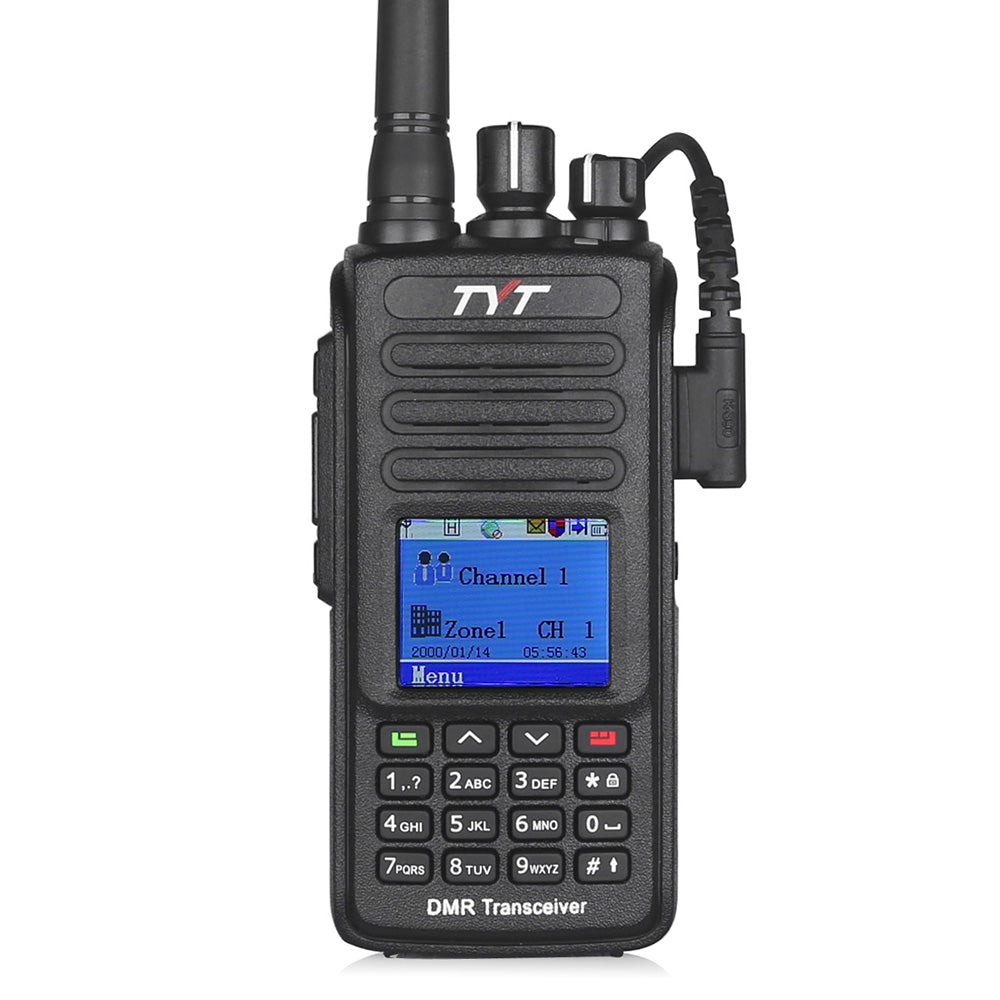

This full featured IP67 Waterproofed UHF MD-390 DMR (MotoTRBO) radio is the best in its class. Compare this radio to the competitors and you can see why there is no better radio to buy than the TYT MD-390.
Some of its highlights are as follows:
Advanced GPS function for emergency communications
Compatible with Motorola (MotoTRBO), TYT DMR Radios and all other DMR radios(Compatible with Tier I & II)
Compatible with Tytera (TYT) MD-380’s CodePlug!!
2200mAh li-ion battery capacity
Use transflective LCD displays - usable under direct sunlight
Supports quick text message
What is IP67?
IP mean Ingress Protection
Dust Tight: No ingress of dust; complete protection against contact.
Immersion up to 1m: "Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion)".
۰ 1000 channels
۰ Complies with Mototrbo Tier I & II
۰ Remote monitor/enable/disable
۰ Power-on protection
۰ Transflective Color LCD display
۰ Zone selection via side-key
۰ Emergency call
۰ Built-in CTCSS/DCS
۰ Text messages in digital mode
۰ Encryption function
۰ Built-in CTCSS/DCS
۰ Priority scan
۰ Complies with digital protocol ETSI TS 102 361-1,-2,-3
۰ DTMF decoding and encoding
۰ Updated software available for new features
۰ Private call, group call, all call in digital mode
۰ Operate in both Digital & Analogue modes
۰ Allows easily migration from analog to digital
۰ Provides clearer voice communications in digital mode
Frequency Range: VHF: 136-174MHz UHF: 400-480MHz
Channel: 1000 Channels
Channel Spacing: 12.5KHz
Operating Voltage: 7.4V
Battery Type: Li-ion
Operating Temperature: -30℃+60℃
Store Temperature: -40℃+85℃
Antenna Impedance: 50Ω
Audio Output Power: ≤1000mW@16Ω
Battery Capacity: 2800mAh standard Li-ion Battery
Dimension (H*W*D): 131*61*36*(Not Including Antenna)
Output Power: High: ≤5W (HI) Low: ≤1W (Low)
Frequency Stability: ±1.0PPM
Adjacent Channel Power: ≤-60dB
Free Time Slot Power: TDMA: ≤57dBm
Hum and Noise: -40dB@12.5KHz
Spurious Radiation: Antenna: 9KHz-1GHz ≤-36dBm
FM Modulation Mode: 12.5KHz: 11K0F3E
4FSK Digital Mode: 12.5KHz(data only): 7K60FXD
12.5KHz(data + voice): 7K60FXE
Modulation Maximum Deviation: 2.5JHz@12.5KHZ
Non-active Slot Power: -57dBm
Analog Sensitivity: 0.35uV/ -116dBm(20dB SINDA)
0.22uv/ -120dBm (Type)
Digital Sensitivity: 0.3uV/ -117.4dBm(BER 5%)
0.22uV/ -110dBm(BER 1%)
Co-channel Rejection: ≥-12dB
Rated Audio Power: 1W
Rated: Audio Distortion: 3%(Type)

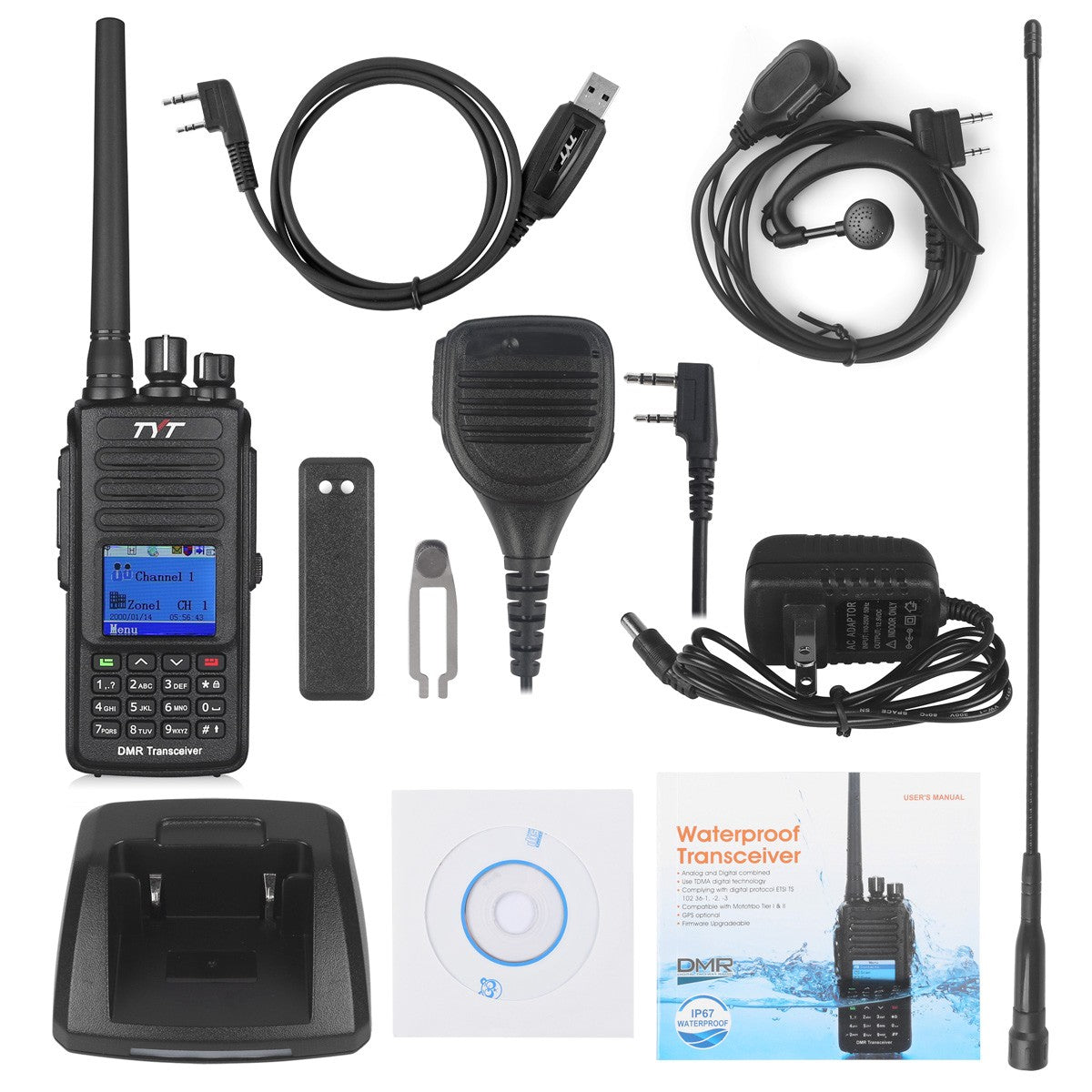

1 x TYT MD-390 UHF Digital Mobile Radio (DMR) With GPS
1 x USB Programming Cable

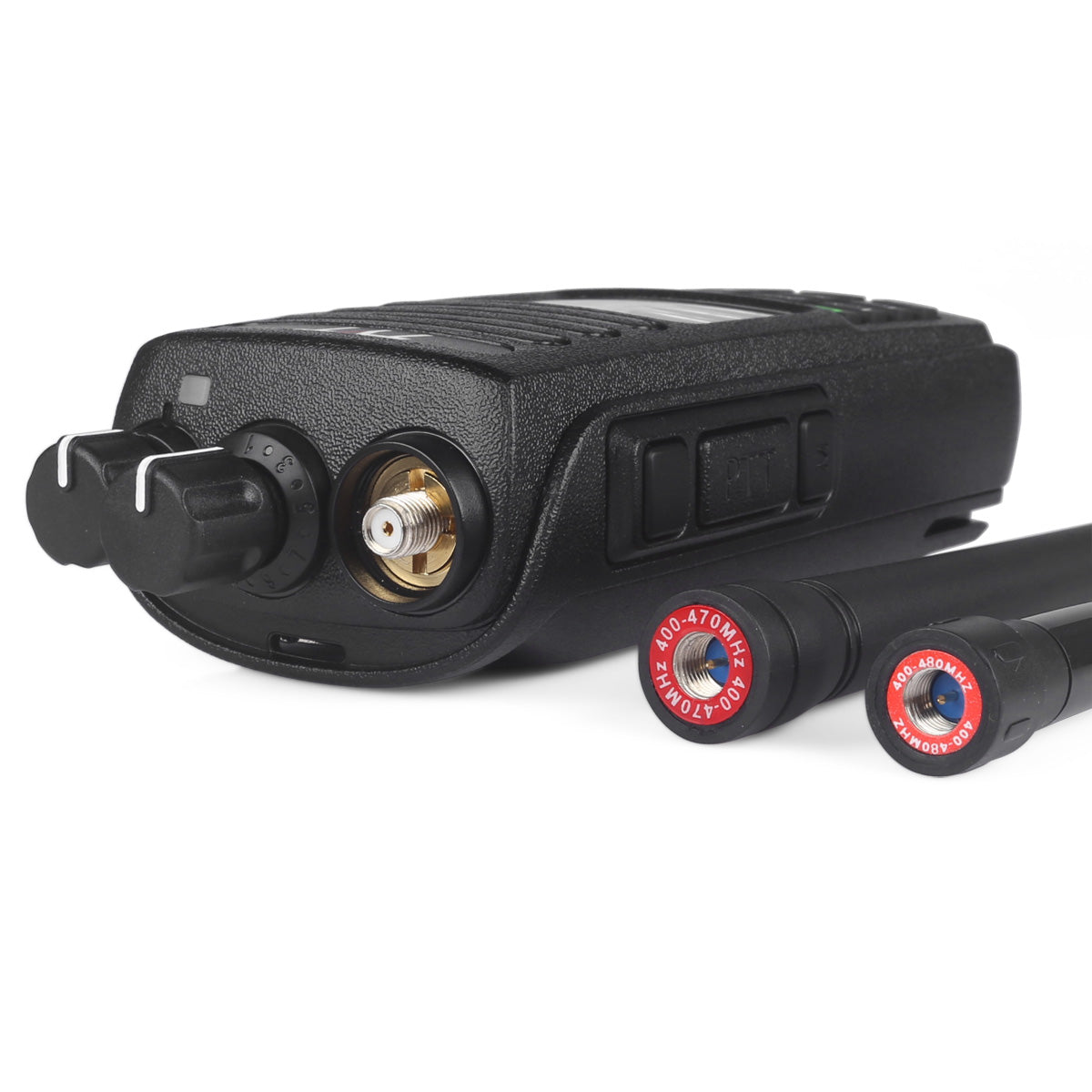

2 x Antenna

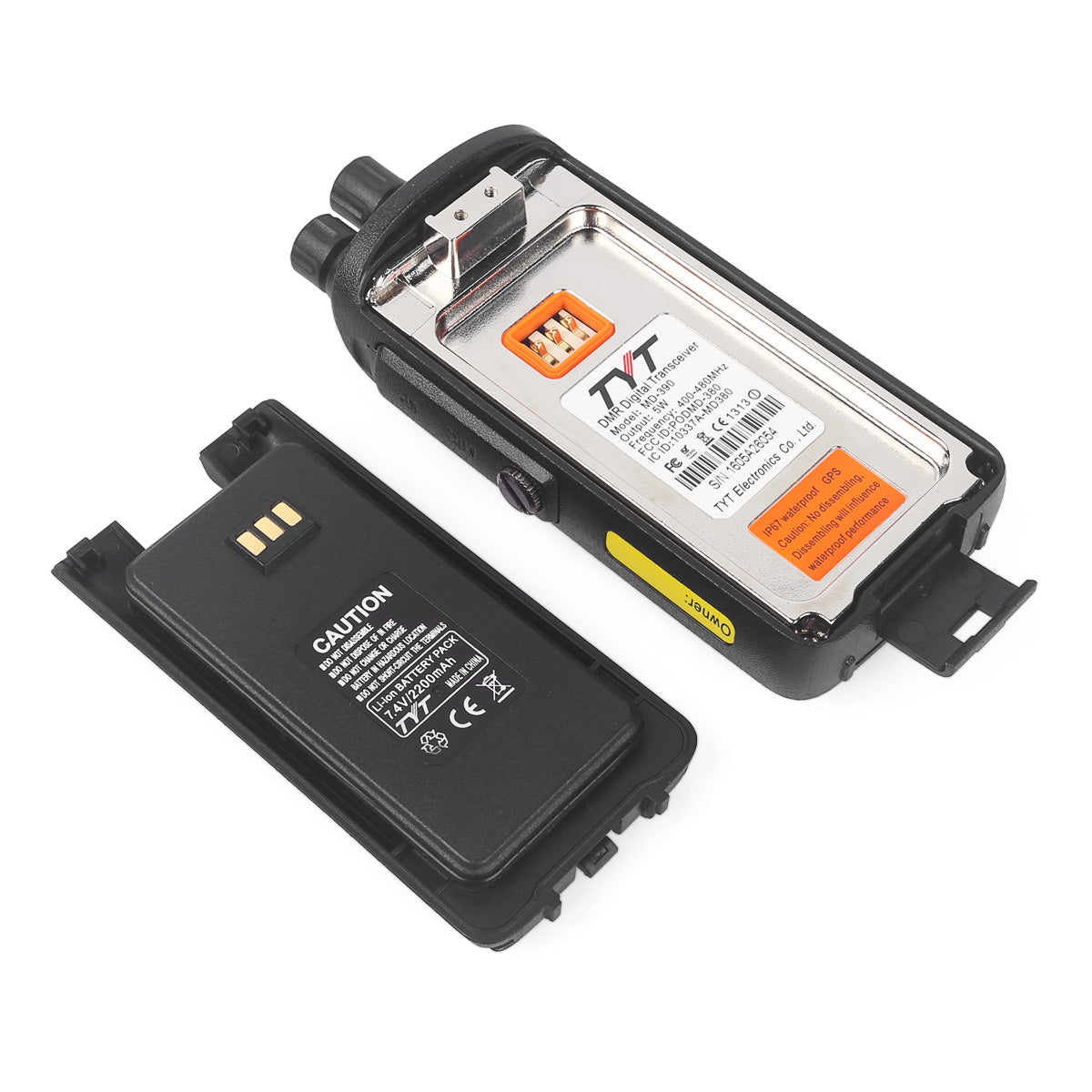

1 x Li-ion Battery 2200mAh
1 x IP67 Waterproofed Earphone
1 x Belt Clip
1 x Charger
1 x Adapter
1 x User's Manual

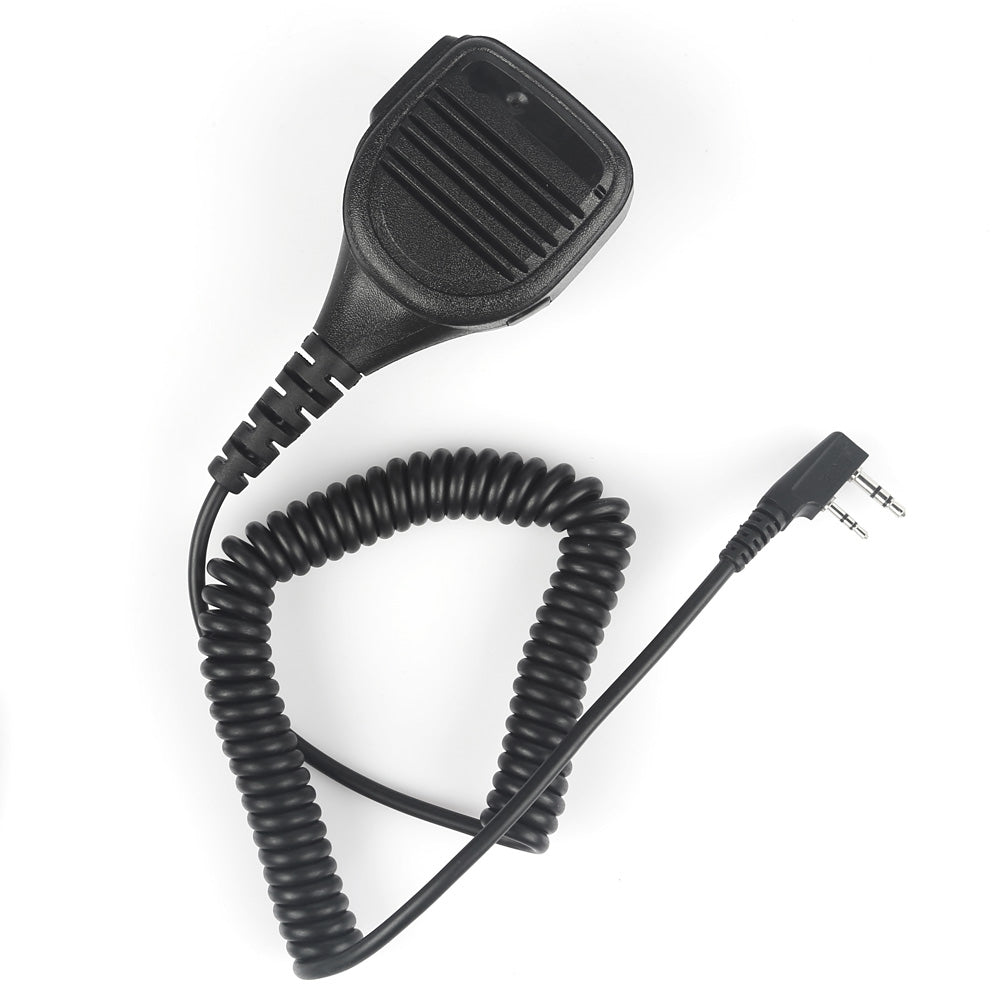

1 x Speaker mic for your radio (listen earpiece is not include)
1 Year and 6 months Manufacturer's Warranty.
• Radioddity's limited warranty applies to all BRAND NEW items sold by radioddity.com and other authorized dealers.
• This warranty is non-transferable and proof of purchase from us or an authorized dealer is required for warranty service.
What Does This Limited Warranty Cover?
We warrant that the Products are free from defects in materials and workmanship under normal use and use in accordance with the respective Product user manual, during the Warranty Period. Please refer to the Instructions inside each package for a description of proper use and care of the unit.
What Does This Limited Warranty Not Cover?
This limited warranty does not cover damages directly or indirectly arising or resulting from or during:
(1) accident, misuse, abuse, vandalism or acts of God (including lightning and other weather conditions)
(2) use with another product or other damage or loss suffered by the use or combination of any other item
(3) improper or inadequate maintenance
(4) repairs by an unauthorized service technician
(5) normal wear and tear
If you are satisfied with our products and service, please kindly leave us a positive product review. Any problem, be free to contact us firstname.lastname@example.org
We strive to answer all emails as quickly as possible, but due to high email volume, it may take time for us to reply. Thanks in advance for your patience!
