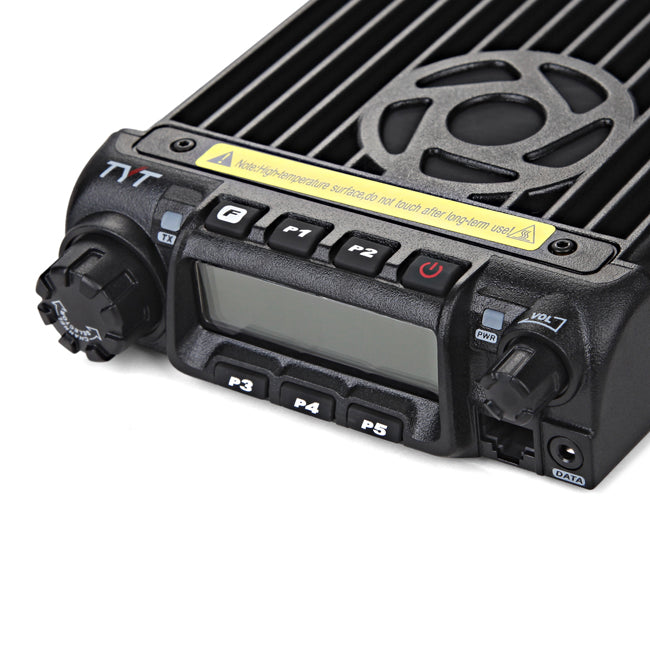

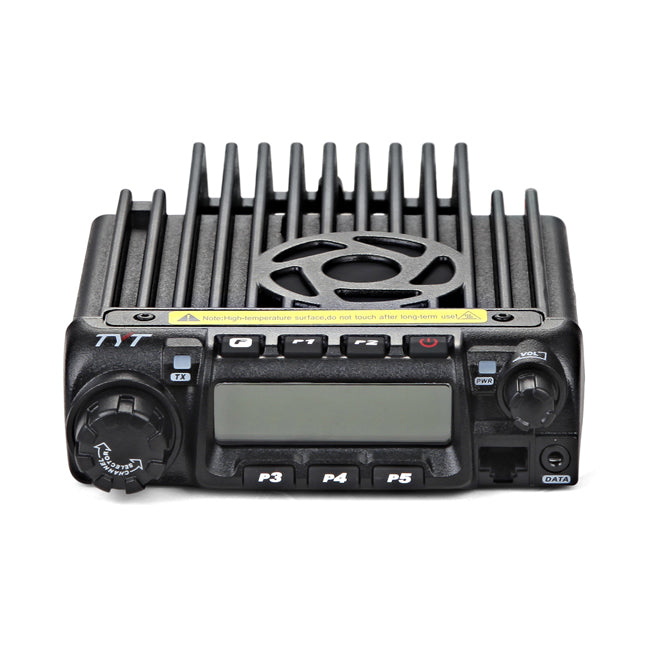

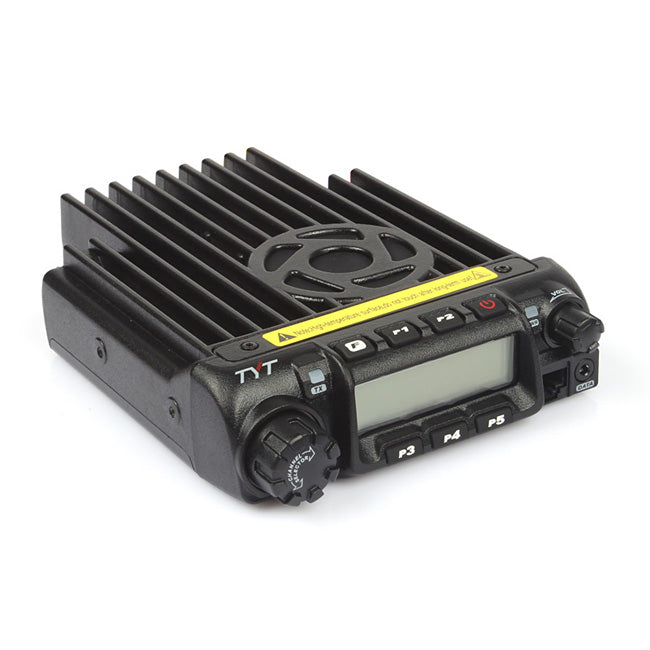

۰ 65 Watt Heavy Duty Two Way VHF
Mobile Transceiver with ctcss/dcs ( PL & DPL ).

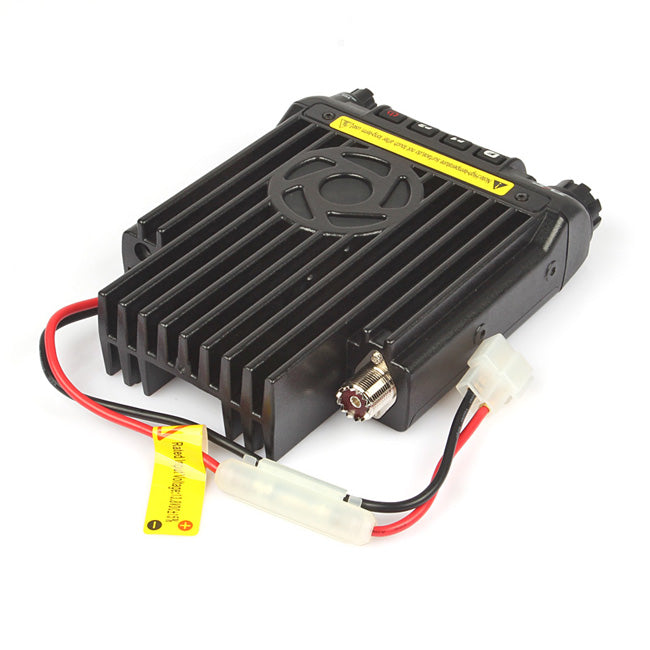

۰ 200 AlphaNumeric Channels, Full Keypad Microphone. NEW Cool-Blue Display Backlight (not shown). Includes mounting bracket & fused power Cable.
۰ Great for Amateur 2M Band 144-148Mhz , full 136-174Mhz VHF 2.5Kz Steps
۰ Features 3 Selectable Power levels, DTMF,Keypad lock, Scan modes & more!
۰ Requires Optional Suitable VHF Antenna, & hookup to 12-14Vdc ( 12-14A)
۰ FCC ID: X24-MOBILE-V
Frequency Range: VHF:136-174MHz
Output Power: VHF: 10W/25W/60W
8 group's of scrambler
CTCSS/DCS setting & scanning
0-9 SQL grade setting
High/Mid/Low power selectable
Repeater offset shift
Keypad lock function
Battery voltage display
DTMF/2 tone/5 tone
Remote kill/ stun/ activate/ revive
Wide/Narrow band setting
Busy Channel Lock-Out
Channel name editing
Auto Power off
VFO step setting:5/6.25/10/12.5/20/25/50kHz
Channel Capacity: 200
Channel Spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability: 2.5ppm
Operating Temperature: -20℃ ~ + 60℃
Operating Voltage: 13.8V DC ± 15%
Dimension(HxWxD): 145mm x190mm x47mm
Weight(with bracket): 1200g
Reference Sensitivity: 0.2μV @ 12dB SINAD
Operating Bandwidth: 60dB@12.5KHz /70dB@25KHz
Adjacent Channel Selectivity: 60dB@12.5KHz 70dB@25KHz
Inter-modulation Rejection: ≥60dB/ ≥65dB
Spurious Response Rejection: ≥70dB
Rated Audio Response: +1-+3dB
Rated Audio Distortion: <5%
FM Hum&Noise: ≥40dB@25KHz /≥45KHz @12.5KHz
RF Power: 60W/25W/10W(VHF)
Frequency Modulation: 11kΦF3E / 16kΦF3E
Modulation Distortion: <5%
FM Noise: ≥36dB@25KHz /≥40KHz @12.5KHz
Adjacent Channel Power: ≥60dB@12.5KHz /≥70KHz @25KHz
Audio Response: +1-+3dB
Audio Distortion: <5%

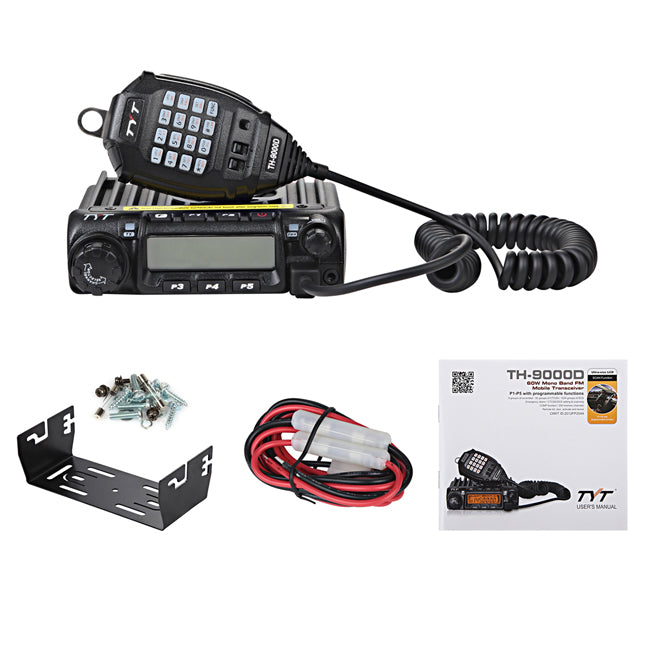

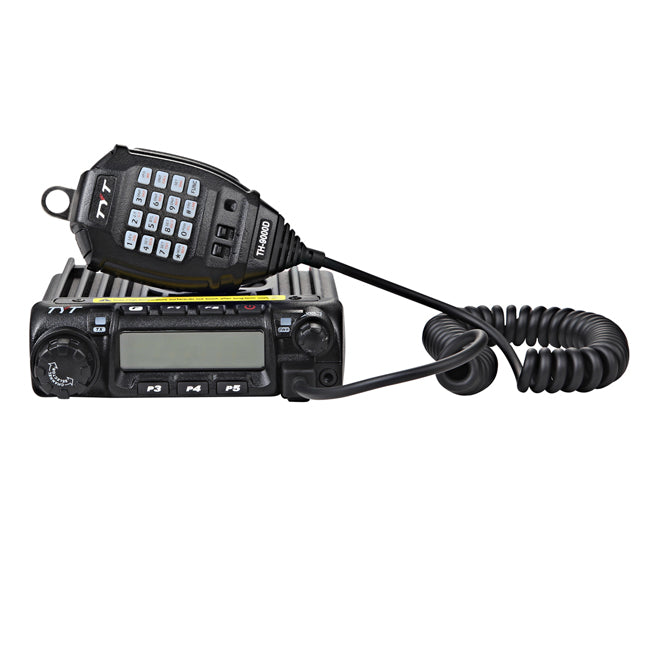

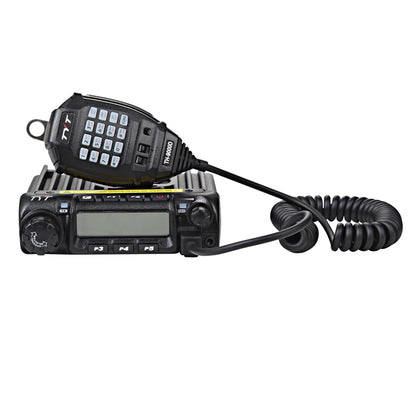

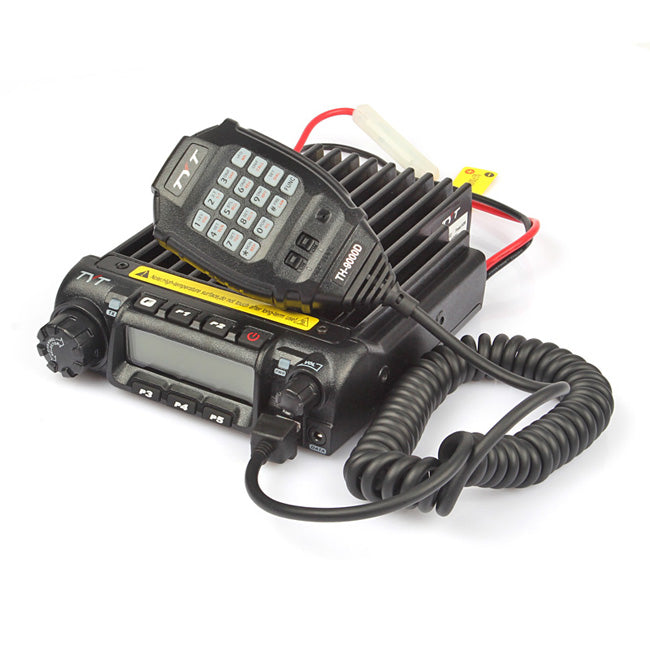

1x TYT TH-9000D Mobile Transceiver (136-174 MHz)

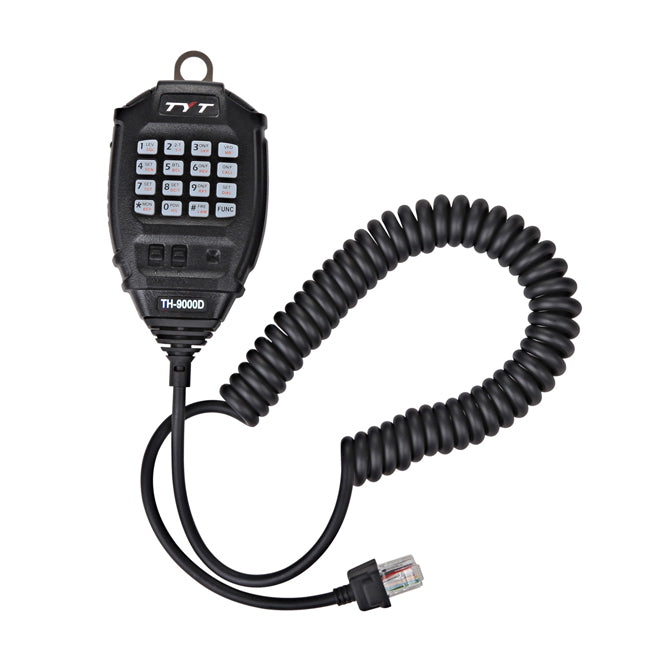

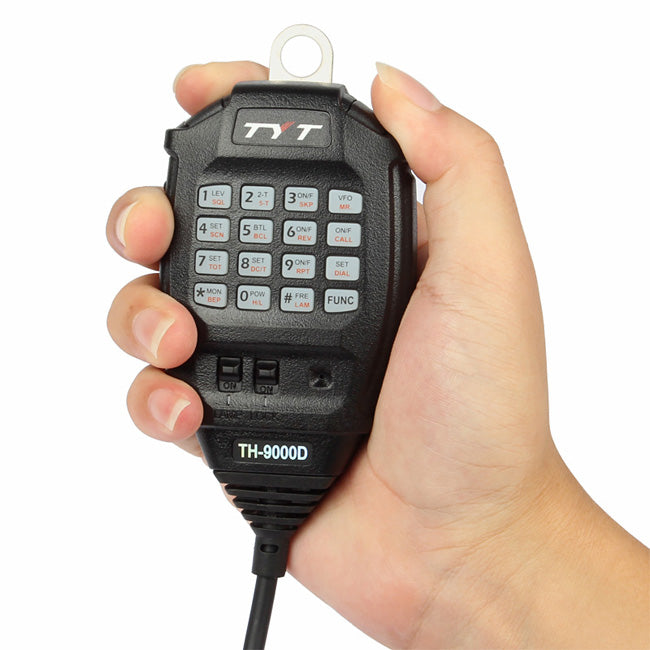

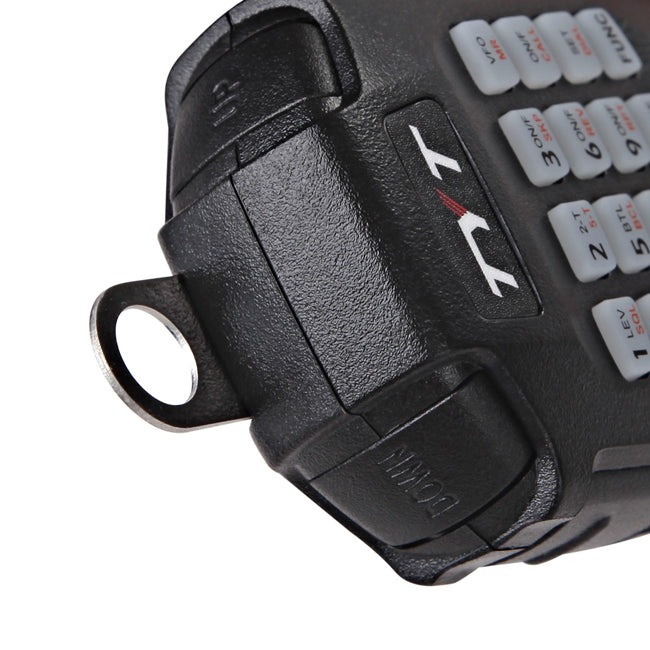

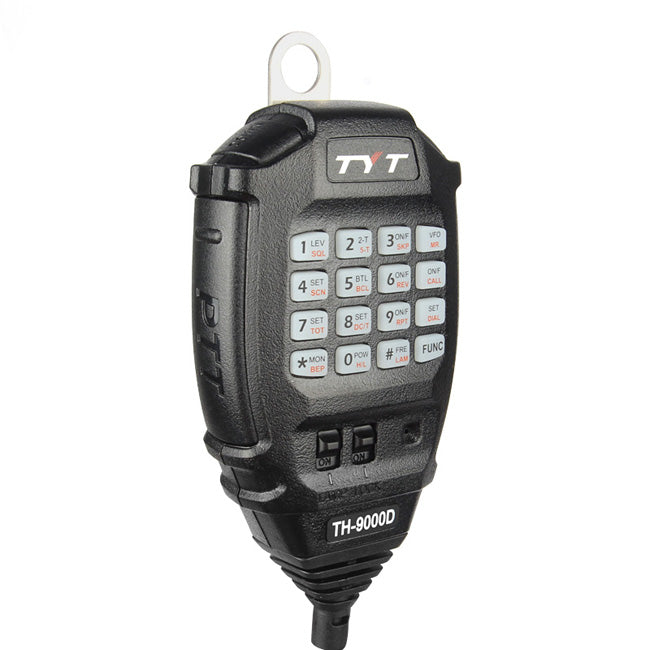

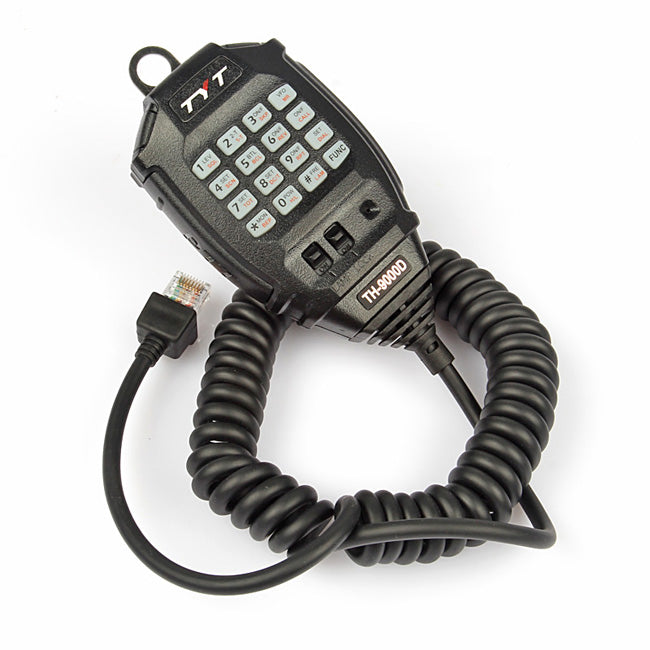

1x Handheld Microphone
1x Power Cable
1x Screws and Accessories
1x User's Manual
1x Fixed Bracket

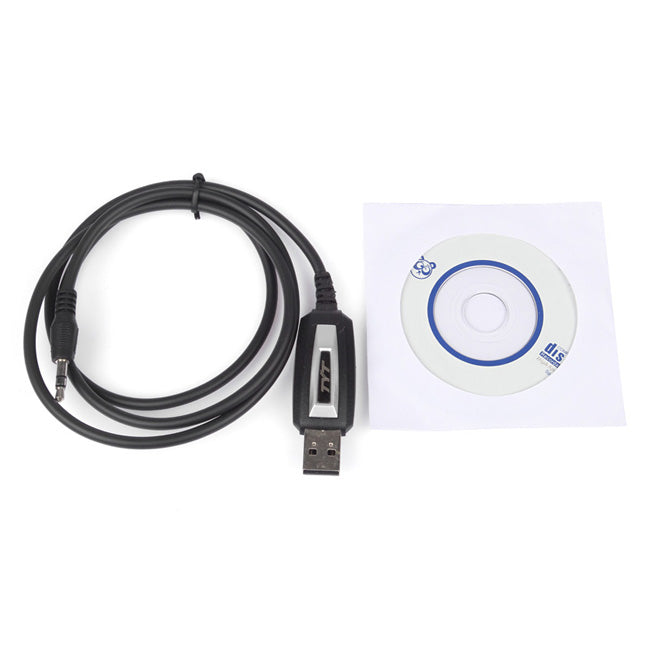

1x Programming Cable
1 Year and 6 months Manufacturer's Warranty.
