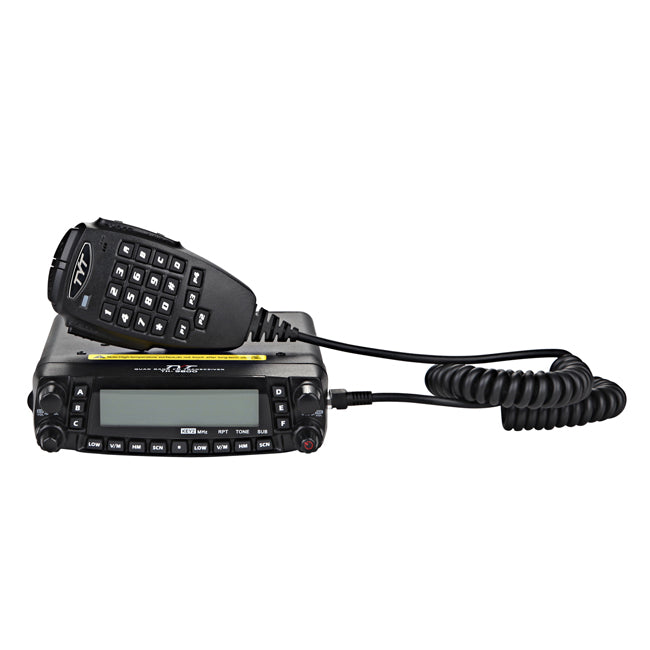

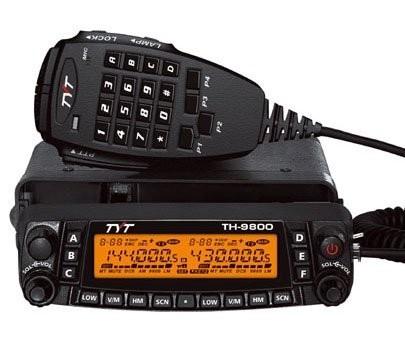

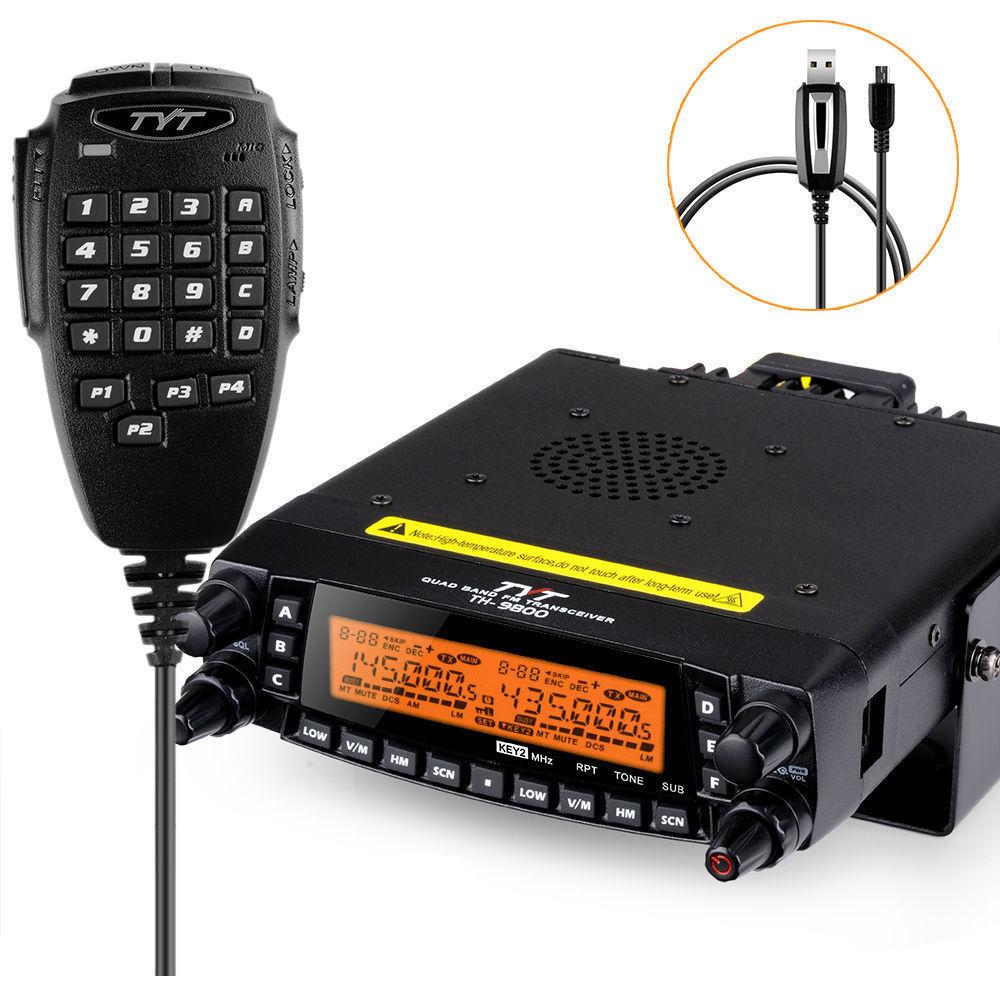

TYT TH-9800 Quad Band 50W Mobile Car Radio

Write a review SKU: 28-020-624 In Stock
  • Regular price $239.99
  • $206.99

۰ TH9800DMV1.00.21-P140120-D1501218

۰ 50W/40W Full Quad Band FM Twin Display Amateur Mobile Radio Transceiver!

۰ Full Twin Display and Receive, Cross Band Repeater mode too!

۰ Features CTCSS, DCS, DTMF, 2-Tone/5-Tone, Alphanumeric Display, & more!

۰ Transmits 10M ( 29Mhz ), 6M ( 52Mhz ), 2M ( 146Mhz ) & 70cm ( 440Mhz ) Bands, FM, 50W/40W, Receives additional frequencies too! (AM mode selectable on VHF receive freqs for Air Band reception)

۰ Remote Mountable Faceplate, Full Direct Entry Keypad mic, 800 channels & More.


۰ NOTE: This item doesn't ship to Russia.

- The TYT TH9800 QuadBand Transmit, Twin Receive, Dual Display FM Radio Transceiver for the 10 Meter, 6 Meter, VHF 2 meter & UHF 70cm Bands!.
- Loaded with features, Over 800 AlphaNumeric Memory channels!
- True automatic cross band repeater mode, Twin simultaneous Receive, w/seperate Vol & Squelch controls!
- Multiple Tuning Steps,. Includes full keypad microphone!
- Remote mountable Faceplate!
- Receive Range: 26-33Mhz, 47-54 MHz, 110-180Mhz ( with AM Air band), 350-399Mhz, 430--512Mhz, 750-947Mhz.
- 50W 2M & VHF / 40W 10M & UHF, with Multiple lower power settings available too.
- ctcss, dcs (PL & DPL), DTMF, 2 tone/5tone signaling, ANI, Display Brightness setting & more!
- Includes 12Vdc Power Cable & Mounting Bracket, SO-239 Antenna connector on radio Built In Cooling Fan.

- Outstanding 0.2uV sensitivity across 10m/6m/2m/70cm bands
- Brilliant crossmodulation, intermodulation rejection and strong signal performance-similar to commercial radios.
- Commercial quality and commercial performance, too!
- 809 memory channels
- DTMF mic included!
- Digital FM broadcast band radio
- High/low output power levels
- Reverse frequency selection
- Dual (V/U) squelch set levels
- Dual repeater offsets selectable
- Multi-function scanning
- Repeater offset selectable
- Keypad lock function
- Channel name editing
- CTCSS/DCS encode/decode
- Dual Band/Dual Receive: (Full Duplex)
- Cross Band Repeat
- TX Power: 5-50 Watts
- Memories: 256
- Antenna Connection: Single SO 259s


Frequency Range:
- 26-33MHz (RX/TX) (AM band RX)
- 47-54MHz (RX/TX) (AM band RX)
- 136-174MHz (RX/TX)
- 400-480MHz (RX/TX)
- 108-136 (AM band RX only)
- 320-399.000 (RX only)
- 750-950 (RX only)

- Channel Capacity: 809 channels
- Channel Spacing: 5/10/12.5/15/20/25/50KHz
- Modes of Emission: F3, F2, F1
- Antenna Impendence: 50 Ohms, unbalanced(Antenna Duplexer bulit-in)
- Frequency Stability: ±5 PPM@-140°F~+140°F(-10-+60)
- Operating Voltage: -4°F~+A140°F(-10-+60)
- Operating Temperature Range: 13.8VDC (±15%). Negative ground
- Current Cunsumption(Approx): RX: 0.5A (Squelched);TX:8.0A (50/430MHz), 8.5A(29/144MHz)
- Case Size(WXHXD): 140x41.5x168mm (w/0 knobs & connectors)
- Weight(Approx): 2.2lb(1Kg)

- Output Power: 50/20/10/5W(29/50/144MHz)
- Modulation Type: Variable Reactance
- Maximum Deviation: Better than -60dB(29MHz:Better than -50dB)
- Modulation Distortion: Less than 3%
- Microphone Impedance: 2kΩ
- DATA jack Impedance: 10KΩ


- Circuit Type: Double-conversion super-heterodyne
- Intermediate Frequency:
45.05MHz/450KHz(left band)
47.25MHz/450KHz(right band)
- Sensitivity(for 12dB SINAD): Better than 0.2μV
- Squelch Sensitivity: Better than 0.16μV
- Selectivity(-6dB/-60dB): 12KHz/30KHz
- Maximum AF Output: 2W@8Ω for 5% THD
- AF Output Impedance: 4-16Ω

Package Content:
1x TYT TH-9800 Mobile Transceiver
1x Handheld Microphone
1x Power Cable
1x Screws and Accessories
1x User’s Manual
1x Fixed Bracket
1x Microphone Hanger
