FCC ID: 2ANLH-X6100
WHAT’S NEW FROM X5105 TO X6100?
1. Analog – SDR Radio
Software-defined radio (SDR) system uses software for the modulation and demodulation of radio signals. Processing via a computer or other digital devices with software, the X6100 can provide you more info in real-time, complete complex operations and process data faster.
2. 5W Upgrade to 10W High Power
From 5W to max 10W, the Xiegu X6100 is a more powerful RIG than the X5105. In general, a higher wattage allows for greater range. Working with the XPA125B power amplifier, the X6100 can meet your long-rang talking requirement.
3. 3.6in LCD Screen - 4in Color Screen
The Xiegu X6100 HF transceiver comes with a 4-inch large color screen with 800*400 high resolution, helping you see all the important information at a glance.
4. Wireless Operation – Bluetooth, Wi-Fi, USB Host, Mouse, Keyboard Operation
In addition to traditional connecting ports to connect with extended devices , the Xiegu X6100 also supports modern connection methods like mouse and keyboard control via Bluetooth.
5. Voice Call | Preset Message | Digital Noise Reduction | Data Modem | SWR Scanner
6. Built-in High-stability TCXO Internal Clock Source
◆ Warranty Note —— We provide a 1 year warranty on the Xiegu X6100. As usual, if you modify the radio's hardware, the warranty is void. (Note: The warranty is void right after you remove any part of the radio case without the agreement of our support team.)
◆ Disclaimer: No License is required to purchase this radio, nor to Monitor (listen) to the many Amateur (Ham) Radio frequencies. However, an FCC License is required to Transmit (Talk) on Amateur Radio Frequencies in the USA. Please visit http://wireless.fcc.gov/services/amateur/licensing to learn more.
CLICK HERE to get the latest firmware & user manual.
LATEST FIRMWARE: 2022.04.18 |
to learn about all the update logs.
--- --- --- ---

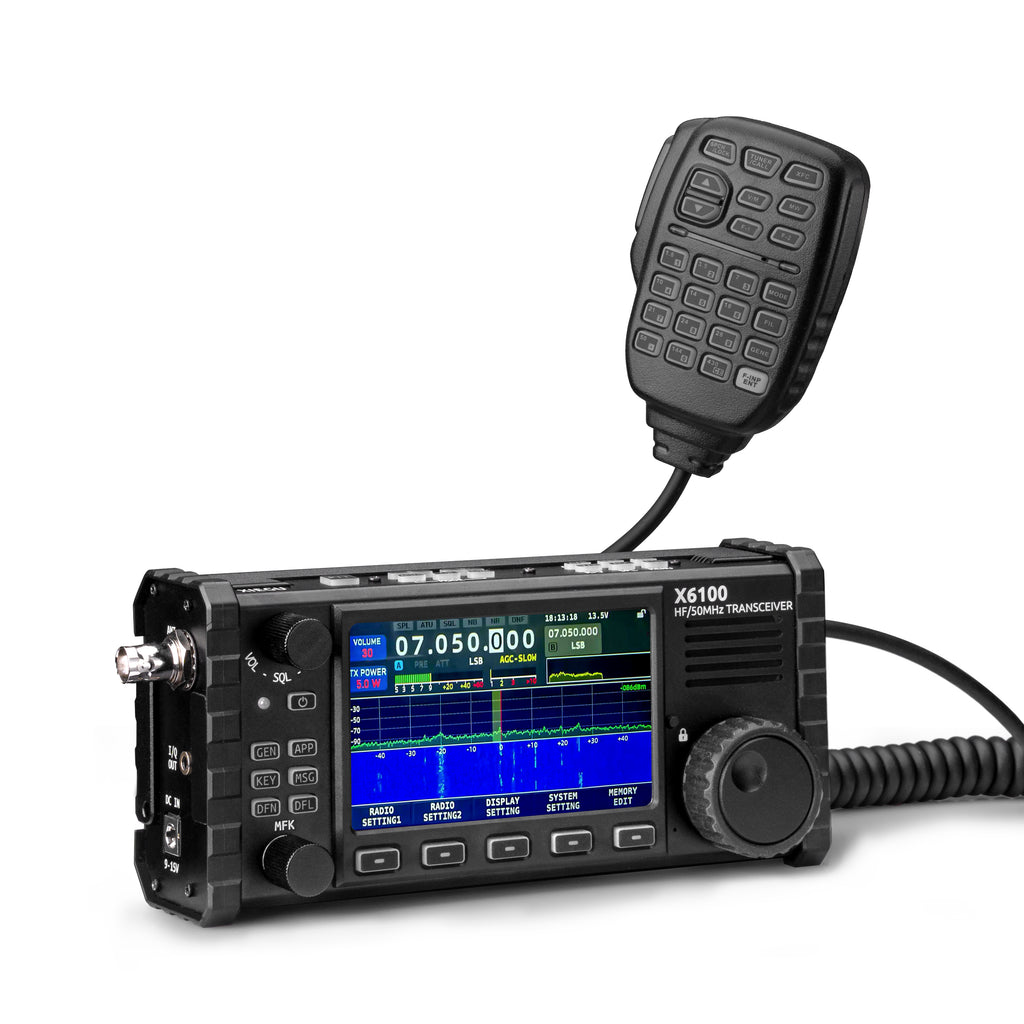

X6100 is an ultra-portable shortwave transceiver. It adopts the SDR software radio platform architecture of excellent performance, which carries powerful baseband and RF unit, integrating rich and diversified operating functions, bringing you a brand-new recognition and experience on amateur radio. With its compact structure and tiny appearance, you can immediately set forth on a journey with it, get close to nature and enjoy the fun of outdoor communication.
- SDR Structure
- HF/50MHz Full Mode (supporting data communication)
- Transmitting Power: External power supply: 10W | Battery power supply: 5W

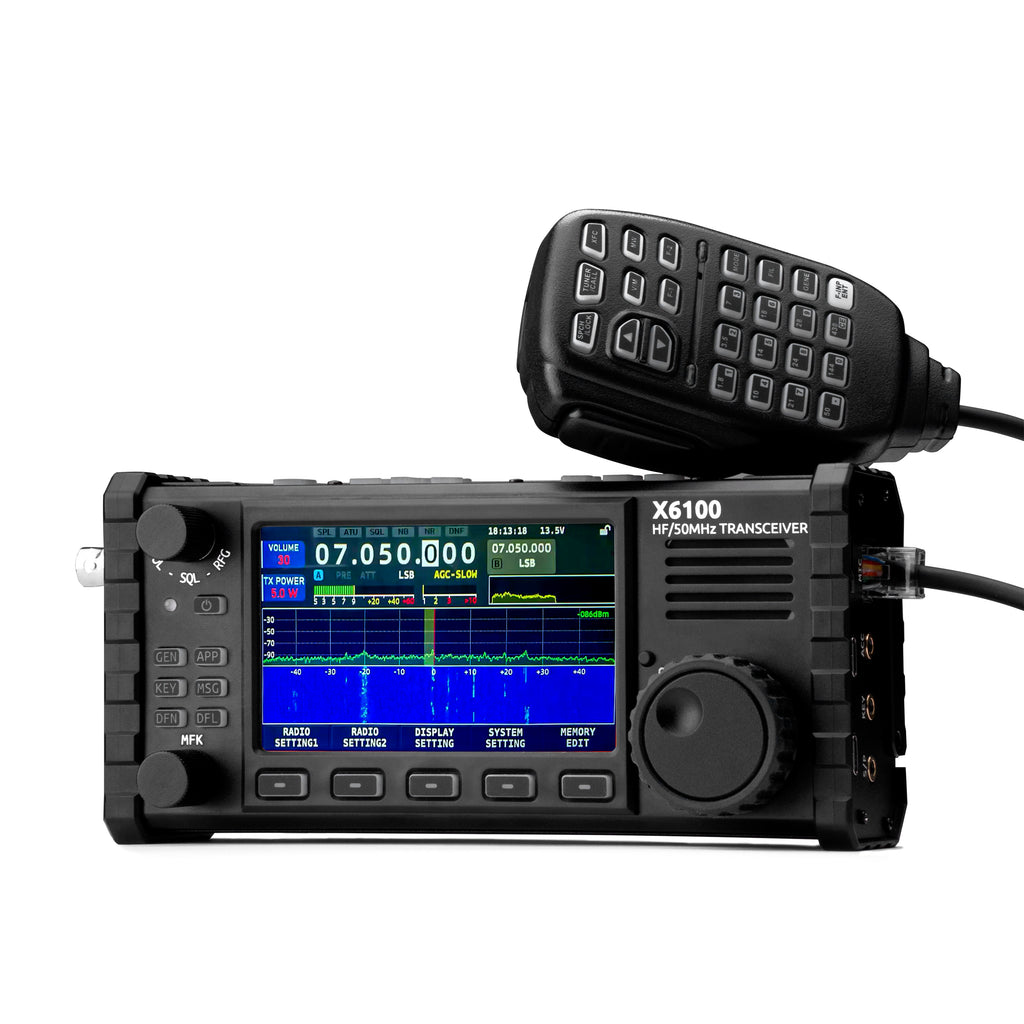

- 4" (3.46 x 2.13in) High-resolution Color Screen, 800*480
- Built-in 3000mAh Rechargeable Lithium Battery

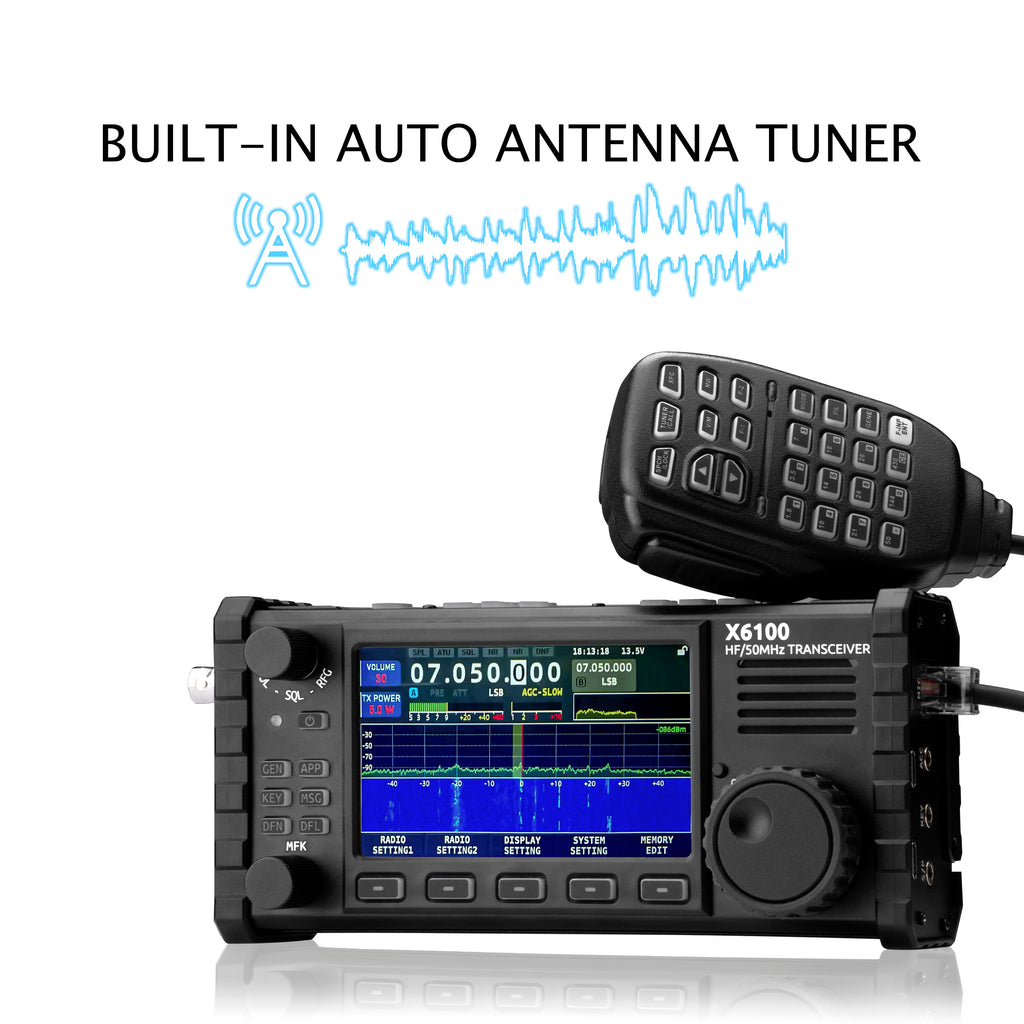

- Built-in Automatic Antenna Tuner
- Integrated SWR Scanner & Voice Call
- Integrated Modem, Preset message, CW Automatic Call
- Built-in Bluetooth/Wifi function, enable wireless audio/keyboard/mouse operation
- Integrated USB control/transmission, supports USB HOST
- Built-in high-stability TCXO internal clock source
Frequency Receiving: 0.5MHz~30MHz | 50MHz~54MHz
1.8～2.0MHz | 3.5～4.0MHz | 5.3MHz (60 Meters)
7.0～7.3MHz | 10.1～10.15MHz
14.0～14.35MHz | 18.068～18.168MHz
21.0～21.45MHz | 24.89～24.99MHz
28.0～29.7MHz | 50.00～53.99MHz
Operation Mode: USB/LSB (J3E), CW (A1A), FM (F3E), RTTY(F1B), AM (A3E)
Minimum Frequency step: 10Hz
Frequency Stability: ±1.5ppm
External Power Supply Voltage: DC 9.0V~15.0V, negative ground
Frequency Stability: ±1ppm (20 minutes after start)
Antenna Port Impedance: 50Ω
Antenna Interface Type: BNC
Working Temperature: 0℃～+55℃
Transmission power: External power supply: 10W | Battery power supply: 5W
Current consumption: Standby: 330mA (Max) | Transmit: 3A (Max)
Overall dimensions: About 7.1*3.4*2in | 180*86*49mm
Weight: about 1.94lb | 880g (host only)
10W (SSB/CW/FM) @13.8VDC | 5W @battery
2.5W(AM) @13.8VDC | 1.5W @battery
Stray Suppression: 1.8~29.6MHz: ≥50dB | 50~54MHz: ≥60dB
Sideband Suppression: ≥50dB
Microphone Impedance: 200~10kΩ (600Ω in general)
Circuit Type: ZIF
Sideband Suppression: ≥50dB
|50.0 ~ 54.0MHz||0.20uV||0.22uV||2uV|
Antenna tuner initial tuning time: ≤15s
Antenna tuner tuning read time: ≤0.2s
Wireless LAN standard: IEEE802.11b/g/n
Authentication and encryption: WEP (64/128bit)
Frequency band: 2.4G
Bluetooth version: 4.0
Note that the center pin is positive.
Note that as for the included power cable, the white one is positive and black one is negative.

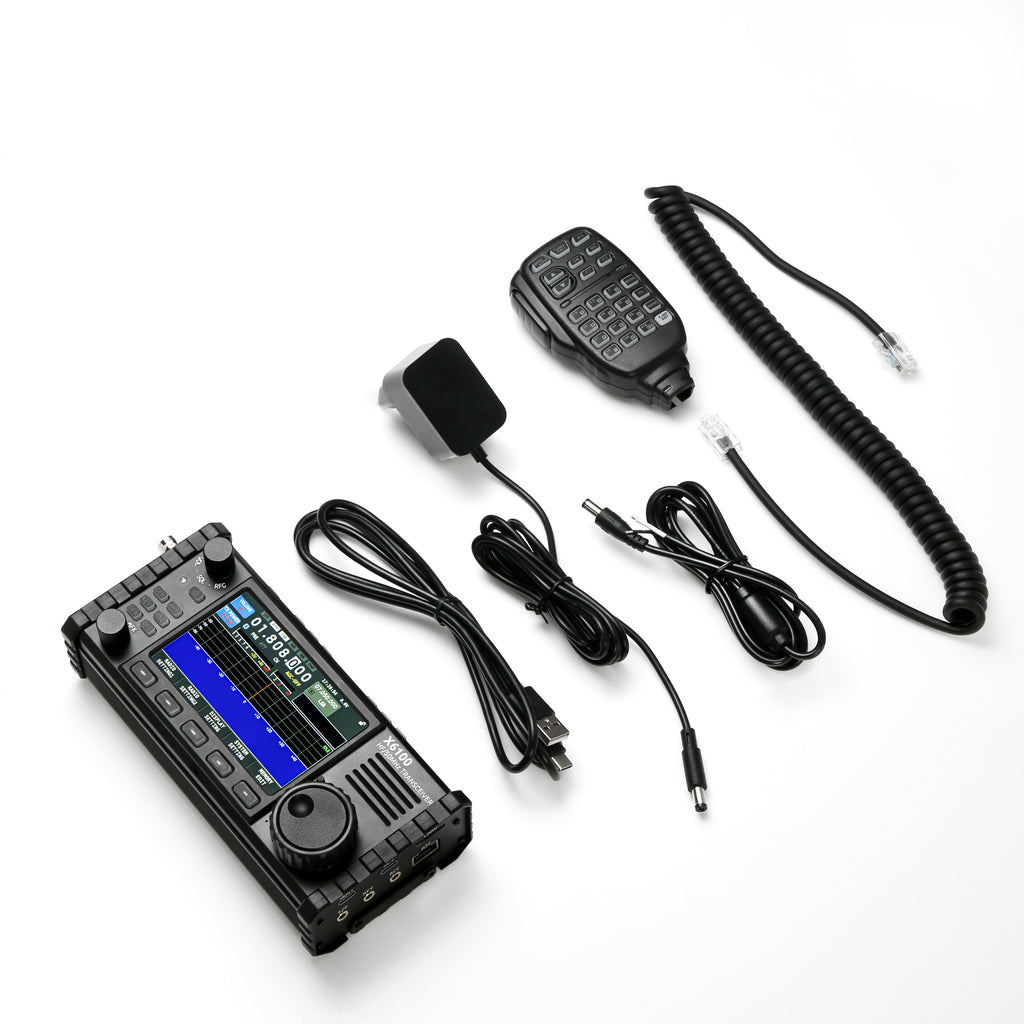

What’s in the box?
1 x Xiegu X6100 Transceiver
1 x USB Type-C Data Cable
1 x Multi-function Speaker Mic
1 x Power Adapter
1 x Charging Cable
1 x User Manual
How to connect X6100 to XPA125B Amplifier?
X6100 can expand the output power to 100W when connected to the XPA125B power amplifier through a L4001 cable (not included).
After connection, X6100 can automatically control the band switching of XPA125B. At the same time, ALC control will be established between the two machines. When the power output from X6100 to XPA125B exceeds the limit, it will be automatically reduced, so that the output power of XPA125B is constant at about 100W.
We recommend you set the output power of X6100 to ≤2.5W to protect the power amplifier equipment.
